ACM-K5A Stainless Steel Door Release ButtonACM-K5A Stainless Steel Door Release ButtonACM-K5A Stainless Steel Door Release ButtonACM-K5A Stainless Steel Door Release Button

ACM-K5A Stainless Steel Door Release Button

  • Model number: ACM-K5A
  • Product name: Door switch Stainless steel hexagonal exit button with push-button opening
  • Input: DC12V
  • Dimensions: 115 * 40mm
  • Output contact: NO / NC / COM
  • Detection range: 0.1 ~ 10 cm
  • Operating temperature: -20 ℃ ~ + 55 ℃ (14-131F)
  • Suitable humidity: 0-95% (relative humidity)
  • Suitable for door: empty door
  • Weight: 0.15 kg
  • Application: gate / door / exit / automation control
Product description

Door control switch in stainless steel Slim Exit Open release control button

1. Aluminum panel with elegant style

2. Tested on 500,000 cycles

3. Three contact exits, suitable for all types of locks

4. The best choice for access controls in all forms.

access control exit button Technical specifications:

Product parameter
Parameter description
dimensions
115 * 40 (mm)
Entrance
DC12V
Contact evaluation
12-28V, 3A
Exit contact
NO / NC / COM
Mechanical life
500000 tested
Suitable for door
Empty door
Operating temperature
-20 ℃ ~ + 55 ℃ (14-131F)
Suitable humidity
0-95% (relative humidity)
Detection field
0.1-10cm
Weight
0.15kg

exit button access control Advantage:

· Application: gate / door / exit / automation control
·· High dry contact capacity of the relay (3A / AC120V, DC30V)
· Normally open / normally closed / common exit
· Twin LED indicators for sensor waiting or approach:
(1) Sensor standby: BLUE LED ON
(2) Visitors who approached the sensor in 10 cm: RED LED ON

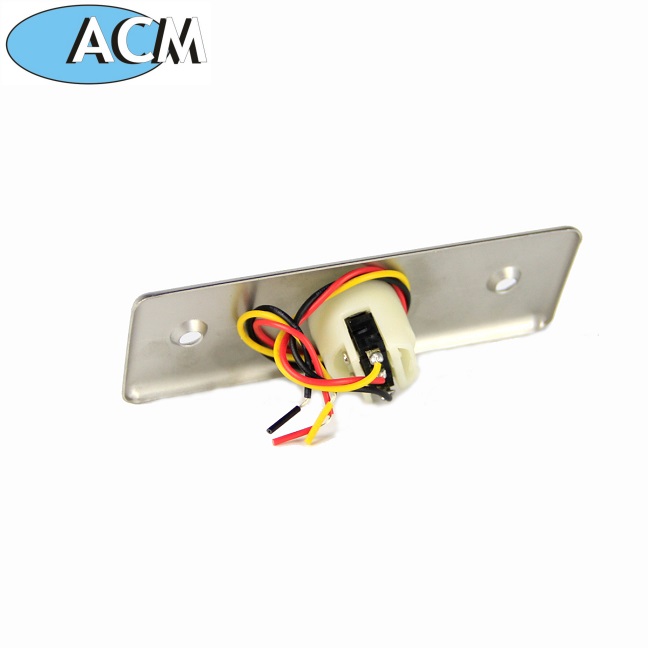

Detailed images



+ 12V
+ 12V
NO
COM
NC
RED
BLACK
YELLOW
WHITE
ORANGE
Application

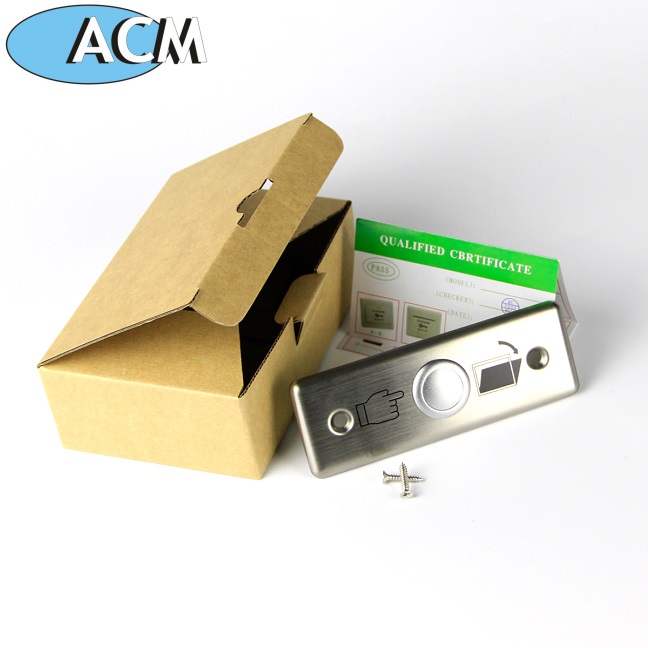

Packaging & Delivery

Type of unit: piece

Package weight: 0.3 kg

Packaging: 10cm x 10cm x 8cm


Shipping method


We are one of the leading exporters of RFID products in China for 2000 years. With a rich international business experience, we know international shipping very well. We know which express or air / sea line is cheap and safe for your country. We can supply various certificates for you to clean your habit to that CO, FTA, form F, form E ... Ect. We will provide our professional shipping suggestion. EXW, FOB, FCT, CIF, CFR ... the commercial term is ok for us. We can be your reliable partner for products and shipments.

Your may need

We can supply many types of door switches. Touch, No touch, glass break, key switch. Click on photo to find more details. Or feel free to send us a request to ask for the price list.




Exit button on the Real Touch port

K2B: 86 * 86mm



Real Touch door exit sensor without contact
K9A: 115 * 40mm



Door release button, (stainless steel, NO / NC) K5B: 86 * 86 mm




Door release button, (aluminum steel, NO), K4B: 86 * 86 mm



Hihg quality stainless steel Kirsite. K14B: 86 * 86 mm



PUSH door release button in stainless steel; K815B: 86 * 86 mm

Our service

1st Any request will be answered within 24 hours

2, professional manufacturer and supplier, welcome to visit our website and our factory
3, OEM / ODM available
4, high quality, fashin desing, reasonable & competitive price, fast lead time
5, after-sales service:
1), all the products will have been strictly checked at home before being packed
2), all products will be well packed before shipment
3), all our products have 2-3 years warranty if the damage is not caused by human
6, faster delivery : About 1 ~ 5 days for sample order, 7 ~ 30 days for bulk order
7, payment: You can pay for the order via: T / T, Western Union, Paypal
8, shipping: We have a strong collaboration with DHL, FEDEX, TNT, UPS, EMS, SEA Forwarders and By AIR, you can also choose your shipping forwarder.

FAQ

Q: 1. How can I place an order?

A: Please list your needs to us by e-mail. Then we will send the offer to you as soon as possible, after order confirmation, we will organize the production as soon as possible.

Q: 2. What about payment and shipment?
A: T / T, Paypal, Western Union.
Customers can choose by sea, air or express (DHL, FedEx, TNT UPS etc.)

Q: 3. How can I get a sample to check the quality?
A: We could supply the free sample to you and the freight cost paid by you.

Q: 4. How long can I expect to get the samples?
A: it depends on the quantity. Normally 3-7 days for 5000 pieces and 7-15 days for 100,000 pieces

Q: 5. Can your products be customized?
A: Almost all your products are customized, including the material, size, thickness and printing. OEM orders are highly welcome.

Q: 6. Are you a trading company or factory?
We are one of the largest manufacturers of RFID cards / NFC tags / RFID keybods / RFID bracelets, RFID readers and access control products in China for over 20 years.
