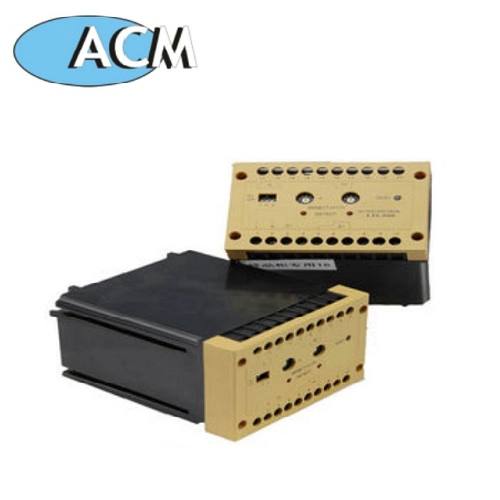

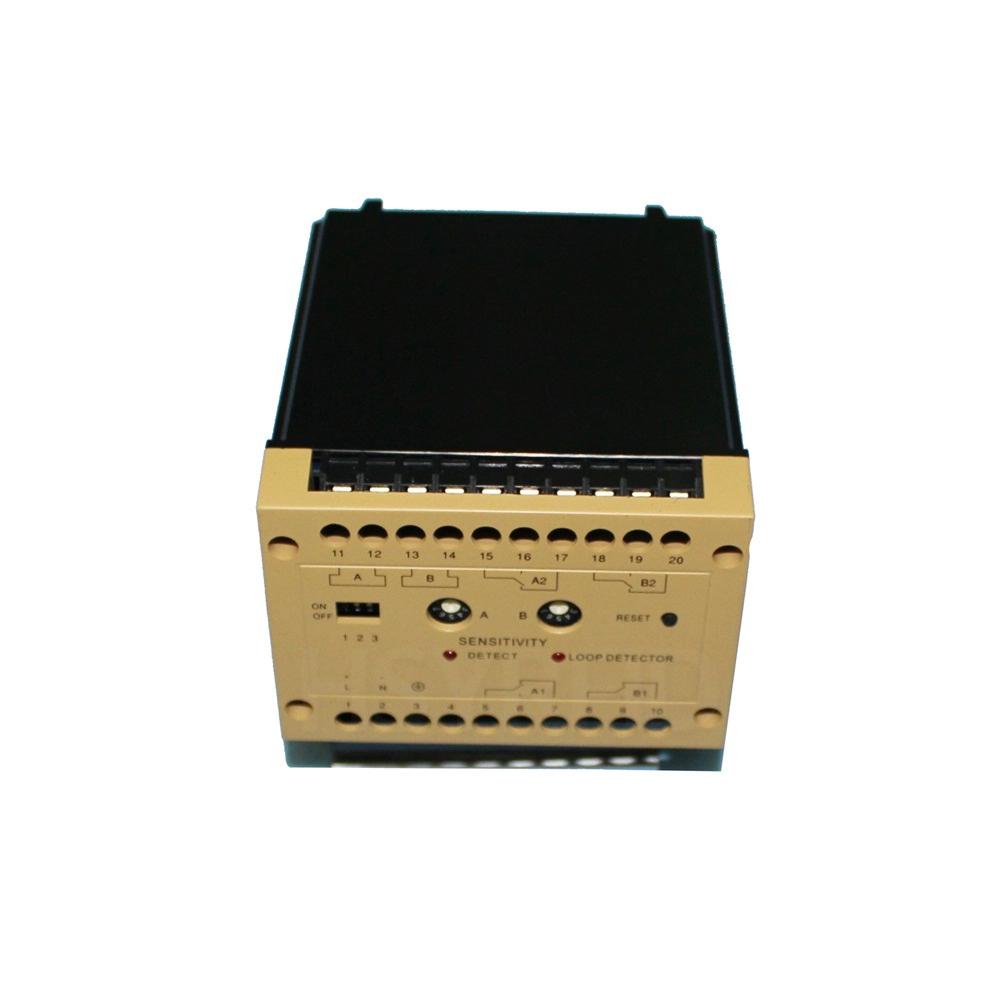

Auto Car Access Detection Double Vehicle Loop Detector

  • Model number:ACM704
  • Product name:Auto Car Access Detection Double Vehicle Loop Detector
  • Channel:double
  • Frequency range:20kHz to 170kHz (4 grades adjustable)
  • Operating voltages (Optional):220V AC±10%
  • Dimensions:110*60*100 mm (L*W*H)
Product Description

Auto Car Access Detection Double Vehicle Loop Detector

1. Compatible with parking management system.
2. Easy installation and operation.
3. Connects one inductive loop (single channel).
4. Application for Parking lot entrances Vehicle detection, Parking lot space information acquisition system, Electronic police traffic lights snap shot system, Traffic monitoring system etc.
5. Safe, beautiful, economic, comfortable.

Product Parameter
Parameter Description
Type
Double Channels
Supply voltage
AC: 220V, 110V, 24V, 12V
Sensitivity
adjustable in 3 increments (high. medium. low)
Operating temperature
-20 to +65
Storage temperature
-40 to +85
Frequency range
20 KHz to 170 KHz
Loop connection wiring
Maximum length 200 meters
Dimension
110 x 60 x 100mm
Detailed Images

Future:
Industrial engineering design concept
Standard industrial guide installation
Strong anti-jamming ability and stability
Variety of output interface adapted to different scene
Variety of shape choice meet differentiation demand
High temperature stability
Environment drift automatic compensation function
Coil automatic fault detection function

Loop detectors are used wherever vehicles have to be detected. Like monitoring and safe guarding access ways for counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, road barriers, controlling traffic light systems in car parks or activating card dispensers in car parks.

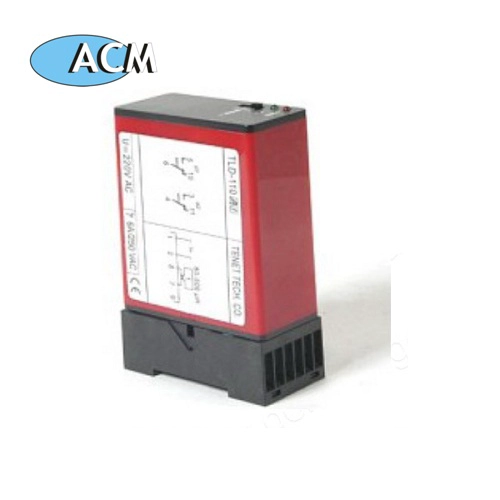

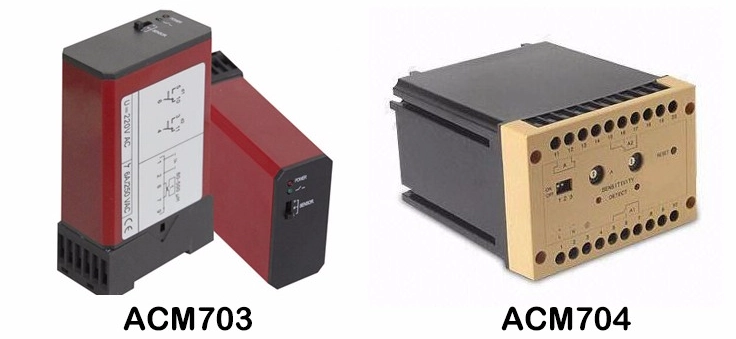

The ACM703 is a single channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use due to the automatic calibration when the operating voltage is applied.
