Best price EM card lock reader fingerprint biometric RFID door gate access control system

  • Place of Origin: Guangdong, China
  • Brand Name: ACM
  • Model Number: ACM-209F
  • Product Name: fingerprint reader scanner biometric door keypad access control
  • Power Supply: 12VDC
  • Pin Length: 4-6 digits
  • Dimension: 128*48*26mm
  • Housing: Metal
  • Fingerprint sensor: optical sensor
  • Communication: WG26
  • Resolution: 500DPI
  • Keywords: Door access control, Security systems, 125khz Rfid Card Reader
  • Type: Rfid Door Access Control System/ password / IC card
Product Description

Metal case waterproof fingerprint reader scanner biometric door keypad access control



ACM-209F supports fingerprints and Pin code, with precise electron circuit and good productive technology,

which is the metal Case and Acrylic panel structure machine of fingerprint & password access.

Product Parameter
Parameter Description
Voltage
12VDC
Pin User capacity
2000
Fingerprint capacity
1000
Communication
WG26 interface
Size
L137 x W58 x H26 (mm)
Reading time
≤0.1s
Reading Distance
2~6cm
Working temperature
-30°C ~ 60°C (-22°F ~ 140°F)--Default
Working huminiture
20%RH ~ 90%RH
Wiring Connections
Relay output, exit button, alarm, door contact, Wiegand output
Advantage

1.completely independent access control, directly through the fingerprint to achieve
password, pin code management and other functions.

2.supports Wiegand 26 output&input, can be used as a card reader.

3.Support 1000 fingerprints


4. Zinic Alloy material, surface waterproof function, interlocked function, explosion-proof anti-prying

5. Delete/add card or finger printing by master card

Product Show

ACM-209f is widely used in business organization, office, factory, housing district etc.
The product uses Admin fingerprints or pin code for programming, support fingerprints and password, easy to install and program.

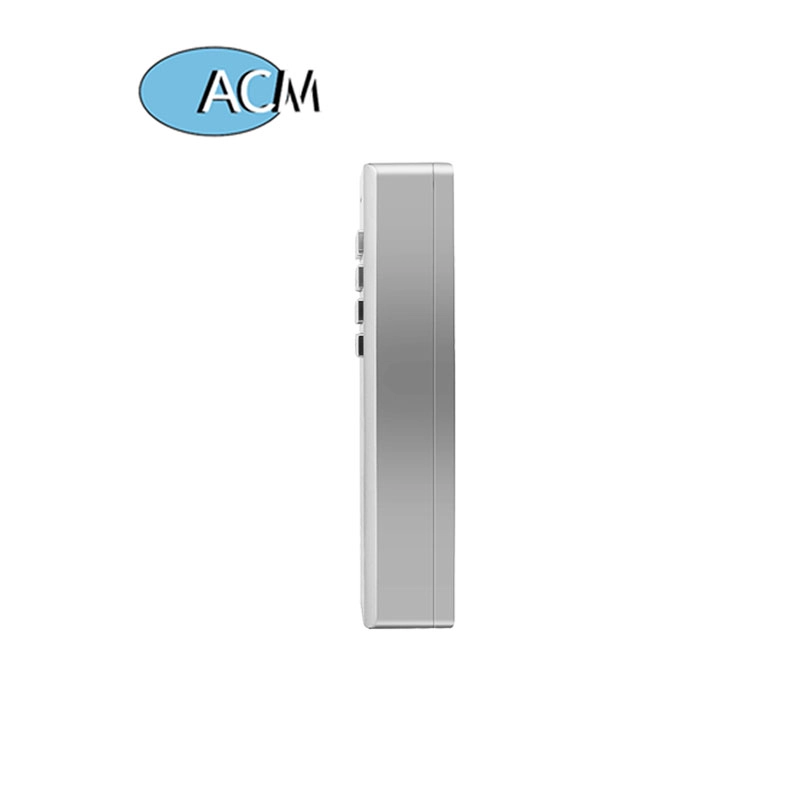

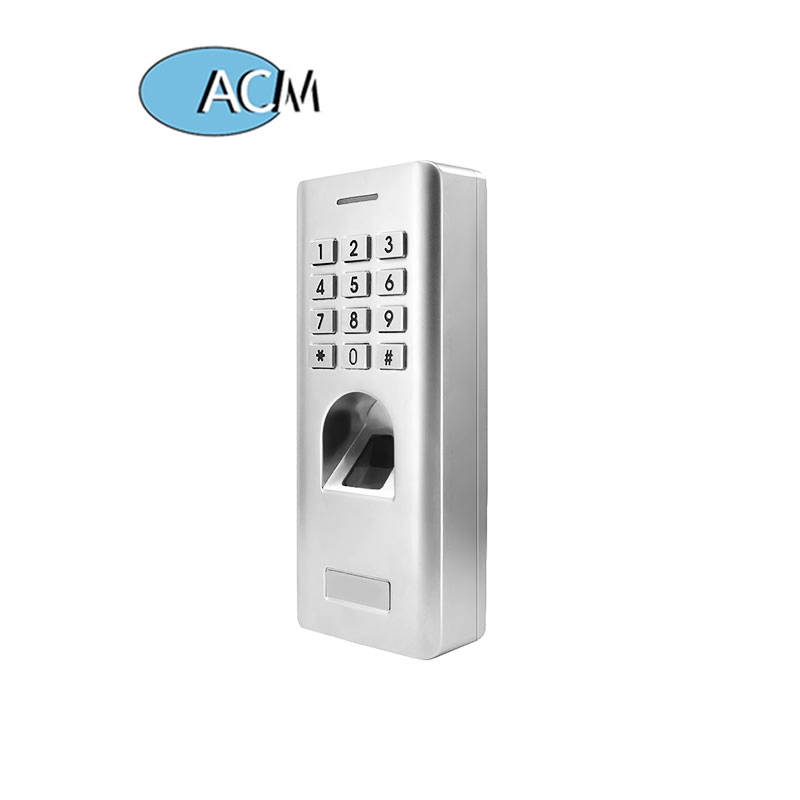

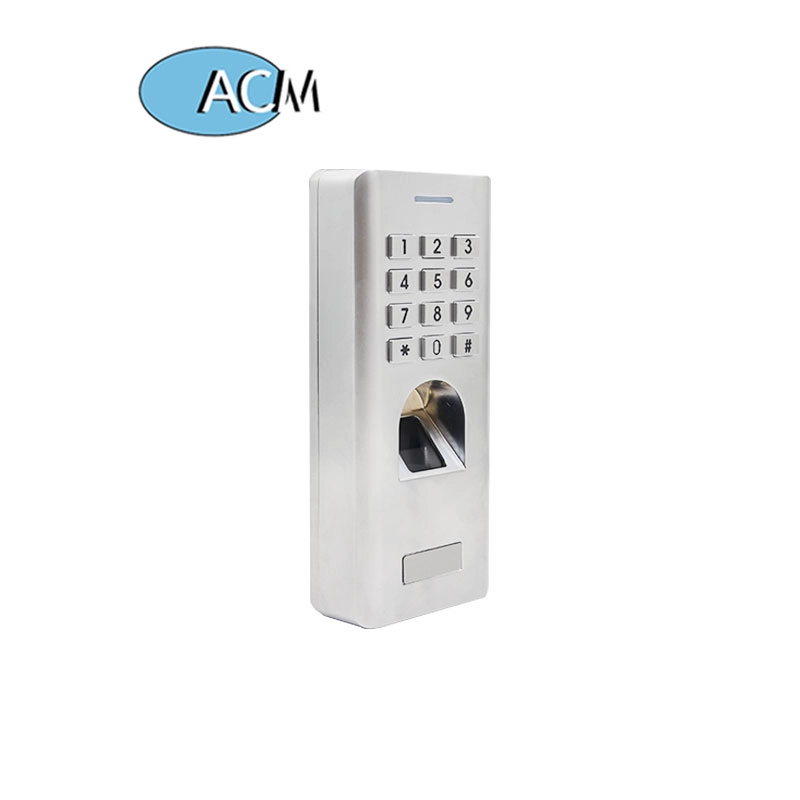

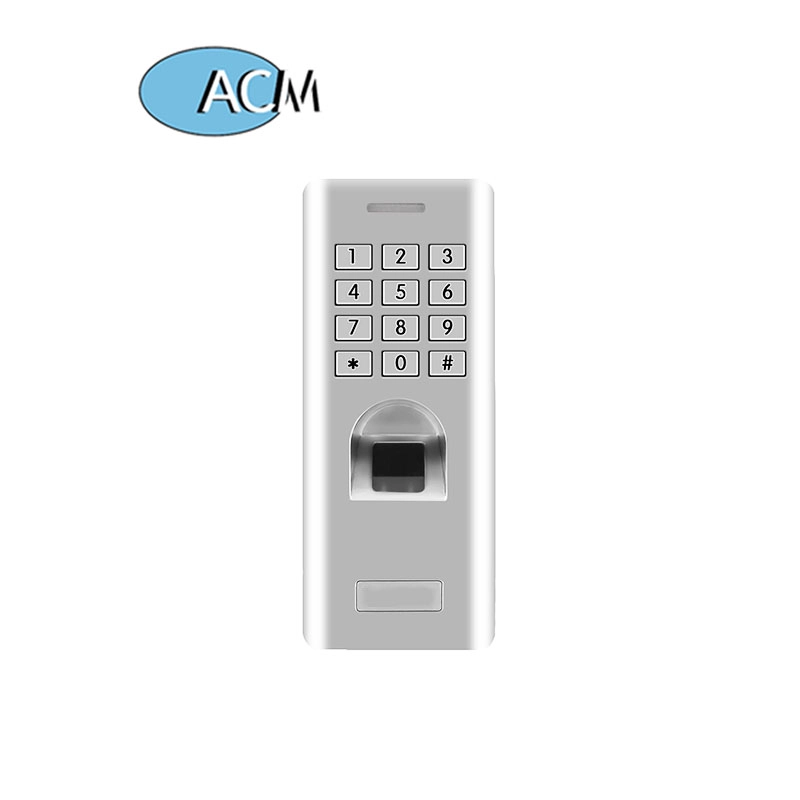

Detailed Image

Supports Wiegand 26 output, can be used as a card reader door access control
