Dependable performance Latch safety Electric Rim Night Latch Door LockDependable performance Latch safety Electric Rim Night Latch Door Lock

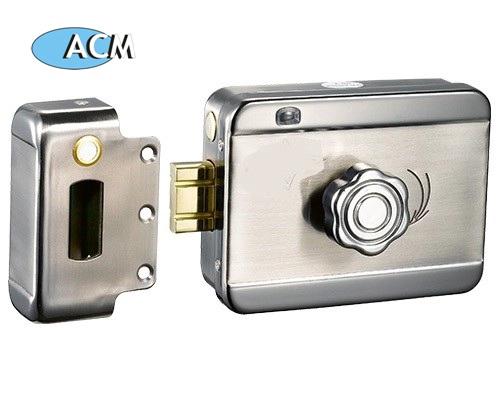

Dependable performance Latch safety Electric Rim Night Latch Door Lock

  • Model Number:ACM-Y060
  • Lock Size :130*98*41mm
  • Working  Voltage :12-18VDC
  • Working  Current : Over 100ma
  • Feature:with led
  • Guarantee: More than 200,000 times
  • Suitable For:Wooden Door,Glass Door,Metal Door,Glass Door
Product Description

Dependable performance Latch safety Electric Rim Night Latch Door Lock



single-end Electric Control Lock.can be opened by electric devices, turning the button or key.Suitable for right open door.It is highly secured and anti-theft.It also can avoid the someone to open the lock with other tools.

Product Parameter
Parameter Description
Face Plate
126×105×41mm
Working current
Over 1.5A
Signal to open the door
LED
Current
12-18V DC
Feature
Power to unlock
Lifetime
More than 200,000 Times
Opening lock time
≤1s
Remote controlled distance:
within 7m
Certification:
CE /MA
Product Feature

1. Uses nice control system and automatically lock door byinduction
2. If customer's want to replace general electric lock, timesaving, convenient, because hole of installation lock isconsistent
3. There is no direction restriction, left, right, inside andoutside and all kinds of other direction also apply
No shock, automatically reset, low noise, low power consumptionand small requirements for door closer
4. Lock size: 126×105×41mm
5. With feedback signal and LED light
6. Working voltage: 12 to 18V
7. Working current: 1.5A



Detailed Images , OEM/ODM available.

Our electric control lock has used most advanced production skills and best production technologies.

The lock can be opened by electric devices, turning the button or key. It is highly secured and anti-theft. It also can avoid the someone to open the lock with other tools.
This lock can be used for the gates of residential buildings, especially the public door of the residence, governmental buildings, schools, hotels, factory warehouse etc. It also compatible with electric control door.

The coil inside the lock is flame proof. It will not be on fire when operating a long time.if power on but the lock can not function, please check the installation or send it to the agent to repair.

The internal structure of this lock has been improved which will prevent from opening the lock by knocking on it. this will make you safer.

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.

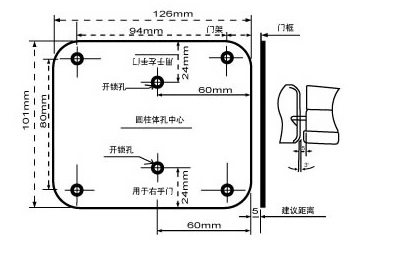

Instalation Diagram
Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.


Packaging
Magnetic Lock packaging: 1unit per box, 10pcs per carton,
Carton size : 26*26*10cm , Gross Weight :46kg. 50 cartons per pallet
