Goldbridge ip67 waterproof outdoor application 900mhz uhf rfid reader antenna

  • Quick Details
  • Place of Origin:Guangdong, China
  • Brand Name:ACM
  • Model Number:ACM-902A
  • Product Name:uhf rfid antenna
  • Size:260*260*45mm
  • Function:Parking, Hospital, Library, Company, Bank, Store, Warehouse
  • Protocol:ISO18000-6C(EPC C1G2) , ISO18000-6B
  • Frequency:865~868MHz/902-928MHz
  • Material:ABS
  • Gain:8dBi
  • Polarization Type:Circular
  • Connector type:N-female
  • Color:White


Product Description

polarization 860-960mhz RFID UHF 8dBi circular antenna

8DBI UHF Antenna 2-6METER, Frequency optional 902-928MHz or 860-868Mhz

Electrical Specifications
Freq Range(Mhz)
865-868/902-928
Polarization
HCP
Gain
8
F/B Ratio
≥20
VSWR
≤1.4
Max Power
100W
Lightning Protection
DC ground
Mechanical Specifications
Connector
N-female
Connectorposition
Bottom
Size (mm)
260*260*45mm
Packing size (mm)
300*290*100mm
Antenna weight (kg)
1.2KG
Packing weight (kg)
1.35KG
Wind loading area (㎡)
≤0.2
Rated wind velocity (m/s)
60
Reflector material
Aluminum
Radome material
ABS
Radome color
White
Operating Temperature (℃)
-40-70

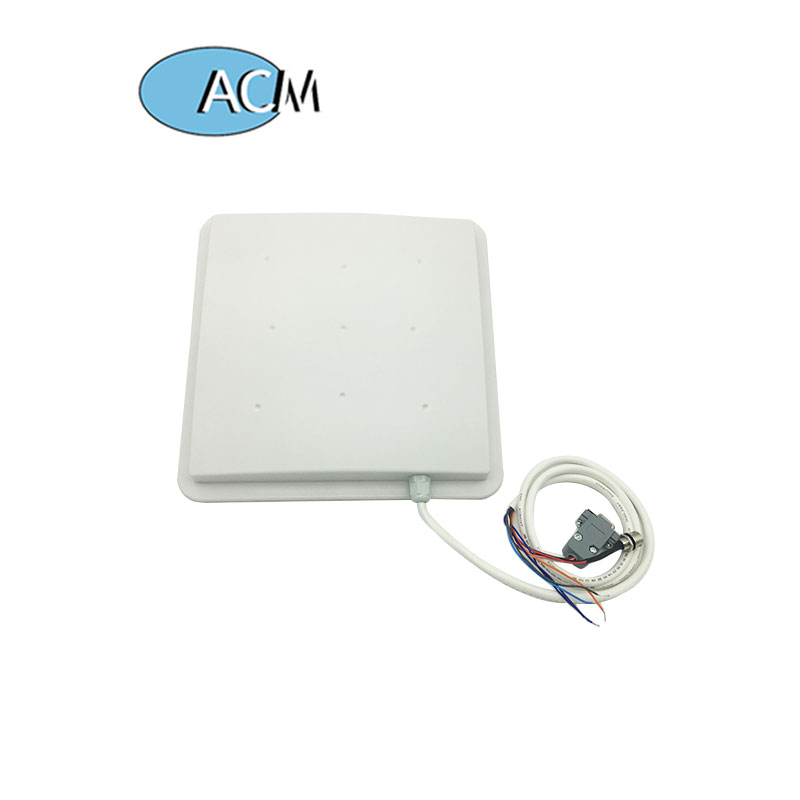

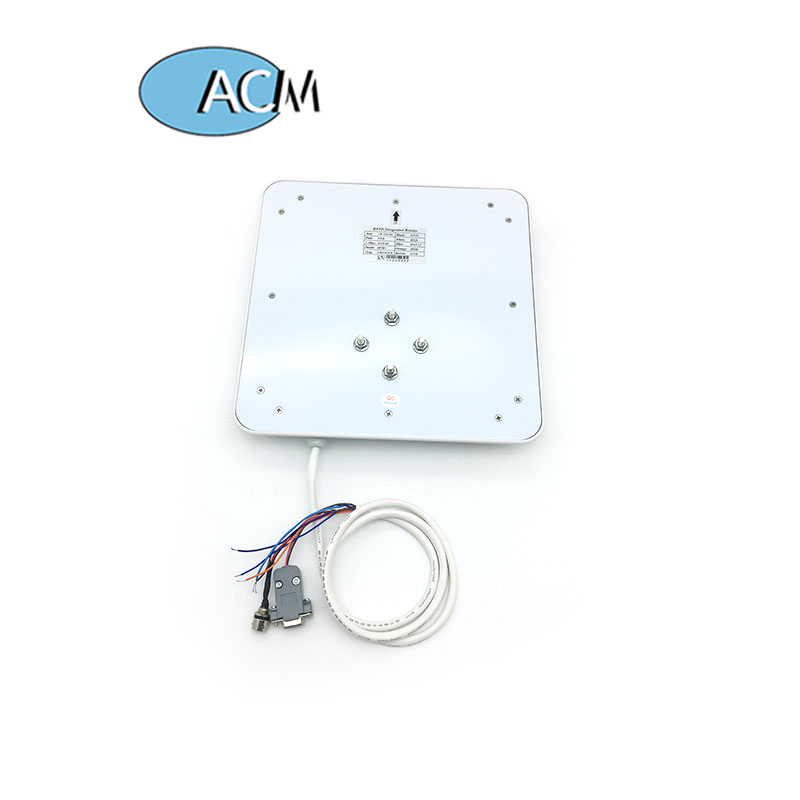

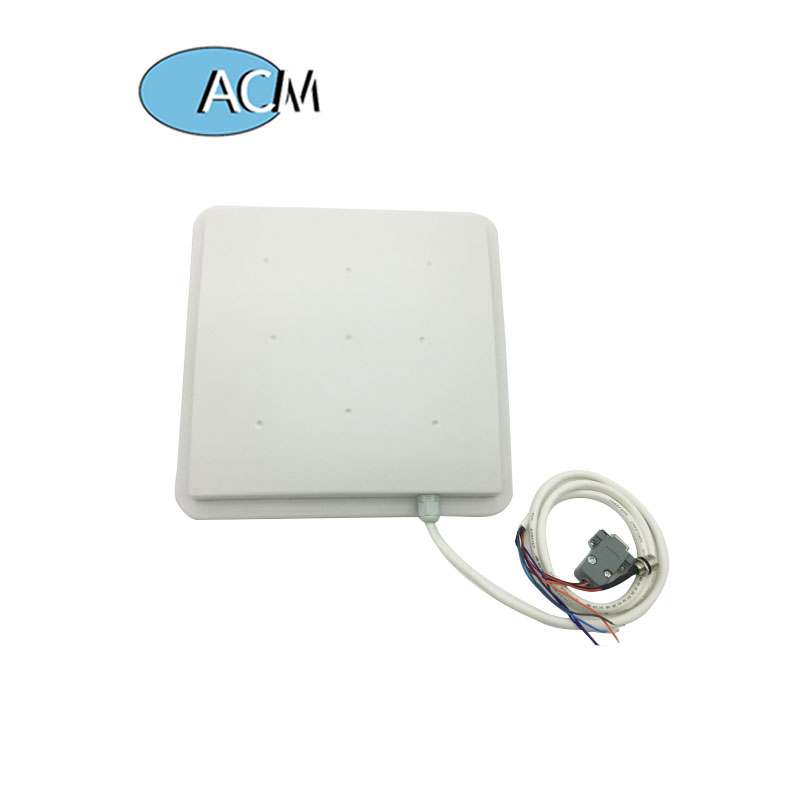

Detailed Images
Packing & Delivery

Packaging and delivery Details:


Package: One piece in one box

Port: Shenzhen or Hong Kong?

Lead time: 3~7 days after the order confirmed


We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below.

We are looking forward to forming successful business relationships with new clients around the world in the future.

Shipping Way

We are one of the leading exporter of RFID products in China since 2000 years . With rich international trade experience we know the international shipping very well , We know which express or air/sea line is cheap and safe to your country . We can supply various certificate for you to clean your custom to such as CO , FTA , Form F , Form E ...Ect . We wil provide our professional suggestion for your shipping . EXW , FOB , FCT , CIF , CFR ...trade term are ok for us . We can be your reliable partner for products and shipping .?


Related Products

  We are Professional uhf reader manufacturer , Except the ACM812A , we also can supply ACM802A , ACM818A , ACM801A . The main difference of them are the reading distance . Also , ACM801A can be used to read multi-tag(200 pcs at one time ) . For more detail , please click following picture .

ACM812A
2-5m reading range UHF reader
Wiegand 26 output, RS232/485

ACM818A
10-20m long range UHF reader
Wiegand 26 output, RS232/485

ACM802A
8-10m reading range UHF reader
Wiegand 26 output, RS232/485

ACM801A
10-15m UHF reader
Wiegand 26 output, RS232/485

ACM 8017
UHF Handheld Reader
UHF+WIFI+GRPS

ACM 918K
UHF 4-Antenna Channel High Performance Fixed Reader
