ACM217-MF/ACM217-UHF USB UHF RFID Desktop Reader with Gen 2 for Write tag uhf rfid reader usbACM217-MF/ACM217-UHF USB UHF RFID Desktop Reader with Gen 2 for Write tag uhf rfid reader usbACM217-MF/ACM217-UHF USB UHF RFID Desktop Reader with Gen 2 for Write tag uhf rfid reader usbACM217-MF/ACM217-UHF USB UHF RFID Desktop Reader with Gen 2 for Write tag uhf rfid reader usb

ACM217-MF/ACM217-UHF USB UHF RFID Desktop Reader with Gen 2 for Write tag uhf rfid reader usb

  • Model Number: ACM217-MF/ACM217-UHF
  • Product Name: New 13.56 mhz smart ic card reader writer iso Hf UHF usb rfid reader
  • Antenna: Build-in circular polarization antenna
  • Read distance: 180 mm( read) / 80 mm ( write)
  • Communication: USB
  • Output power: 0~ 13 dBm ( Software adjustable)
  • Peripheral Equipment: LED, Buzzer
  • Interface: USB 1.1, cable length of 1 meter
  • Working model: Hopping FHSS or fixed
  • Power supply: DC 5V / 90 mA
  • Size: 105 mm( L) x70 mm ( W) x11mm (H)
Product Description

USB UHF RFID Desktop Reader with Gen 2 for Write tag uhf rfid reader usb

-ACM217 is high performance Multiple Protocol UHF/Mifare RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system
Product Parameter
Parameter Description
Model
ACM217 uhf reader writer
Interface
USB 1.1, cable length of 1 meter
Operation Mode
Fixed Frequency or FHSS or Software Programmable
RF Power supply
DC 5V / 90 mA
Built- in Antenna Type
Built-in small round polarization Antenna
Peripheral Equipment
LED, Buzzer
Output power
0~ 13 dBm ( Software adjustable)
Protocol
ISO18000-6C & EPCglobal Class I Gen 2
Anti-collision
Tag processing algorithm, multiple tags operation allowed
Software
Demo software, SDK, Dull

Product Advantages

--Self-intellectual property;
--Support UHF EPC Gen2(ISO18000-6C),ISO18000-6B protocol tags;
--Advanced tag processing algorithm, high identification rate;
--Built-in antenna with effective distance up to 180cm;
--Low power dissipation design;
--Optional USB interface;
--Provide DLL and Demonstration Software Source code to facilitate further development;
--Provide Pocket PC/ PDA demo source code

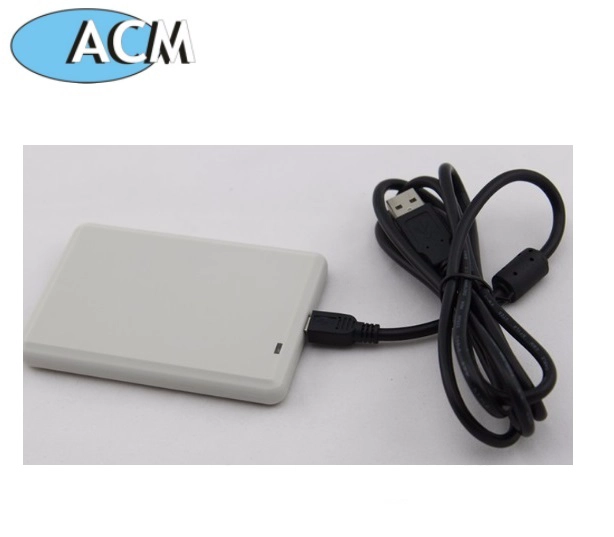

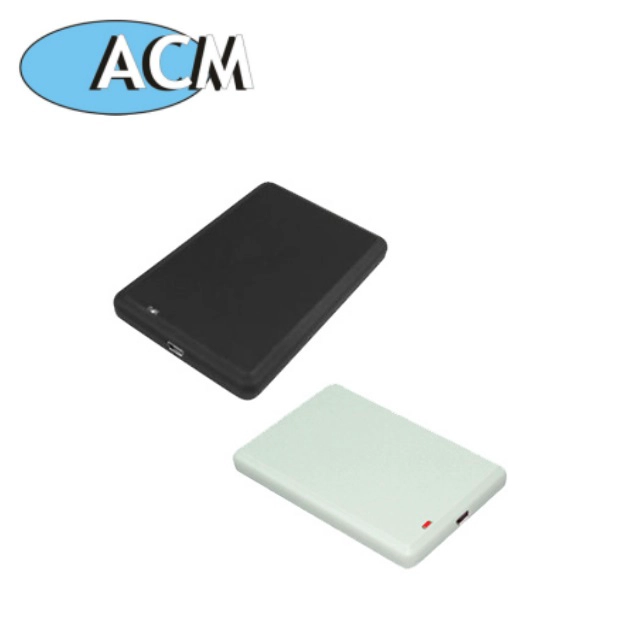

Detailed Images

Quality Warranty

 - Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.

Application

Step one : Connection reader with PC/laptop through usb interface
Step two: Open notepad or a word document, click mouse,
put card on the reader, the card number will output on the notepad or word document
