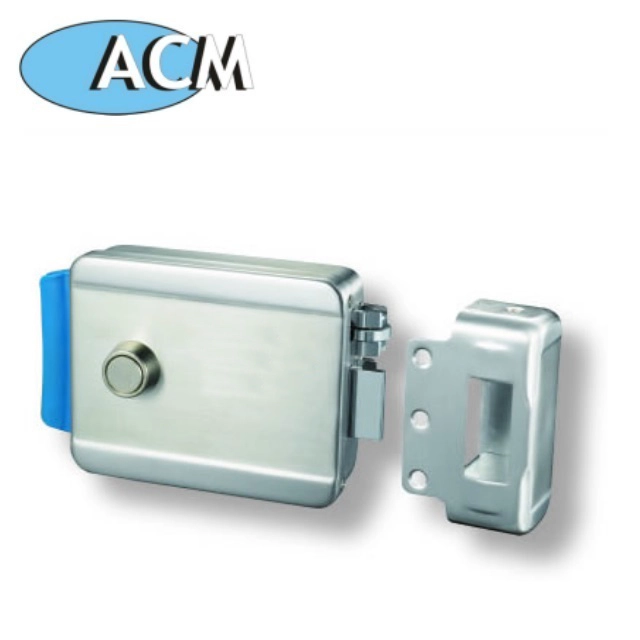

Bolt lock and latch lock in French style for wooden door lock

Bolt lock and latch lock in French style for wooden door lock

  • Model Number: ACM-Y090
  • Product: French style lock and bolt lock for wooden door lock
  • Feature: Fail-safe
  • Voltage: 12 / 24VDC
  • Electricity: 180-960mA
  • Working temperature: -10 to 55 degrees Celsius
  • Humidity: 0 to 95%
  • Induction distance: 13mm
  • Front panel: 125x98x36mm
  • Suitable for: wooden door, glass door, metal door, glass door
  • Keyword: Electric rim lock.intelligent lock
Product description
Bolt lock and latch lock in French style for wooden door lock


Single-End Electric Control Lock.can be opened by electrical devices by turning the knob or the key. Suitable for the right door. It is highly secured and theft proof.

product parameters
parameter Description
face plate
125 x 98 x 36 mm
shunt
About 100mA
Signal to open the door
LED
electricity
12-18V DC
feature
Single cylinder, reading card on two sides
lifespan
More than 200,000 times
Opening blocking time
≤1s
Remote controlled distance
within 7m
certification
CE / MA
Show product

properties

1. Uses a nice control system and automatically closes the door by induction
2. If the customer wants to replace the general electric lock, it is time-saving and convenient, since the hole of the installation lock is continuous
3. There is no directional restriction, left, right, inside and outside and other types of other directions
No shock, automatic reset, low noise, low power and low demands on the door closer
4. Castle size: 130x98x41mm
5. With feedback signal and LED light
6. Operating voltage: 12 to 18V
7. Working current: 100mA

Detailed pictures, OEM / ODM available More details for front / back and accessories

Our electric lock has used the most advanced production capabilities and the best production technologies.

The lock can be opened by electrical devices by turning the knob or key. It is highly secured and theft proof. It can also be avoided that the lock is opened with other tools.
This lock can be used for the doors of residential buildings, in particular for the public door of the residence, government buildings, schools, hotels, factory warehouses etc. It is also compatible with the electric control door.
The coil in the lock is fireproof. If the device is turned on but the lock does not work, please check the installation or send it to the agent for repair.
The internal structure of this lock has been improved, preventing the lock from opening by knocking. That makes you safer.

installation diagram
Packaging & delivery

dispatch

We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, forwarder from SEA and By AIR
You can also choose your own carrier.

packaging
Magnetic closure packing: 1 unit per box, 10 pieces per carton,
Carton size: 26 * 26 * 10cm, gross weight: 46kg. 50 boxes per pallet
