Hauptmerkmale

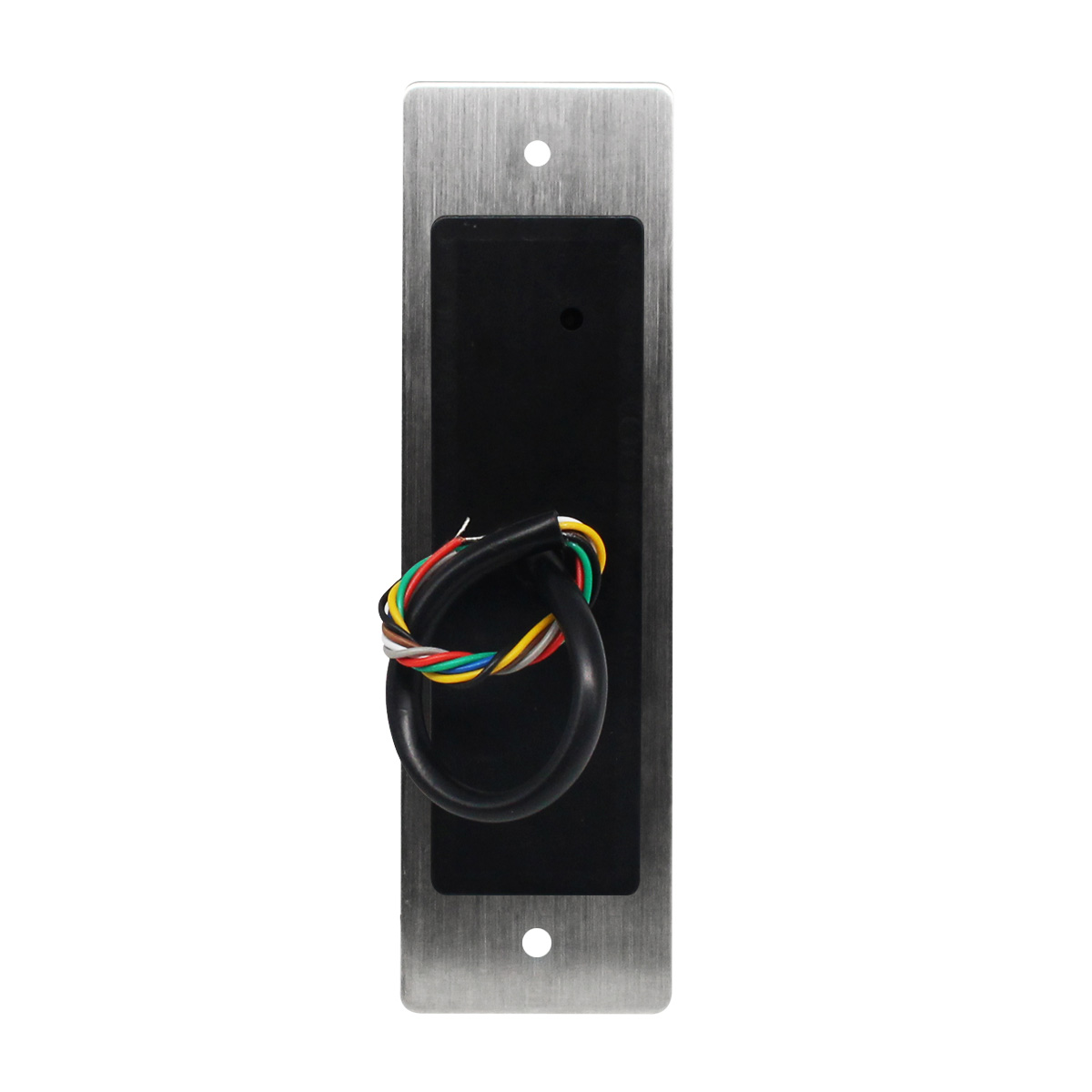

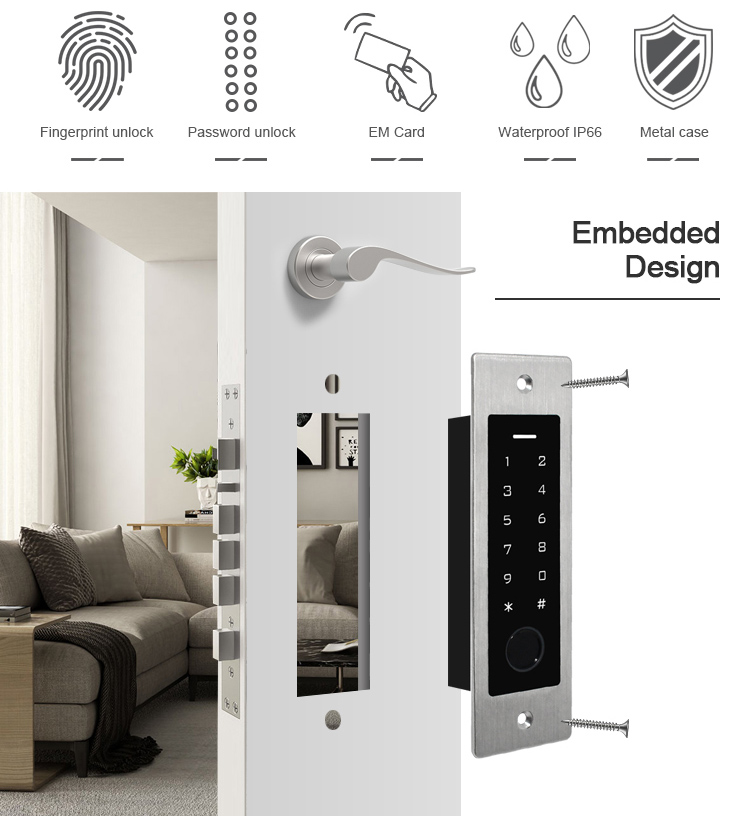

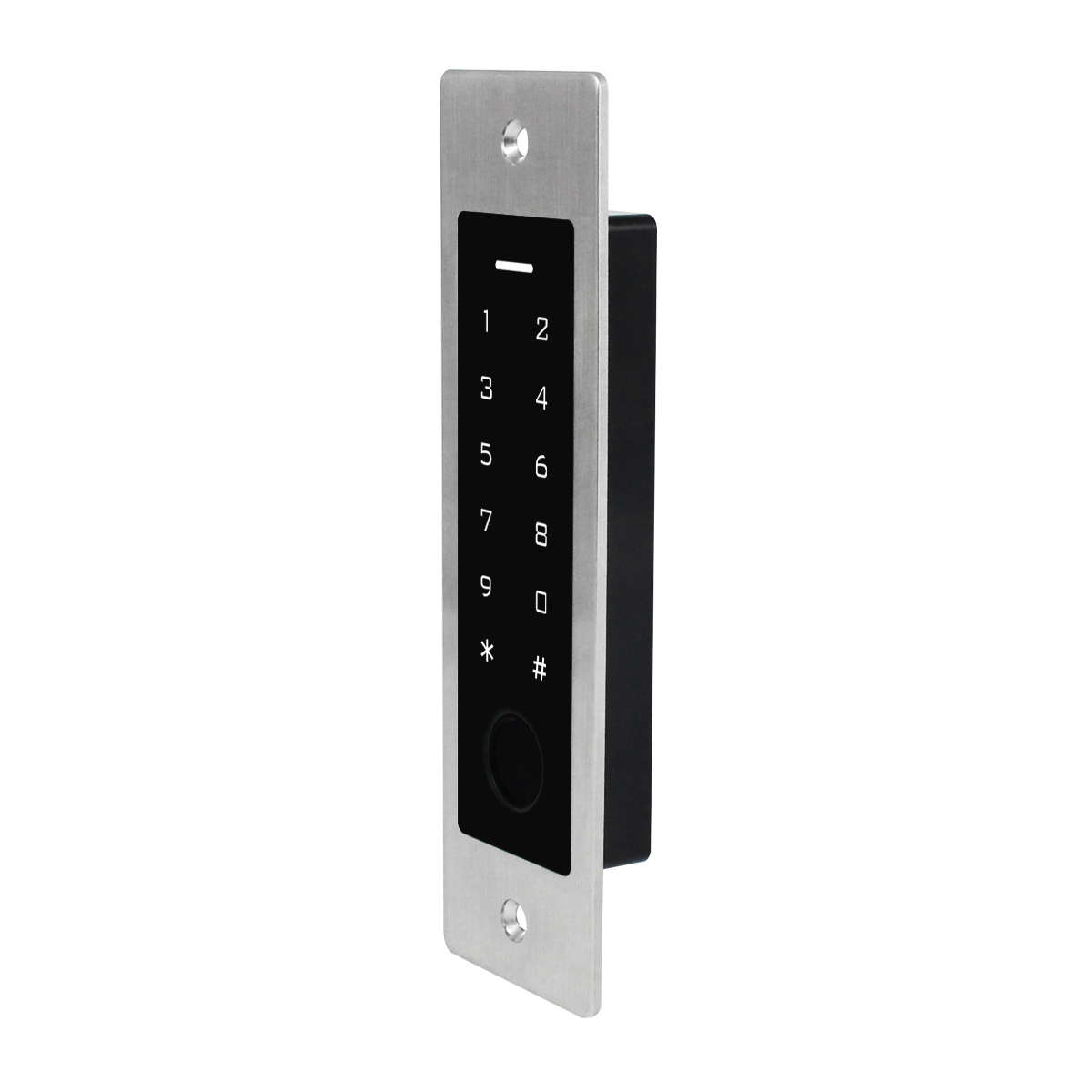

> Metal case, Embedded design
> WaterprOof, conforms to IP66
> One Relais, 2000 users, standalone
> Karte type: 125 kHz EM -Karte
> Working temperature: -40 oC ~ 60 oC
> Pulse mode, toggle mode
> Built in LDR for anti tamper
> Card block enrollment

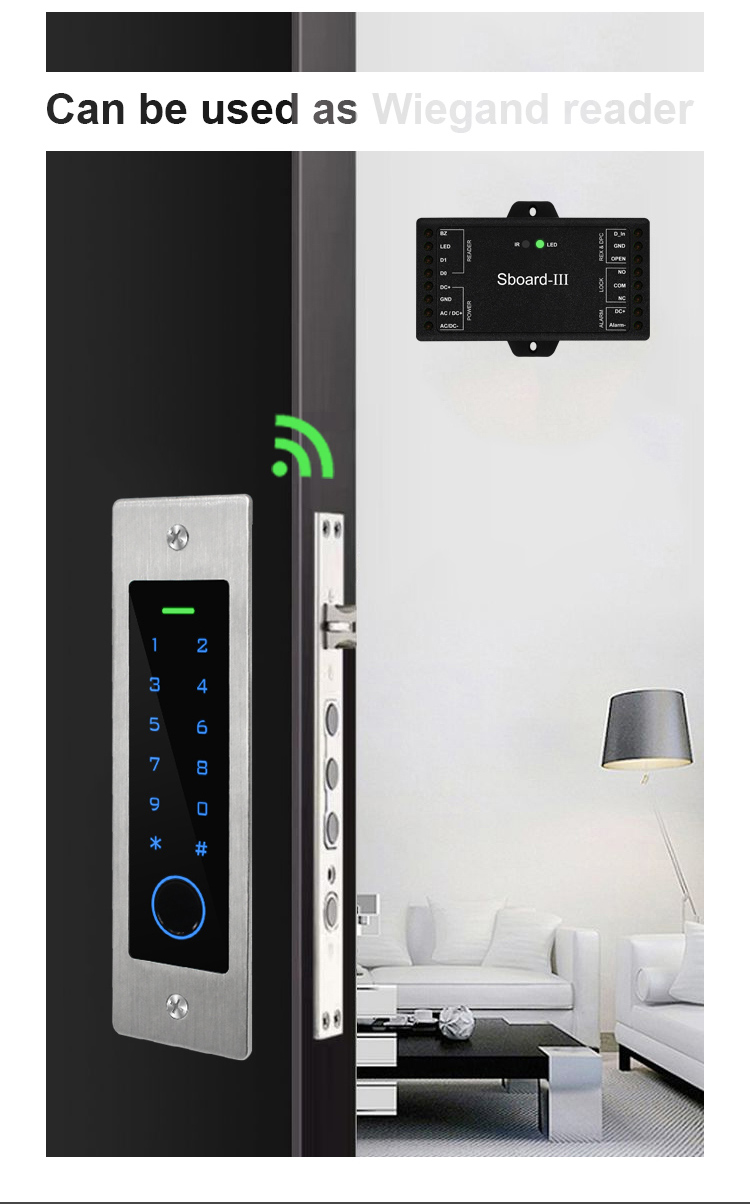

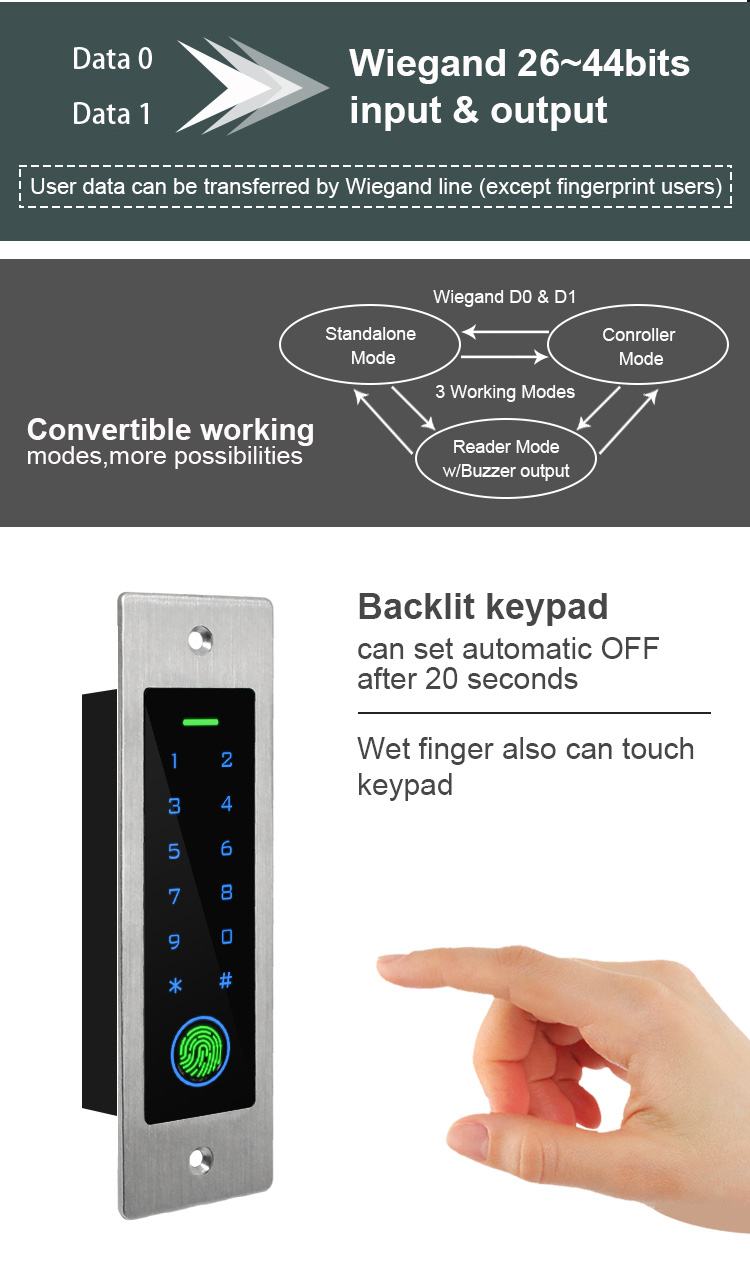

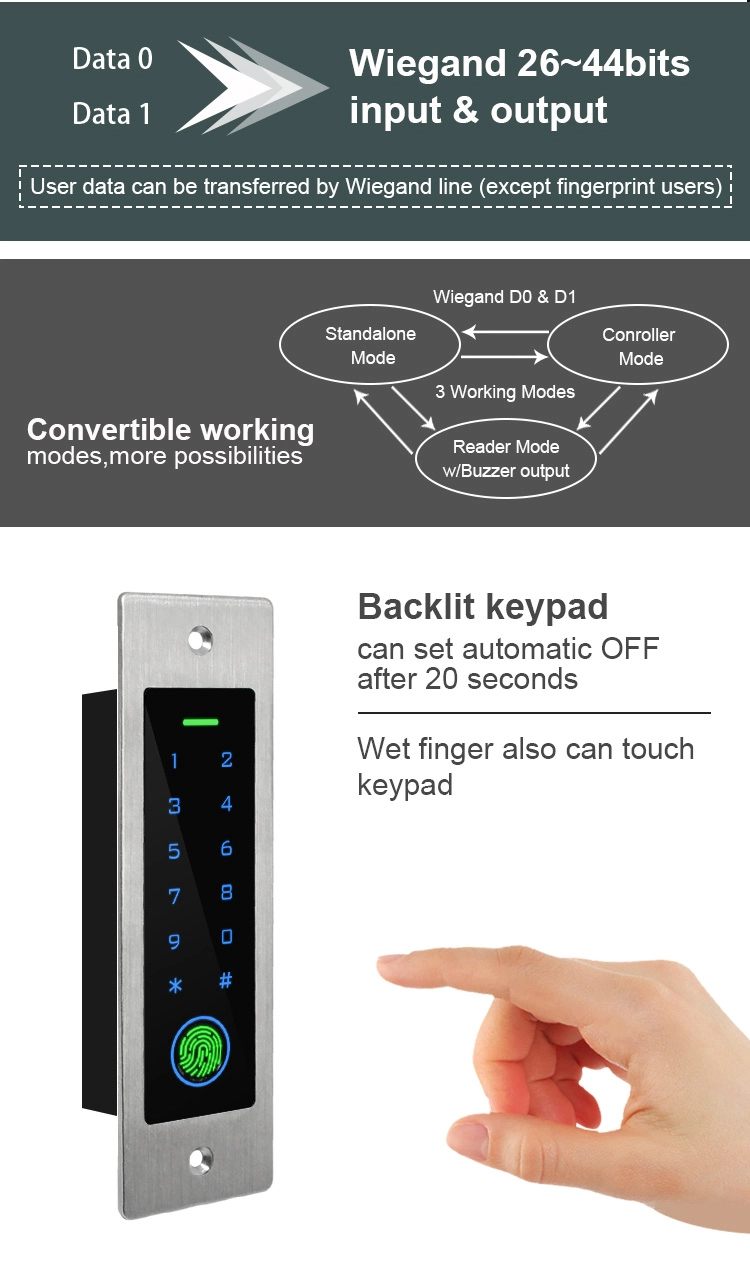

> Wiegand 26 bits output
> Wiegand 26/34 bits input automatic identification
Spezifikation
Benutzerkapazität Card |
2000 EM Card |
Betriebsspannung Leerlaufstrom |
12 ~ 24 V dc <50 mA |
Proximity -Kartenleser Radio -Technologie Lesebereich |
EM 125KHz 0 ~ 6cm |
Verkabelungsverbindungen |
Relaisausgabe, Button beenden, Wiegand (in & out) |
Relay Einstellbare Relaisausgangszeit Ausgangslast sperren |
Eins (nein, nc, gemeinsam) 0-99 Sekunden (5 Sekunden Standard) 2 Ampere maximal |
Umfeld Betriebstemperatur Betriebsfeuchtigkeit |
Trifft IP66 -40 oC ~ 60 oC (-40 oF ~ 140 oF) 20% rh ~ 98% relatis |
Physisch Farbe Abmessungen Einheitgewicht Versandgewicht |
Edelstahlplatte Silber & Schwarz 115x70x25mm 230g 270g |
