Product name::Exit Button Break Emergency Fire Alarm System Reset Switch
Input:DC12V
Output Contact:NO/NC/COM
Detection range:0.1 ~ 10 cm
Application:Gate/Door/Exit/Automation control
Aptional Accessories:Cover
Material Selection:Fireproof Material, Sandblast Finished
Color:Red /Green /White / Yellow Color Optional
Operating temp:10~+55(14-131F)
Size:90L x 93W x 45H (mm)More

Item NO.: Plastic coverMore

Model: ACM-K3F
Power Supply DC 12V ~ DC 24V ±5%
Operation current: DC 12V: 18mA(standby) / 75mA(operation) ±5%;   DC 24V: 11mA(standby) / 41mA(operation) ±5%
Buzzer: Set as silent, interval buzzing, or continuous buzzing.
Indicator: Dual-color (red and green);  Red indicator to set blinking, off or on.
Output: N.O. 、N.C & COM. Output (Maximum load of 125V/3A)
Material: ABS, PC
Dimensions: 90L x 93W x 45H (mm)
Weight:208gMore

Model: ACM-K3H
Working status: Press alarm
Operating Voltage: 125V
Working current: 1A
Withstand voltage: 250VAC
Switch status: NO/NC
Standard structure: Fireproof material shell, easy to install
Use type: Security door, escape door, security system
Panel processing: Fireproof material, frosted die-cast
Dimensions: 87Lx87Wx60H(mm)
Weight: 230gMore

Model: ACM-K3RG
Dimensions：86Lx86Wx50H(mm)
Standard Structure：Fireproof Material, Easy to install
Current Rating：3A 36VDC Max
Output Contact：NO\NC\COM
Suitable for Door：Exit Door, Emergence Door
Operating temp：-10℃ ~ 55°C (14°F-131°F)
Operating Humidity：0-95% (non- condensing)
Material Selection：Fireproof Material, Sandblast Finished
Weight：0.136kg
Standard Packing：100pcsMore

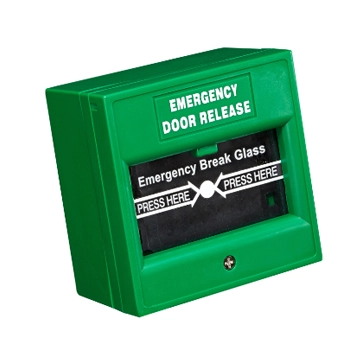

Model: ACM-K3R
Dimensions：86Lx86Wx50H(mm)
Standard Structure：Fireproof Material, Easy to install
Current Rating：3A 36VDC Max
Output Contact：NO\NC\COM
Suitable for Door：Exit Door, Emergence Door
Operating temp：-10℃ ~ 55°C (14°F-131°F)
Operating Humidity：0-95% (non- condensing)
Material Selection：Fireproof Material, Sandblast Finished
Weight：0.136kg
Standard Packing：100pcsMore

Model: ACM-K3G
Dimensions：86Lx86Wx50H(mm)
Standard Structure：Fireproof Material, Easy to install
Current Rating：3A 36VDC Max
Output Contact：NO\NC\COM
Suitable for Door：Exit Door, Emergence Door
Operating temp：-10℃ ~ 55°C (14°F-131°F)
Operating Humidity：0-95% (non- condensing)
Material Selection：Fireproof Material, Sandblast Finished
Weight：0.136kg
Standard Packing：100pcsMore

Model Number: ACM-K3RG
Dimensions: 86Lx86Wx50H(mm)
Standard Structure: Fireproof Material, Easy to install
Current Rating: 3A 36VDC Max
Output Contact: NO\NC\COMMore

Model Number: ACM-K3R
Dimensions: 86Lx86Wx50H(mm)
Standard Structure: Fireproof Material, Easy to install
Current Rating: 3A 36VDC Max
Output Contact: NO\NC\COMMore

Model Number: ACM-K3R
Dimensions: 86Lx86Wx50H(mm)
Standard Structure: Fireproof Material, Easy to install
Current Rating: 3A 36VDC Max
Output Contact: NO\NC\COMMore
