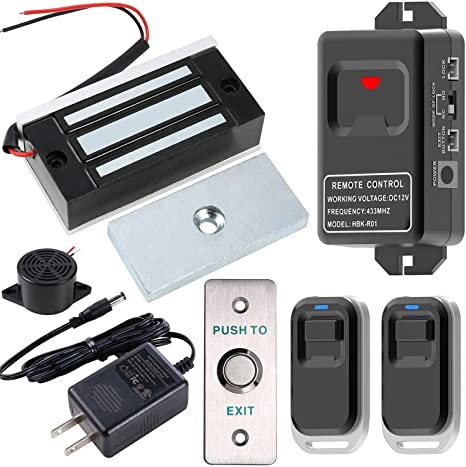

120LBS electric magnetic door lock with remote control kit system

Place of Origin: Guangdong, China
Brand Name: ACM
Model Number: ACM-Y60
Product name:: 60kg Electro magnetic lock (maglock) for access control,fail safe
Holding Force:: 60kg/100lbs
Certification:: CE/MA
Lock Size: Magnet( LxWx H): 80x38x25mm
Armature plate: 80x38x25mm
Voltage:: 12/24VDC
Lock Status:: NO/NC/COM/+/-
Feature:: Timer delay, feedback signal, 12V/24V dual voltage
Keywords: glass door magnetic lock/magnetic lock/Electromagnetic Lock
Weight:: 0.6kgs

Products Description

120LBS electric magnetic door lock with remote control kit system

12V Holding Force 60kg 120lbs Surface Mounted Frameless Glass Door Magnetic Door Lock

Type: 60KG Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 60KG/120lbs
Working Voltage: DC 12V
Working Current: 110mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Work for single door
Dimension: 80*37*24mm/ 70*33*10mm

Product Parameter

Parameter Description

Lock Size :

80x38x25mm

Holding Force :

60kg (100Lbs)

Input Voltage :

12/24VDC Dual Voltage

Suitable for door:

Wooden door , Glass door ,Metal door , Fireproof door

Singal Output :

Lock singal Status NO/NC/COM/+/-

Feature:

Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage

LED:

Red shows unlocked, Green shows locked

Weight:

0.6kgs

Certification:

CE /MA

Related Products

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.

- On the contrary, ACM Goldbridge will cahrge extra if repair.

- More information, please browse our service center.

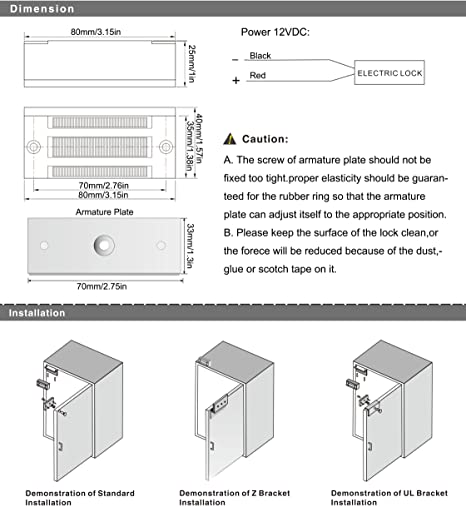

Instalation Diagram

Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.

Packaging
Magnetic Lock packaging: 1unit per box, 5pcs per carton,
Carton size : 35*30*16cm , Gross Weight :25kg.

Our Service

1, Any inquires will be replied within 24 hours
2, Professional manufacturer and supplier, Welcome to visit our website and our factory
3, OEM/ODM Available
4, High quality, fashin desing, reasonable & competitive price, fast lead time
5, After-sale Service :
1), All products will have been strictly quality checked in house before packing
2), All products will be well packed before shipping
3), All our products have 2-3 year warranty if the damage is not caused by human
6, Faster delivery : Around 1~ 5 days for sample order, 7~30 days for bulk order
7, Payment : You can pay for the order via : T/T, Western Union, Paypal.
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, You also can choose your own shipping forwarder.

FAQ

Q: 1. How can I place an order?
A: Please list your requirement to us via email. Then we will send the offer to you at earliest time,after order confirmation, we will arrange production ASAP.

Q: 2.What about the payment and shipment?
A: TT/T ,Paypal, Western Union.
Clients can choose by sea, air or express(DHL, FedEx, TNT UPS etc.)

Q: 3. How can i get a sample to check your quality?
A:We could provide free sample to you, and the freight cost payed by you.

Q:4. How long can I expect to get the samples?
A: It depends on the quantity. Normally 3-7 days for 5000pcs and 7-15 days for 100,000pcs

Q:5. Can your products be customized?
A: Almost all of your products are customized ,including the materia, size, thickness and printing. OEM orders are highly welcome.

Q:6.Are you a trading company or factory?
We are the one of the biggest manufacturer of RFID cards/NFC tags/RFID keybod /RFID wristband，rfid reader and access control products in China more than 20 years.

Tag: magnetic door lock ,security lock ,magnetic lock ,electro magnetic lock ,electric magnetic lock ,door magnetic lock
