ACM Portable Best Android SDK Mini USB UHF RFID Card Reader Writer 1 buyer

Product Name:Portable Best Android SDK Mini USB UHF RFID Card Reader Writer
Read Distance:50cm
Writer card distance:10-15cm
Function:Reader and Writer
Support agreement:ISO-18000-6B/C
Output power:0.25W(adjustable)
Working model::Hopping FHSS or fixed
Anti-collision:Tag processing algorithm, multiple tags operation allowed
Weight:0.6kg
Dimension ::142*85*20mm

Product Description

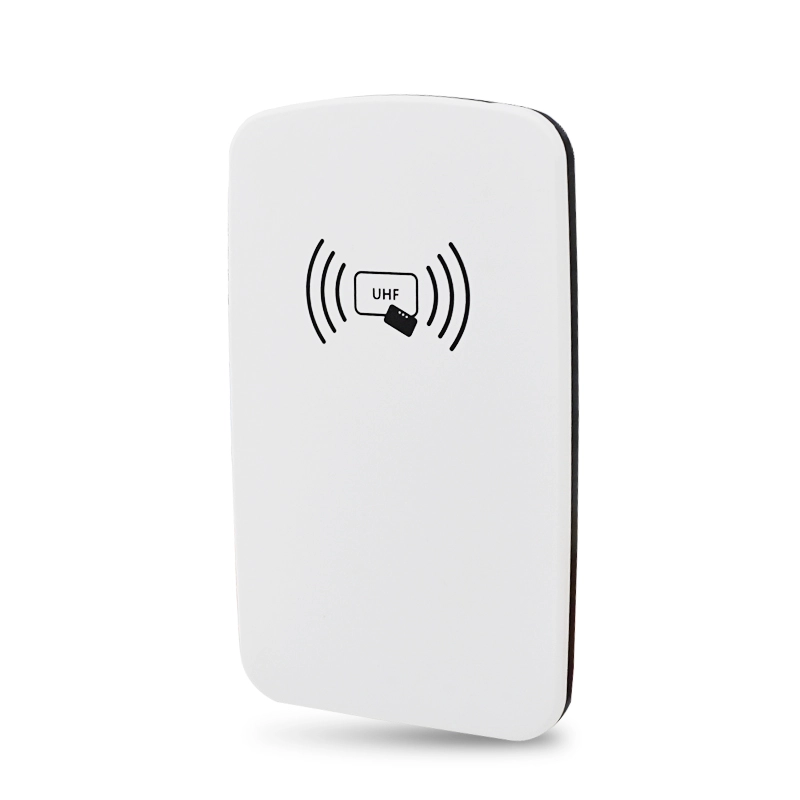

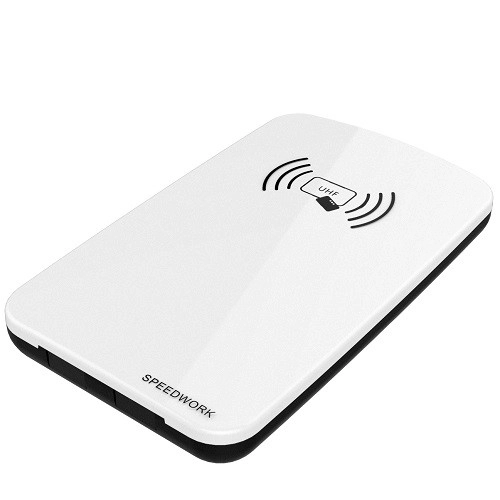

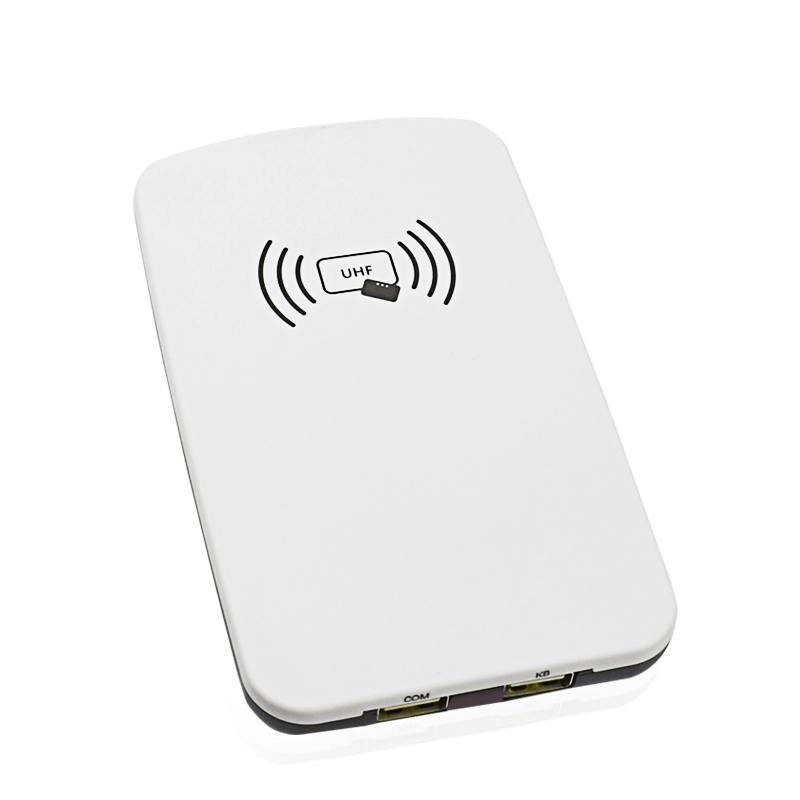

ACM Portable Best Android SDK Mini USB UHF RFID Card Reader Writer

1)Wake up the tag:the tag which only be waked up can communicate with reader, prevent the disturbing from other tags, ensure the

correct information between reader and system’s tag.

2)Read data:it can get the ID number of tag, and also get the data which in the specify area, multi tags reading will be

available.

3) Write data: can write data in specify tag’s storage area.

4) Can connect with the device which has W26 and W34 interface, no need to develop.

5) Communicate with controller or PC, that can get the data; provide SDK development kit, user can develop it.

6) Has USB keyboard input port, get the data whatever the cursor where is.

Product Parameter	Parameter Description
Model	ACM-219 UHF
Working frequency	865Mhz~88Mhz or 902Mhz~928MHz
Reading distance	50cm
Writing distance	10-15cm
Antenna gain	3dBi
Reading time	Single card 96bit(12Byte) ID number reading time<6ms
Writing time	Single card 96bit(12Byte) ID number reading time<20ms
Protocol	ISO18000-6C & EPCglobal Class I Gen 2
Output power	0.25W(adjustable)

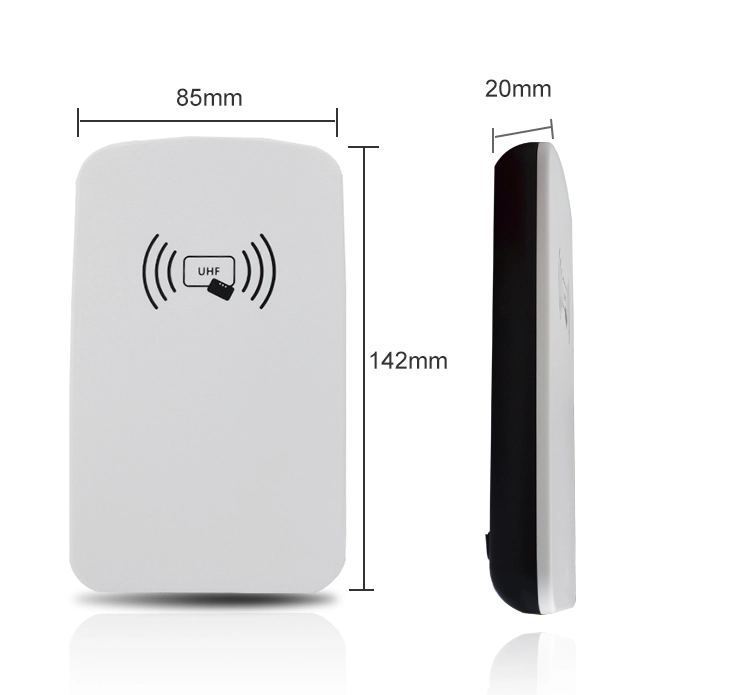

Dimension	142mm×85mm×20mm
Net weight	0.15KG
Data interface	USB to serial port / USB to keyboard input
Development kit	C++, C#, Java SDK
Software	Auto write/read card demo
Operating temperature	-20℃ ~ 65℃
Storage temperature	-40℃ ~ 95℃

Application

Reader has Integration industrial design, water resistant IP54,easy to installation.

Support Serial port firmware update, accept customized.

EPC area, Reserve area, User area support lock and unlock function.

Support adjacent discriminant function,prevent the same card number upload repeated in the limited time(1-255 seconds).

All our products have passed CE and FCC certificate.

Detailed Images

1. USB communication

The data format of USB interface is 8bits, 1 start bit and 1 stop bit, no parity bit; data rate can choose 9600, 19200, 38400, 57600 and 115200. USB communication interface support parameter configuration, demo program and serial communication secondary development kit function. When upload the data, can choose below mode:

Timing mode:upload the data when read it
Master-slave: waiting for the order from host
Trigger: when read the card, upload the data every 10s, until the host order it

2. USB keyboard input

Can get the reading data where the cursor is, default is wiegand 8bit decimalism output.

3. Cards/tags operating

EPC GEN2(ISO18000-6C)tags

Ø Single tag initialization: EPC is 96bits

Ø Single tag writing:write tag’s EPC, can write one address or more.

Ø Single tag lock:after locked, the EPC can not be changed.

Ø Single tag destroy:after destroyed, the tag will not be used.

4. Working mode

1. COMMAND:under this working mode, reader works under PC or other controller. It can be communicated USB, RS485 or Ethernet

communication. This working mode support the secondary development.

2. TIMING READ:reader read cards by a period, output the reading data by communication interface. This working mode is reading

only. 3. TRIGGER READ:when input with low level, reader will read cards with a period, after a while, it will be auto closed.

5. ID adjacent discriminant

When the reader read one card continuously, it will upload one group reading data. User also can set a valid time for this function. it communicate by wiegand normally.
ACM-219 reading distance:50CM
Notes:
1. Do not put any obstructions within 1m on the front of reader;
2. Please take the edge of the card when do testing;
3. Due to the horizontal polarization of antenna, please put the card on the front of the reader, ensure  the reading effect. 4. Different cards will have different reading range.
ACM-219 writing operating
ACM-219 writing distance: 10~15CM
Notes:
1. Please do not put any obstructions within 30cm on the front of the reader;
2. Please take the edge of the card when doing testing;
3. Due to the horizontal polarization of antenna, please put the card on the front of the reader, ensure the reading effect.
4. Different cards will have different reading range.

ACM-219 UHF secondary development

User can do secondary development of the application software. We provide C#, VC, VB, Delphi, Java routines, and also WINCE, LINUX

driver development.
