Model No.: ACM-S700
Advantageous:

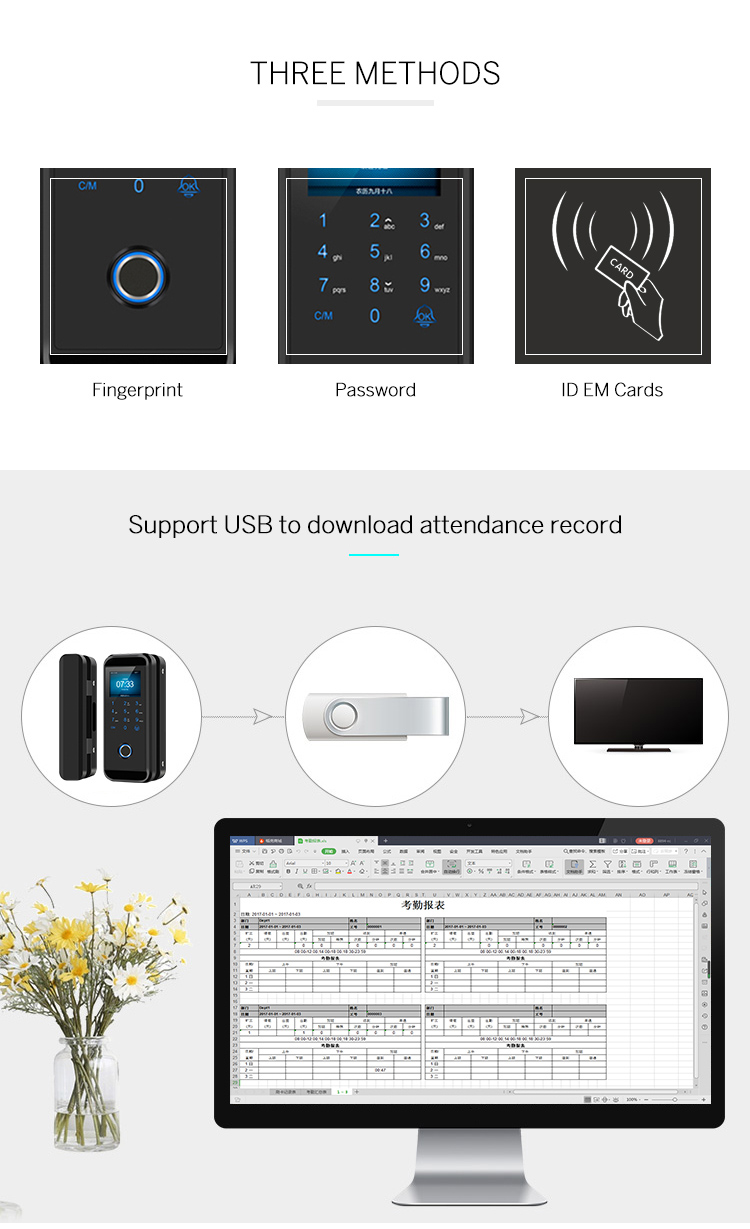

Multiple unlock mode: Fingerprint, Password, Card and Combination Mode.
High sensitive full touch keypad with backlight, easy use even in the darkness.
Easy operation to humanity and clear voice guidance.

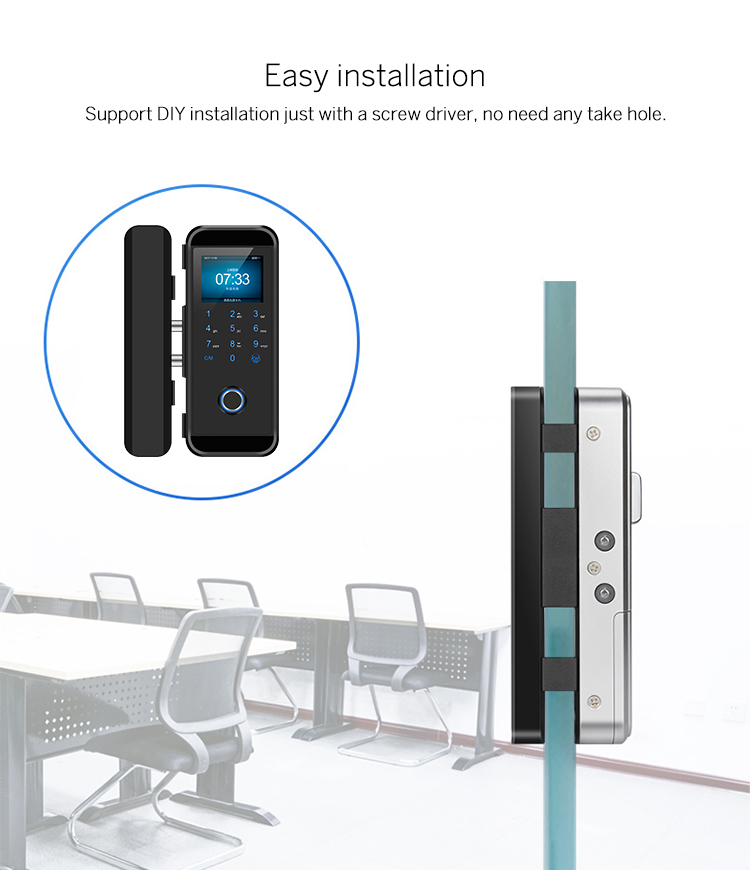

Support DIY installation just with a screwdriver, no need any take hole.
Optional Remote control function.
Doorbell built-in offers every convenience for the visitor.
Powered by 4pcs AA Battery and with low battery alarm.
Support external emergency battery input.
Support USB to download attendance record.
|
Model Number
|
ACM-S700
|
|

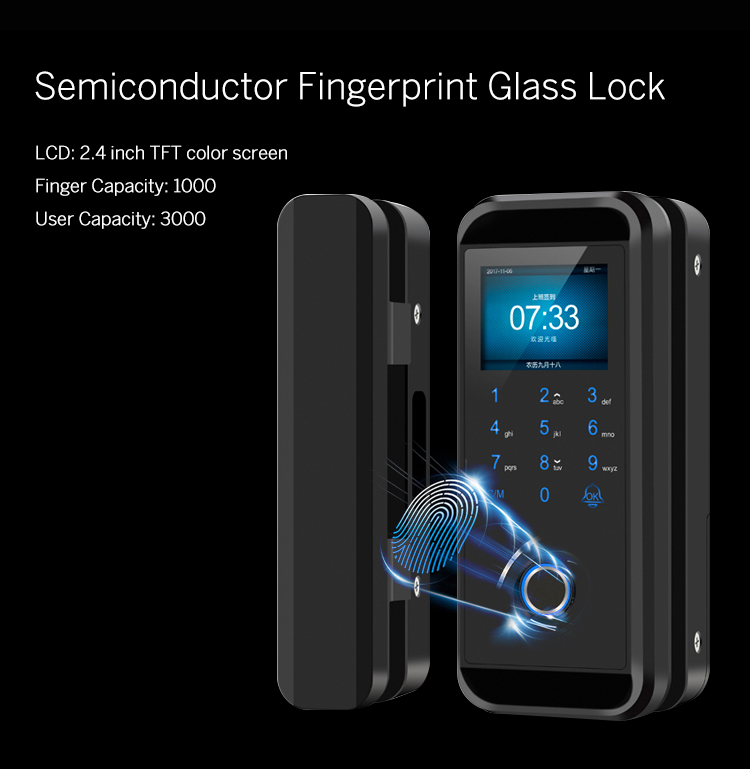

Fingerprint sensor
|
Semiconductor
|
|
Material
|
Lock body: Zinc Alloy
|
|
Cylinder: Stainless Steel
|
|
LCD
|
2.4 inch TFT colour screen
|
|
Fingerprint gather speed
|
<0.2s
|
|
Recognition Speed
|
<0.5s
|
|
FAR
|
<0.001%
|
|
FR
|
0.10%
|
|
Power Supply
|
DC4.0~6.0V (4*1.5V AA Battery)
|
|
Working Current
|
≤30UA
|
|
User Capacity
|
1000 Templates (Finger/RFID/Pincode)
|
|
Recognition Mode
|
Fingerprint, password verification, ID EM card
|
|
Optional Functions
|
Remote Smartphone Control, EM Card, Remote Controller
|
|
Resolution
|
500DPI
|
|
Door thickness
|
8~15mm
|
|
Operating Temperature
|
-20℃ ~ 55℃
|
|
Operating Humidity
|
≤93%
|
|
Emergency Power
|
Emergency External Power USB Port, 6~9v
|
|
Other function
|
Low battery alarm, Normal Open, Doorbell
|
