ACM-W86 Factory Wholesales Price Stainless Steel Touchless Exit Button for door access control

• Quick Details
• Certification: CE ,Place of Origin: Guangdong, China
• Brand Name: ACM ,Model Number: ACM-W86
• Max. Current: 3A,Max. Voltage: 12V
• LED: yes
• Packaging & Delivery
• Selling Units:Single itemSingle package size: 15X10X10 cm Single gross weight:0.500 kgPackage Type:Neutral Packing for Standalone Access Controller Lead Time :
• Quantity(Pieces) 1 - 200 >200
• Est. Time(days) 6 To be negotiated
• Product Name Infrared Sensor Exit Button
•
• Material 1.7mm Thick 304 Stainless steel

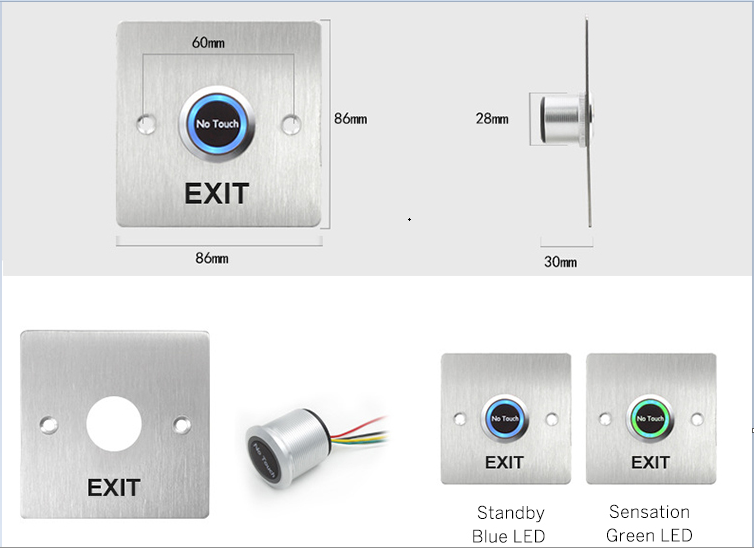

• Dimensions 86Lx86Wx25H(mm)
• Contact Rating: 12-24V,3A
• Power 12VDC & 24VDC
• Sensor distance 5-10CM
• Output NO/NC/COM/+12/GND
• Mechanical Life 500,000 Tested
• Operating Temp -20℃~+55℃(14-131F)
• Operating Humidity 0-95%(relative humidity)
• LED Indicator Blue LED Indicator (Standby)
• Green LED Indicator (Sensation)
• Suitable for Door Hollow Door
• LOGO ACM customizable
•
• Unit Weight 0.13kg
• Standard Package 100PCS/carton
• Carton Weight 14KG
• Carton Size 51*45*24cm
