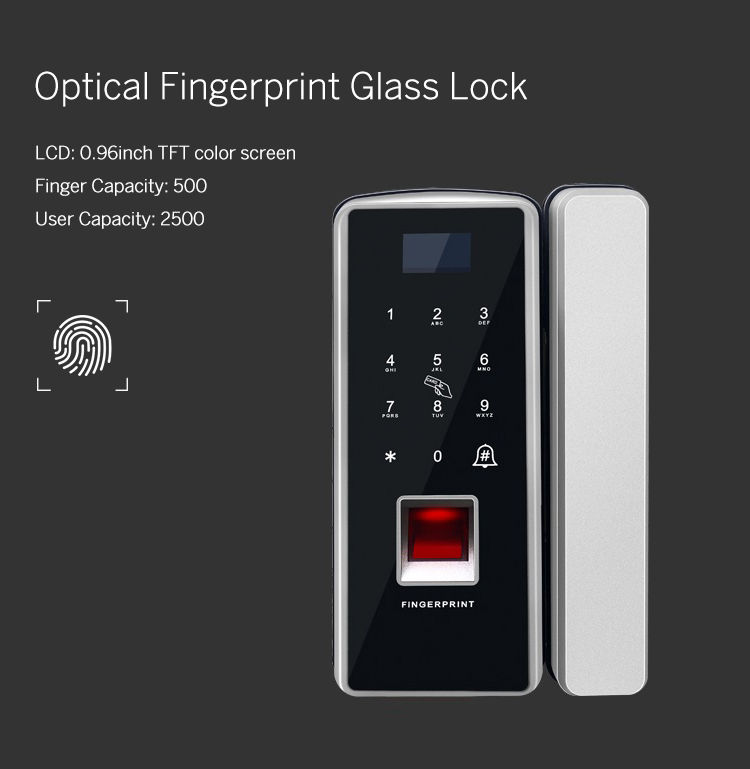

Optical Fingerprint Glass lock
Model No.: iGlass500
Advantageous:
Multiple unlock mode: Fingerprint, Password, Card and Combination Mode.
High sensitive full touch keypad with backlight, easy use even in the darkness.
Easy operation to humanity and clear voice guidance.
Support DIY installation just with a screwdriver, no need any take hole.
Optional Remote control function.
Doorbell built-in offers every convenience for the visitor.
Powered by 4pcs AA Battery and with low battery alarm.
Support external emergency battery input.
|
Model Number |
iGlass500 |
|
Fingerprint Capacity |
500 |
|
Password Capacity |
1000 |
|
Cards Capacity |
EM 125KHz for 1000pcs |
|
Record Capacity |
2000 |
|
Fingerprint sensor |
Optical |
|
Material |
Lock body: Zinc Alloy |
|
Cylinder: Stainless Steel |
|
|
LCD |
0.96 inch TFT colour screen |
|
Fingerprint gather speed |
<0.2s |
|
Recognition Speed |
<0.5s |
|
FAR |
<0.001% |
|
FR |
0.10% |
|
Power Supply |
DC4.0~6.0V (4*1.5V AA Battery) |
|
Working Current |
≤30UA |
|
Recognition Mode |
Fingerprint, password verification, ID card |
|
Optional Functions |
Remote Smart-phone Control, ID Card, Remote Controller |
|
Resolution |
500DPI |
|
Door thickness |
8~15mm |
|
Operating Temperature |
-20℃ ~ 55℃ |
|
Operating Humidity |
≤93% |
|
Emergency Power |
Emergency External Power USB Port, 6~9v |
|
Other function |
Low battery alarm, Normal Open, Doorbell |
