Free Demo SDK USB Portable Desktop ISO18000 6C Gen 2 UHF RFID Module Reader Writer Encoder

  • Place of Origin:Guangdong, China
  • Brand Name:ACM
  • Model Number:ACM-219UHF
  • Frequency:860-960MHz
  • Protocol:ISO18000-6C EPC GEN2
  • Reading Distance:60~80cm
  • Interface:Double USB Desktop UHF RFID Reader
  • Antenna Gain:3 dbi
  • Free Software and Demo:C++, c#, java,
  • Writing Range:1~10cm
  • Programmable rfid reader writer:Can encode the card tag directly with this demo
  • SDK:Free SDK and technical support
  • Output format:up to 7 different output formats
Product Description

Product Description

Features:

1. Reading and writing in equipment limited area above 0-60 CM of the narrow space;

2. Provide setups SDK, and can provide C#,VC,VB,Java development routines;

3. EPC area, reservations, the user area support locking unlock function, can be used for privacy and security requirements of high occasion;

4. Support adjacent discriminant function, can prevent with a card in short time (1-255 seconds adjustable) upload repeat inside;

5. Supports fast write operation, convenient for reading and writing.



Product Description:



Specifications

Working Frequency

902~928 MHz or 865~868MHz

Protocol

ISO18000-6C(EPC C1 GEN2)

Communication port

Left USB to serial port / Right USB to Data output

Software & SDK

DEMO and C#,VC,VB,Java,DELPH, etc.,

Encryption

Can be directly encrypted, copy prevention.

Reading range

Stable reading 0~60cm

Writing range

Stable writing 0~10cm

Physical parameters

Adaptor

USB

Output power

0~17dBm

Working temperature

-20℃~+55℃

Storage temperature

-20~+55

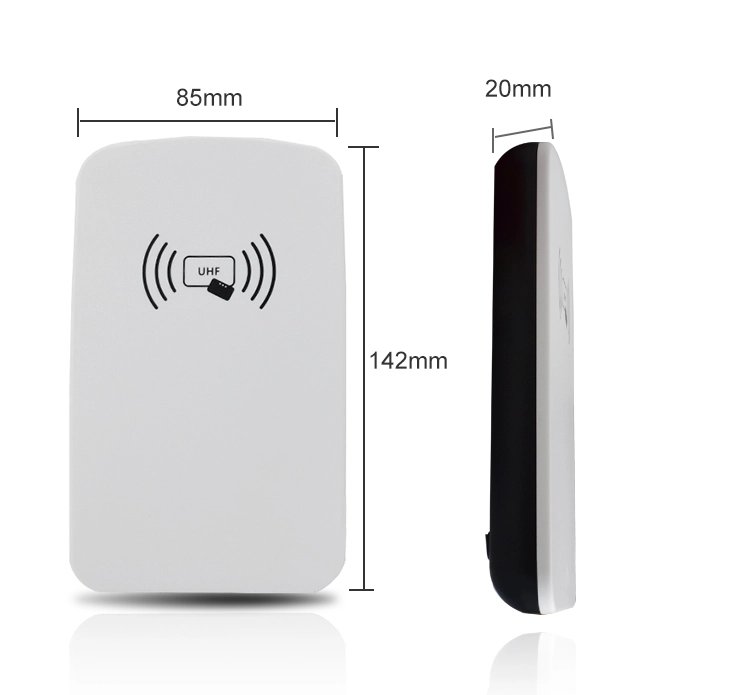

Item size

142x 85x20mm

Package size

180x120x50mm

Net weight

500g

Shell material

ABS



Products Show:


Small Portable 902~928 MHz Desktop RFID IC ID Card Reader and Writer with USB for Card Issuer

Small Portable 902~928 MHz Desktop RFID IC ID Card Reader and Writer with USB for Card Issuer





Software Interface:

Small Portable 902~928 MHz Desktop RFID IC ID Card Reader and Writer with USB for Card Issuer



Application:

Intelligent traffic such as ETC;
Customs border-crossing, parking lot, automatic weighting;
Logistics such as container management, pallet management, asset management etc;
Ticketing& access control ;
Pharmaceuticals such as medical waste management ,etc.
