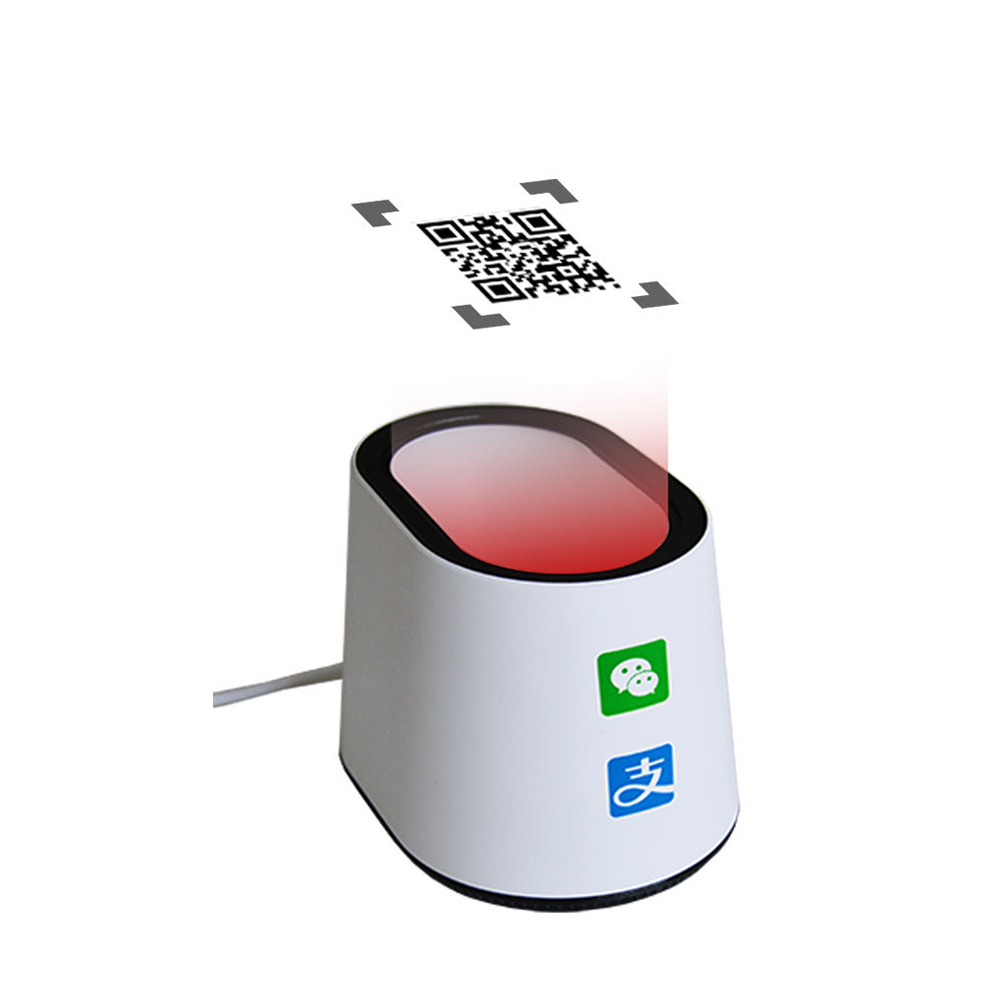

Hands-Free Automatic 2D Barcode Reader USB Barcode scanner Platform Automatic barcode scanner
Features
1.Use the latest high-performance hardware decoding chip to decode various complex 2D barcodes
2.20 scanning lines, 5 scanning directions, scann barcode fast and efficiently
3. Support automatic sleep and wake-up function to improve working life of core component
4. New and stylish appearance, swivel base for a variety of scanning applications
5. Super LED indicator and double beeper sound to deal with various noisy environments
6. The wire is made of high temperature resistant material and high quality inner copper wire to meet various environmental requirement and with longger working life.
7. Support multiple communication interfaces, plug and play, and automatically match the device automatically
Application field
Mainly used in large supermarkets, shopping malls, specialty stores (pharmacies, clothing stores, smoke hotels, jewelry stores), etc.
working parameter | |
light source | visible LED 650nm |
scan depth(depth of filed) | 0~200mm @ UPC/EAN PCS=90% |
scan angle | 5 Scanning direction |
scan lines | 20 lines |
scan speed | 1650 scans/second |
minimum resolution | 0.1mm |
print contrast | 30% (UPC/EAN 100%) |
LED indicators | LED |
Sound | Two Programmable Beeper |
Host system interfaces | HID USB, USB virtual COM, RS232 |
Physical parameter | |
Size | LxWxH:130mm*93mm*93mm |
Weight | 290g(without cable) |
Cable | standard 1.5M |
Power parameter | |
Voltage | 5vdc+/-10% |
EMC | |
Laser level | meet CDRH Class IIa, IEC 60825-1 Class 1 |
barcode Capability | |
UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded |
Specification of Scanner:
125Khz wiegand 26 /34 Card Reader,
Size:115mm×75.5mm×16.8mm
125Khz /13.56Mhz Reader
wiegand 26/34 /RS232
125KHz Proximity ID/ 13.56Mhz card reader, Wiegand output 26bit
125Khz EM Proximity Card
Size 86*54mm
MF1 1K Compatiable Card
125Khz EM/13.56Mhz/UHF Keyfob, Color Optional: Blue, Red,Black,Yellow, Grey,Green
- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.
1, Any inquires will be replied within 24 hours
2, Professional manufacturer and supplier, Welcome to visit our website and our factory
3, OEM/ODM Available
4, High quality, fashin desing, reasonable & competitive price, fast lead time
5, After-sale Service :
1), All products will have been strictly quality checked in house before packing
2), All products will be well packed before shipping
3), All our products have 2-3 year warranty if the damage is not caused by human
6, Faster delivery : Around 1~ 5 days for sample order, 7~30 days for bulk order
7, Payment : You can pay for the order via : T/T, Western Union, Paypal
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, You also can choose your own shipping forwarder.
FAQ
Q: 1. How can I place an order?
A: Please list your requirement to us via email. Then we will send the offer to you at earliest time,after order confirmation, we will arrange production ASAP.
Q: 2.What about the payment and shipment?
A: Trade Assurance and T/T ,Paypal, Western Union.
Clients can choose by sea, air or express(DHL, FedEx, TNT UPS etc.)
Q: 3. How can i get a sample to check your quality?
A:We could provide free sample to you, and the freight cost payed by you.
Q:4. How long can I expect to get the samples?
A: It depends on the quantity. Normally 3-7 days for 5000pcs and 7-15 days for 100,000pcs
Q:5. Can your products be customized?
A: Almost all of your products are customized ,including the materia, size, thickness and printing. OEM orders are highly welcome.
Q:6.Are you a trading company or factory?
We are the one of the biggest manufacturer of RFID cards/NFC tags/RFID keybod /RFID wristband,rfid reader and access control products in China more than 20 years.
