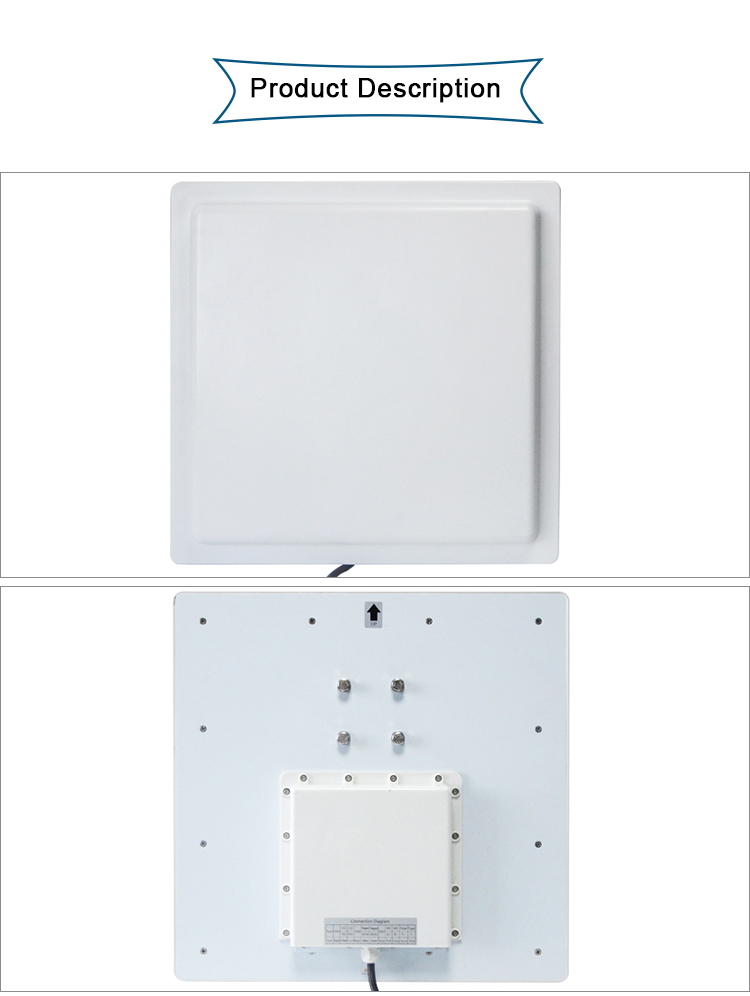

Long Read Range Impinj Wiegand USB Passive Tag Car Parking System Management Reader 12dbi UHF Antenna Integrated Reader

• Model#: ACM819A
• Dimension:45(L) x 445(W) x 70(H) mm (Exclude bracket and external wires)
• Weight:4.5kg (include package)
• Shell material:ABS+PC
• Antenna front housing color: Gray
• Antenna rear housing:Die-casting aluminium alloy
• Installation method:Holding pole
• UHF RFID Performance Parameter:Radio frequency
• ACM independent R&D technology
• Frequency:865-868MHz/902-928MHz
• Protocol:EPC C1 GEN2 /ISO18000-6C
• Built-in antenna:12dBi line polarization
• Power:30dBm (adjustable by 1dBm step with CPH demo software)
• R/W range: Read range 15m, write range >9m (test tag: AZ9662Inlay)
• Group read rate:1~10pcs EPC tag
• Working areas:US, Canada and other regions following U.S. FCC Part 15 regulation
• Europe and other regions following ETSI EN 302 208 regulations
• Mainland China,Japan,Korea,Malaysia,Taiwan
• Electric Parameter
• Communication interface
• Standard: RS232, RS485, Wiegand, USB
• Optional: RJ45(TCP/IP,WIFI,BT), 4G
• Serial rate
• 9600~115200bps
• RJ45 rate
• 10Mbps
• GPIO(for your optional)
• 1 relay output, 1 trigger input
• Reading Indicator
• Buzzer
• Power consumption
• ~1W
• Power supply
• 220V AC input, +9-25V/2A adaptor DC output
• Application Software
• API development kit and application routine based on Windows
• SDK
• C#, C++,Delphi, VB, Java,Python
• Operating Environment
• Operating Temperature
• -10℃~+55℃
• Storage Temperature
• -20℃~+75℃
• Humidity
• 20%~95% RH, non condensing
• Lighting protection
• DC ground
• Protection Level
• IEC IP65
