Multifunctional magnetic card reader Hi-co low-co card reader swiping card reader write

Model Number: ACM402
Type: SM Card
Interface: USB, USB
Card Slots: Single
Installation: External
Place of Origin: Guangdong, China
Material: ABS, ABS 94V (Acrylonitrile Butadiene Styrene)
Application: IUSB Pro, Retail, POS, Hotel, Access control...

Product Description

Magnetic Card Reader& Writer

Introduction:
Magnetic card reader, which is an intelligent, programmable magnetic card reader, widely used in banking systems, tax control systems, security management systems, member management systems and related applications.

Features:
*Simple and convenient: the built-in battery does not require an external power supply, no need to install a driver
*Read and write function: realize the full three-track read and write function of high/low antimagnetic stripe (300-4000 OE)
*Read and write format: support ISO, AAMVA DMV user-defined and other magnetic recording formats to read and write
*Blind reading function: it can realize the blind reading of different record standards when reading the card/passbook
*Stability: strong applicability, the whole machine is stable and reliable, error rate <0.5%
*Service life: 1 million times read and write head life
*Protocol commands: simple protocol commands to read and write magnetic card commands
*Support system: support WINDOW 98/XP/WISTA/WIN7/WIN8 system, provide DLL to facilitate secondary development

Power supply	+24VDC +/-5%
Built-in battery capacity	600mAh (standby 350mA)
Pwer consumption	Card reading: 50mA±15% ; Write card: 2800mA±15%
Communication	USB
Model	ACM402
Dimensions (LxWxD):	212(L)64(W)63(H)mm
Colour	Black
Working Temperature	-10°C~ 55 °C
Working humidity	10%-85% relative humidity
Storage	-30℃-70℃
Storage humidity	10%-90% relative humidity
Track	1. 2. 3 track read and write
Recordinng density	1. 3 track: 210BPI; 2 track 75/210BPI optional
Card Compatibility	Read and wirte 300-4000 OE magnetic card
Operating speed	Reading: 6.3-250cm/sec; writing: 10-100cm/sec
Card thickness	PVC 0.76±0.08mm
Error rate	Reading: less than 0.5%, writing: less than 0.8%
Use	Around 1,000,000 times

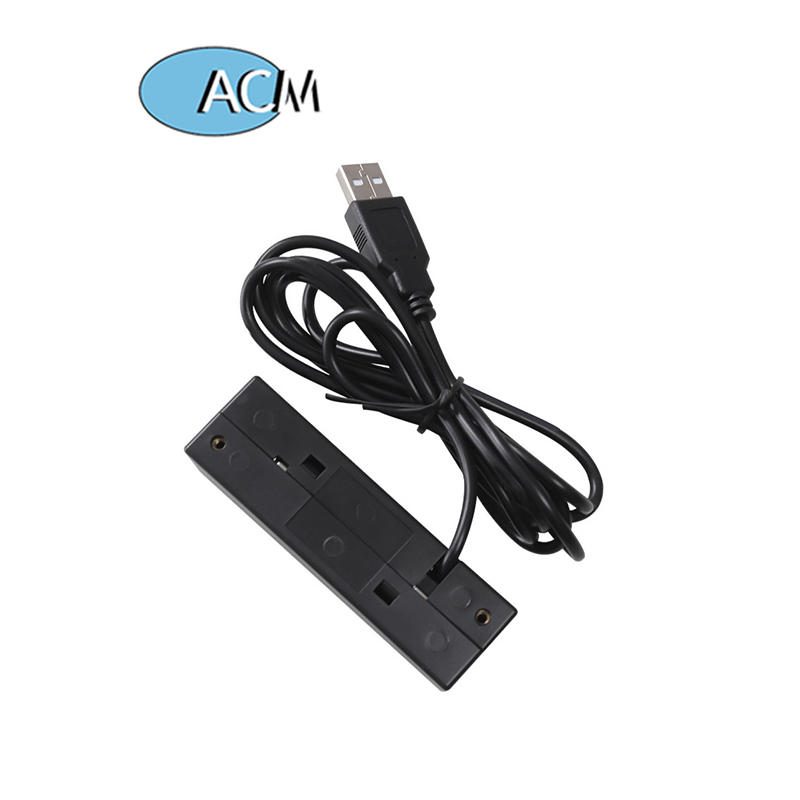

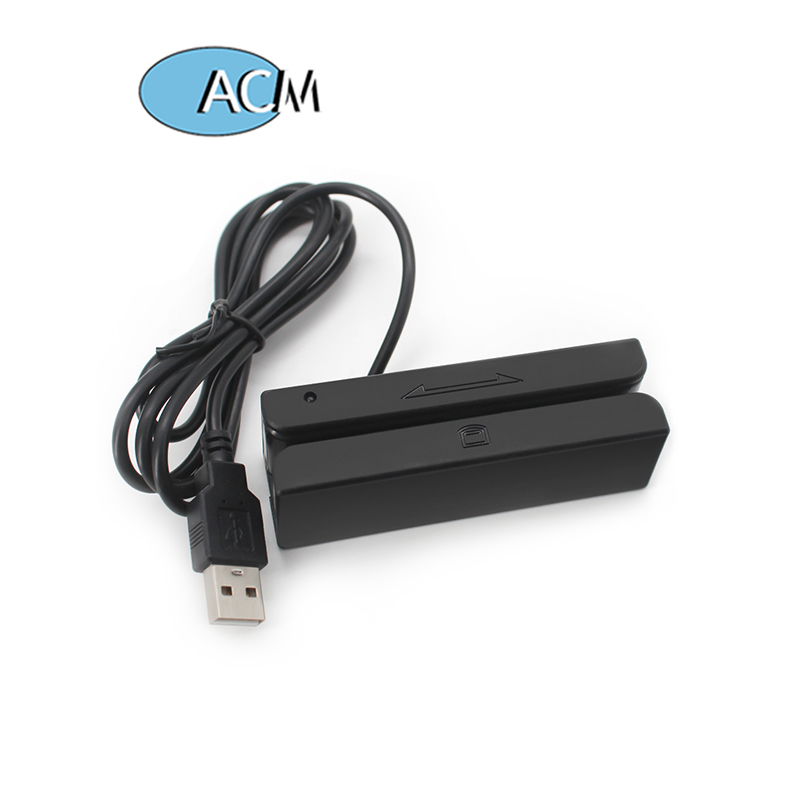

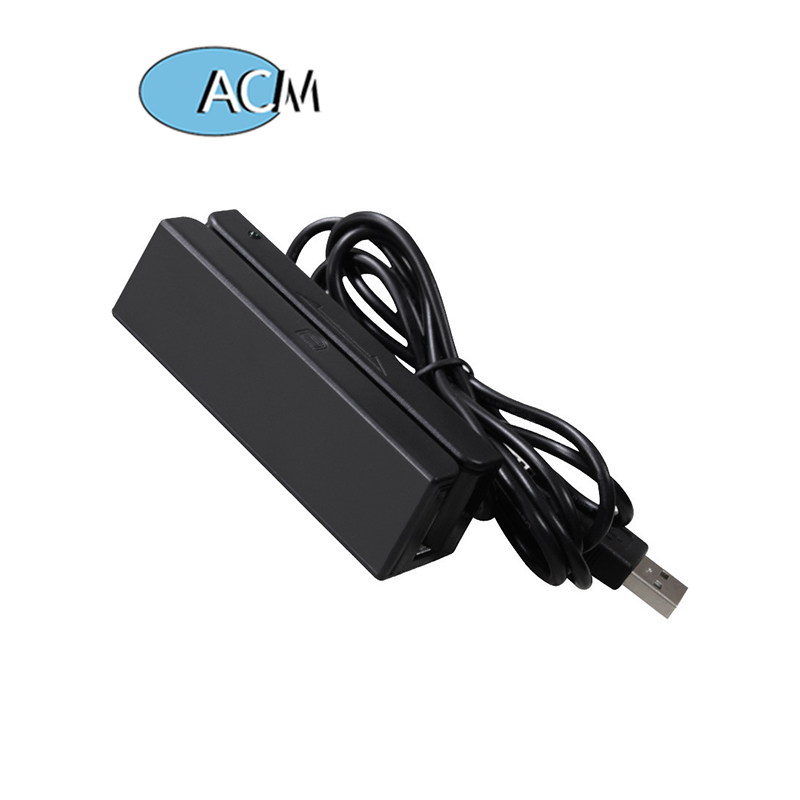

Detailed Images

Packaging & Shipping

ACM26X RFID Card Reader

125Khz wiegand 26 /34 Card Reader,
Size:115mm×75.5mm×16.8mm

ACM26G RFID Card Reader

125Khz /13.56Mhz Reader

wiegand 26/34 /RS232

KR600E RFID reader

125KHz Proximity ID/ 13.56Mhz card reader, Wiegand output 26bit

ACM-EMI-S RFID card

125Khz EM Proximity Card

Size 86*54mm

ACM-MF1 RFID Crad

MF1 1K Compatiable Card

ACM-ABS003 RFID Keyfob

125Khz EM/13.56Mhz/UHF Keyfob, Color Optional: Blue, Red,Black,Yellow, Grey,Green
