USB Desktop reader/writer

Product Name::RFID USB Desktop Reader & Writer
Frequency Range:ISM 902~928MHZ (FCC) or 865~868MHz ; 13.56MHz
Operation Mode:Fixed Frequency or FHSS Software Programmable
RF Power Output:0~27dBm

Product Description

RFID
USB Desktop Reader & Writer Model: ACM217
RFID USB Desktop Reader & Writer, it supports fast tag read/write operation??

Self-intellectual property;?

Support UHF EPC Gen2(ISO18000-6C),ISO18000-6B protocol tags;?

Advanced tag processing algorithm, high identification rate;?

Built-in antenna with effective distance up to 180cm*;

Specification of  RFID UHF reader and writer

Product Advantages

Wake up tags:the tag which only be waked up can communicate with reader, prevent the disturbing from other tags, ensure

the correct information between reader and system's tag.

Read data:it can get the ID number of tag, and also get the data which in the specify area, multi tags

reading will be available.

Write data: can write data in specify tag's storage area.

Can connect with the device which has W26 and W34 interface, no need to develop.

Communicate with controller or PC, that can get the data; provide SDK development kit, user can develop it.

Scanner Model	ACM217
Protocol	ISO18000-6B,ISO18000-6C（EPC GEN2),ISO14443A
Frequency Range	ISM? 902-928MHZ (FCC) or 865-868MHZ;? 13.56MHZ
Operation mode	Fixed frequency or FHSS software programmable
RF Power output	0-27dbm
Reading rate	Software programmable, average reading per 64bits: <10ms
Reading mode	Auto and touch or software programmable
Communication ports	USB
Data input	in put one team
Reading range	Reading tag >0.2m
Antenna	Built-in small round polarization antenna
Power consumed	DC +5V (Power adapter)

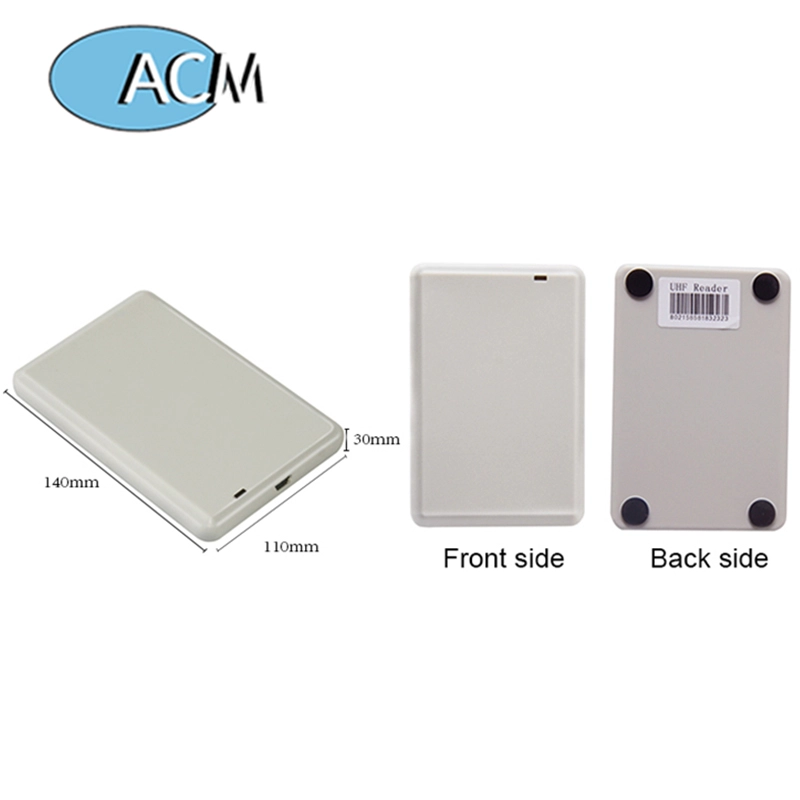

Dimension	140mm110mm30mm
Net weight	0.5kg
Operation temp	-10℃-? +60℃

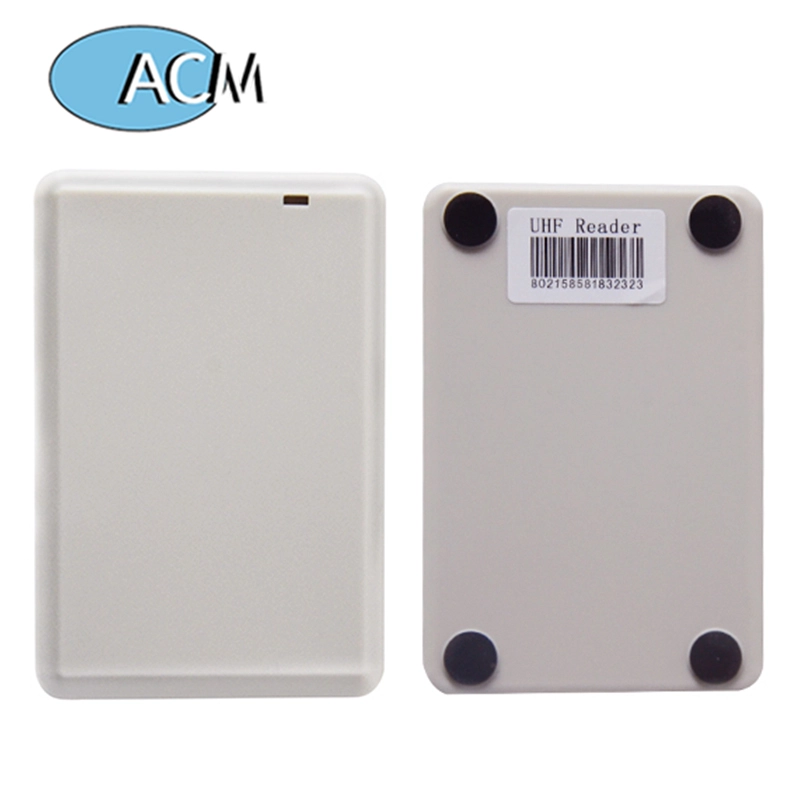

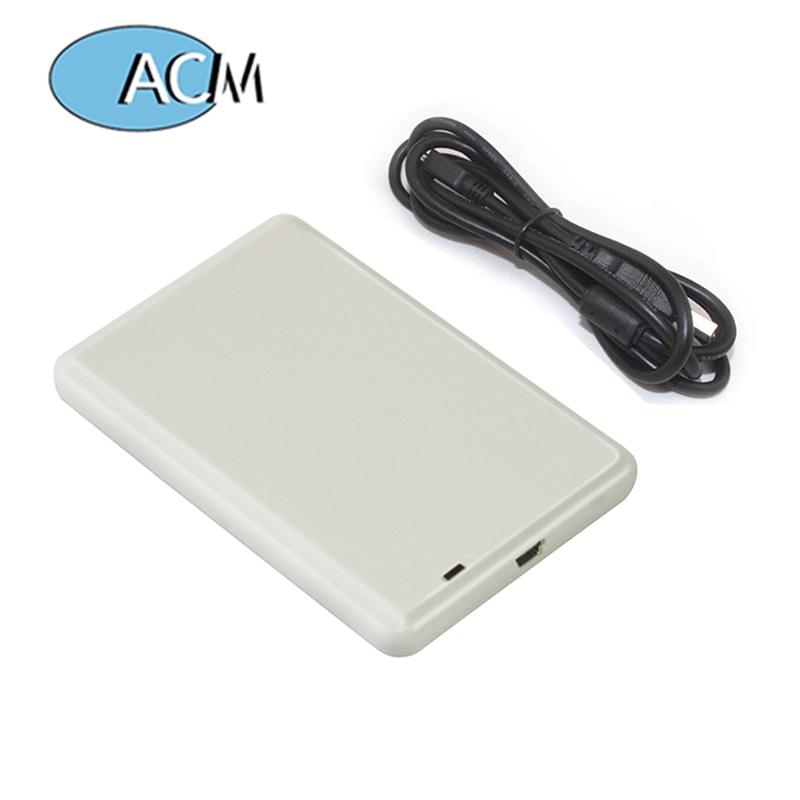

Detail image

Wiring Diagram of  RFID UHF reader and writer

Power	GND	485+	485-	WG D0	WG D1	Trigger T+	Trigger T-	RXD	TXD ? ? ? ? ? ?Ground
red	black	brown	orange	Yellow	grey	Rose red	black	purple	white ? ? ? ? ?black

Quality Warranty

?- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.

- On the contrary, ACM Goldbridge will cahrge extra if repair.

- More information, please browse our service center.

Click here to order and have your FREE SAMPLE in 3 days!!!

We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below, click "Send" now!

We are looking forward to forming successful business relationships with new clients around the world in the future.

Application

Application of  RFID UHF reader and writer

1, Transportation management

2, Vehicle management

3, Road and bridge toll

4, Custom management

5, Warehouse management

6, Car parking management

7, Access control management

8, Production management
