door release button with back box ACM-K14door release button with back box ACM-K14door release button with back box ACM-K14

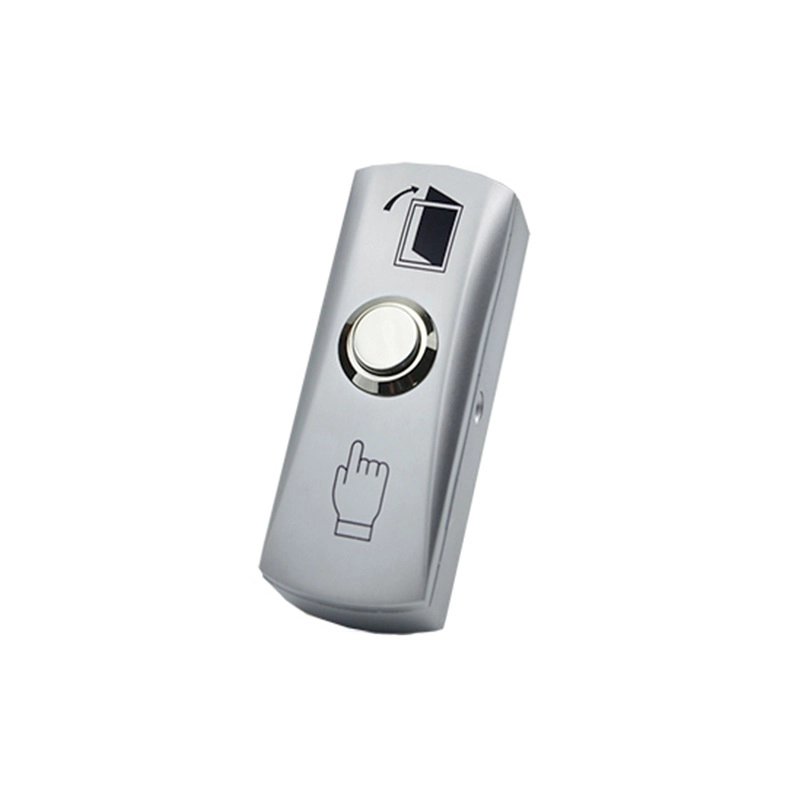

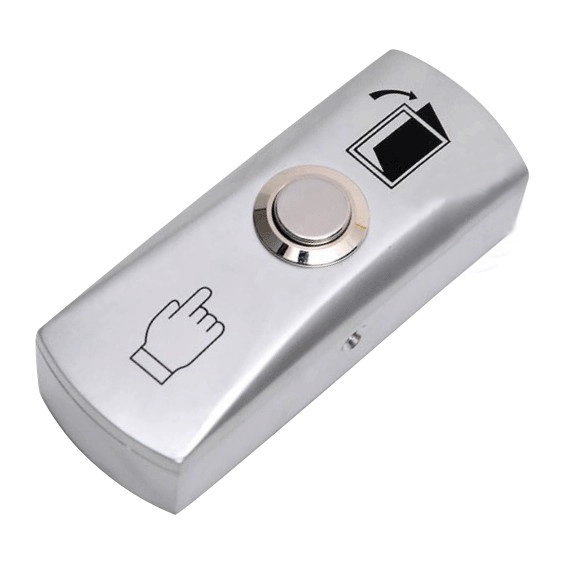

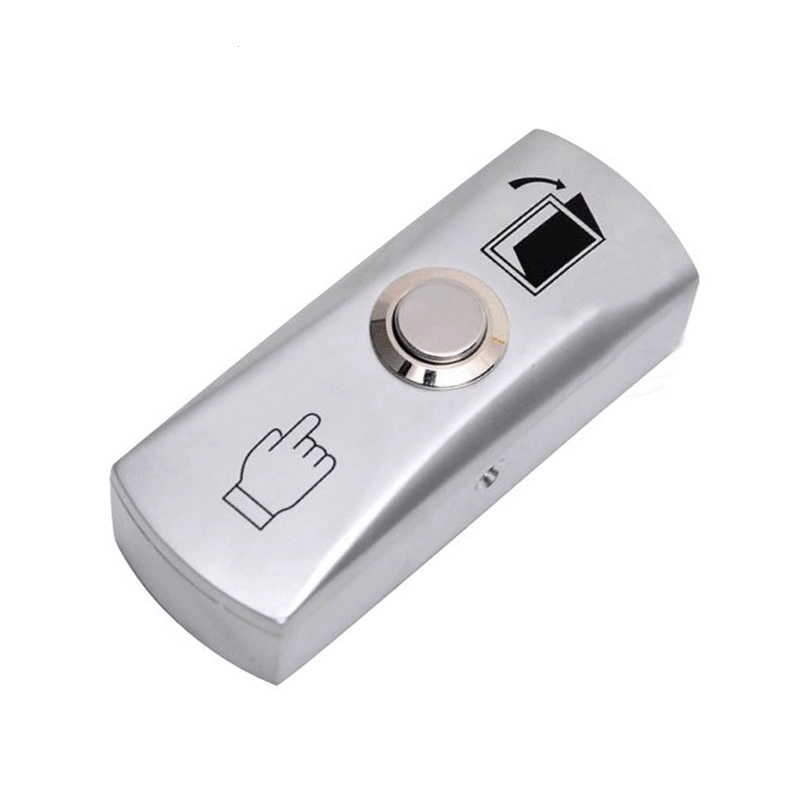

door release button with back box ACM-K14

  • Quick Details
  • Place of Origin: China
  • Brand Name: ACM,
  • Model Number:  door release button
  • EB-1405: Without LED
  • Item Name: door release button with back box
  • Dimensions: 80Lx30Wx24H(mm)

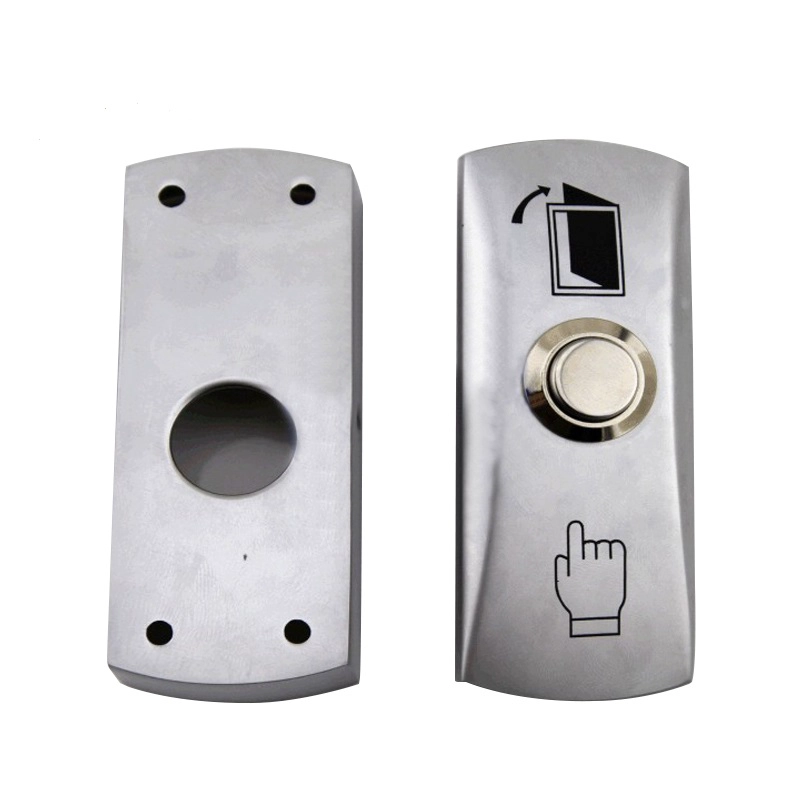

  • Standard Structure: Stainless steel Panel, Steel Button

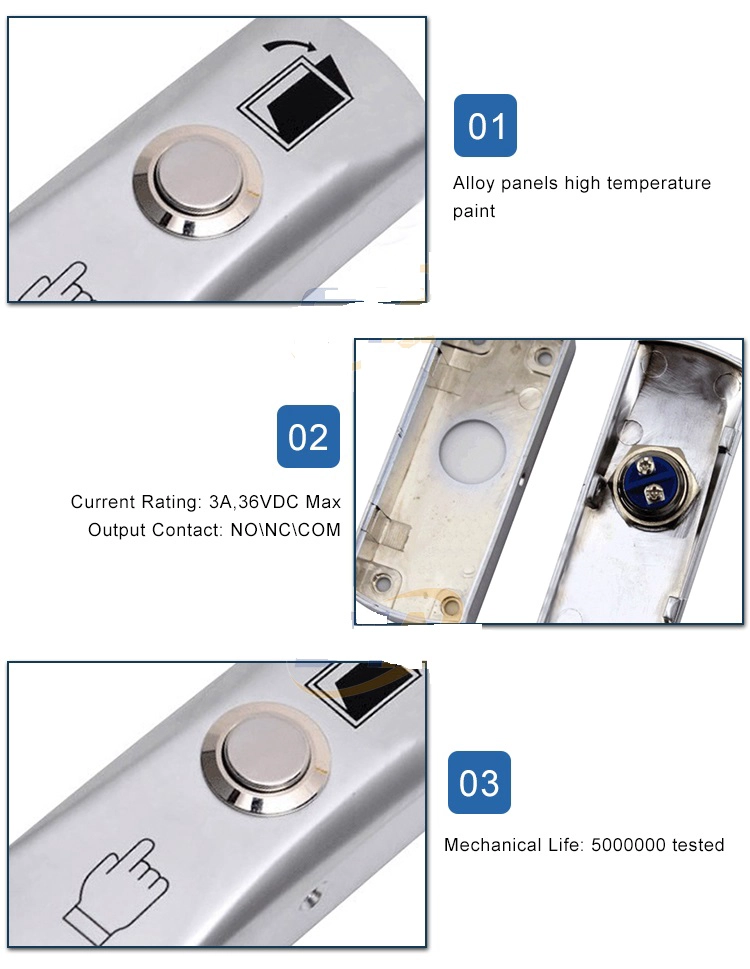

  • Current Rating: 3A,36VDC Max,Output Contact: NO\NC\COM
  • Mechanical Life: 5000000 tested,Suitable for Door:
  • Hollow Door,Operating Humidity:
  • 0-95% (non- condensing)
  • Face plate: Alloy panels high temperature paint

Product Description

Specification

Dimensions

80Lx30Wx24H(mm)

Standard Structure

Stainless steel Panel, Steel Button

Current Rating

3A,36VDC Max

Output Contact

NO\NC\COM

Mechanical Life

5000000 tested

Suitable for Door

Hollow Door

Operating temp

-10℃ ~ 55°C (14°F-131°F)

Operating Humidity

0-95% (non- condensing)

Weight

0.133kg

Standard Packing

100pcs

Face plate

Alloy panels high temperature paint



Our Service

1, Any inquires will be replied within 24 hours
2, Professional manufacturer and supplier, Welcome to visit our website and our factory
3, OEM/ODM Available
4, High quality, fashin desing, reasonable & competitive price, fast lead time
5, After-sale Service :
1), All products will have been strictly quality checked in house before packing
2), All products will be well packed before shipping
3), All our products have 2-3 year warranty if the damage is not caused by human
6, Faster delivery : Around 1~ 5 days for sample order, 7~30 days for bulk order
7, Payment : You can pay for the order via : T/T, Western Union, Paypal, Ali trade assurance
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, You also can choose your own shipping forwarder.

Quality Warranty
- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.
