2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Lock System Kit with Remote and Smartphone app Control2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Lock System Kit with Remote and Smartphone app Control2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Lock System Kit with Remote and Smartphone app Control2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Lock System Kit with Remote and Smartphone app Control2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Lock System Kit with Remote and Smartphone app Control

2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Lock System Kit with Remote and Smartphone app Control

  • Special Features: RESET, Waterproof / Weatherproof, Built-in Siren
  • Customized support: Software reengineering, Customized logo, Online technical support, OEM, ODM
  • Place of Origin: Guangdong, China
  • Brand Name: ACM
  • Model Number: Access control system, access control system
  • Type: Keypad Standalone DIY rfid Access controller
  • Product name: Metal FRID Keypad
  • Working voltage: DC12V±10%
  • software: no
  • Keywords: rfid Keypad Controller/Electric Magnetic Lock/Access Control System
  • Accessaries: Access Control System/rfid key fobs/ exit button
  • Application: for access control product
  • Certificate: CE/FCC/ROHS
  • Frequency: 125khz/13.56mhz
Product Description

2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Door Lock System Kit with Remote and Smartphone app Control



Features:

  • The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the receiver, which can program up to 40 transmitters, and it has a range of 160 feet.
  • The function of the receiver is that when the power is on, the lock of your kit is locked and when you press the remote the lock will unlock temporarily to open the door.
  • Requires 2.4GHz Wi-Fi connection. Quick & easy installation without the need of a professional.
  • eWeLink is a smart home center that can let you control and manage your favorite smart devices of different brands in a single APP.
  • Easy Use: Transmits data to a cloud platform through the Wi-Fi Router, which enables you to remotely control the connected appliances via free eWeLink App.You can download the iOS version in App Store and the Android version in Google Play.
  • Grouping Function: It allows users to assign all added devices to different groups so that they can easily check and manage the devices. To use this feature, simply click the drop-down menu on the top of device list.
  • Smart Scene: The smart scene allows users to use one device to automatically trigger ON/OFF one or more devices.
  • Share Control: Device owners can share control of their own devices to other eWeLink users. Invite your family members to control your smart home together!
  • Scheduled Timing: User can reset repeat or single timing schedules to turn on/off devices according to your needs.Imaging that the door is off in the evening and on in the morning every day automatically.
  • Loop Timing: A loop timer allows users to turn on/off the door at preset intervals.
  • eWeLink provides a multi-language version, which supports Chinese, English, Danish, French, Russian, Italian, Polish, Deutsch, Spanish, Japanese etc.
  • eWeLink offers cloud service at a global scale, ranging from Asia, North America, South America to Europe, etc.
  • An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.

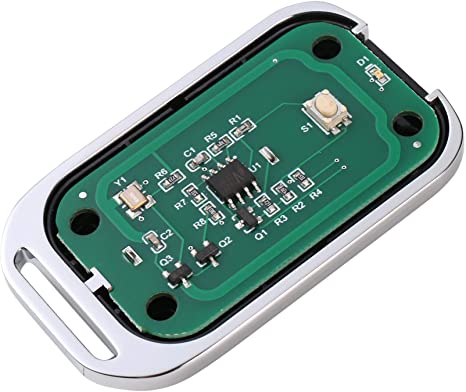

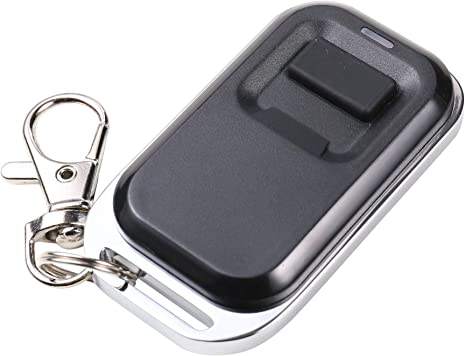

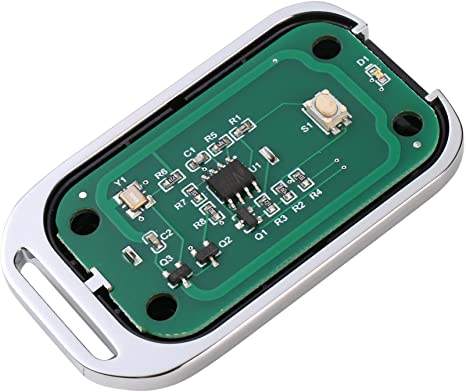

Transmitter:

  • Working voltage: 6VDC (Built-in button battery)
  • Operating Current: 8mA
  • Powerd by: 2pcs CR2016/3V batteries (Included)
  • Service Life of the Battery: 50000 cycles tested
  • Transmitting Frequency: 433MHZ
  • Key: 1 Key
  • Case material: Plastic



2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Door Lock System Kit with Remote and Smartphone app Control

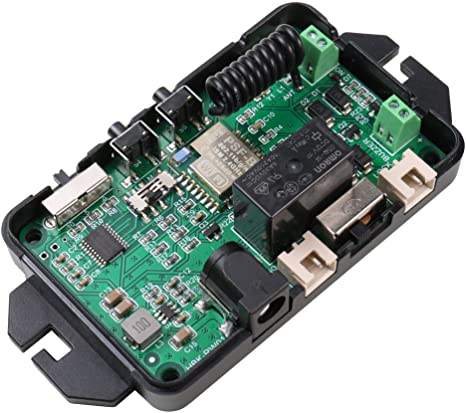

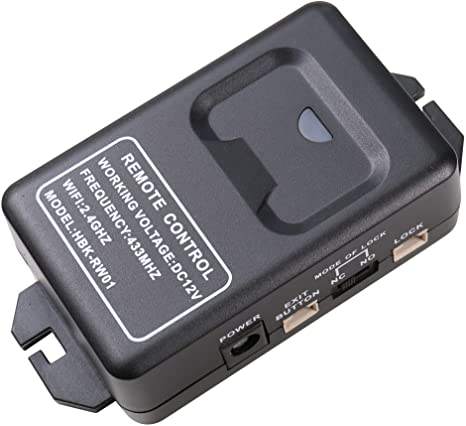

WI-FI Remote Control:



  • Wi-Fi Standard: 2.4GHz (Can't support 5GHz)
  • Voltage: 12VDC
  • RF Frequency: 433MHz
  • Load: Max. 1000W
  • Standby Current: <0.1W
  • Working Mode: Momentary/Toggle
  • DC Encoding Type: Learning code
  • Adjustable Locking Delay: 0/5/10sec
  • Firing Range: 160 feet(open) in theory, 15%-30% in reality
  • No. of Transmitters that are able to connect to one Receiver: Up to 40



2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Door Lock System Kit with Remote and Smartphone app Control

eWeLink APP Instruction:

  1. Download “eWeLink” app in APP Store for iOS or in Google play for Android
  2. Cut off the power before installing the device. Then power it up after completing the installation
  3. Press and hold the WIFI-KEY 5 seconds until the green LED flashing fast
  4. The APP will auto-search and connect access control keypad around you
  5. Input home WiFi SSID & password. (If no password, keep it blank)
  6. eWelink will search the device and add it to your account, it takes 1-3 minutes.When this complete,you can give your device a name



2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Door Lock System Kit with Remote and Smartphone app Control

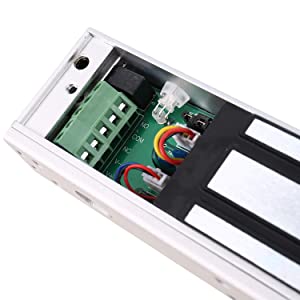

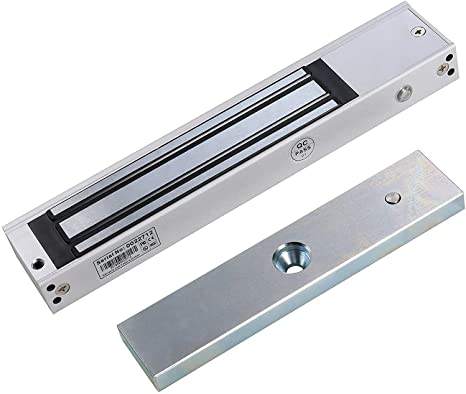

Electric Magnetic Lock:

  • Input Voltage: 12VDC
  • Current: 500mA
  • Holding Force: 280Kg/600Lbs
  • Output Contact: NO/NC/COM; LED: Red shows locked; Green shows unlocked
  • Lock Size: 250Lx48.5Wx25H(mm) / 9.84"x1.91"x0.98"
  • Armature Plate Size: 180Lx38Wx11H(mm) / 7.09"x1.5"x0.43"
  • Suitable: Wooden door, Glass door, Metal door, Fireproof door
  • Cover Finish: Anodized aluminum
  • Lock Finish: Zinc
  • Armature Plate Finish: Zinc

2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Door Lock System Kit with Remote and Smartphone app Control

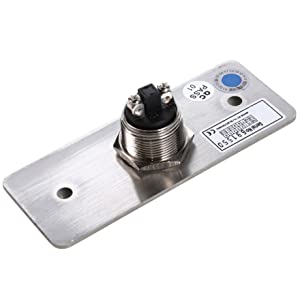

Push to Exit Button:

  • Dimensions: 90Lx35Wx26.5H(mm) / 3.54Lx1.38Wx1.04H(inch)
  • Standard Structure: Stainless steel Panel, Steel Button
  • Mechanical Life: 500000 tested
  • Current Rating: 3A@36VDC Max
  • Output Contact: NO/COM
  • Operating Temp: 10~+55℃(14-131F)
  • Operating Humidity: 0-95% (relative humidity)
  • Panel Material: Stainless steel Panel, Wire Drawing Finished
  • Suitable for hollow door



2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Door Lock System Kit with Remote and Smartphone app Control

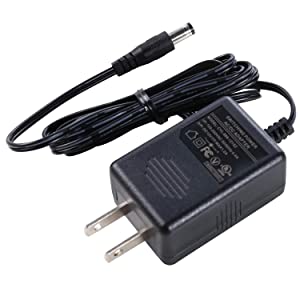

Adapter:

  • Type: 12V 1A Power Supply Wall Charger
  • Input: AC100V-240V 50/60Hz
  • Max Output: DC12V / 1A (1000mA)
  • AC Cord length: 4 feet / 1.2meter
  • Wire Type: 22AWG
  • Output transformer adapter : 5.5X2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
  • Net weight: 66g / 2.3oz
  • Certificate: FCC



2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Door Lock System Kit with Remote and Smartphone app Control

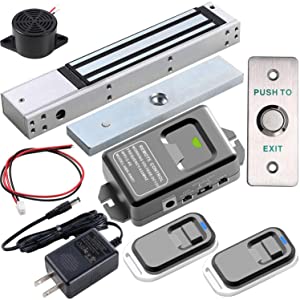

Package:

  • 1 x Electromagnetic lock
  • 1 x Remote receiver
  • 2 x Remote transmitters
  • 1 x Exit button
  • 1 x Power adapter
  • 1 x Buzzer
  • 1 x English manual

2.4GHz WiFi Outswinging Indoor 600lb Electronic Magnetic Door Lock System Kit with Remote and Smartphone app Control

Operating Setting:



  • Clear Code: Press and hold the RF-KEY for 8 seconds until the indicator changes from green to red, indicating the clear code is successful.
  • Pairing Transmitter and Receiver: Press the RF-KEY on the receiver once, the indicator on it will flash green once. Then press the button on the transmitter within 20 seconds, the LED indicator on the receiver will flash green three times to indicate the pairing is successful.
