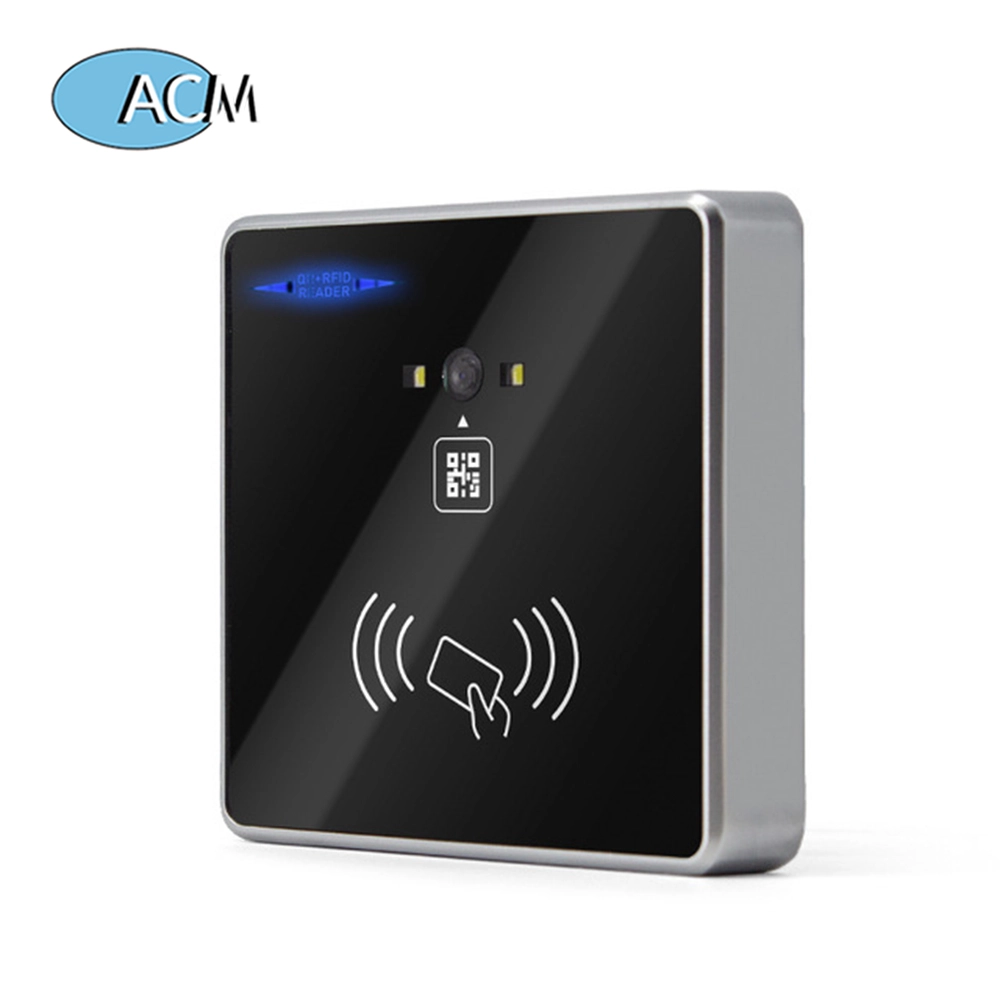

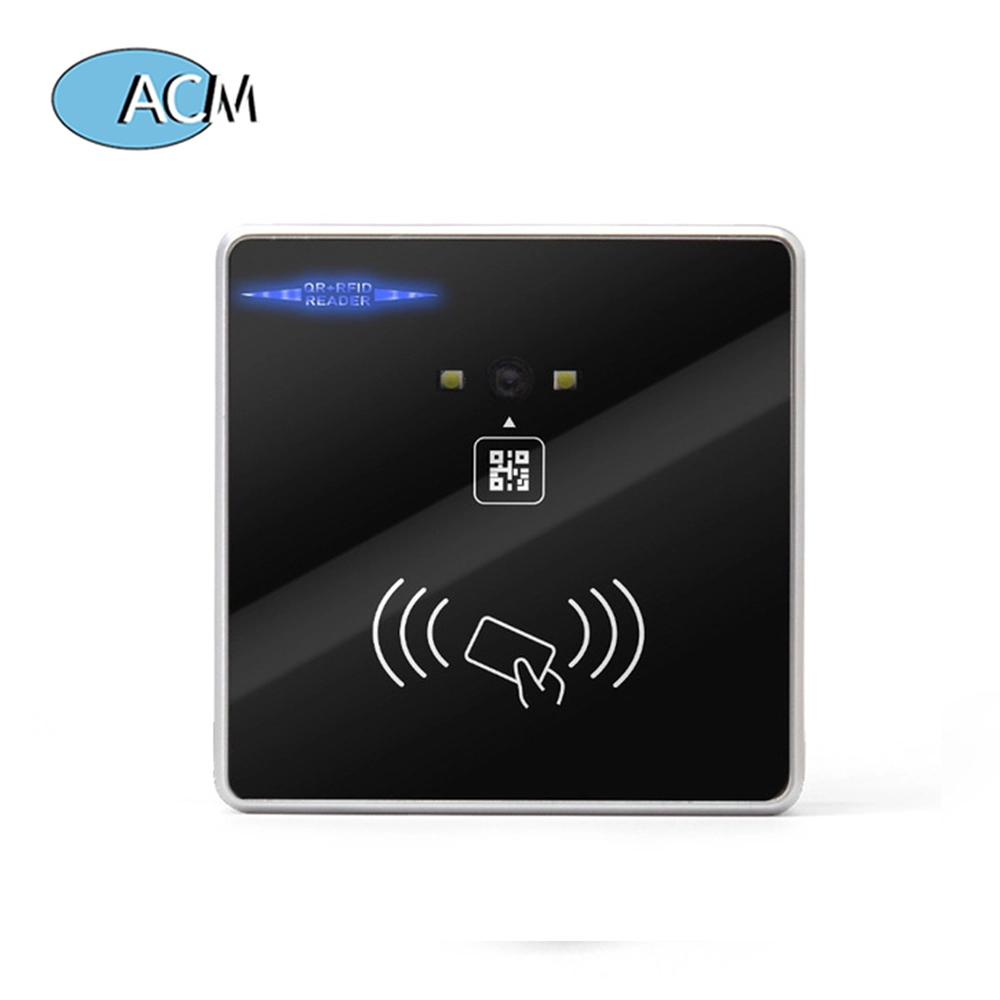

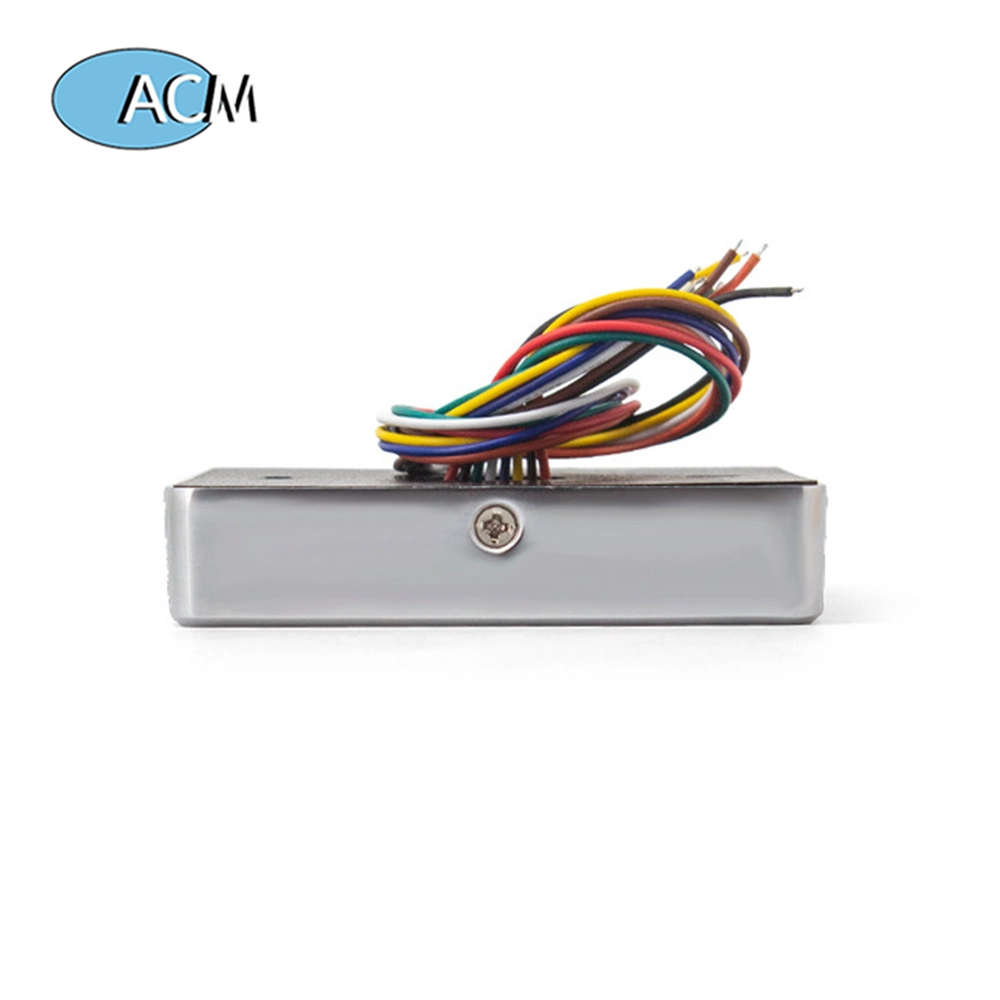

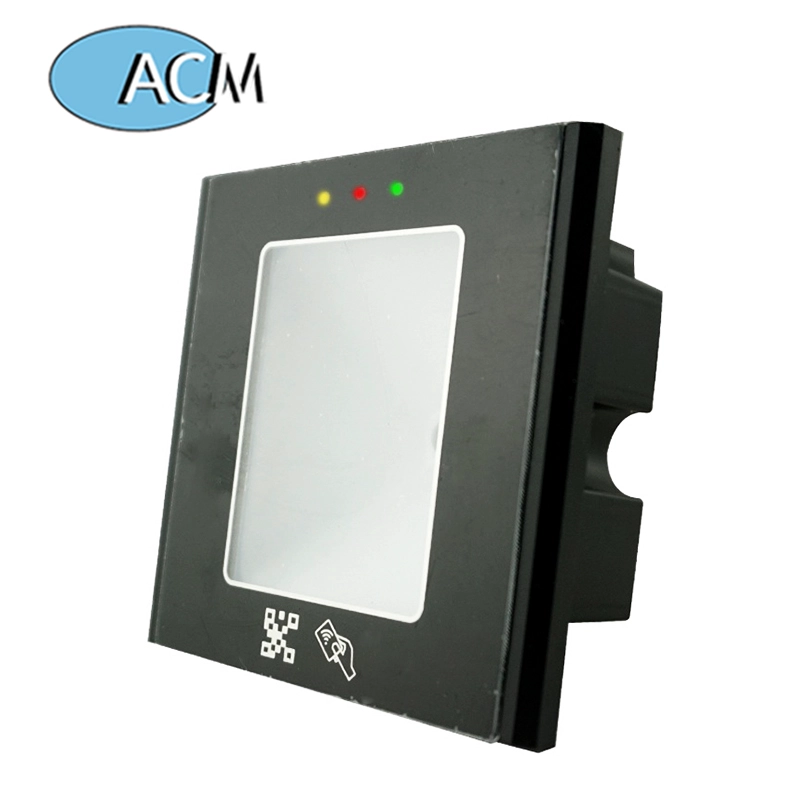

ACM-Q36 TCP IP Wiegand 26/34 Embedded Mounted ID/IC Card Reader QR Code Smart Door Access Controller

  • Brand Name:ACM
  • Product Name:TCP IP Wiegand 26/34 Embedded Mounted ID/IC Card Reader QR Code
  • Power supply:12VDC
  • Log Capacity:10,000 Transactions
  • ID Card Capacity:4,000 Cards
  • Communication:4,000 Cards
  • RFID Card:125KHz EM standard card
  • Authentication:Finger/PIN/Card
  • Keyword:Smart Door QR Code Reader, access control system
  • Decoding mode:WindowsXP/7/8/10),Linux
  • Operating System:Image decoding
Product Description

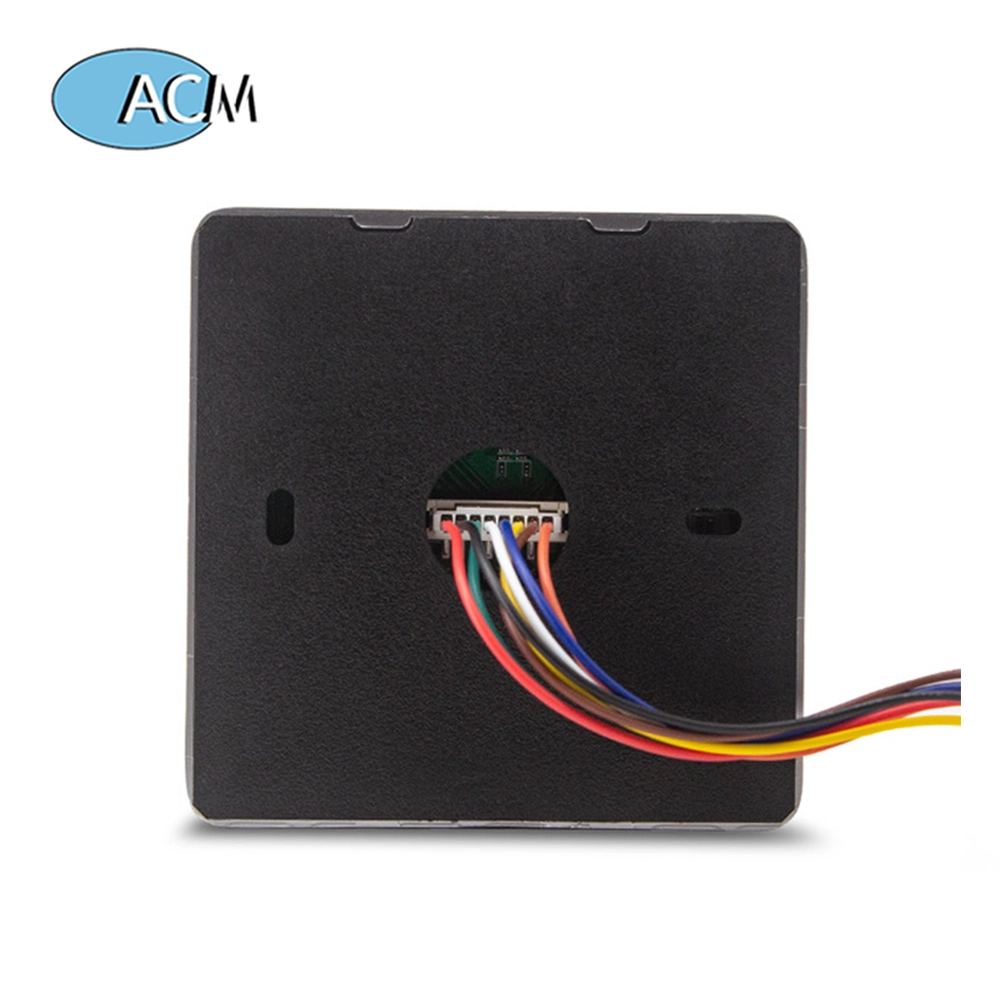

ACM-Q36 TCP IP Wiegand 26/34 Embedded Mounted ID/IC Card Reader QR Code Smart Door Access Controller



QR Code Access Control Devices Parameters
Image Sensor
752X480
Light Source
White LED
Symbologies
2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc.
Reading Distance
10-55mm
Scan Angle
360° Full Angle
Power Input
9-18VDC
Working Current
< 600mA
Can read like ISO14443Aor ISO14443B card serial number
Such as second-generation ID card, FM1208 CPU card, M1 card ( S50, S70 IC card), SRIX4K, etc.
Barcode or 2D code input
Wiegand 26/ 34 output, output IC card number (common read head function) and associated card number output in compliance with QR
code reservation rules
Communication Interface
RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth
Communication Protocol
Support TCP / UDP / HTTP
Voice output
comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice
Device input
12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input
Equipment output
2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener, light, water valve, etc.
Wiegand output
Wiegand 26/34 output
Quality Warranty

 - Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for     relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.
