ACM-Y200A Embedded Mini small dropbolt lock with door sensor

  • Model Number: ACM-Y200A
  • Material:Stainless steel
  • Lock finish:Wire drawing
  • Lock dimension:125X39.5X38mm
  • Open way:Fail-Safe
  • Voltage:DC 12V
  • Start current:0.7A
  • Standby current:0.12A
Product Descripition
Specification
Product Name
 Embedded Mini small dropbolt lock
Working voltage
DC 12V
Current
100mA(Standby),450mA(Start)

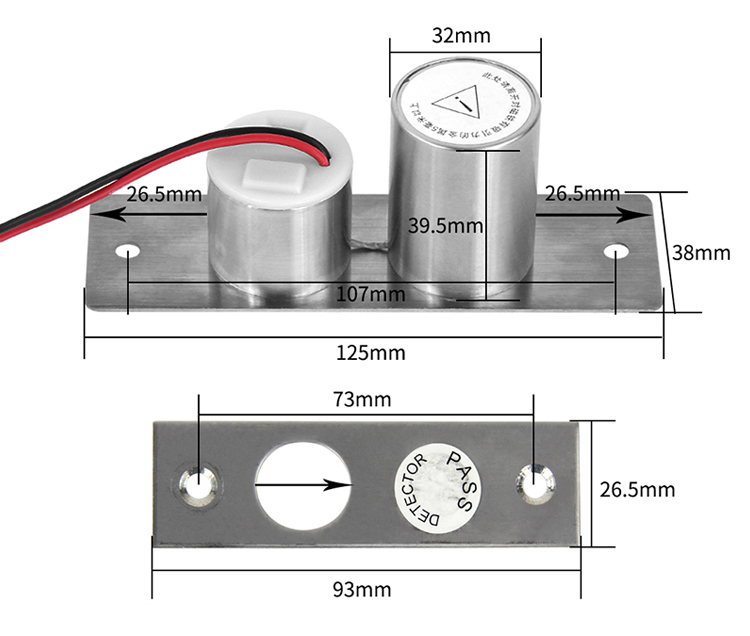

Lock dimension
125*39.5*38mm
Armature plate
93*26.5mm
Material
Stainless Steel


Features


1. Fail safe operation
2. Tested to 500000 cycles
3. Low power consumption
4. Reverse current protection PCB
5. Reliable locking mechanism
6. Durable and silence operation
7. Full range of optional brackets
8. Suitable for wooden door,glass door,metal door,fireproof door,etc


Detailed Images
