ACM-Y600A Electronic intelligent 12V electric drop bolt lock key

Model Number: ACM-Y600A
Feature: Fail Safe
Voltage: DC 12V / 24VDC
Surface Temp: Low Temperature
Lock cylinder material: Stainless Steel
Autolock Time Delay: 0,3,6,9sec

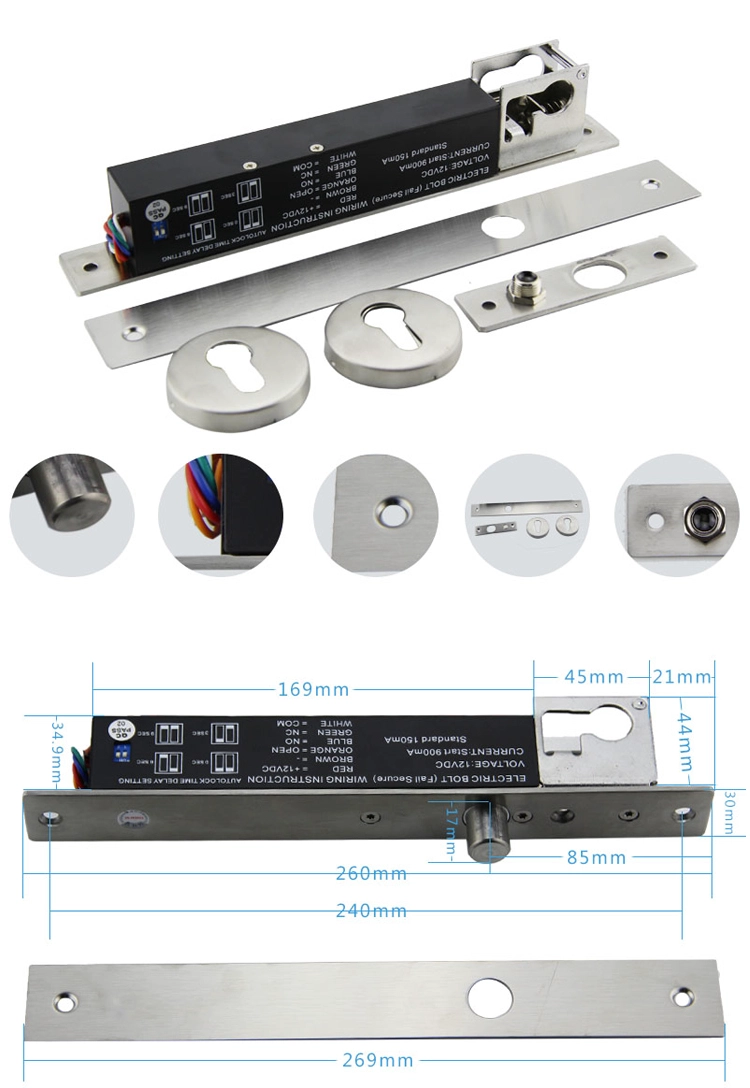

Face Plate: 268Lx30WX38H(mm)
Strike: 100Lx25Wx3H(mm)
Bolt: 16(length)*16(diameter)(mm)
Suitable For: Wooden Door,Glass Door,Metal Door,Glass Door

Product Description

Electronic intelligent 12V wireless remote door bolt lock electric drop bolt key card access door locks

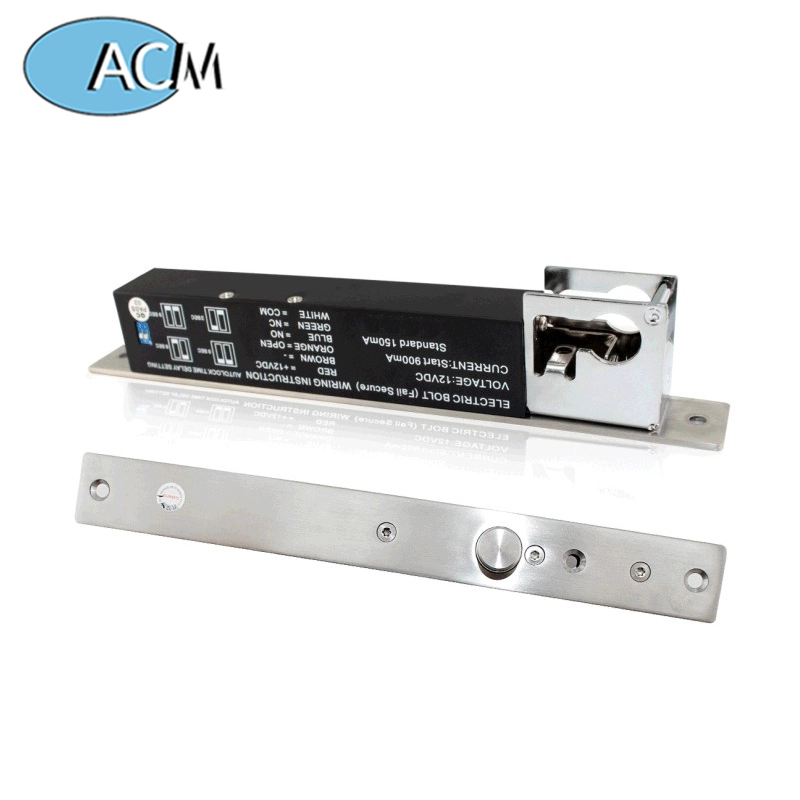

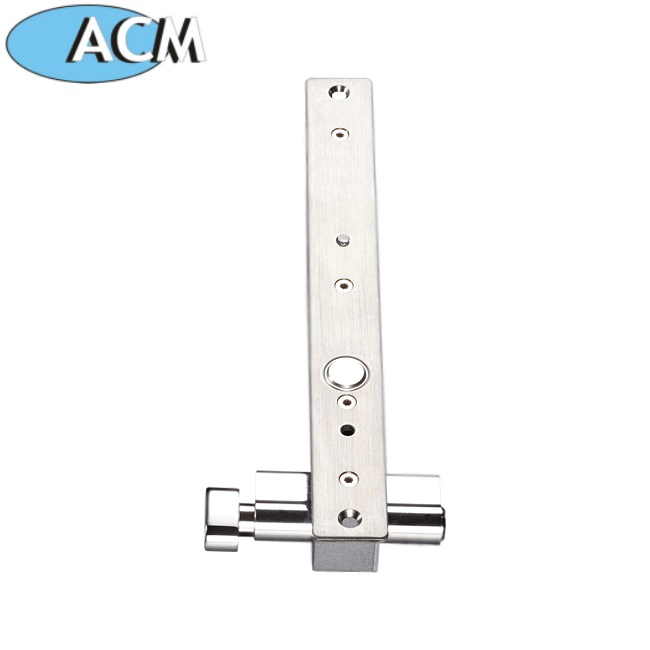

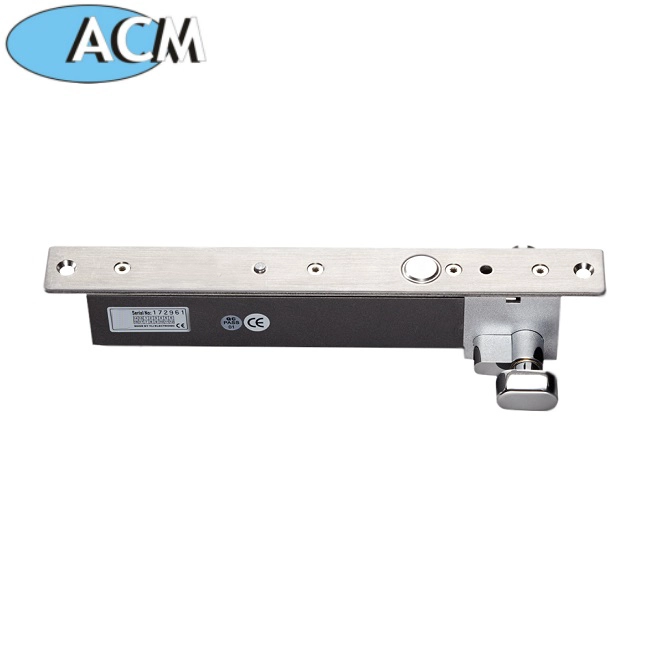

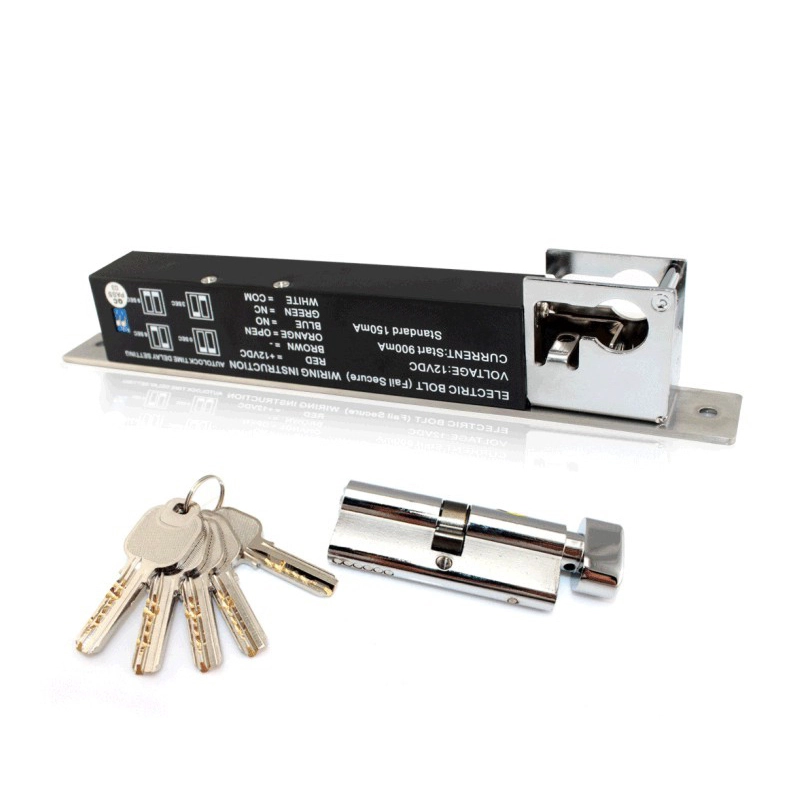

Y-600A (LED) is an all-metal construction electric bolt .with European-type cylinder
and has both electric control and manual control functions.The Fail Secure is Locked
when energized.The bolt of the lock adopts 304 stainless steel solid bar by CNC lathe, has 2000kg holding force. It colligates the system of Photoelectric control and
Intelligent circuit design ,with the speciality of low-power consumption and anti-intrusion

Specifications:

Product Parameter	Parameter Description
Feature	Fail Safe ( Unlocked when power off )
Lock Body	268Lx30WX38H(mm)
Magnetic Plate	100Lx25Wx3H(mm)
Bolt	16(length)*16(diameter)(mm)
Voltage	DC12V
Start Current	1200mA
Standby Current	150mA
Autolock Time Delay	0,3,6,9sec
Solid Bolt Holding Force	1000Kg
Lock cylinder material	Stainless Steel
Induction Distance	Within 8mm
Suitable For	Wooden Door,Glass Door,Metal Door,PVC Door
LED	Light on indicates locked, light off indicates unlocked
Surface Temp	Low Temperature
Face place material	304 stainless steel, wire draw finishing
Weight	2.2kg
Operating temp	-10~+55℃(14~131F)
Operating Humidity	0~90% (non-condensing)
Special Designed	Tested to 500000 operations

Product Advanatge

* Photoelectricity Controling,no machanical defect
* Low Temperature, safe & Durable
* Low Power, Environmental Protection
* Special photoelectricity control,three steps current application
* Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt
* The humanized design of Led helps to indicate the working status of lock
* The applying of kirsite and Stainless Steel prevent the lock from high temperature,corrosion or damage

* With complete accessories,available for any doors
* Photoelectricity Control,Low Temperature
A:The Low Current is Changed immediately

B:When door frame doesn`t coincide with door leaf,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature
C:The Photoelectricity Control Technology,prevent the machanical defect

Detailed Images , OEM/ODM available

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.

Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.

Packaging
Magnetic Lock packaging: 1unit per box, 10pcs per carton,
Carton size : 26*26*10cm , Gross Weight :46kg. 50 cartons per pallet

ACM-Y100S 2PIN

ELECTRIC DROP BOLT LOCK

Standby 100MA / working 900MAPower to unlock, 2PIN

ACM-Y100S 5PIN

ELECTRIC DROP BOLT LOCK

Low temperature time-delay,feedback signalPower to unlock, 5PIN

ACM-Y500A

Fail Safe Sturdiness Electronic BoltW/Narrow DoorLock Size: 205x30x38mm

ACM-Y280

Surface mounted magnetic lock(280kg/600lbs)

ACM-Y131

Stainless steel electronic Stripe (NC/NO) For Wooden Door, Metal Door,PVC Door

ACM-Y066

Intelligent Smart Lock (motor lock)

Lock size: 130x98x41mmWorking

Our Service

1, Any inquires will be replied within 24 hours
2, Professional manufacturer and supplier, Welcome to visit our website and our factory
3, OEM/ODM Available
4, High quality, fashin desing, reasonable & competitive price, fast lead time
5, After-sale Service :
1), All products will have been strictly quality checked in house before packing
2), All products will be well packed before shipping
3), All our products have 2-3 year warranty if the damage is not caused by human
6, Faster delivery : Around 1~ 5 days for sample order, 7~30 days for bulk order
7, Payment : You can pay for the order via : T/T, Western Union, Paypal.
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, You also can choose your own shipping forwarder.

FAQ

Q: 1. How can I place an order?
A: Please list your requirement to us via email. Then we will send the offer to you at earliest time,after order confirmation, we will arrange production ASAP.

Q: 2.What about the payment and shipment?
A: Trade Assurance and T/T ,Paypal, Western Union.
Clients can choose by sea, air or express(DHL, FedEx, TNT UPS etc.)

Q: 3. How can i get a sample to check your quality?
A:We could provide free sample to you, and the freight cost payed by you.

Q:4. How long can I expect to get the samples?
A: It depends on the quantity. Normally 3-7 days for 5000pcs and 7-15 days for 100,000pcs

Q:5. Can your products be customized?
A: Almost all of your products are customized ,including the materia, size, thickness and printing. OEM orders are highly welcome.

Q:6.Are you a trading company or factory?
We are the one of the biggest manufacturer of RFID cards/NFC tags/RFID keybod /RFID wristband，rfid reader and access control products in China more than 20 years.
