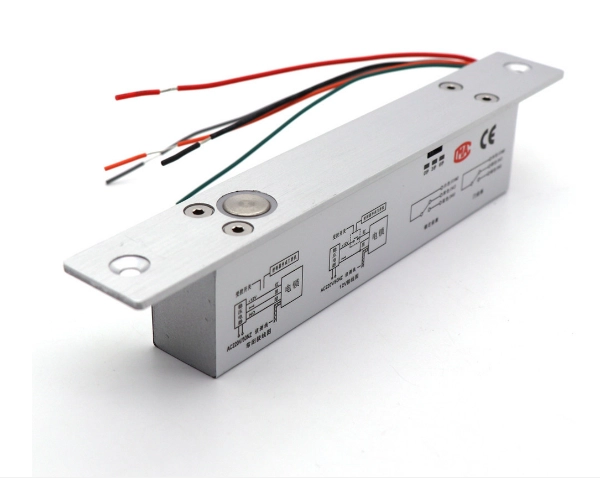

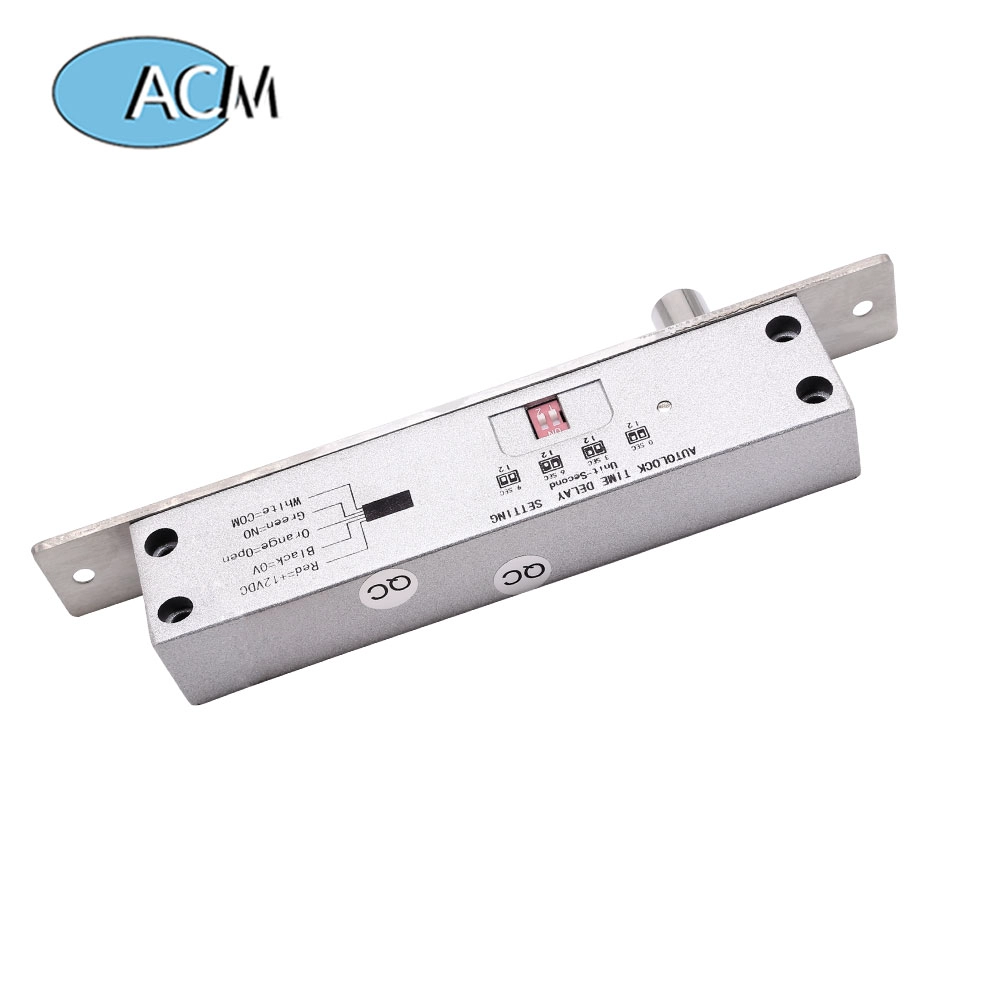

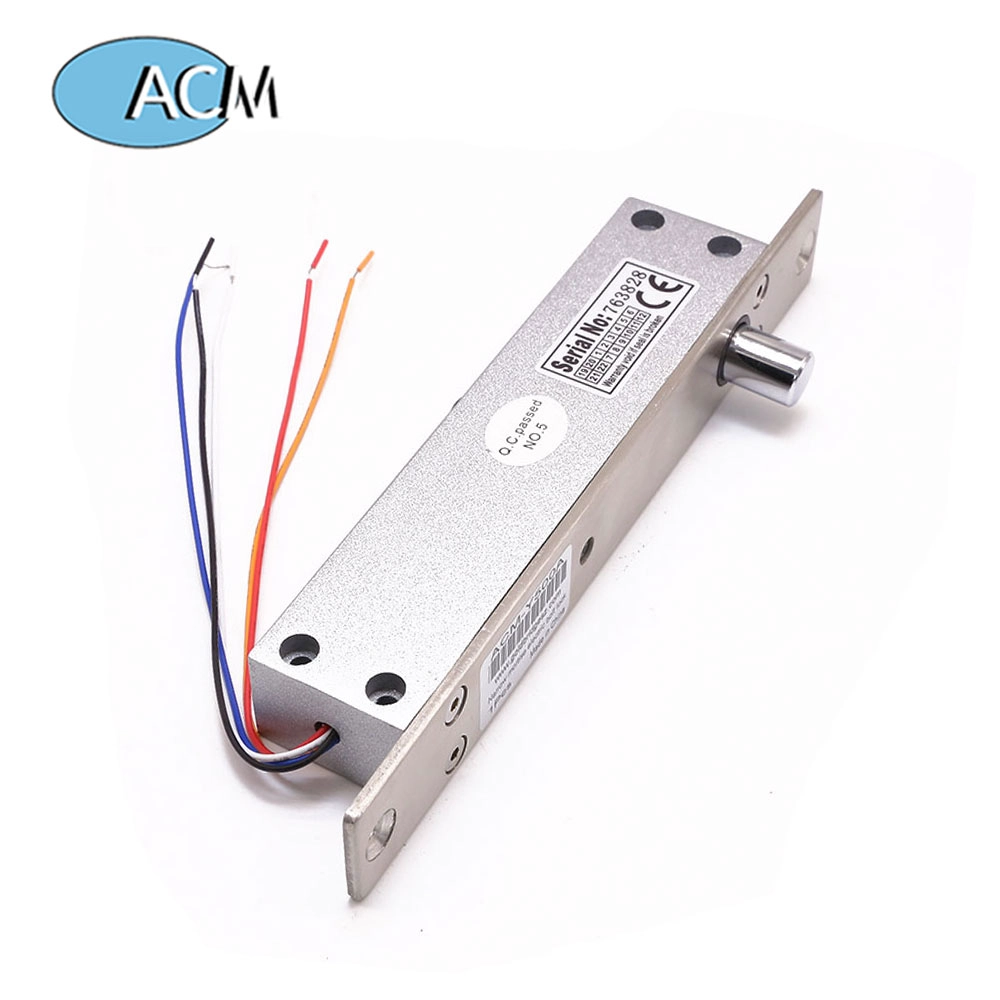

Electric drop lock with cylinder and 12V LED electric bolt

Model Number: ACM-Y500A
Functionality: Fail Safe (unlocked when powered off)
Front plate: 192Lx25WX37H (mm)
Strike: 90Lx25Wx2H (mm)
Voltage: DC12V
Automatic block delay: 0,3,6,9 sec
Solid bolt holding force: 1000Kg
Locking cylinder material: stainless steel
Suitable for: wooden door, glass door, metal door, PVC door
LED: light on indicates locked, light off indicates unlocked
Surface Temp.: Low temperature

Product description

Sliding glass without electric frame Door with electric lock Robustness Failure Safety deadbolt / failure Electric deadbolt Lock

ACM-Y500A (LED) is a fail-safe electric latch suitable for glass door, wooden door, metal door.

We supply integral equipment for positioning with completely frameless glass door, swing door and so on.

Integrated photoelectricity control and low temperature design.

Technical specifications:

Product parameter	Description of the parameter
characteristic	Fail Safe (unlocked when powered off)
Front plate	192Lx25WX37H (mm)
Strike	90Lx25Wx2H (mm)
Voltage	DC12V
Start current	960mA
Standby current	180mA
Autolock delay	0,3,6,9sec
Solid bolt holding force	1000kg
Lock the cylinder material	Stainless steel
Induction distance	8 mm
Useful to	Wooden door, glass door, metal door, PVC door
GUIDED	Light on indicates locked, light off indicates unlocked
Surface Temp	Low temperature
Material placed on the face	304 stainless steel, flush finish
Weight	0.68 kg
Operating temperature	-10 ~ + 55 ℃ (14 ~ 131F)
Operating humidity	0 ~ 90% (non-condensing)
Special design	Tested on 500,000 operations

Product Parameter	Parameter Description
Feature	Time-delay,Feedback Signal ,NC
Face Plate	205Lx30X38(mm)
Voltage	12VDC+
Start Current	(start) 950mA, (standby) 120mA
Suitable For	wooden doors, glass doors, metal doors, fireproof doors
Signal Output	Door status Output,NC/COM
Safety function	double protection currents, protection against damage, built-in voltage spike suppressor
Patent design	low temperature
Warranty	12months (except man-made faults)
Special Designed	500,000 cycles
Weight	550g

Advanatge product

* Photoelectric control, no mechanical defects
* Low temperature, safe and durable
* Low power, environmental protection
* Photoelectric special control, three-step current application
* Superior strength aluminum alloy, solid stainless steel bolt
* The humanized design of the LEDs helps to indicate the operating status of the lock
* Application of kirsite and stainless steel prevents blocking from high temperatures, corrosion or damage

* With complete accessories, available for any door
* Photoelectric control, low temperature
A: The low current is changed immediately

B: When the door frame does not coincide with the door leaf, the door leaf against the bolt, the electric bolt will start the low power function to bring the low temperature
C: Photoelectricity control technology, prevent mechanical defects

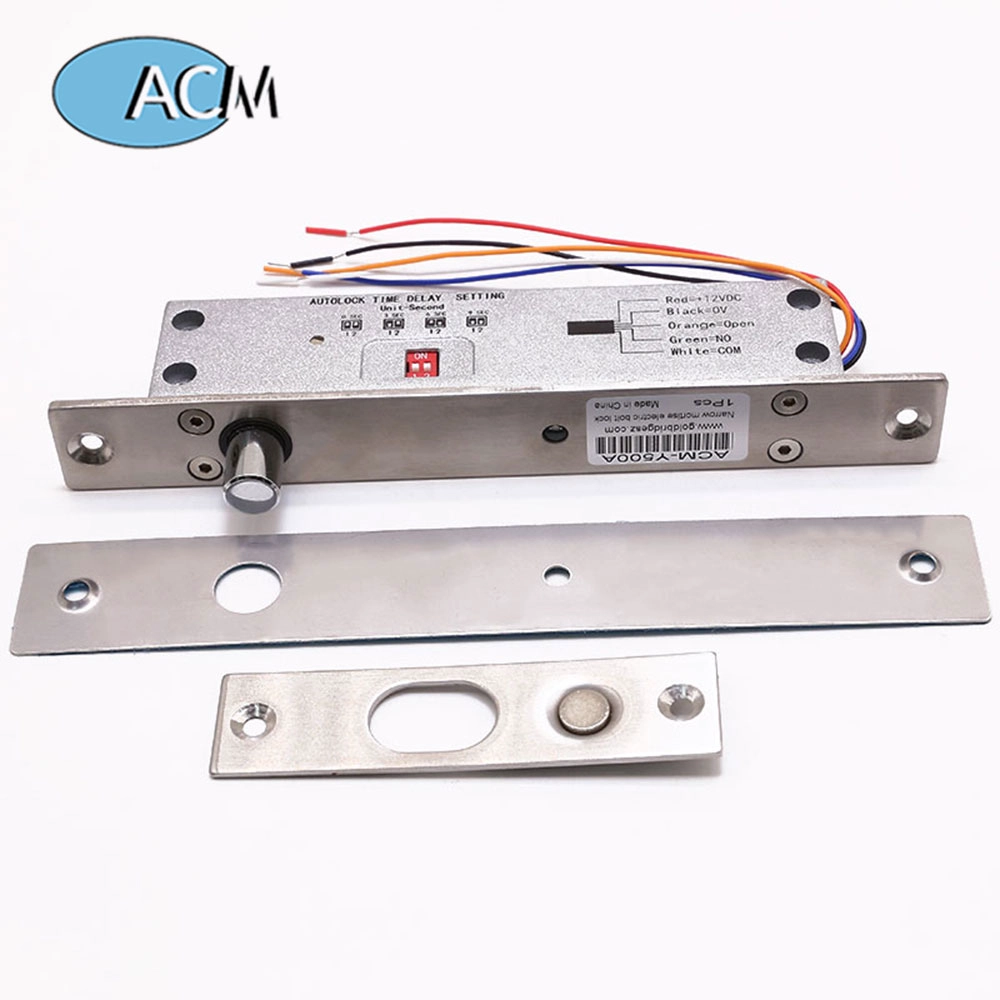

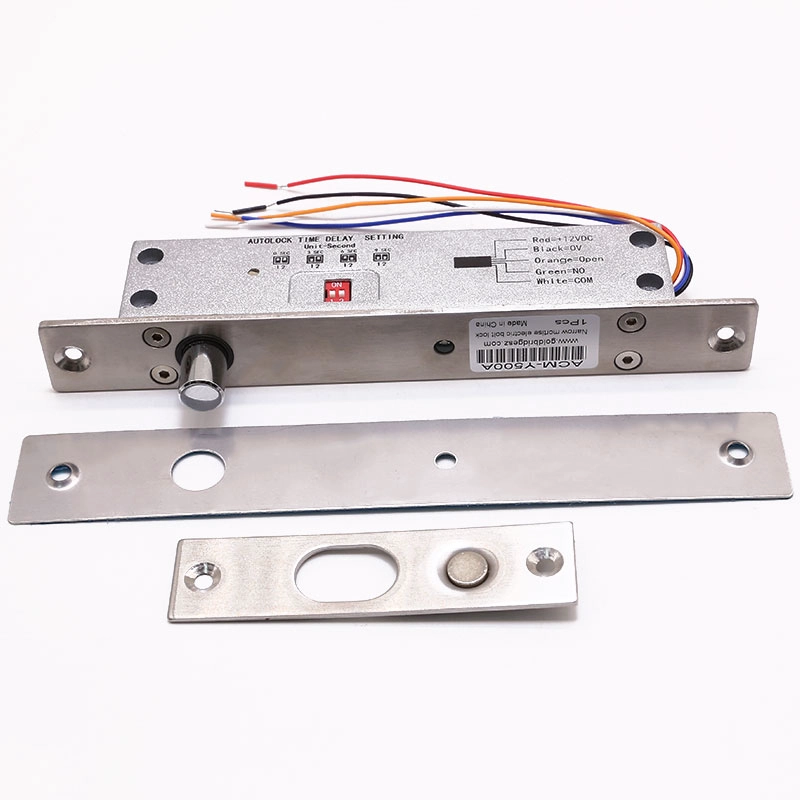

Detailed pictures, OEM / ODM available

Quality assurance

- Warranty service will be honored if the damage is not caused by people, ACM Goldbridge provides 2 years warranty for related products.
- Conversely, ACM Goldbridge will be filled with extras if repaired.
- More information, consult our service center.

Packaging and delivery

Shipping method
We have strong partnership with DHL, FEDEX, TNT, UPS, EMS, SEA and By AIR Forwarders
You can also choose your own forwarder.

package
Magnetic closure packaging: 1 unit per box, 30 pcs per carton,
Carton size: 54.5 * 20 * 30.5cm, gross weight: 22 kg. 50 cartons per pallet

ACM-Y100S 2 PIN

DROP-LOCK ELECTRIC LOCK

Standby operation 100MA / 900M Power to unlock, 2 PIN

ACM-Y100S 5PIN

DROP-LOCK ELECTRIC LOCK

Low temperature delay, feedback signal Power on unlock, 5 PIN

ACM-Y500A

Robur fail-safe electronic bolt with narrow lock Dimensions: 205x30x38mm

ACM-Y280

Magnetic Surface Mount Latch (280kg / 600lbs)

ACM-Y131

Electronic strip in stainless steel (NC / NO) for wooden door, metal door, PVC door

ACM-Y066

Intelligent Smart Lock (engine lock)

Lock dimensions: 130x98x41mm

Our service

1 ° Any inquiry will be answered within 24 hours
2, professional manufacturer and supplier, welcome to visit our website and factory
3, OEM / ODM available
4, high quality, fashin design, reasonable and competitive price, fast delivery time
5, after-sales service:
1), all products will have been strictly home checked before packing
2), all products will be well packed before shipping
3), all of our products have 2-3 years warranty if the damage is not caused by man
6, faster delivery : About 1 ~ 5 days for sample order, 7 ~ 30 days for bulk order
7, payment: You can pay for the order via: T / T, Western Union, Paypal.
8, Shipping: We have strong partnership with DHL, FEDEX, TNT, UPS, EMS, SEA and By AIR Forwarders, you can also choose your own forwarder.

FAQ

Q: 1. How can I place an order?
A: List your needs by email. Then we will send you the offer as soon as possible, after confirming the order, we will arrange the production as soon as possible.

Q: 2. What about payment and shipping?
A: Trade assurance and T / T, Paypal, Western Union.
Customers can choose by sea, air or express (DHL, FedEx, TNT UPS etc.)

Q: 3. How can I get a sample to check the quality?
A: We could provide you the free sample and the shipping cost paid by you.

Q: 4. How long can I expect to get the samples?
A: It depends on the quantity. Normally 3-7 days for 5000 pieces and 7-15 days for 100,000 pieces

Q: 5. Can your products be customized?
A: Almost all of your products are customized, including material, size, thickness and printing. OEM orders are welcome.

Q: 6. Are you a trading company or a factory?
We are one of the largest manufacturers of RFID card / NFC / RFID keybod / RFID bracelet, RFID reader and access control products in China for more than 20 years.
