ACM301 433MHz Rolling Code Wireless Wiegand Access Control RFID Card Reader with 30m Wireless Distance 125KHz EM Wireless Card ReaderACM301 433MHz Rolling Code Wireless Wiegand Access Control RFID Card Reader with 30m Wireless Distance 125KHz EM Wireless Card ReaderACM301 433MHz Rolling Code Wireless Wiegand Access Control RFID Card Reader with 30m Wireless Distance 125KHz EM Wireless Card ReaderACM301 433MHz Rolling Code Wireless Wiegand Access Control RFID Card Reader with 30m Wireless Distance 125KHz EM Wireless Card Reader

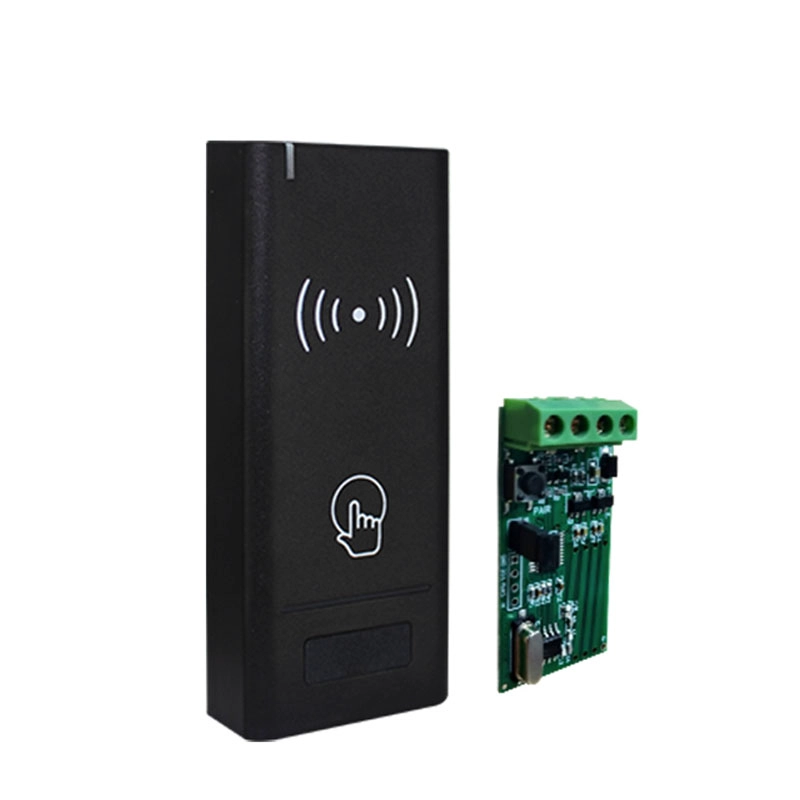

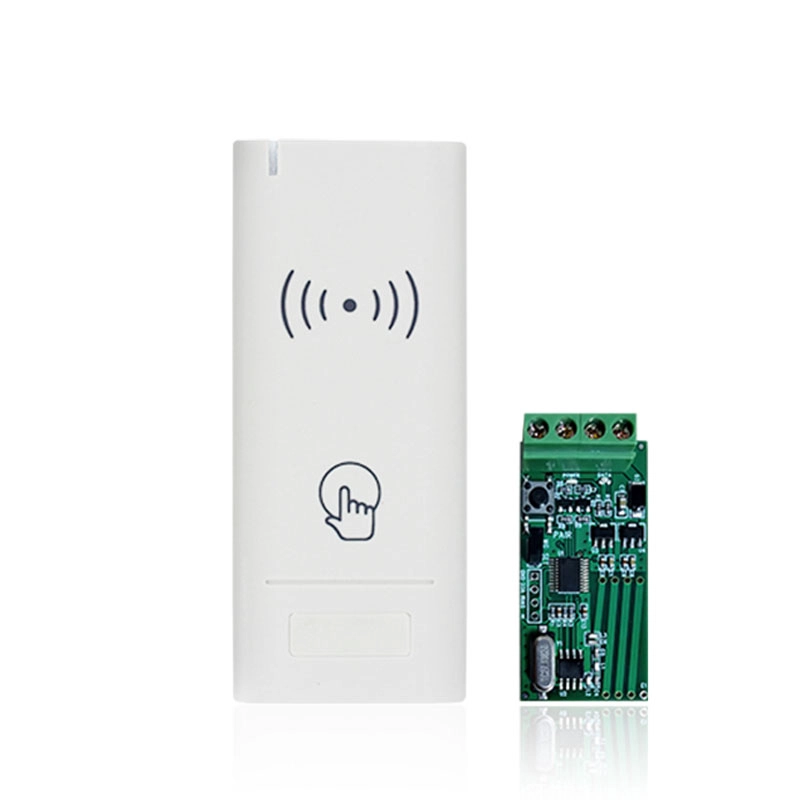

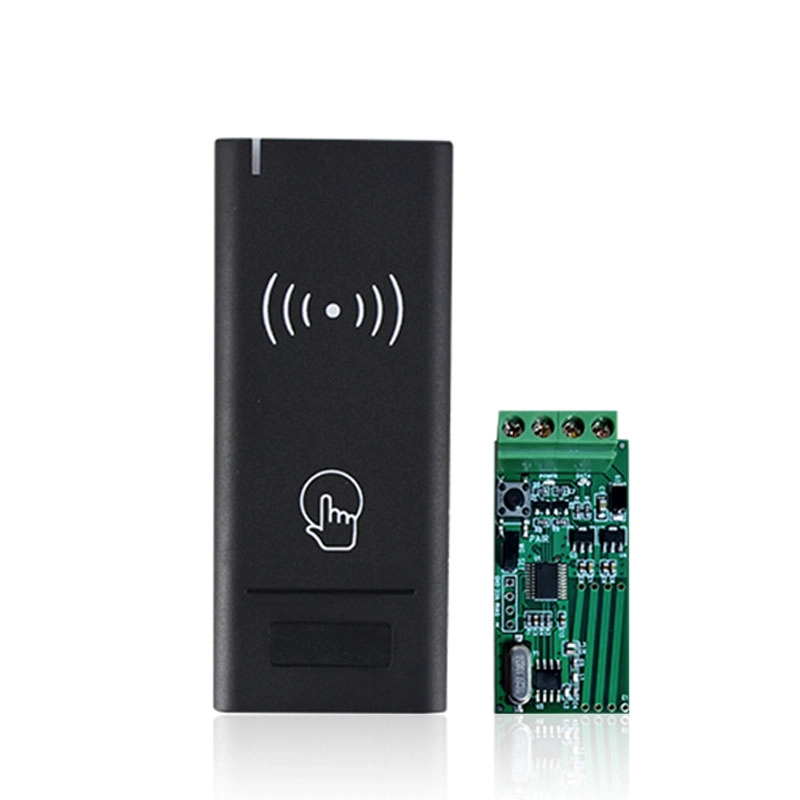

ACM301 433MHz Rolling Code Wireless Wiegand Access Control RFID Card Reader with 30m Wireless Distance 125KHz EM Wireless Card Reader

  • > 433MHz Rolling Code technology
  • > Card type: 125KHz EM card or 13.56MHz MF card
  • > Programmable Wiegand output of the Receiver: 26 bits or 34 bits
  • > Communication distance: 30m maximum
  • > Ultra low power consumption
  • > Waterproof, conforms to IP65

433MHz Rolling Code Wireless Wiegand Access Control RFID Card Reader with 30m Wireless Distance 125KHz EM Wireless Card Reader



Wireless Reader



> 433MHz Rolling Code technology
> Card type: 125KHz EM card or 13.56MHz MF card
> Programmable Wiegand output of the Receiver: 26 bits or 34 bits
> Communication distance: 30m maximum
> Ultra low power consumption
> Waterproof, conforms to IP65



Product Parameter Parameter Description
Model ACM301
Product Name Wireless Wiegand Reader

Wireless Keypad Reader
Card Type 125KHz EM card
Operating Voltage 3 units of AAA batteries
Idle Current ≤5uA
Working Current ≤35mA
Reading Distance ≤3cm
Communication Frequency 433MHz
Communication Distance 30m Maximum
Operating Temperature -20°C~+60°C (-4°F~+140°F)
Operating Humidity 0%~86%
Index of Protection IP65
Color Black, White optional
Dimensions L120 * W50 * H20 (mm)
Net Weight 88g

Receiver
Operating Voltage 12V DC
Working Current ≤15mA
Communication Frequency 433MHz
Wiegand Output Format 26 bits Or 34 bits (Default is 26 bits)
Operating Temperature -20°C~+60°C (-4°F~+140°F)
Operating Humidity 0%~86%
Dimensions L25 * W50 (mm)
Net Weight 10g



433MHz Rolling Code Wireless Wiegand Access Control RFID Card Reader with 30m Wireless Distance 125KHz EM Wireless Card Reader



433MHz Rolling Code Wireless Wiegand Access Control RFID Card Reader with 30m Wireless Distance 125KHz EM Wireless Card Reader433MHz Rolling Code Wireless Wiegand Access Control RFID Card Reader with 30m Wireless Distance 125KHz EM Wireless Card Reader433MHz Rolling Code Wireless Wiegand Access Control RFID Card Reader with 30m Wireless Distance 125KHz EM Wireless Card Reader
