ACM308 125KHz RFID Wireless RFID Proximity Card Reader TK4100 EM Card Access Control System Door Entry System

  • > Metal design, anti-vandalism
  • > Waterproof, in accordance with IP65
  • > Rolling Code Technology 433 MHz
  • > PIN length: 1-6 digits
  • > Card type: EM 125 KHz card or 13.56 MHz MF card
  • > Programmable Wiegand output from receiver: 26 bits or 34 bits
  • > Communication distance: maximum 30m
  • > Ultra-low energy consumption

Wireless RFID proximity card reader 125KHz RFID TK4100 EM card access control system Door entry system


IP65 wireless keyboard reader

> Metal design, anti-vandalism
> Waterproof, in accordance with IP65
> Rolling Code Technology 433 MHz
> PIN length: 1-6 digits
> Card type: EM 125 KHz card or 13.56 MHz MF card
> Programmable Wiegand output from receiver: 26 bits or 34 bits
> Communication distance: maximum 30m
> Ultra-low energy consumption

Wireless keyboard reader
PIN length 1-6 digits
Type of letter 125KHz EM Card
Operating voltage 3 units of AAA batteries
Idle current ≤5uA
Working Current ≤45mA
Reading distance ≤75px
Communication Frequency 433 MHz
Communication distance 30m maximum
Operating Temperature -20 ° C ~ + 60 ° C (-4 ° F ~ + 140 ° F)
Operating humidity 0% ~ 86%
Physics Zinc Alloy
Dimensions L148 * W56 * H22.5 (mm)
Net weight 250g

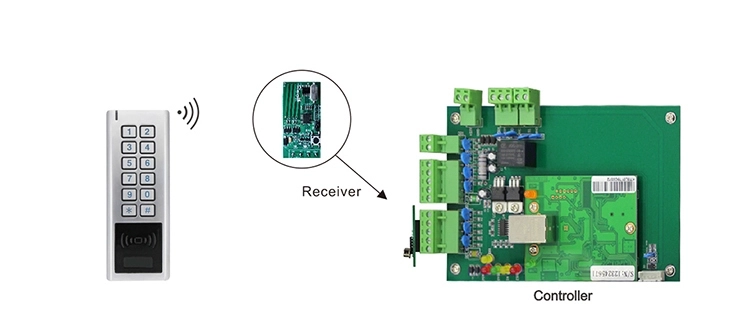

Receiver
Operating voltage 12 V DC
Working Current ≤15mA
Communication Frequency 433 MHz
Wiegand output format 26 bits or 34 bits (the default is 26 bits)
Operating Temperature -20 ° C ~ + 60 ° C (-4 ° F ~ + 140 ° F)
Operating humidity 0% ~ 86%
Dimensions L25 * W50 (mm)
Net weight 10g

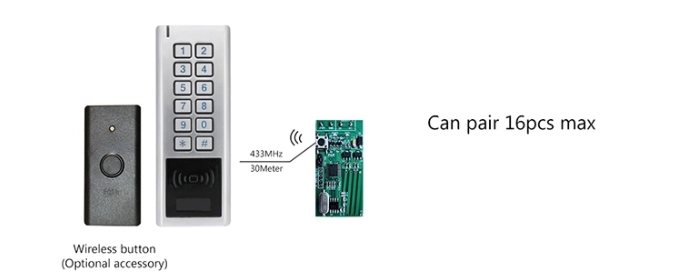

Wireless button
Operating voltage 1 unit of lithium battery 2023
Idle current ≤2uA
Working Current ≤20mA
Communication Frequency 433 MHz

Communication distance

20m maximum

125KHz RFID Wireless RFID Proximity Card Reader TK4100 EM Card Access Control System Door Entry System
