Name
|

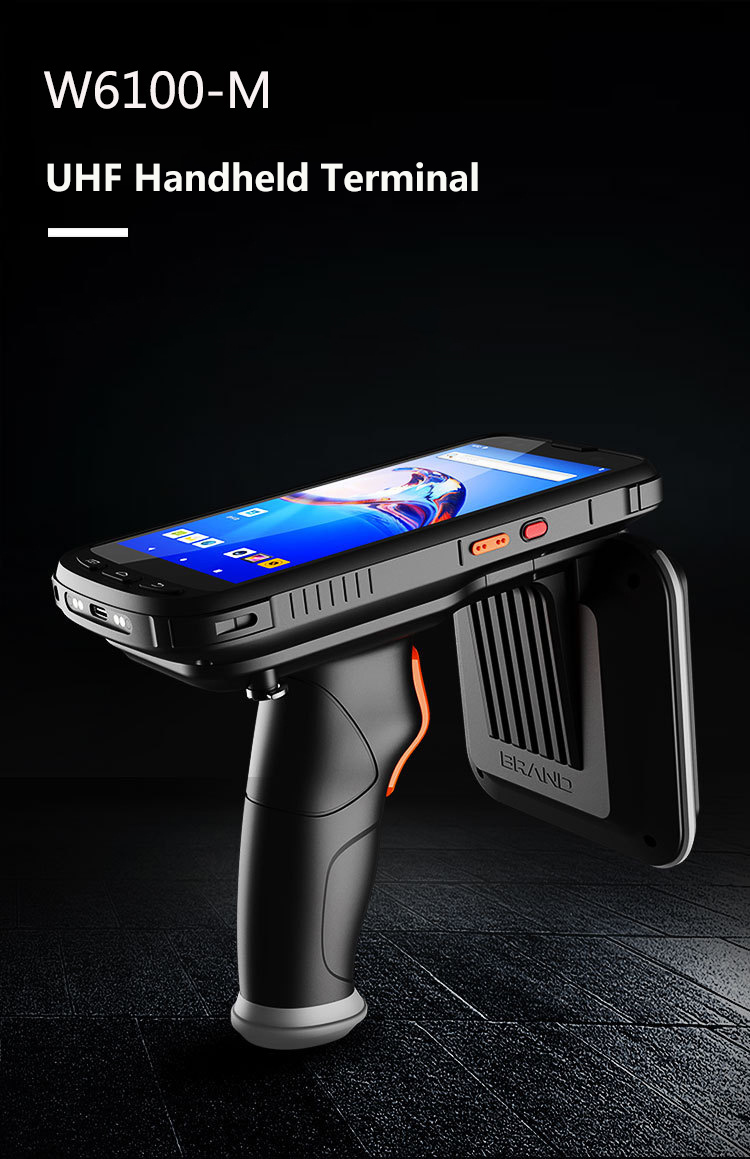

W6100-M RFID Handheld
|
|
Operating System
|
Android 9.0
|
|
Processor
|
MT6671 Octa-Core 2.0GHZ
|
|
Memory Capacity
|
ROM:EMMC 16GB/RAM:EMMC 2GB
|
|
Network
|
4G/GPS/BT/ USB/WIFI (2.4G/5G Dual Frequency, ,IEEE802.11a/b/g/n/ac )
|
|

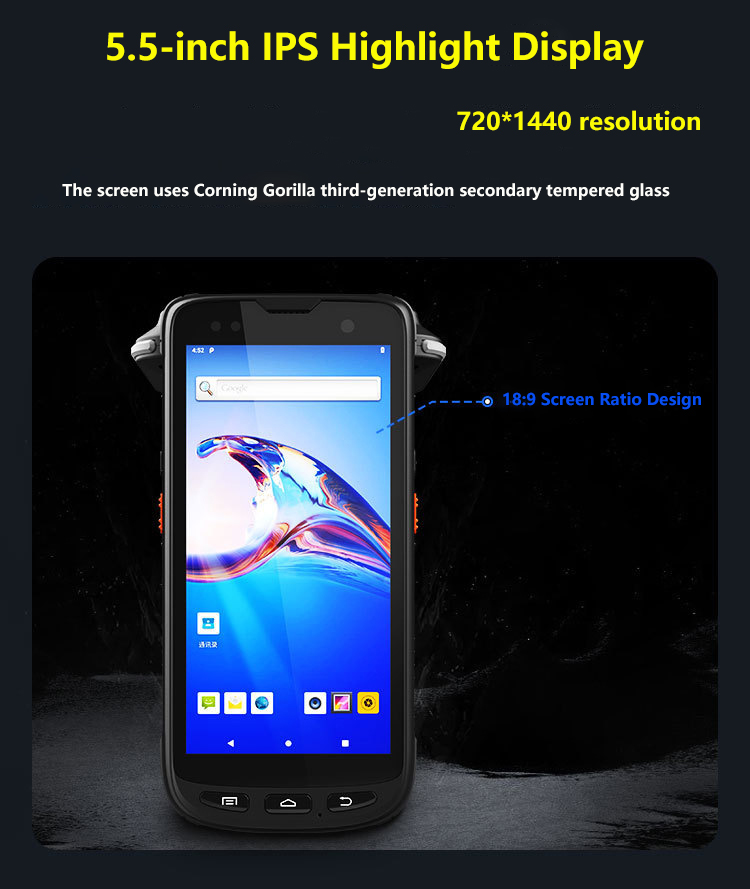

Display
|
5.0 inch Gorilla Glass 3 9H TFT-LCD(720x1440)touch screen with backlight
|
|
SDK
|
Handheld Software Development Kit
|
|
Language
|
JAVA
|
|

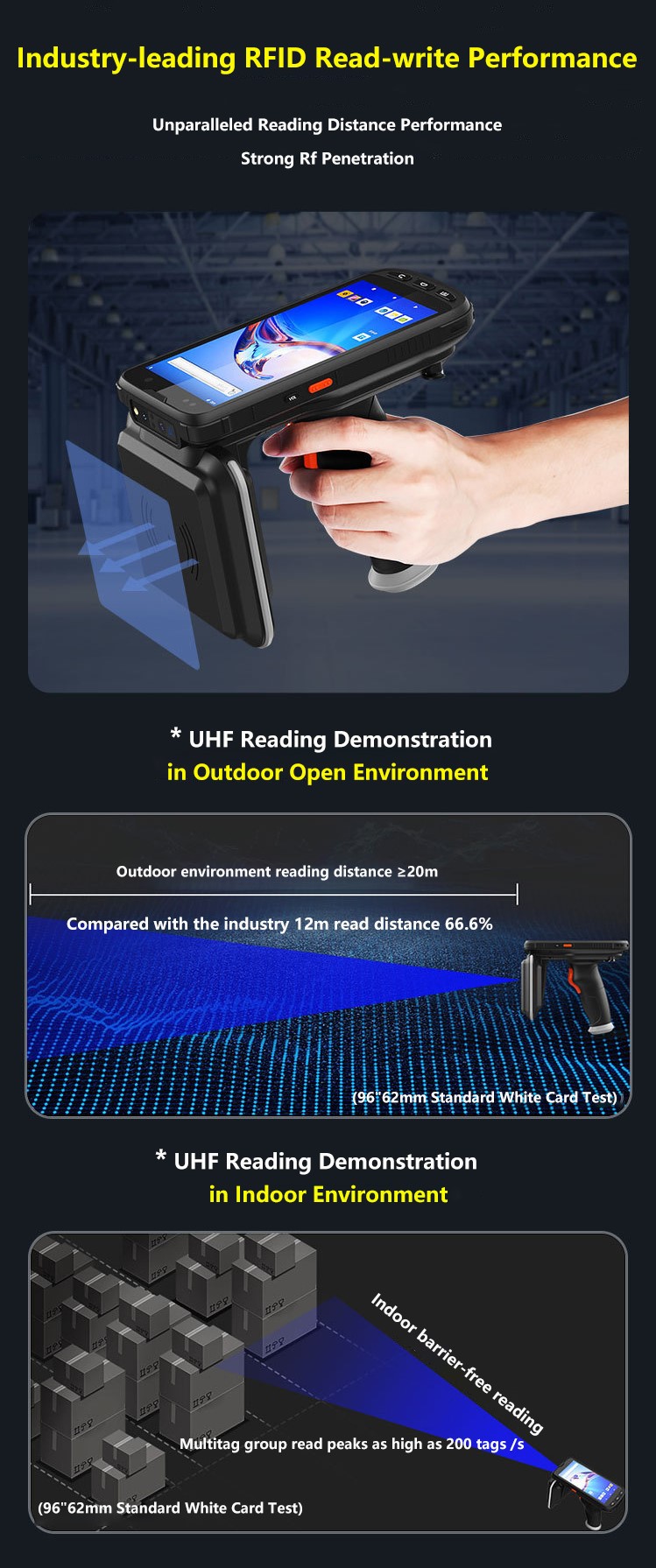

RFID Module
|
Thingmagic M6e-Micro
|
|
RFID Antenna
|
4dbi
|
|
RF Power Output
|
-5 ~ +30dbm
|
|
Max Tag Read Rate
|
750 tag/s
|
|
RFID Protocol Support
|
EPC Gen2/ISO180-6C,ISO18000-6B/IPX256/EPC Gen2V2/AEI ATA
|
|
Optional function
|
ACM :1D/2D barcode
|
|
Standard accessories
|
Battery *2 / USB cable*1 / DC Power *1
|
|
Power
|
DC 3.8V
|
|
Rechargeable li-ion polymer
|
9000mA
|
|

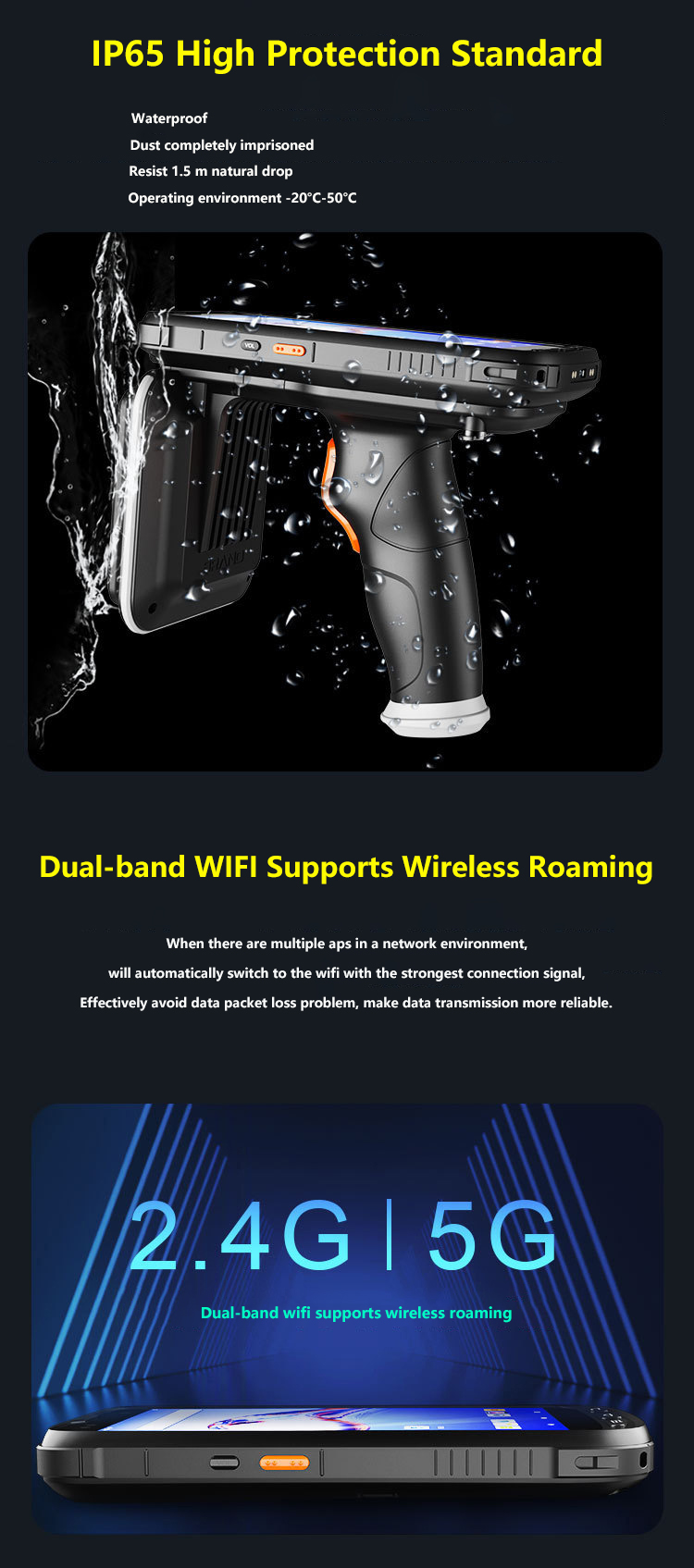

Degree of protection
|
IP 65
|
|
Shock Vibration
|
1.5m drop survival
|
|
Operating Temperature
|
-20℃ to +50℃
|
|
Storage Temperature
|
-20℃ to +70℃
|
|
Dimensions( mm)
|
166×79×31±2mm(without handle)
|
|
Weight(g)
|
650
|
