ID 125khz USB Interface smart card rfid reader with keyboard

  • Frequency: 125Khz
  • Support cards: Em4100,TK4100,SMC4001 and compatible card
  • Output format: 10 digit dec +Enter
  • Size: 135mmx85mmx28mm
  • Colour: Black
  • Interface: USB
  • Power Supply: DC 5V
  • Service Temperature: -10℃ ~ +70℃
  • Store Temperature: -20℃ ~ +80℃
  • Working humidity: <90%

ID 125khz USB Interface smart card rfid reader with keyboard

Product Description



Item

Parameters

Model

(LF-EM Reader)

Frequency

125Khz

Support cards

Em4100,TK4100,SMC4001 and compatible card

Output format

10 digit dec +Enter

Size

135mm×85mm×28mm

Colour

Black

Interface

USB

Power Supply

DC 5V

Operating Distance

Card test:0-50mm / Keyfob test:0-15mm

Service Temperature

-10℃ ~ +70℃

Store Temperature

-20℃ ~ +80℃

Working humidity

<90%

Read time

<200ms

Read interval

<0.5S

Weight

N. W: 100G / G.W: 150G

Cable length

1400mm

Material of reader

ABS

Operating System

Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android



Method of installation and use

1. Connect with computer through USB interface directly. When the buzzer sounded, reader into the self-inspection. And the same time, LED turn into Blue means standby.

2. Open the output of computer software,such as Notepad\a word document or Excel sheets.

3. The mouse in Notepad or WORD document clicking.

4. Put tag on the top of reader, the software will output a data(card number) of the tag. When reading the tag, LED light turn off..

Detecting device is connected

Open the Device Manager of computer, If appears Humans Input Device that means Reader has successfully into computer.

 Common problems

1. Operation without feedback: Please check whether the interface plugged in, whether the tag is a valid or whether another RF tag is within the reading range.

2. Data error: Please check Whether the mouse is moved, whether the reader is in a critical state and whether the cable length is too long.

Pictures

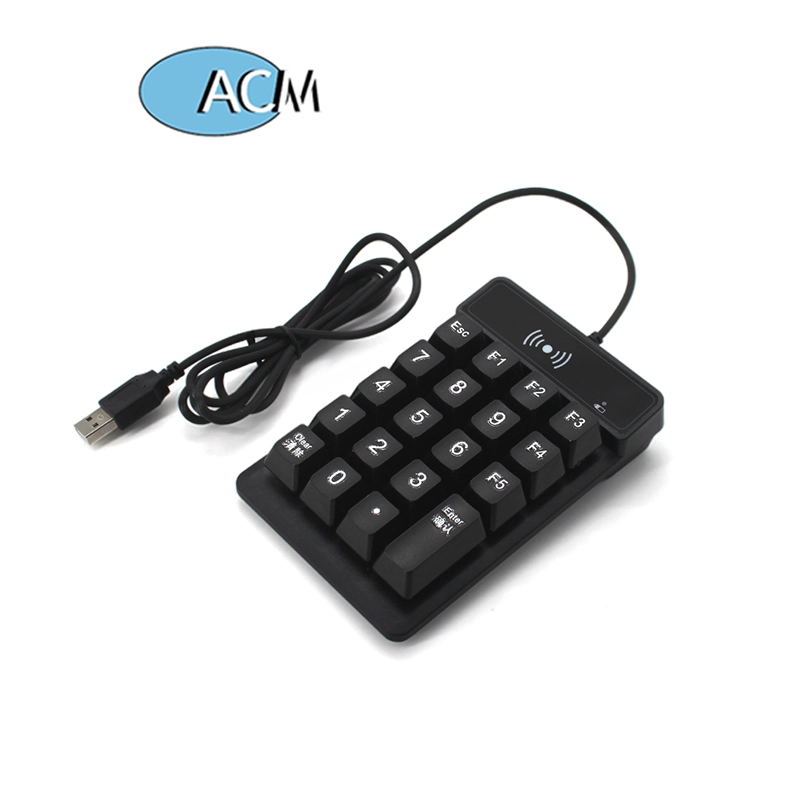

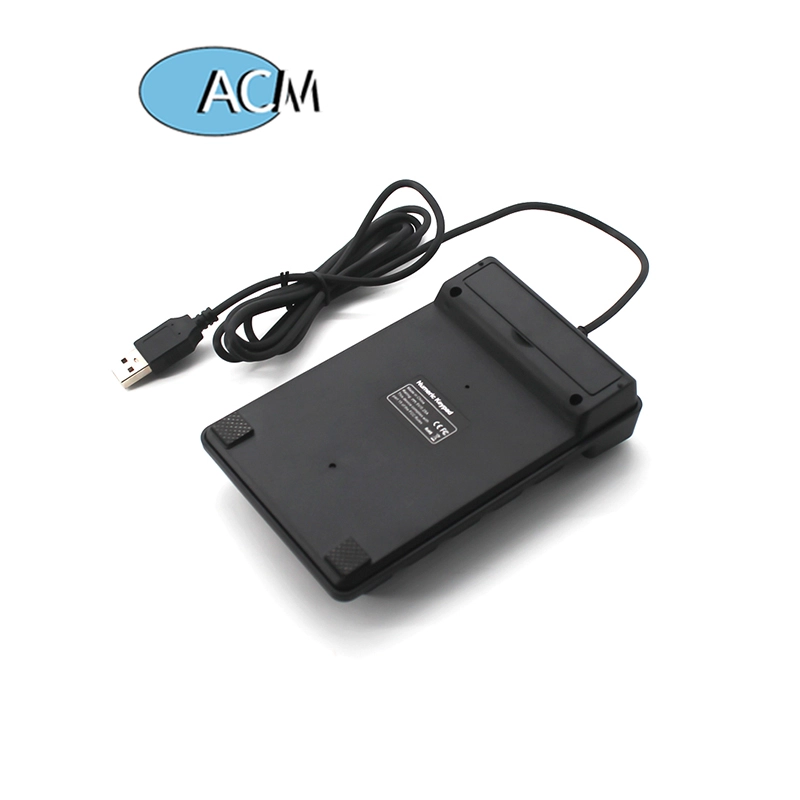

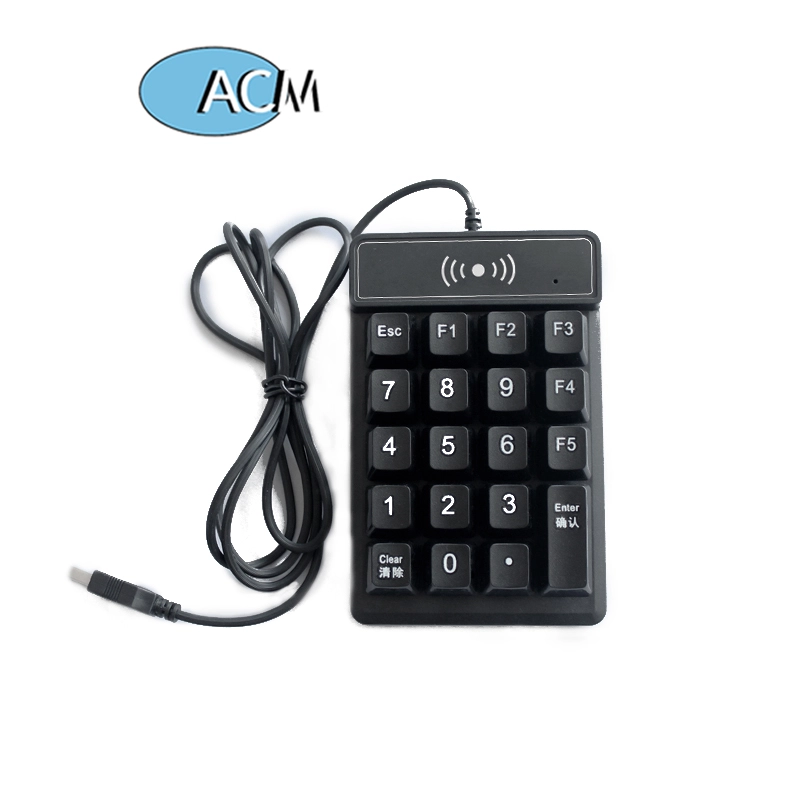

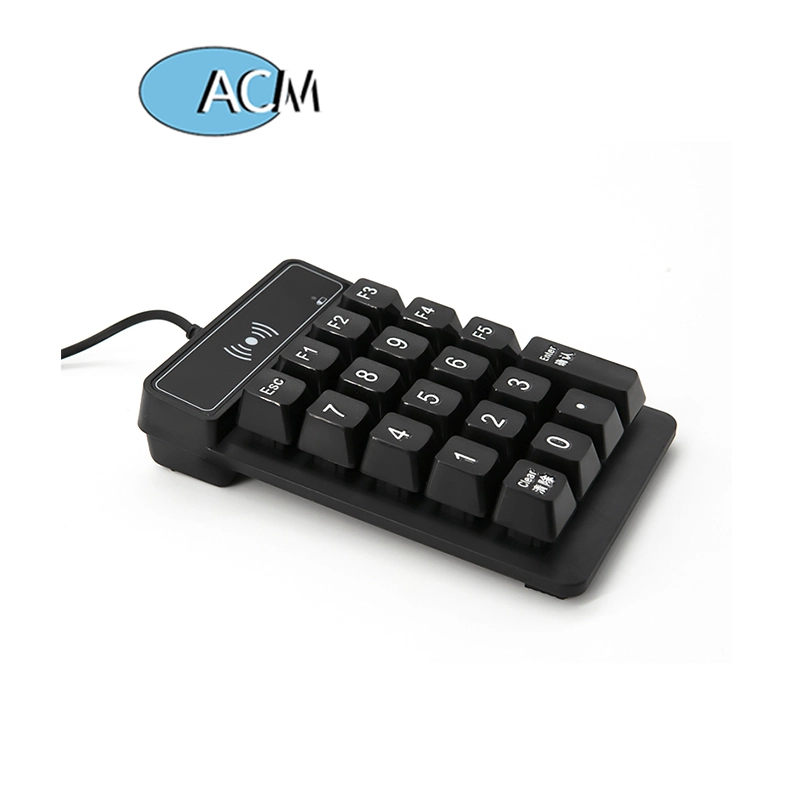

R98D ID 125khz USB Interface smart card rfid reader with keyboardR98D ID 125khz USB Interface smart card rfid reader with keyboardR98D ID 125khz USB Interface smart card rfid reader with keyboard
