Product Description

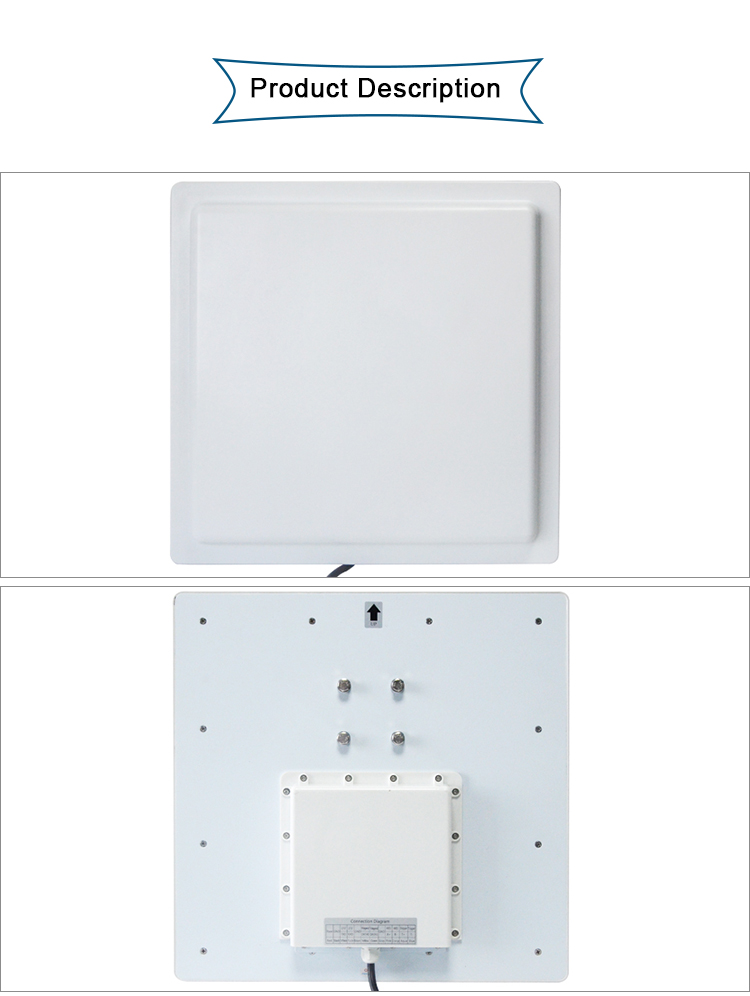

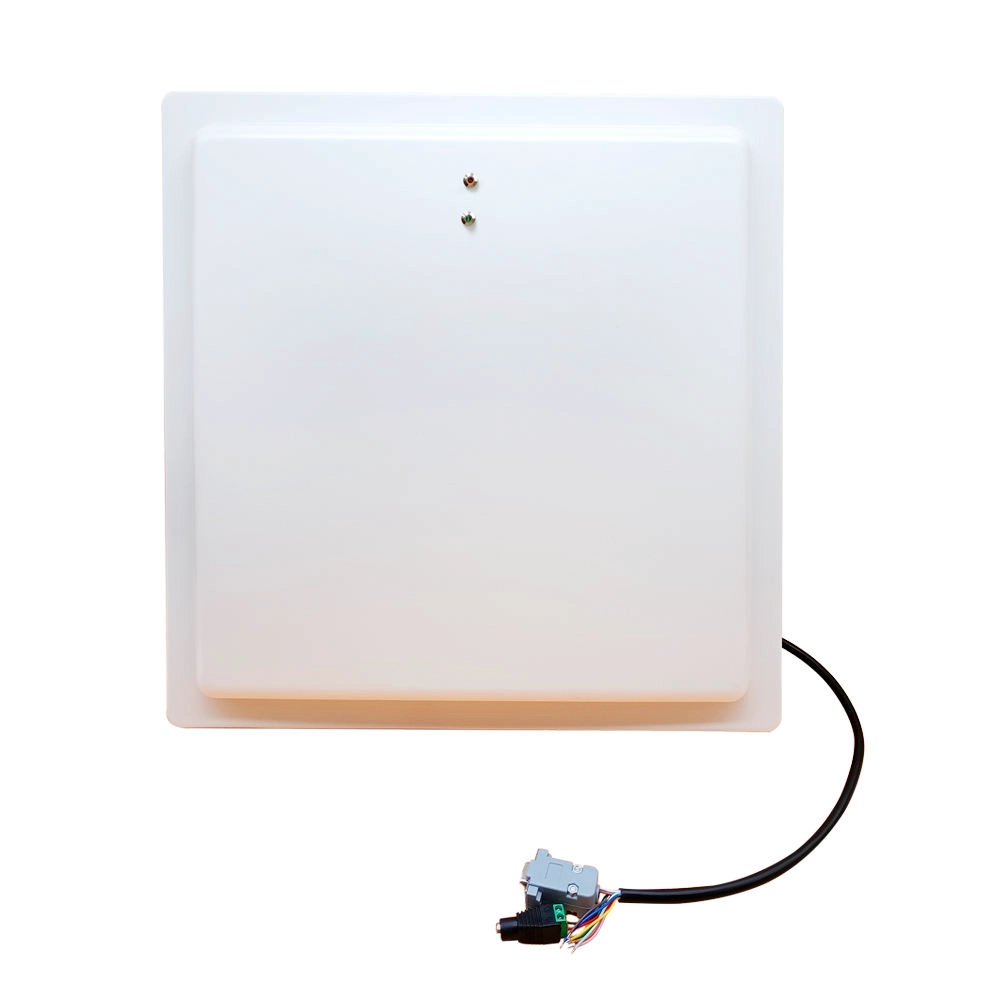

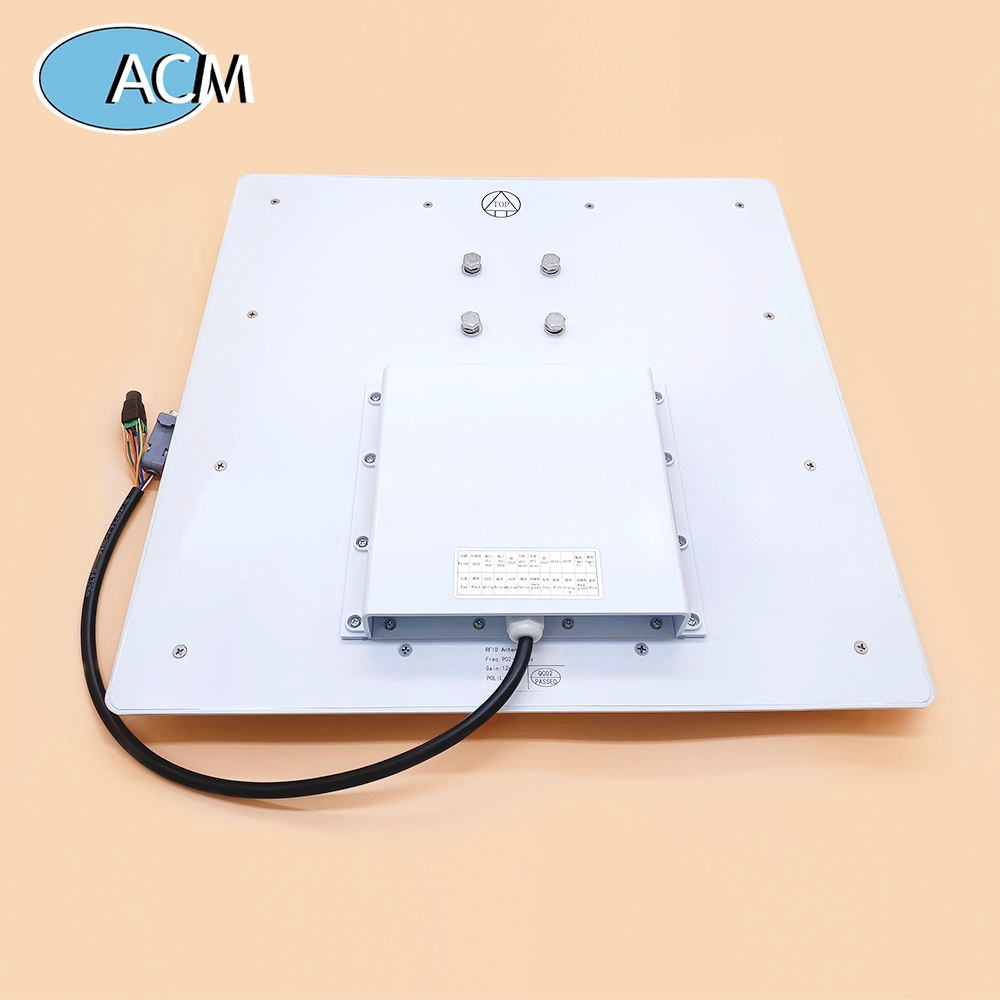

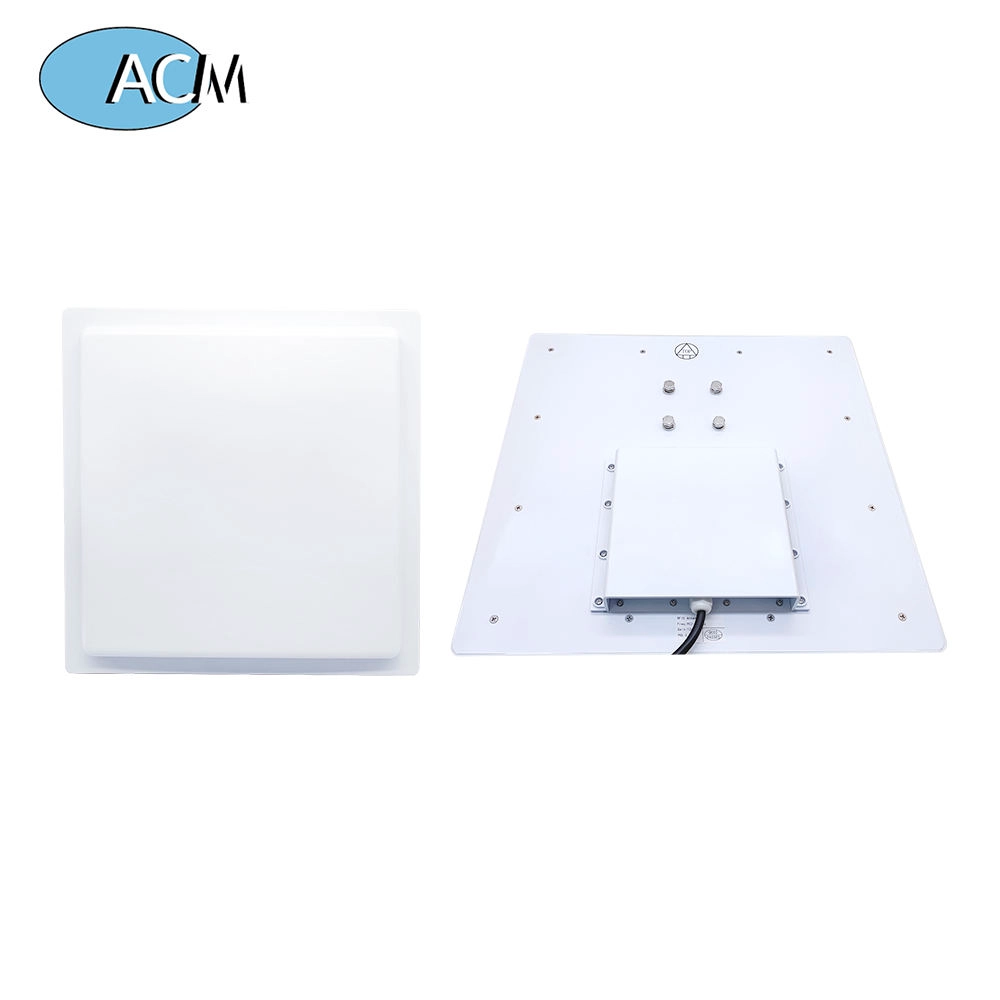

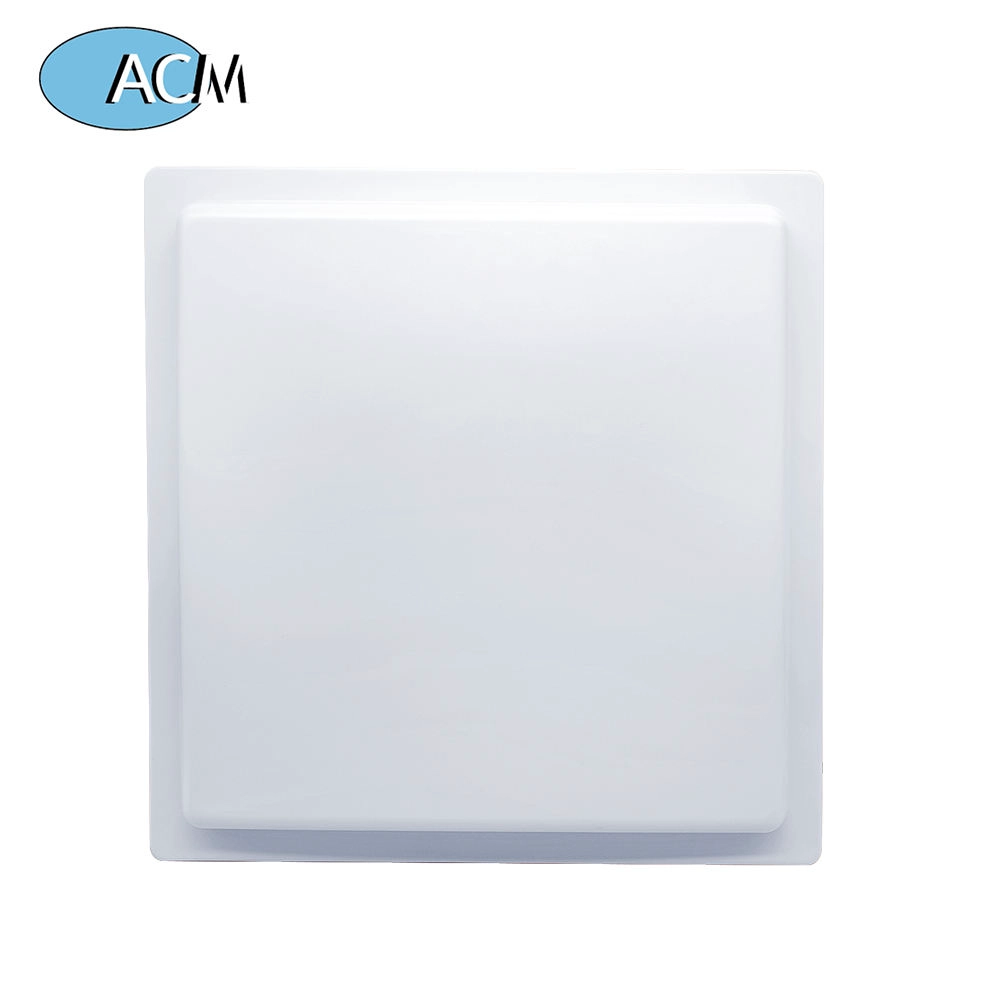

Wiegand26 Output Long Range Distance 12dbi Linear Polarization Antenna Vehicle Access Control Fixed UHF RFID Reader
This device is a UHF RFID integrated reader.
It is designed based on independent intellectual property rights and appearance patent.
It features integrated RF reader antenna, small in size, light in weight, IP65, industrial control joint easy to deploy.
Tag buffer size up to 800pcs /96 bits EPC.
It performs excellent UHF R/W function, adapt to global working frequency.
It supply with multi-language SDK(C#, C++, Delphi, VB, Java,Python), easy for secondary development integration.
Support ARDUINO, ARM, Linux, Windows, Android, Raspbian development platform.
|
Model#
|
ACM819A
|
|
Physical Parameter
|
|
|
Dimension
|
445(L) x 445(W) x 70(H) mm (Exclude bracket and external wires)
|
|
Weight
|
4.5kg (include package)
|
|
Shell material
|
ABS+PC
|
|

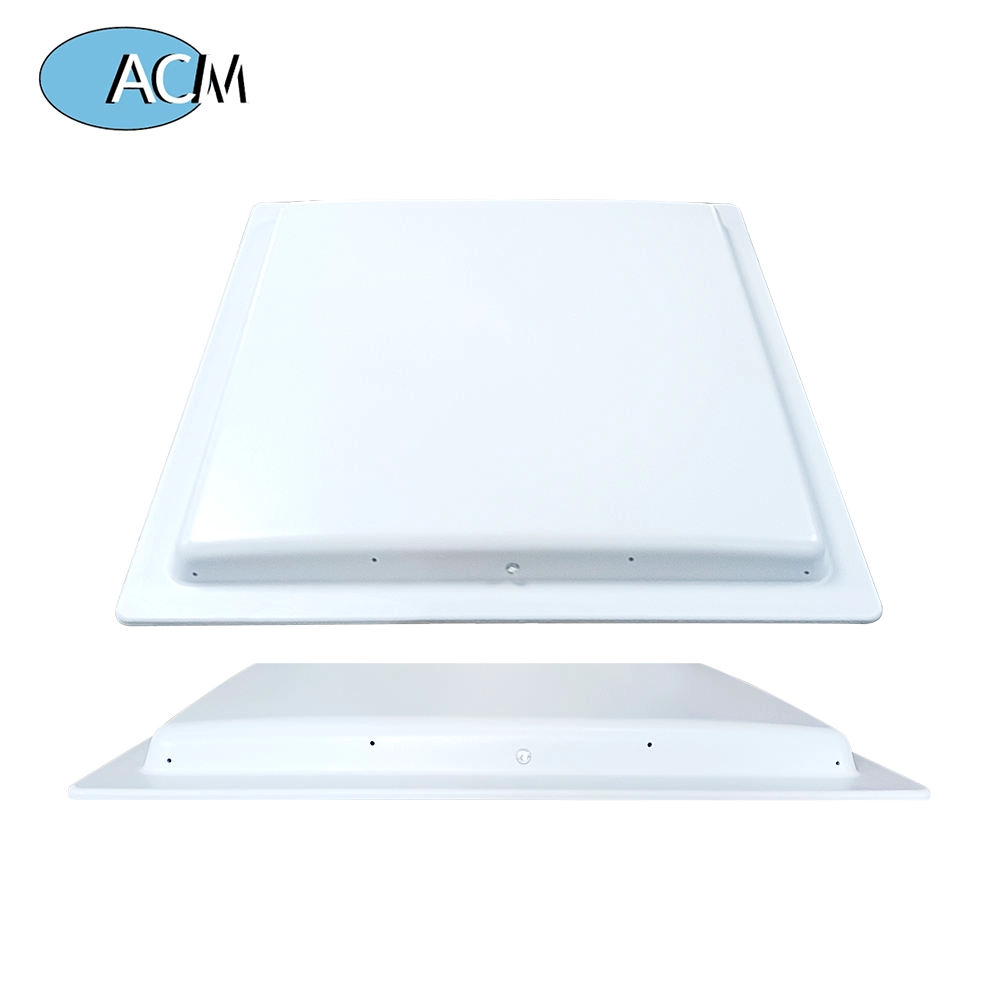

Antenna front housing color
|
Gray
|
|
Antenna rear housing
|
Die-casting aluminium alloy
|
|
Installation method
|
Holding pole
|
|
UHF RFID Performance Parameter
|
|
|
Radio frequency
|
ACM independent R&D technology
|
|
Frequency
|
865-868MHz/902-928MHz
|
|
Protocol
|
EPC C1 GEN2 /ISO18000-6C
|
|
Built-in antenna
|
12dBi line polarization
|
|
Power
|
30dBm (adjustable by 1dBm step with CPH demo software)
|
|
R/W range
|
Read range 15m, write range >9m (test tag: AZ9662Inlay)
|
|
Group read rate
|
1~10pcs EPC tag
|
|
Working areas
|
US, Canada and other regions following U.S. FCC Part 15 regulation
Europe and other regions following ETSI EN 302 208 regulations
Mainland China,Japan,Korea,Malaysia,Taiwan
|
|
Electric Parameter
|
|
|
Communication interface
|
Standard: RS232, RS485, Wiegand, USB
Optional: RJ45(TCP/IP,WIFI,BT), 4G
|
|
Serial rate
|
9600~115200bps
|
|
RJ45 rate
|
10Mbps
|
|
GPIO(for your optional)
|
1 relay output, 1 trigger input
|
|
Reading Indicator
|
Buzzer
|
|
Power consumption
|
~1W
|
|
Power supply
|
220V AC input, +9-25V/2A adaptor DC output
|
|
Application Software
|
API development kit and application routine based on Windows
|
|
SDK
|
C#, C++,Delphi, VB, Java,Python
|
|
Operating Environment
|
|
|
Operating Temperature
|
-10℃~+55℃
|
|
Storage Temperature
|
-20℃~+75℃
|
|
Humidity
|
20%~95% RH, non condensing
|
|
Lighting protection
|
DC ground
|
|
Protection Level
|
IEC IP65
|
Application:
- Personnel and Vehicle access control
- Manufacturing production line management
- Warehouse logistic management
- Assets inventory management
Detailed Images
Wiring Diagram of RFID UHF reader and writer
|
Power
|
GND
|
485+
|
485-
|
WG D0
|
WG D1
|
Trigger T+
|
Trigger T-
|
RXD
|
TXD Ground
|
|
RED
|
BLACK
|
BROWN
|
ORANGE
|
YELLOW
|
GREY
|
ROSE RED
|
BLACK
|
PURPLE
|
white black
|
