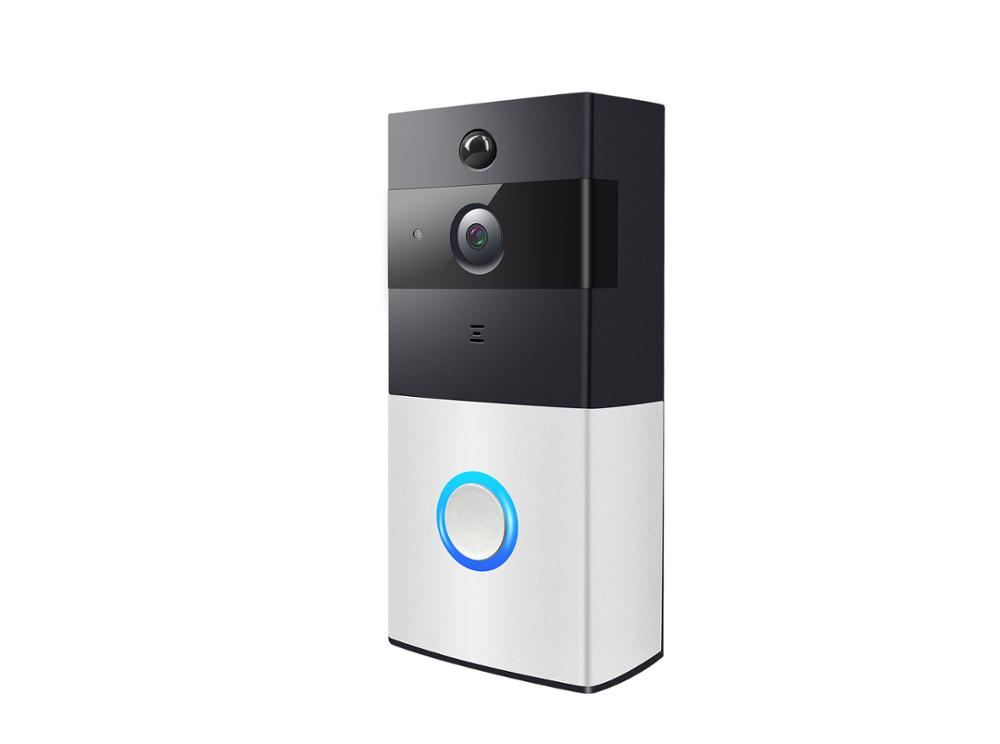

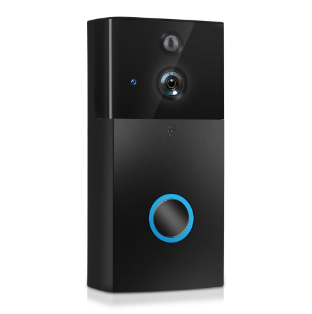

Low Power Home wireless wifi PIR motion sensor camera doorbell

  • Product name::Low Power Home smart intelligent wireless wifi PIR motion sensor camera doorbell
  • Model Number:ACM-101X
  • Special Features:Waterproof / Weatherproof
  • Application:commercial, home, apartment, district etc.
  • Audio compression:G.711,support bidrectional talk,audio&video synchronization
  • Human induction:PIR infrared sensor about the human body,Passive induction
  • SD Card:Supports
  • Power Supply:1-DC5V 2-AC24V 3-2*18650 Battery
  • Noise reduction:Support 2D/3D
  • WIFI:Supports Wi-Fi, a key WPS function
  • Operating temperature:0℃-+55℃
  • Keywords:camera
Product Description

Low Power Home smart intelligent wireless wifi PIR motion sensor camera doorbell

720P resolution,clear and fine images;
PIR infrared sensor about the human body,Passive induction;
24V alternating current charging module and pressure induction module
Advanced H.264 video compression,Super low rate,high definition quality of image

Product Parameter
Parameter Description
Sensor
1.0M 1/4" SC2145H CMOS sensor ,color 0.1Lux-F1.2,black/white 0.01Lux-F1.2
Video compression
H.264+/H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable
Image output
Main stream: 1280*720-25fps; sub-stream: 704*576-25fps;
Shutter
1/50(1/60)s to 1/10,000s
Human induction
PIR infrared sensor about the human body,Passive induction
Audio interface
1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
Power
Three kinds of power supply option:1-DC5V 2-AC24V 3-2*18650 Battery
Reliability
Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Reset interface
Support a key reset function
Other function
Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture;united remote client monitoring sofaware,MYEYE;perfect SDK;
Product Feature
Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.

Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.


Packaging

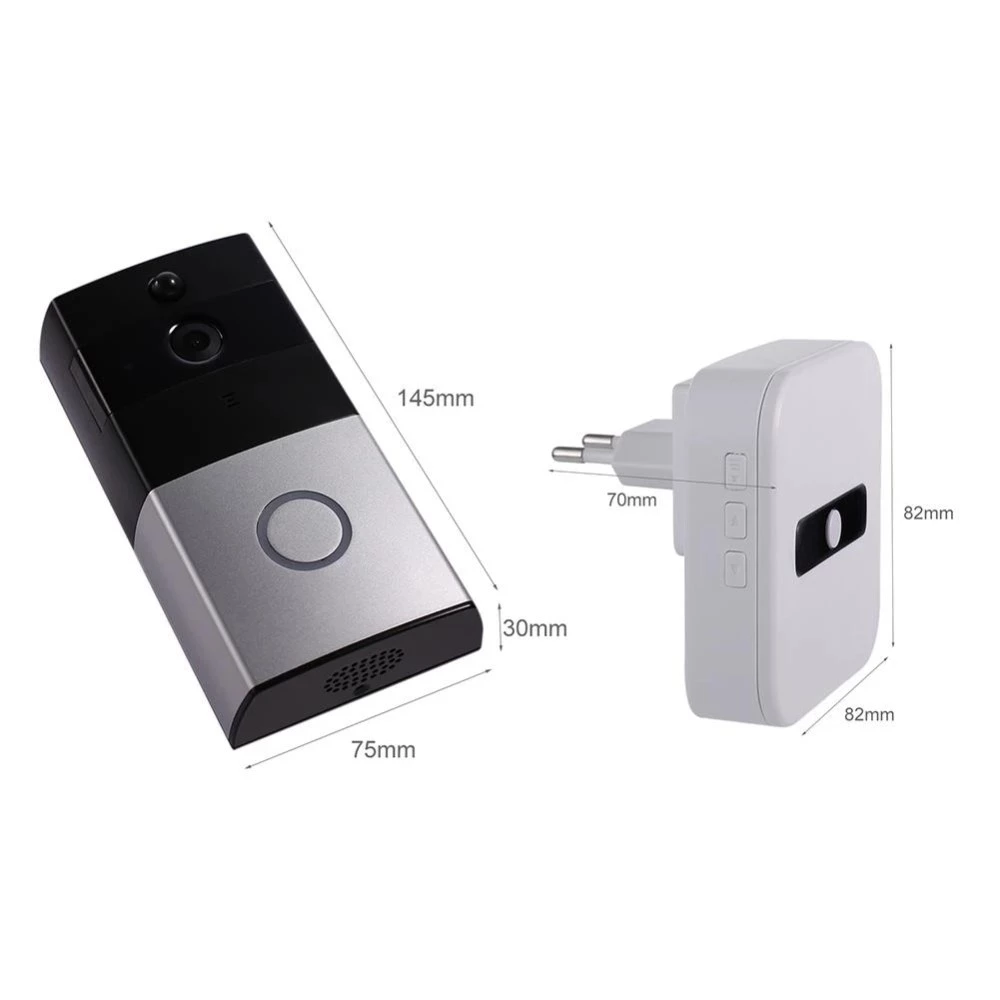

Product size : 14.4*7.5*3.4cm,
Net weight of single product: 0.18kg,
Packing box size: 19*10.4*7cm,
Single product gross weight : 0.34kg,
Outer box size: 54*39.2*37.5cm,
50pcs/ box full box weight: 17.7kg.
Outerbox size: 41*27*35CM
10pcs/box, weight is 6kgs
