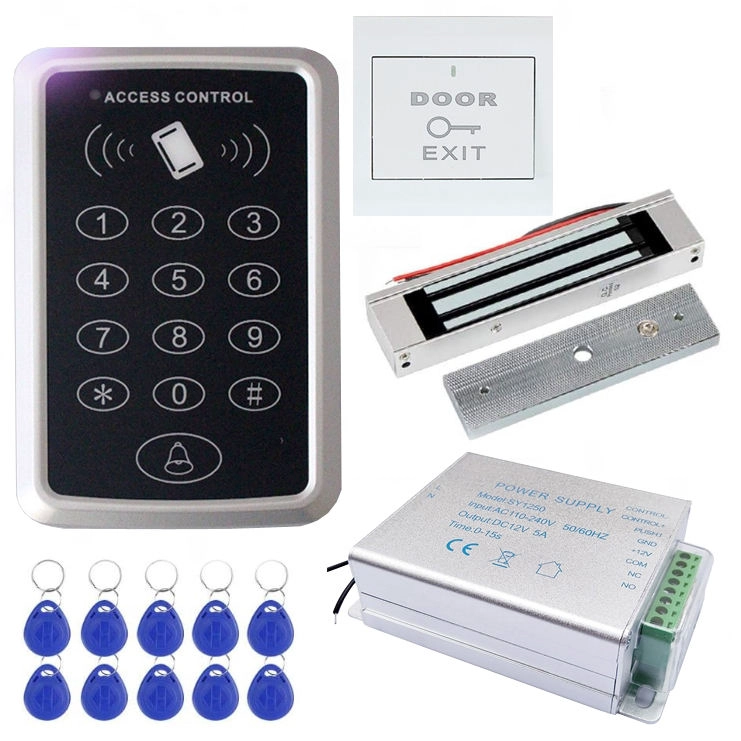

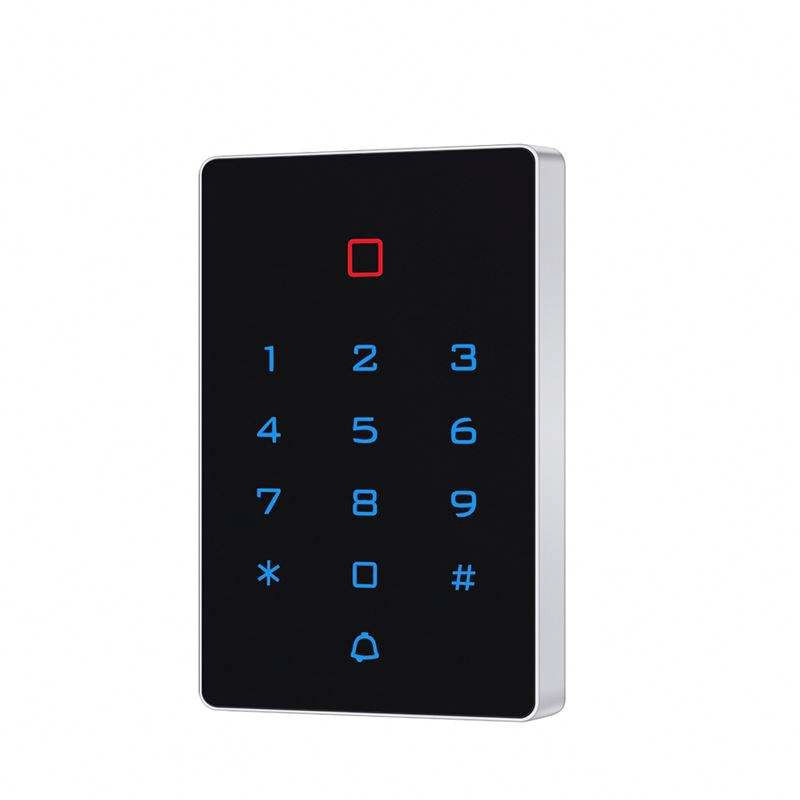

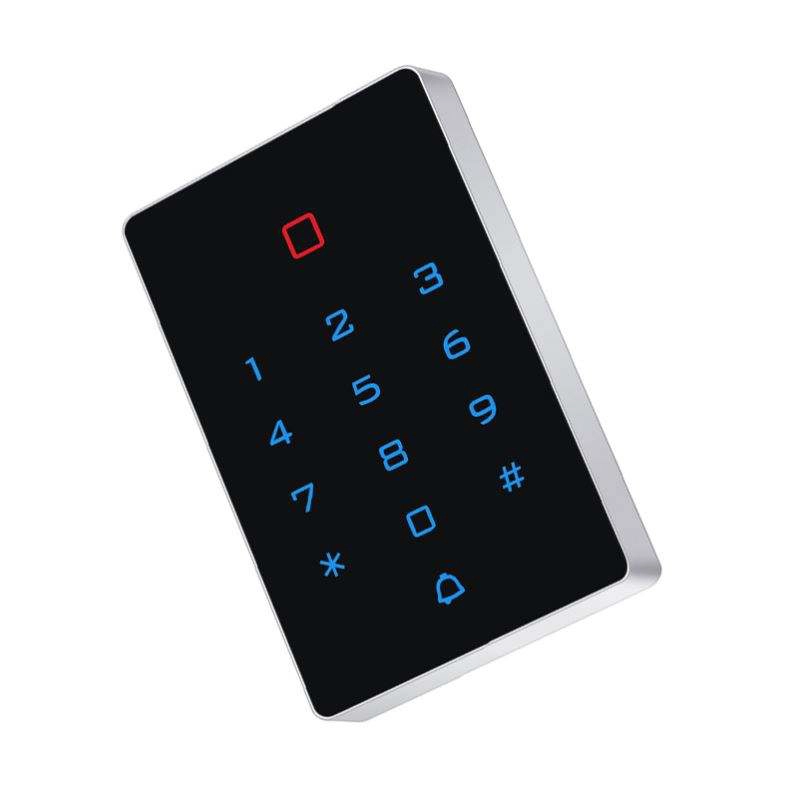

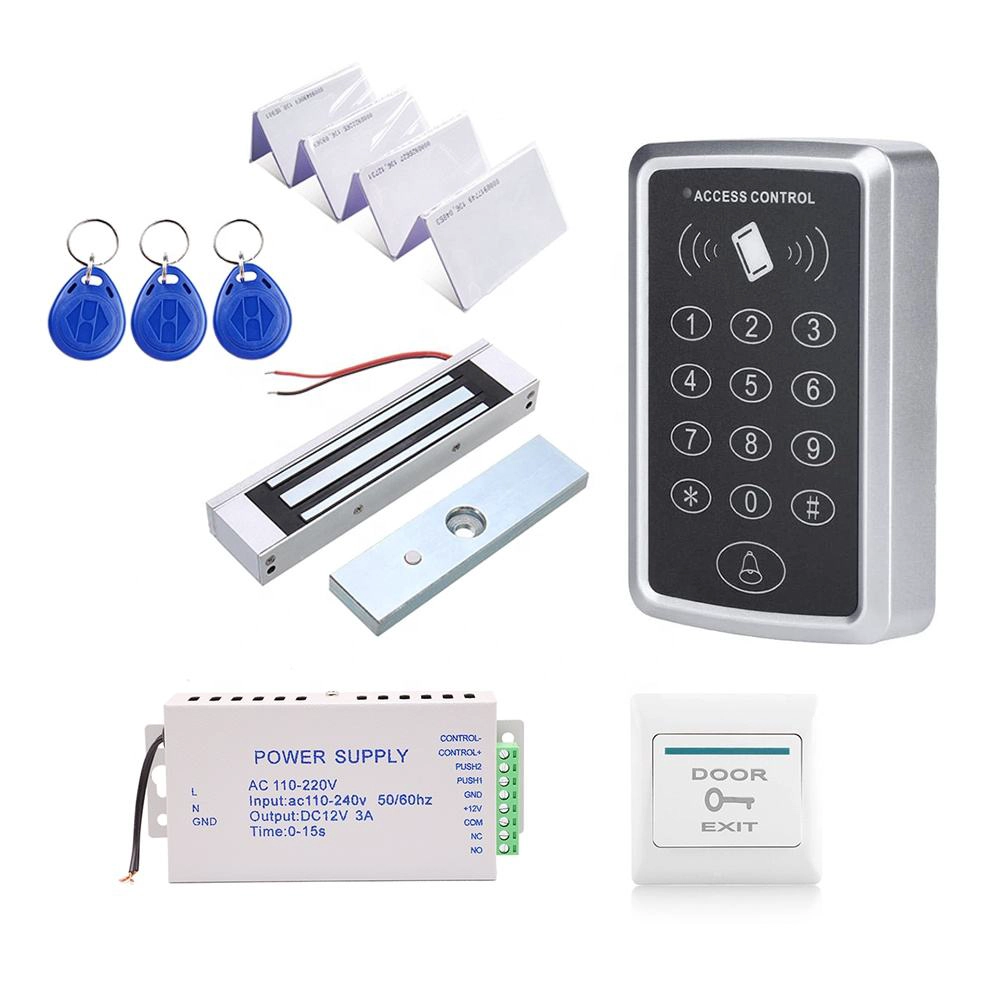

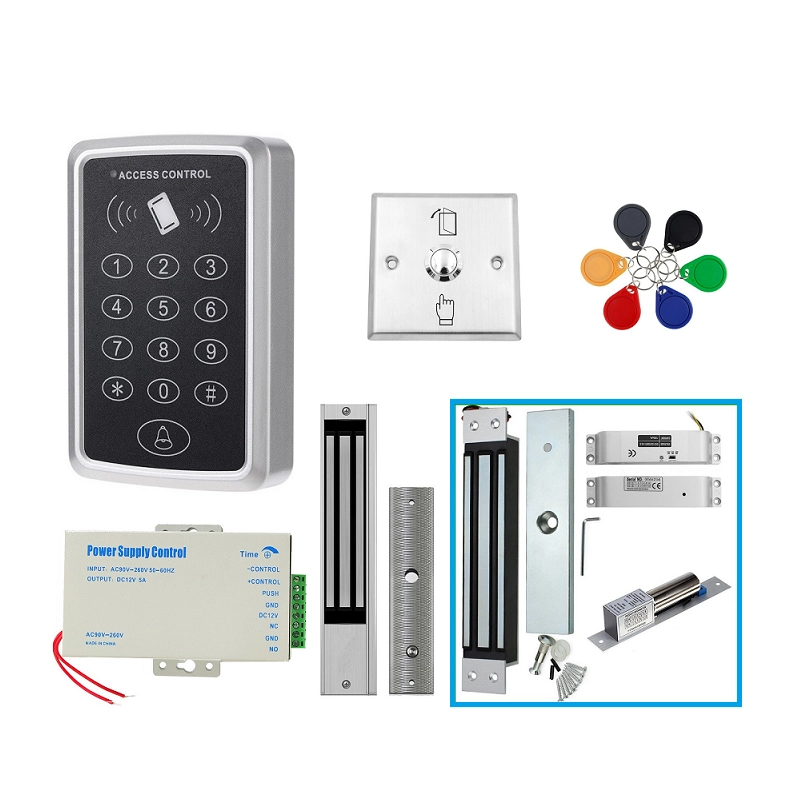

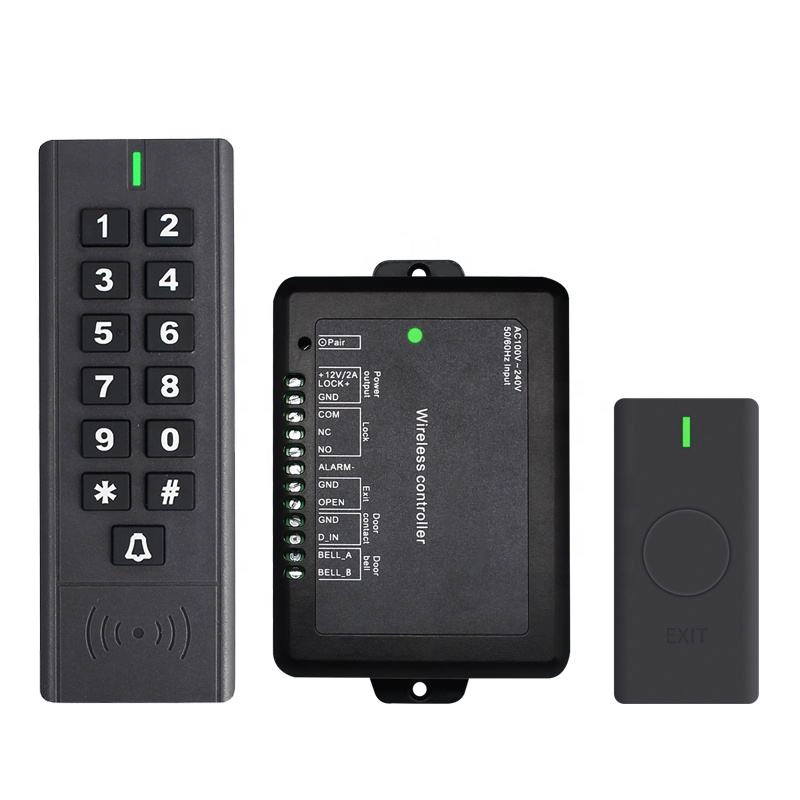

Product Description
> Card Type: EM Card
> Storage: 4000 users
> Working frequency: 125KHz
> Operating voltage: DC12V
> Wiegand 26 Input and Output
1. Specifications
1.1 Technical parameters:
|
Card type(alternative)
|
EM Card (IC card for options)
|
|
Storage
|
4000 users
|
|
Operating voltage
|
DC12V ±10%
|
|
Operating current
|
<100mA
|
|
Card reading distance
|
1~15CM
|
|
Ambient temperature
|
0℃~60℃
|
|
Relative humidity
|
20%~80%
|
|
Dimensions
|
115×80×24mm
|
|
Weight
|
110g
|
Light: red and green
|
Light Description
|
indicates
|
|
Red light flash every 1 sec (Slow flash)
|
Standby state
|
|
Greenlight flash every 0.5sec (Fast flash)
|
Pending further action
|
|
Red light is always ON
|
Programming state
|
|
Greenlight is always ON within Open Time
|
Unlocking state
|

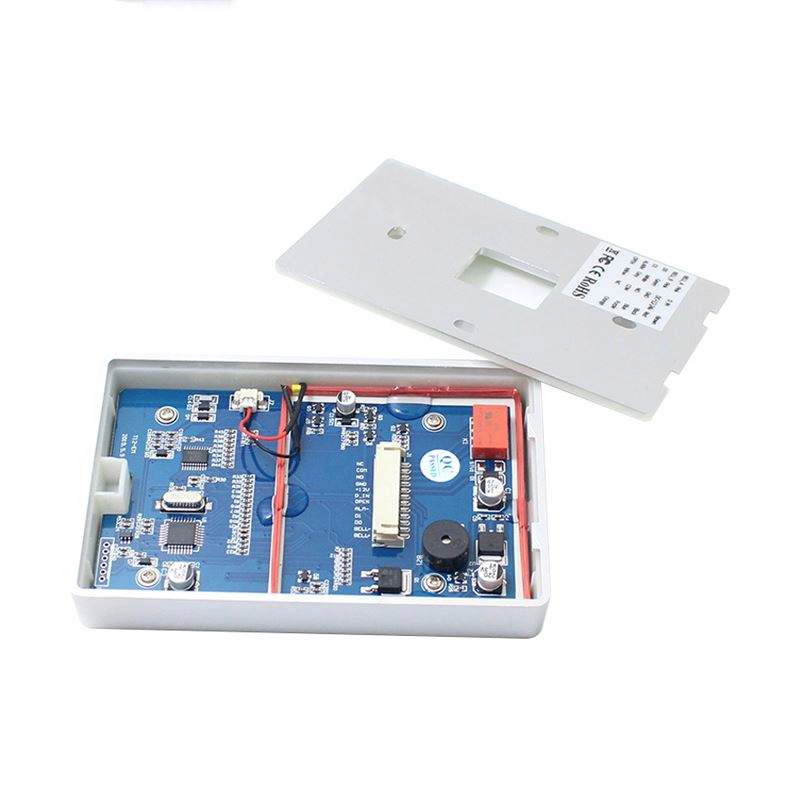

Installations Guide
|
Mark
|
Colour
|
Function
|
|
+12V
|
Red
|
Power+
|
|
GND
|
Black
|
Power-
|
|
PUSH
|
BLUE
|
Low-level output
|
|
OPEN
|
Yellow
|
Door Release
|
|
BEL+
|
Grey
|
BELL+
|
|
BEL-
|
Purple
|
BELL-
|
|
DATA
|
Green
|
WG DATAO
|
|
DATA1
|
White
|
WG DATA1
|
|
NC
|
Brown
|
Relay NC output
|
|
COM
|
Orange
|
Relay Com output
|
|
No
|
Pink
|
Relay NO output
|
