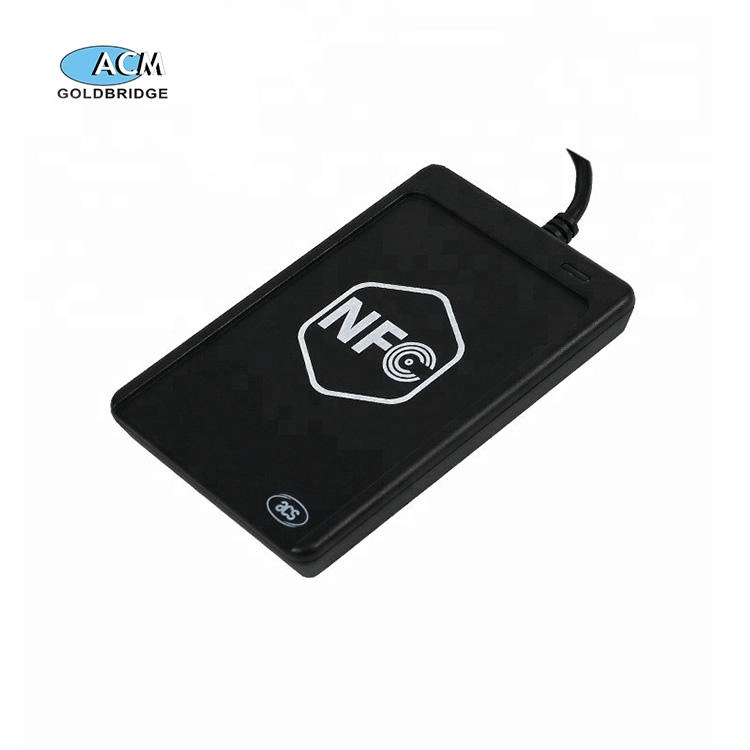

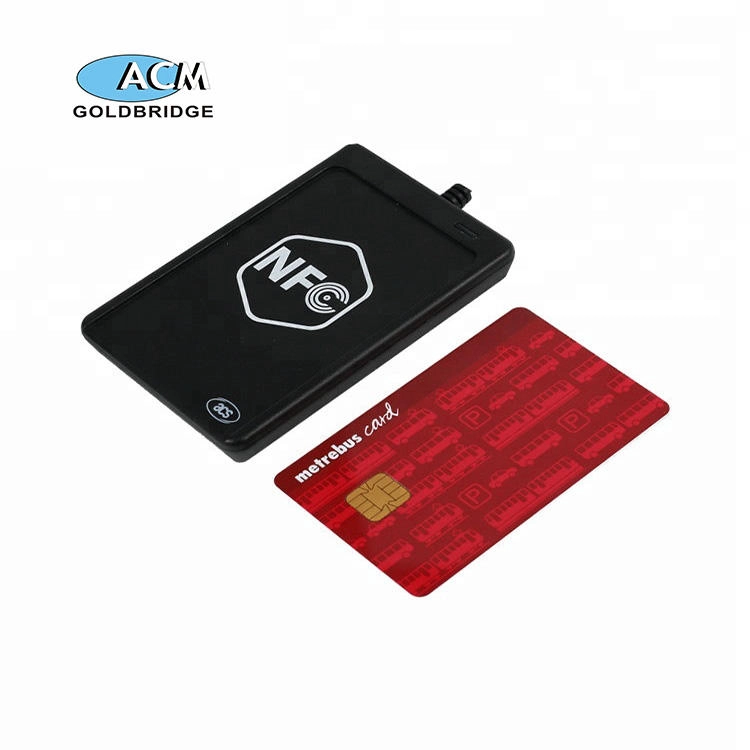

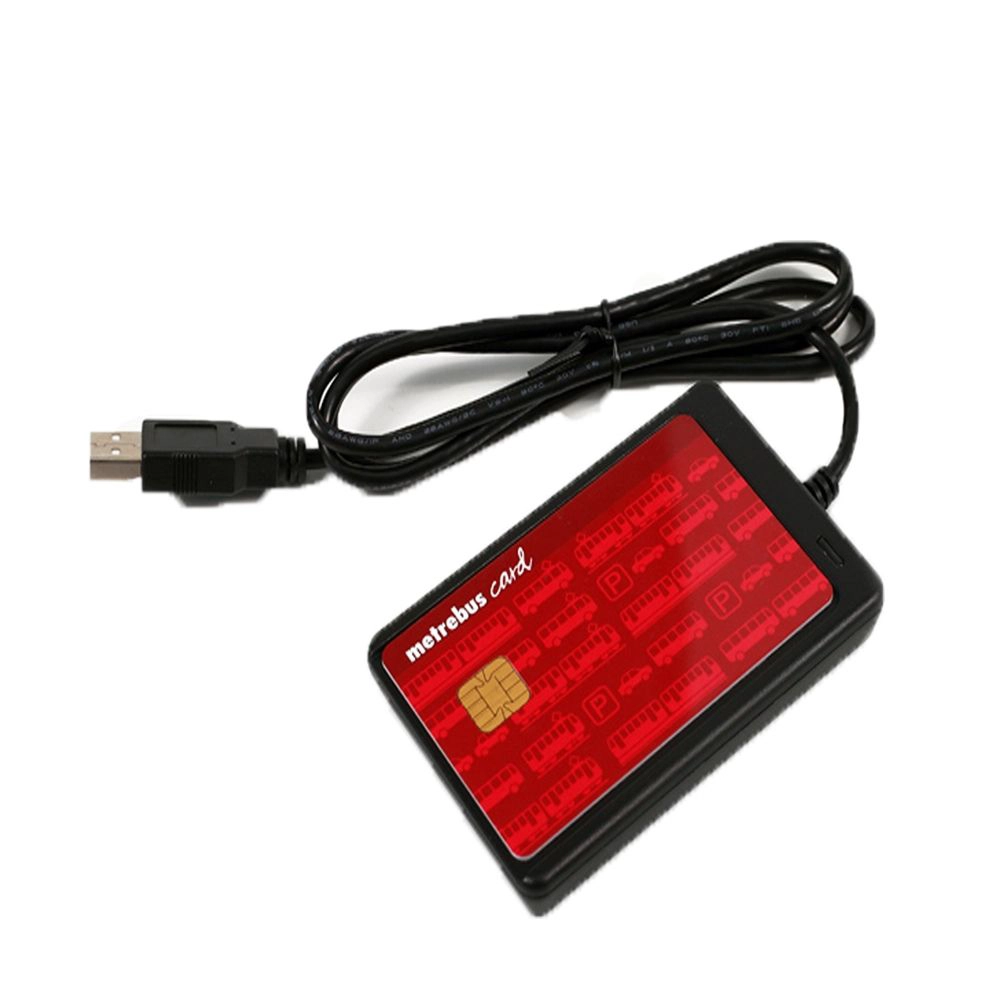

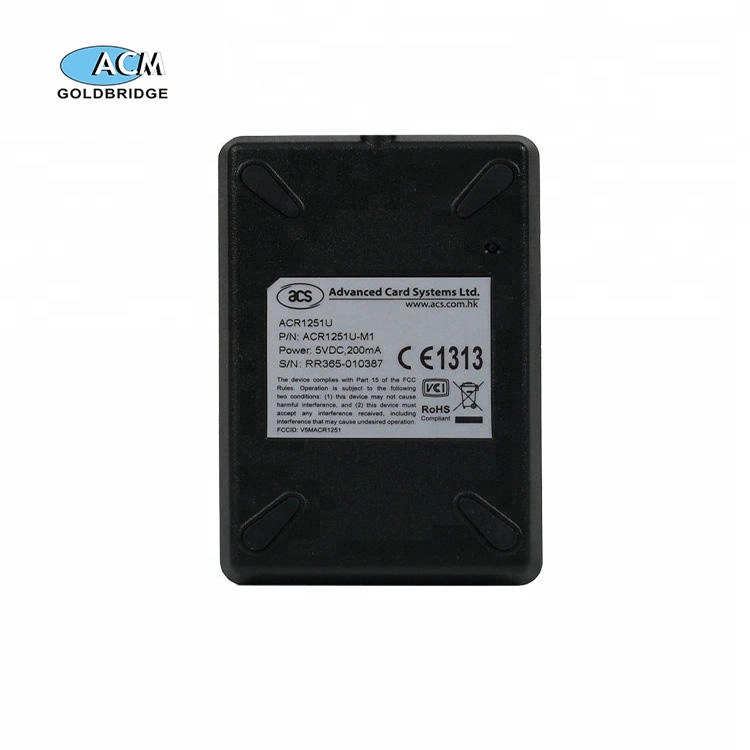

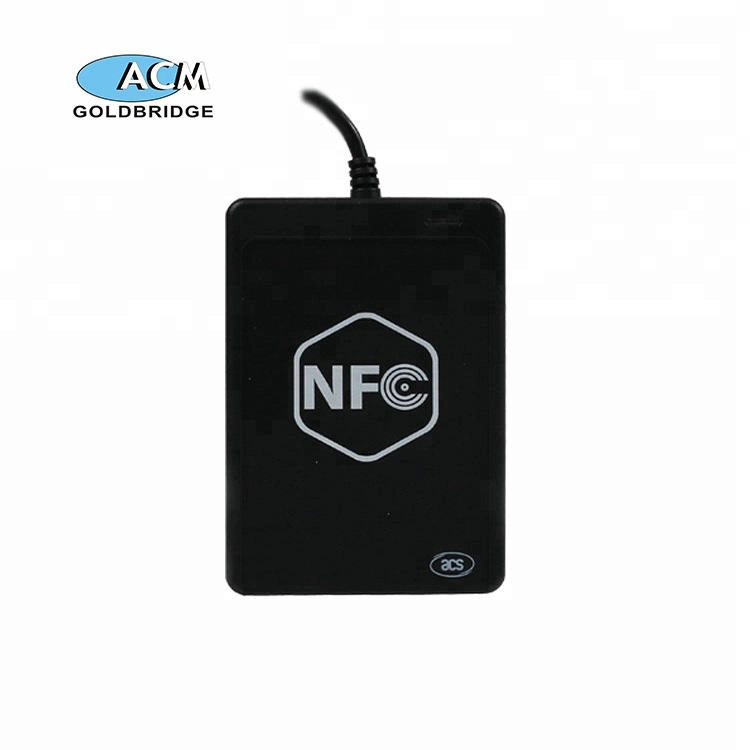

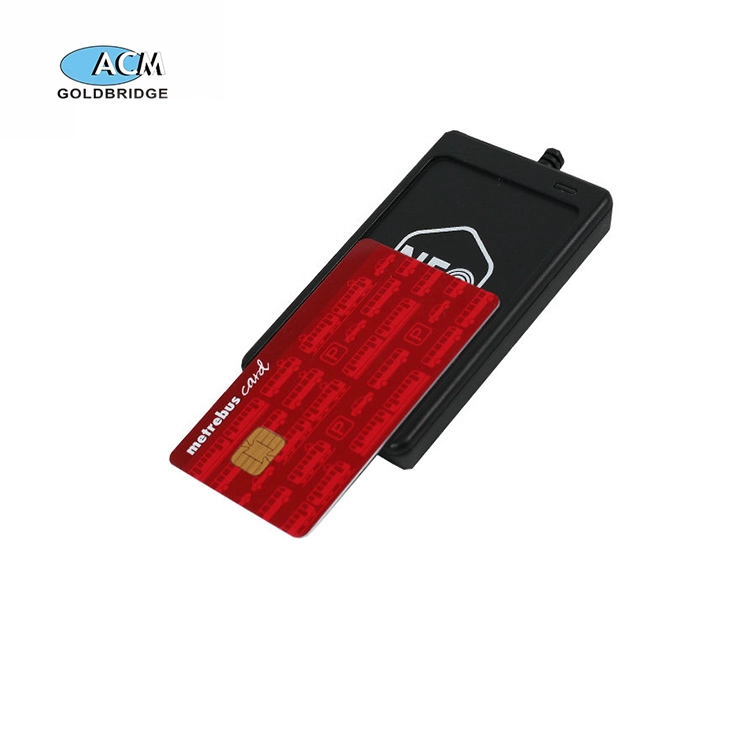

USB Smart Card Reader Contactless Payment NFC Card Reader For E-Payment ACR1251U

  • Place of Origin: Guangdong, China
  • Brand Name: ACM
  • Frequency: 13.56Mhz
  • Protocol: ISO 7816
  • Dimension: 98 mm (L) x 65 mm (W) x 12.8 mm (H)
  • Interface: USB full speed
  • Operating Frequency: 13.56 MHz
  • Supply Current: Max. 50mA
  • Operating Temperature: 0-50
  • Frequency: 4 MHz
  • MTBF: 500,000 hours
  • Smart Card Interface Support: ISO-7816 Class A, B and C ( 5V, 3V, 1.8V )
  • WHQL: 2000, 2003, XP, VISTA, 2008, 2008 R2, 7
  • Weight: 73g
Products Description
Products Description
Dimensions
98 mm (L) x 65 mm (W) x 12.8 mm (H)
Weight
73g
Interface
USB Full Speed
Operating Distance
Up to 50 mm (depends on the tag type)
Supply Voltage
Regulated 5V DC
Supply Current
200mA (operating)
Operating Temperature
0-50°C
Operating Frequency
13.56 MHz
Features
1.CCID Compliance
2.USB Firmware Upgradability
3.Smart Card Reader:
a)Read/Write speed of up to 424 kbps
b)Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
c)Supports ISO 14443 Type A and B cards, FELICA, and all 4 types of NFC (ISO/IEC 18092) tags
d)Supports 7-byte UID, Plus and DESFIRE
e)Built-in anti-collision feature (only one tag is accessed at any time)
f)One ISO 7816 compliant SAM slot
4.Application Programming Interface:
g)Supports PC/SC
h)Supports CT-API (through wrapper on top of PC/SC)
5.Built-in Peripherals:
i)User-controllable bi-color LED
j)User-controllable buzzer
k)SAM Slot
Smart Card Interface Support
ISO14443 Type A & B
FELICA
4 types of NFC (ISO/IEC18092) tags
Compliance / Certifications
ISO 14443, ISO 18092, ISO 7816, LASCOM, CE, FCC, VCCI, PC/SC, CCID, ROHS, USB Full Speed
Microsoft WHQL: Windows 2000, XP, Vista, 7, 8
Operating System Support
Win 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win 8, Win Server 2003,
Win Server 2003 R2, Win Server 2008
Win XP x64, Win Vista x64, Win 7 x64, Win 8 x64, Win Server 2003 x64, Win Server 2003 R2 x64, Win Server 2008 x64, Win Server 2008
R2 x64, Win Server 2012 x64
Linux Mac
Android 3.1 and above



Quality Warranty

 - Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for     relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.





Our Service

1, Any inquires will be replied within 24 hours
2, Professional manufacturer and supplier, Welcome to visit our website and our factory
3, OEM/ODM Available
4, High quality, fashin desing, reasonable & competitive price, fast lead time
5, After-sale Service :
      1), All products will have been strictly quality checked in house before packing
      2), All products will be well packed before shipping
      3), All our products have 2-3 year warranty if the damage is not caused by human
6, Faster delivery : Around 1~ 5 days for sample order, 7~30 days for bulk order
7, Payment : You can pay for the order via : T/T, Western Union, Paypal
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, You also can choose your own shipping forwarder.



FAQ

Q: 1. How can I place an order?
A: Please list your requirement to us via email. Then we will send the offer to you at earliest time,after order confirmation, we will arrange production ASAP.

Q: 2.What about the payment and shipment?
A: Trade Assurance and T/T ,Paypal, Western Union.
    Clients can choose by sea, air or express(DHL, FedEx, TNT UPS etc.)

Q: 3. How can i get a sample to check your quality?
A:We could provide free sample to you, and the freight cost payed by you.

Q:4. How long can I expect to get the samples?
A: It depends on the quantity. Normally 3-7 days for 5000pcs and 7-15 days for 100,000pcs

Q:5. Can your products be customized?
A: Almost all of your products are customized ,including the materia, size, thickness and printing. OEM orders are highly welcome.

Q:6.Are you a trading company or factory?
We are the one of the biggest manufacturer of RFID cards/NFC tags/RFID keybod /RFID wristband,rfid reader and access control products in China more than 20 years.
