Material: Stainless steel
Input voltage: DC 12V-24V
Output Contact:NO/NC/COM
Working temperature(approx.): -20 to 50 ℃

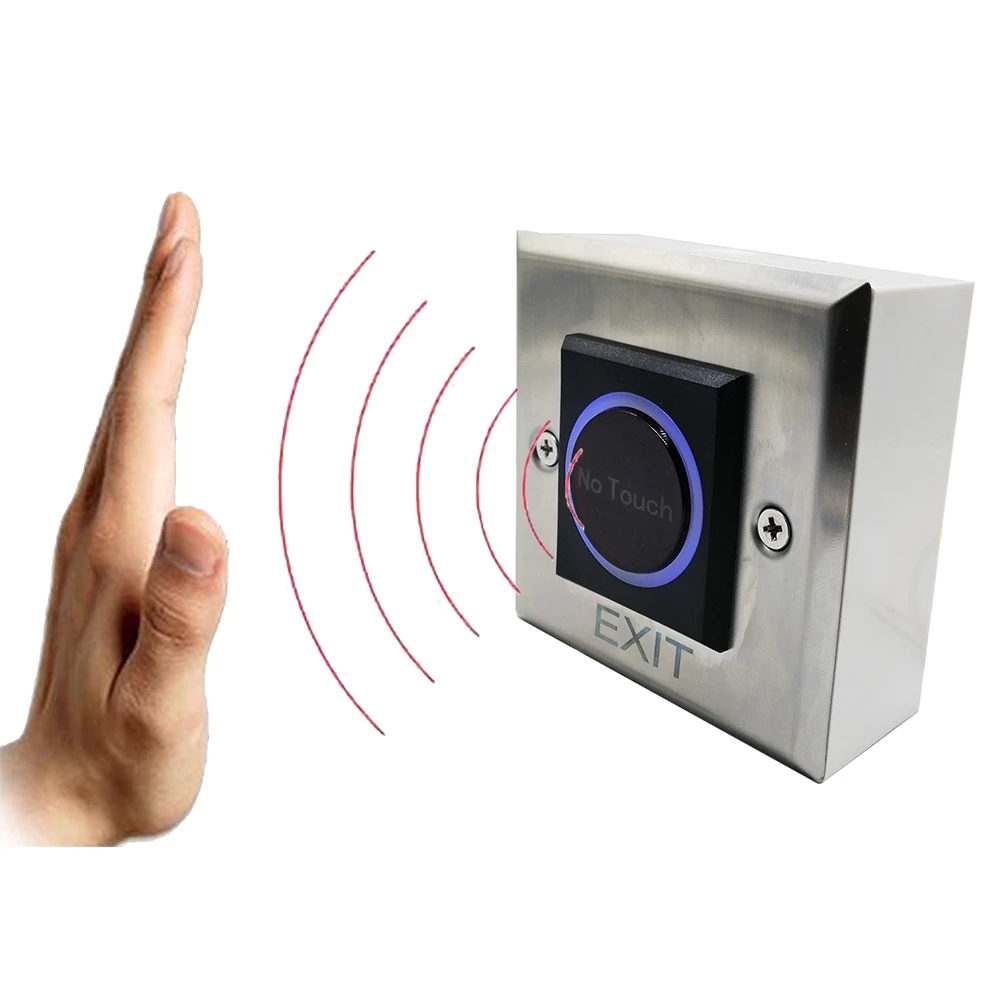

Response range: Within 10cm
LED indication: Standby: Blue LED on, visitors approaching: Green LED on

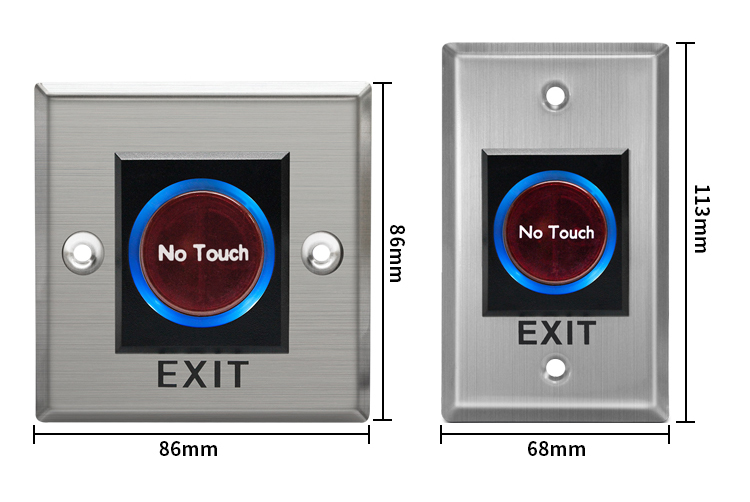

K1/K1-1 Size(approx.): 115*70*24mm
K2/K2-1 Size(approx.): 86*86*24mm
Weight(approx.): 78g

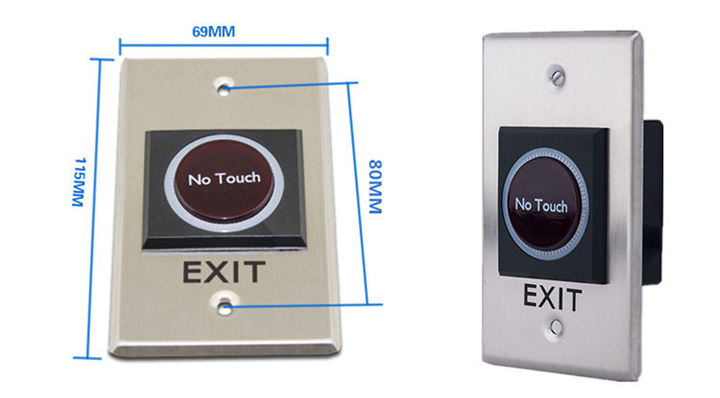

MODEL# EB-16 (Dimension: 115 X 70 X 25mm)
Specification as follow:_
Dimensions |
86*86*24mm |
Standard Structure |
Stainless steel Panel, Steel Button |
Current Rating |
3A,36VDC Max |
Output Contact |

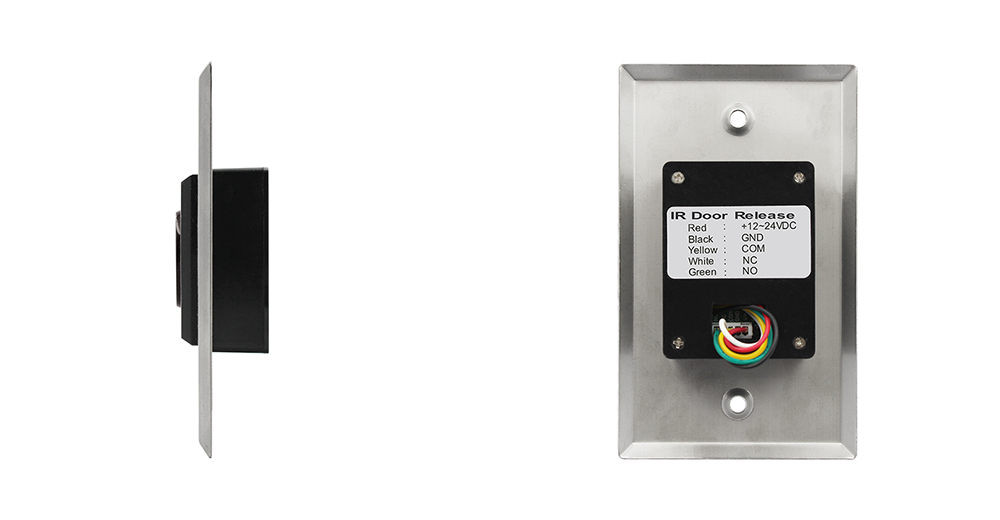

+12V GND NO NC COM |
Mechanical Life |
1000000 tested |
Suitable for Door |
Hollow Door |
Operating temp |
-10℃ ~ 55°C (14°F-131°F) |
Operating Humidity |
0-95% (non- condensing) |
Detection range |
0.1-10cm |

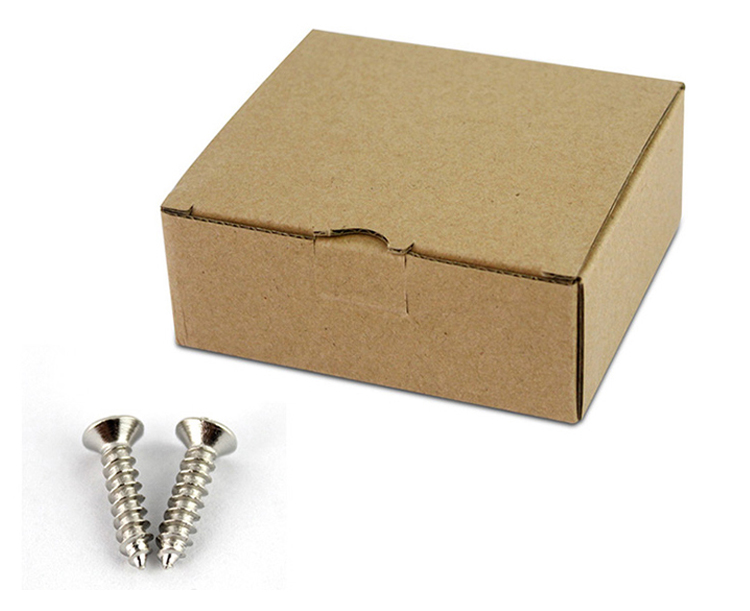

Neutral Packing:_

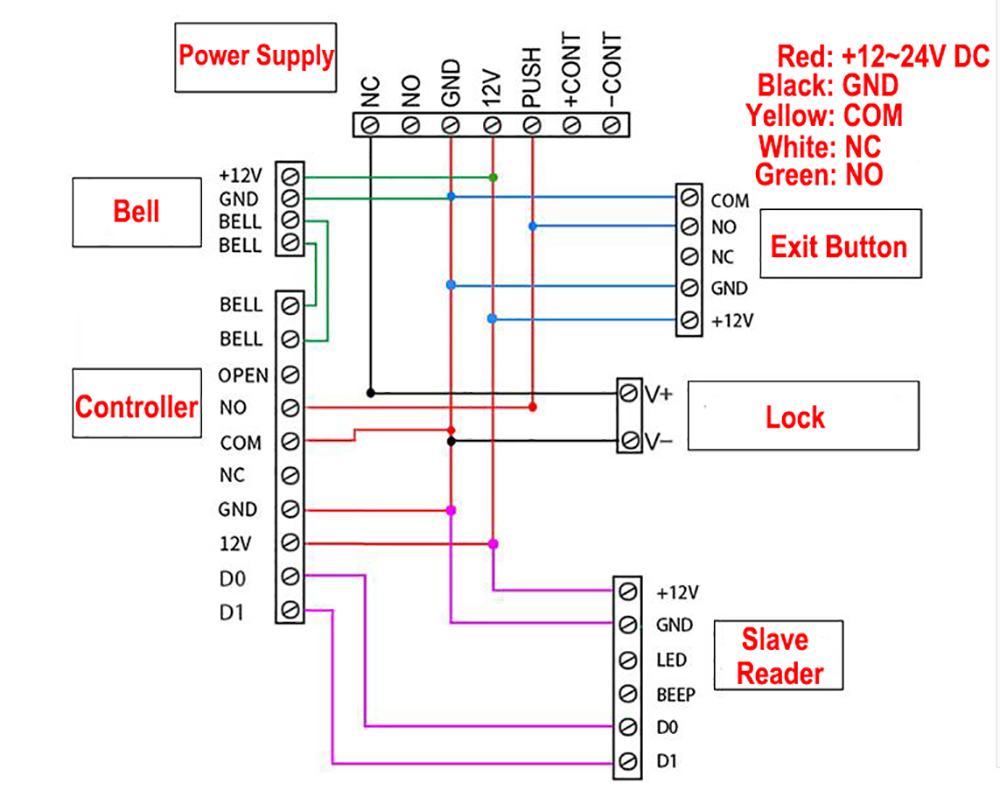

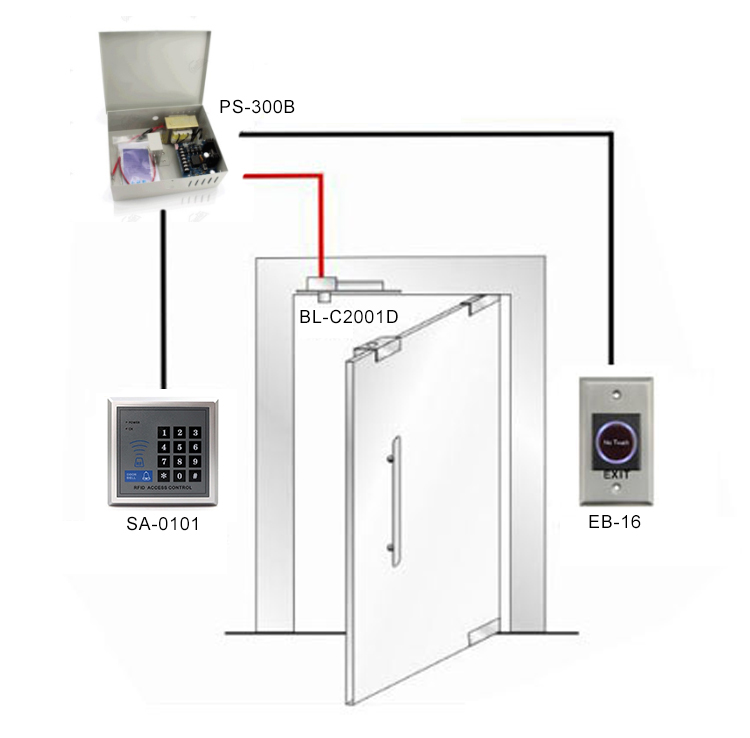

Standalone access control system with EB-16:
Related Products
Unit Type: Piece
Package Weight: 0.3kg
Package Size: 10cm x 10cm x 8cm
We have been one of the leading exporters of RFID products in China for 2000 years. With rich experience in international trade, we know international shipping very well, we know which express or air / sea line is cheap and safe for your country. We can provide various certificates to clean your habit like CO, FTA, Form F, Form E ... ect. We will provide our professional shipping suggestion. EXW, FOB, FCT, CIF, CFR ... trade terms are ok for us. We can be your reliable partner for products and shipments.
1, All inquiries will be answered within 24 hours
2, professional manufacturer and supplier, welcome to visit our website and factory
3, OEM / ODM available
4, high quality, fashin design, reasonable and competitive price, fast delivery time
5, after-sales service:
1), All products will have been strictly checked in house before packing
2), All products will be well packed before shipping
3), All of our products have 2-3 years warranty if the damage is not caused by man
6, faster delivery : About 1 ~ 5 days for sample order, 7 ~ 30 days for bulk order
7, payment: You can pay for the order via: T / T, Western Union, Paypal
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, you can also choose your own forwarder.
Q: 1. How can I place an order?
A: Please indicate your needs by email. Then we will send you the offer as soon as possible, after your order is confirmed, we will arrange the production as soon as possible.
Q: 2. What about payment and shipping?
A: T / T, Paypal, Western Union.
Customers can choose by sea, air or express (DHL, FedEx, TNT UPS etc.)
Q: 3. How can I get a sample to check the quality?
A: We could provide you with free sample and the freight cost paid by you.
Q: 4. How long can I expect to get the samples?
A: It depends on the quantity. Normally 3-7 days for 5000 pieces and 7-15 days for 100,000 pieces
Q: 5. Can your products be customized?
A: Almost all of your products are customized, including matter, size, thickness and printing. OEM orders are welcome.
Q: 6. Are you a trading company or a factory?
We are one of the largest manufacturers of RFID cards / NFC tags / RFID keybods / RFID wristband, rfid reader and access control products in China for over 20 years.
