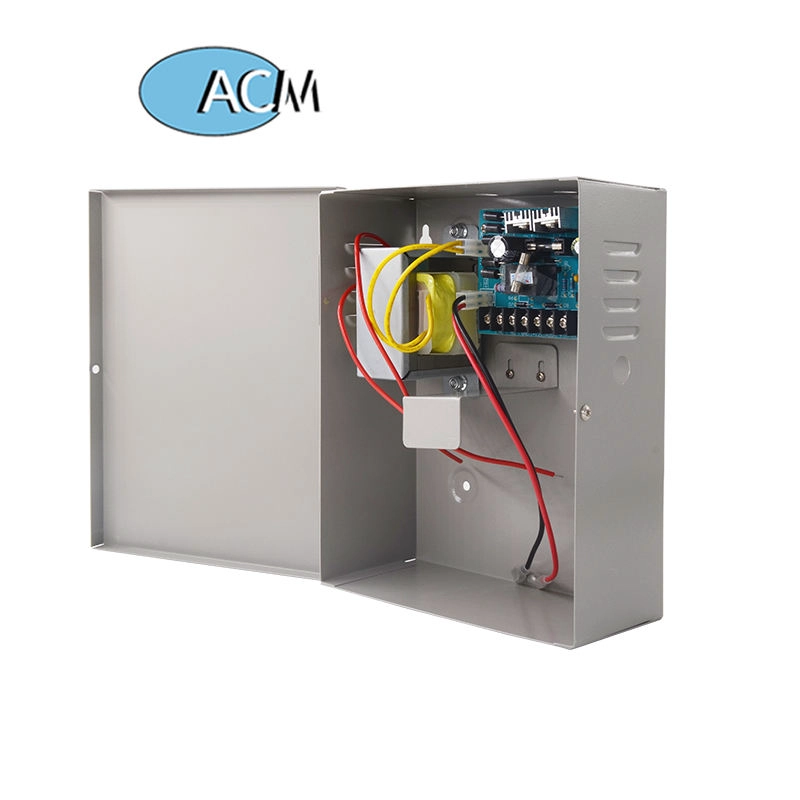

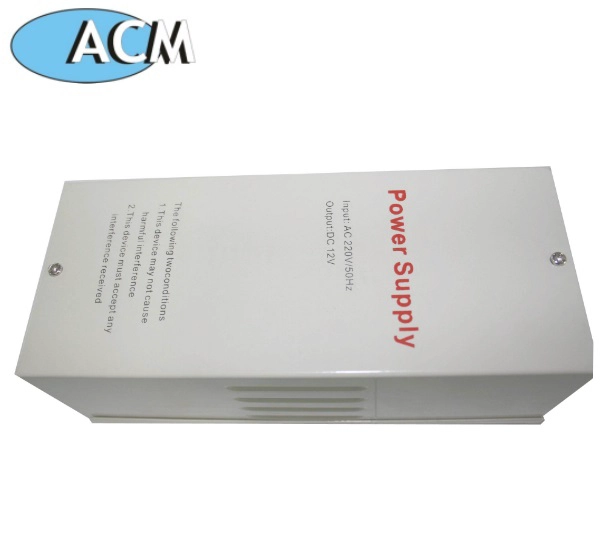

12V New Door Access Control system Switch DC Power Supply

  • Place of Origin:Guangdong, China
  • Brand Name:ACM
  • Model Number:ACM-801-3A
  • Output Power:1 - 50W
  • Output Type:DUAL
  • Output Voltage:12V
  • Output Frequency:50-60HZ
  • Output Current:3A
  • Product name:12V Output Switching power supply 12V 5A Power Supply
  • Current:5A
  • Voltage:DC12V,AC220V
  • Power:30-50W
  • Color:Silver
  • Frequency:50-60hz
  • Size:160mm*67mm*37mm
  • Logo:Custom
  • Function:Supply power for access control
  • Weight:0.6kg
Product Description

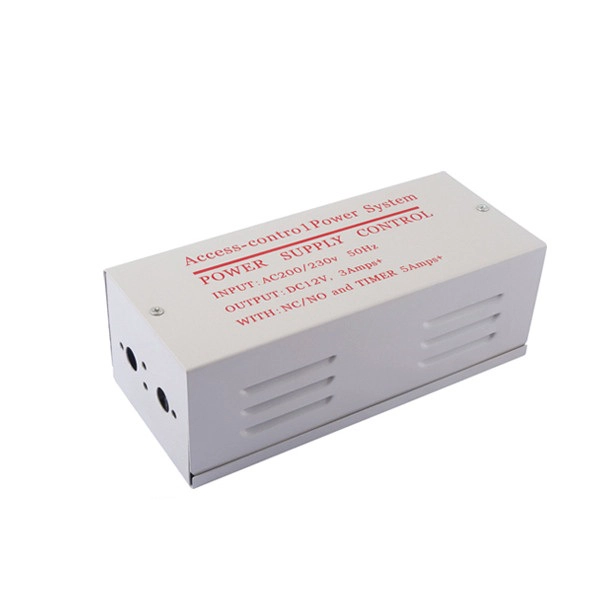

12V New Door Access Control system Switch DC Power Supply


3A Current power supply

Built-in reverse surge protection and Short-circuit protection function.
This power supply is suitable for building intercom, various entrances access control, particularly suitable for all kinds of electric locks
Product Parameter
Parameter Description
size
160mm*67mm*37mm
ripple voltage
ripple voltage
Input voltage
Up ≤ 50mV
Input Frequency
50~60Hz
Output voltage
DC12V
Output current (optional)
1A/3A/5A
Output voltage trim range
+_10%~+_15%
Load stability
1%typical
Time Delay
0~15sec.
Output Contact
Access control, Electric Lock, Release Button
Hold time
at full load typ 20ms
Working temperature
-20~+65°C
Standard Designe
Steel material, Painted
Protect Safely
Short Circuit protection
Suitable For
Access control, Electric lock

Warranty
12months
Detailed Images

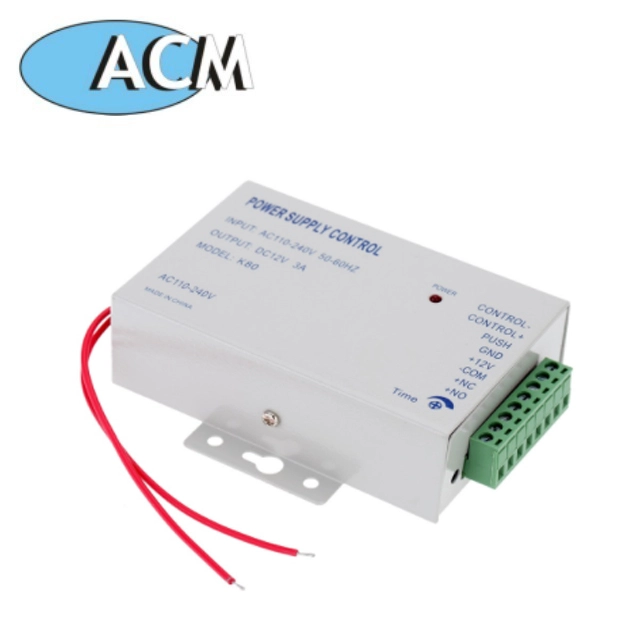

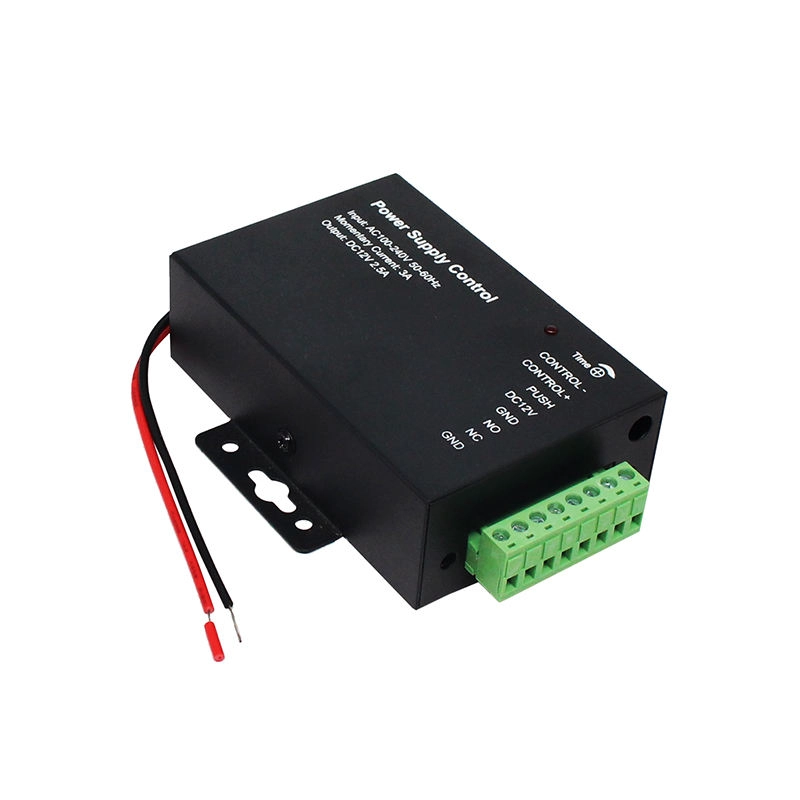

1: NO terminal and COM terminal , normally open no output , the key trigger output DC12V, connected electronically controlled lock(0-15 seconds delay , a positive , three negative ) ;
2: NC terminal and COM terminal , normally closed output DC12V, after the power button is triggered,then the electric or magnetic latch,Power locks ( 0-15 seconds delay , 2 positive, 3 negative ) ;
3: DC12V output voltage regulation, 4 is positive , 5 negative ;
4: open button input terminal ( for negative power supply ) , which can be accessed switch output(relay output, low )control Electric lock access control system ;
5: open button input terminal ( on the positive power supply ) , which can be accessed switch output( relay output, high level ) control ,Electric lock access control system ;
6: 12V input voltage door, dedicated to the direct control of the output voltage electric lock access control

Application
