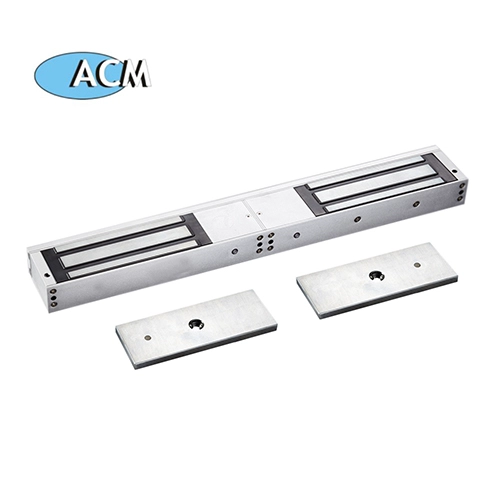

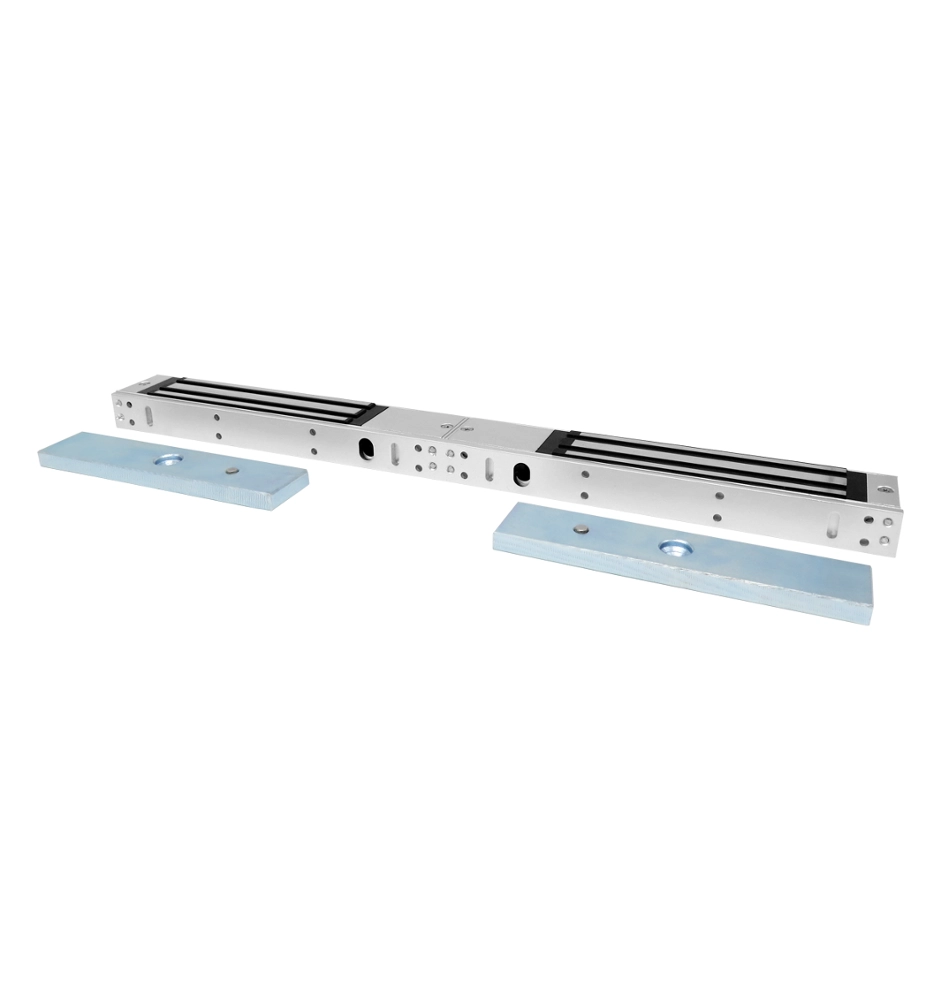

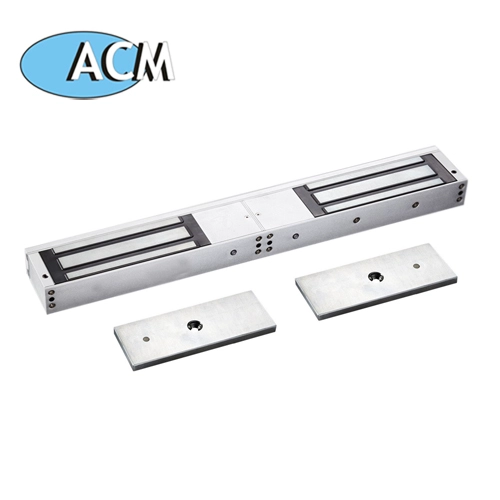

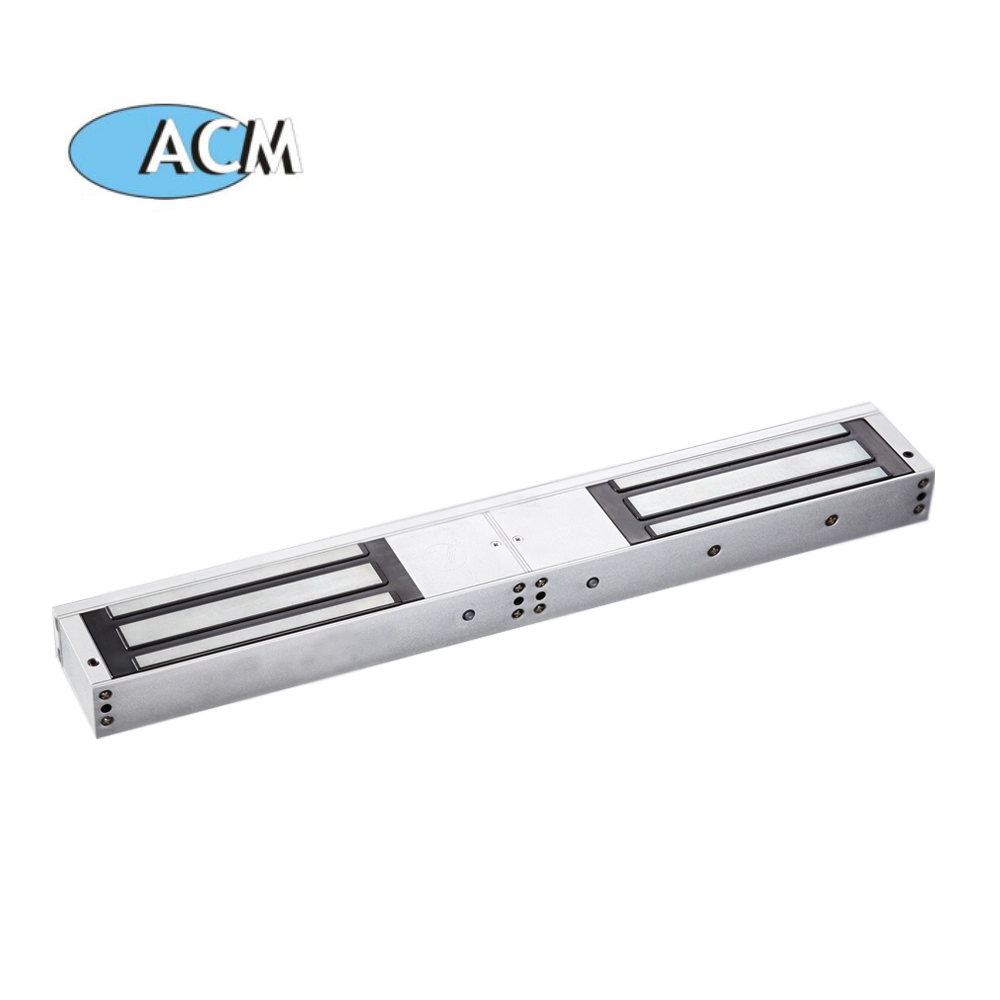

350Kg/800Ibs double Electric Magnetic Door Lock for Access Control ACM Y350-D

  • Model Number: ACM Y350-D
  • Product Name: 12V 350Kg/800Ibs double Electric Magnetic Lock for Access Control
  • Holding force: 350kgx2(800Lbsx2)
  • Voltage: DC 12V/24V
  • Current: 240-48mA
  • Working temperature: -10 to 55 Celsius degree
  • Humidity: 0 to 95%
  • Working mode: power-on to lock
  • Magnet( LxWx H):570Lx55Wx27.5H(mm)
  • Armature Plate( LxWxH): 190Lx45Wx11H(mm)
Product Description


350KG(800LBS)x2 Double Door Electric Magnetic Safety Lock for Interior Door Magnetic Lock System

Double door electric lock is for wooden door, fireproof door, sliding door and metal door. Inbuilt time delay mode and can set up 0,3,6,9sec . LED light ,Red indicates the door is unlock,Green indicates the door is lock

Product Parameter
Parameter Description
Lock Size
570Lx55Wx27.5H(mm)
Armature plate
190Lx45Wx11H(mm)
Holding Force
350kgx2(800Lbsx2)
Voltage
12 or 24VDC
Current Draw
12V/480mA*2 or 24V/240mA*2
Signal Output
Dry Contact,Max Rating of Contact Current 3A
Time
0/3/6/9sec.
LED
Red indicates the door is unlock,Green indicates the door is lock
Suitable for
Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp
≤+20℃
Operating Temp
-10~+55℃(14-131F)
Suitable Humidity
0~95%(non-condensing)
Finishes for Shell
Anodized aluminum
Finishes for Magnetic
Zinc
Finishes for Armature
Zinc
Weight
5.4kg
Product Advanatge

Collinear Load Test 350x2kg,800x2pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the Door Status.
Lock Status sensor(NO/NC/COM).
Time: 0/3/6/9sec.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.


Detailed Images , OEM/ODM available

Our lock is with LED light to show the working statue , light is green when it locked , Red when unlocked . The light statue can be changed .
ACM-Y380D is with signal output . The PCB board can be customized . We can make the lock with 12v&24v dual voltage and with 7 wire connection . Following photo is the PCB board optional .If you want to customize the lock ,please tell us your detail request , we will send your detail quotation after knowing all your requirement .

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.

Instalation Diagram
Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.

Packaging
Magnetic Lock packaging: 1unit per box, 5pcs per carton,
Carton size : 35*30*16cm , Gross Weight :25kg.
