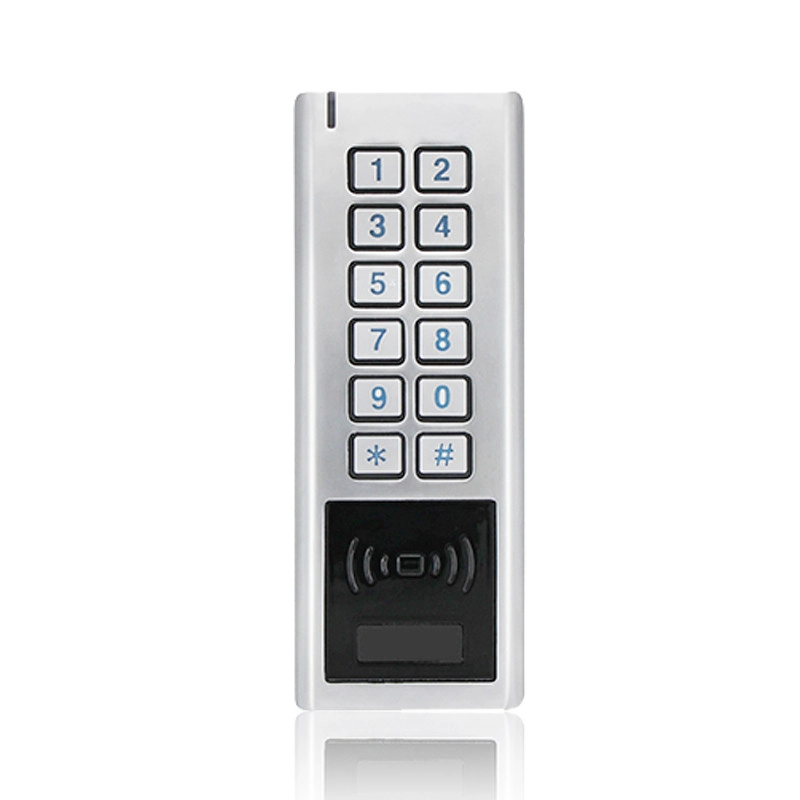

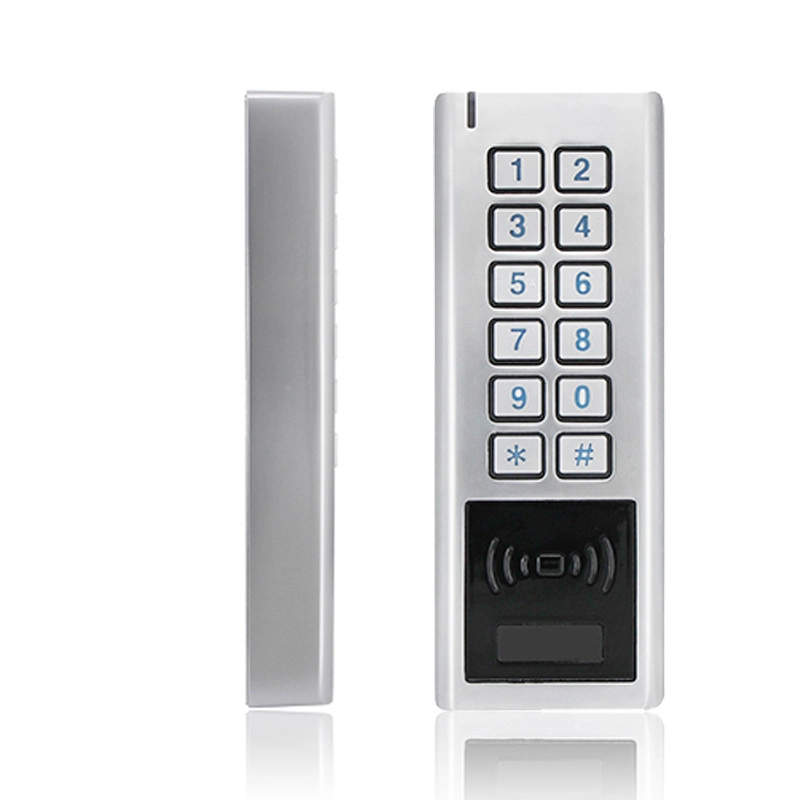

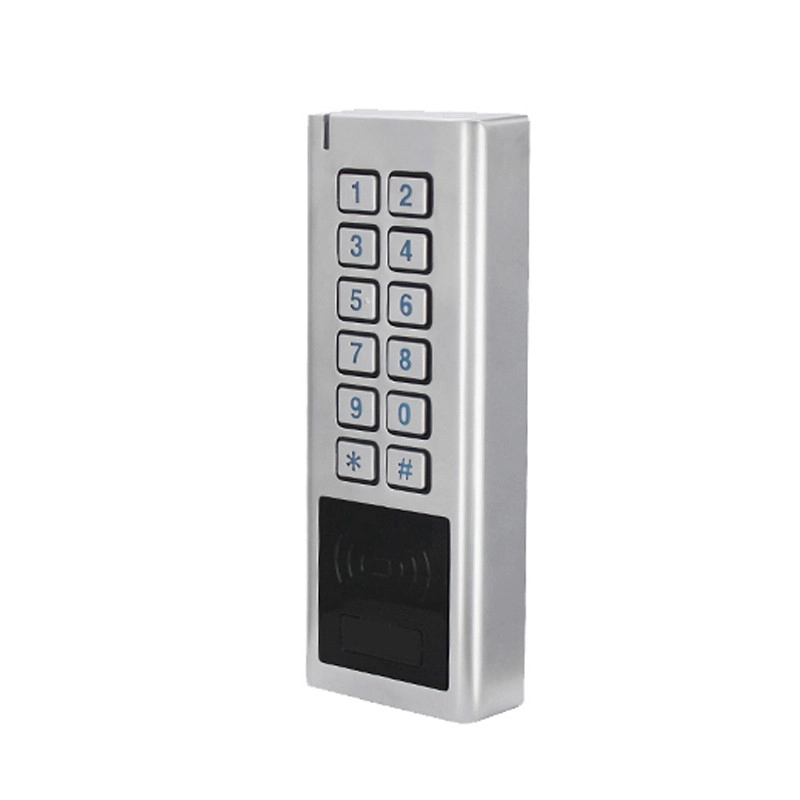

Product Description
1: Metal case, anti-vandal
2: Waterproof, conforms to IP66
3: One relay, 1000 users
4: Wiegand 26~37 bits input & output
5: User data can be transferred by Wiegand line
|
User Capacity
|
1000
|
|
Common User
|
998
|
|
Panic User
|
2
|
|
Operating Voltage
|
9~18V DC
|
|
Idle Current
|
< 35mA
|
|
Proximity Card Reader
|
EM
|
|
Radio Technology
|
125KHz Proximity Card
|
|
Read Range
|
2~6 cm
|
|
Wiring Connections
|
Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output
|
|
Relay
|
One (NO, NC, Common)
|
|
Adjustable Relay Output Time
|
0~99 Seconds (5 seconds default)
|
|
Lock Output Load
|
2 Amp Maximum
|
|
Wiegand Interface
|
Wiegand 26~37bits
|
|
Wiegand Input
|
26~37bits
|
|
Wiegand Output
|
26~37bits
|
|
PIN Output
|
4 bits, 8 bits(ASCII), 10 digits Virtual Number
|
|
Environment
|
Meets IP66
|
|
Operating Temperature
|
-40℃ ~ 60℃ (-40°F ~ 140°F)
|
|
Operating Humidity
|
0%RH ~ 98%RH
|
|
Physical
|
Zinc Alloy
|
|
Color
|
Silver
|
|

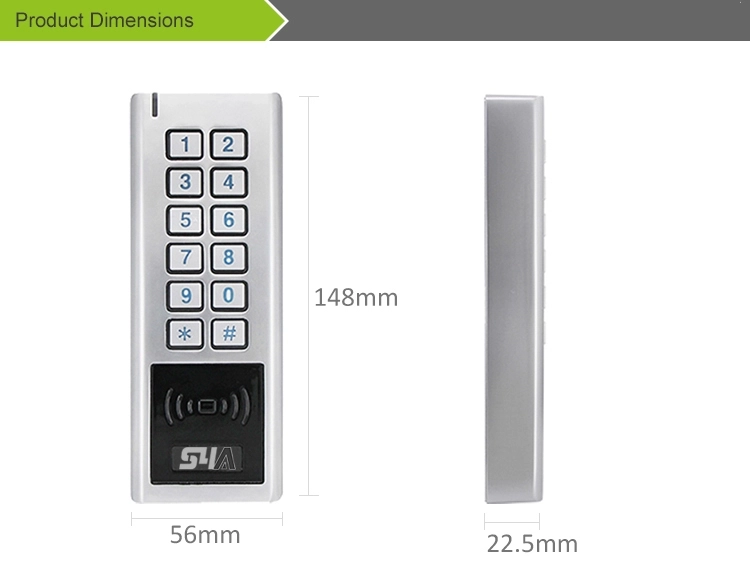

Dimensions
|
148L x 56W x 22.5H (mm)
|
|
Unit Weight
|
285g
|
|
Shipping Weight
|
350g
|
