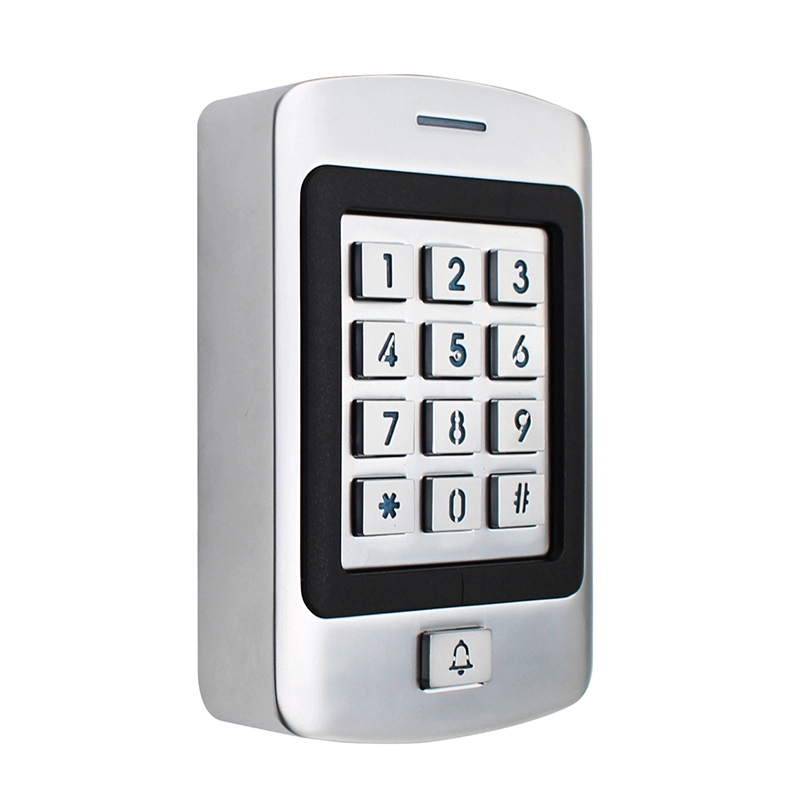

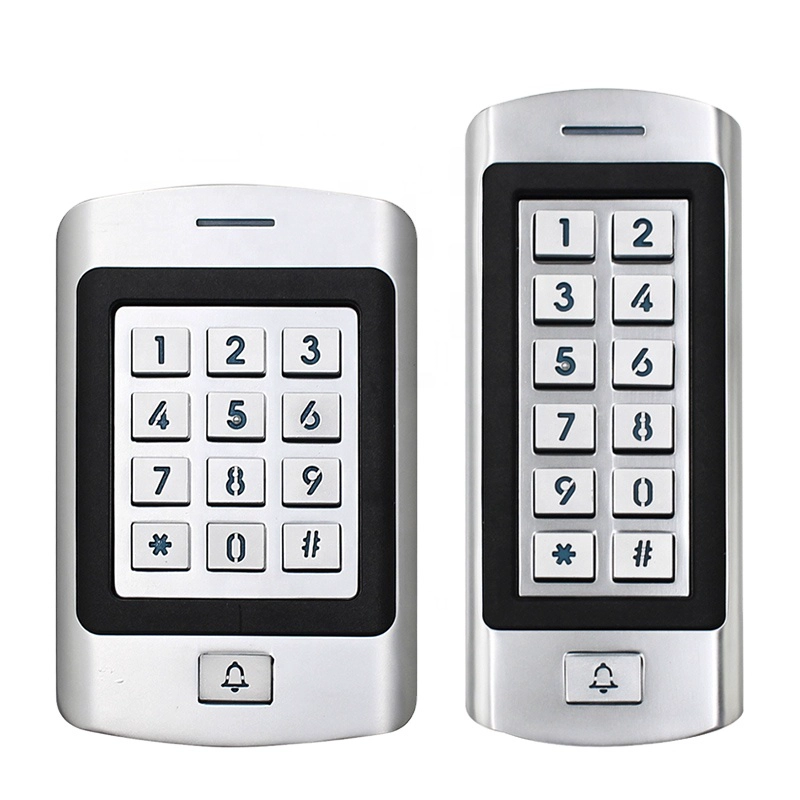

RFID Access Control Wiegand 26 Pin Code RFID Keypad IP66 Waterproof and Garage Keyless Entry Pad 1000 Users
Model No.: ACM-B101-A
ACM-B101-A is a single entry standalone Access Control with integrated keypad and card reader.
It is an easy to install and operate device, with doorbell and support remote control for open the door.
Features:
> Metal case, backlit keypad
> Waterproof,conforms to IP66
> One relay, 1000 users (990 Normal Users + 10 Visitor Users)
> 3 access modes: Card, PIN, Card + PIN
> Card type: 125KHz EM card
> PIN length: 4~6 digits
> Anti-tamper alarm
> With Doorbell for visitors
> Remote Control for optional
|
User Capacity
|
1000 Cards/PINS (990 Normal Users + 10 Visitor Users)
|
|
Operating Voltage
|
9~18V DC
|
|
Idle Current
|
50mA
|
|
Active Current
|
80mA
|
|
Keypad
|
12 Key (3*4)
|
|
Proximity Card Reader
|
EM
|
|
Radio Technology
|
125 KHz Industry Standard Proximity Card
|
|
Read Range
|
2-6 cm
|
|
Wiring Connections
|
Relay Output, Exit Button
|
|
Relay
|
One (NO, NC, Common)
|
|
Adjustable Relay Output Time
|
0-99 Seconds (5 seconds default)
|
|
Lock Output Load
|
3 Amp Maximum
|
|
Environment
|
Outdoor
|
|
Operating Temperature
|
-40℃~ 60℃ (-40°F ~ 140°F)
|
|
Operating Humidity
|
10%RH-90%RH Non-Condensing
|
|
Physical
|
Zinc-Alloy Enclosure
|
|
Surface Finish
|
Powder Coat
|
|
Dimensions
|
116L x 76W x 26H (mm)
|
|
Unit Weight
|
600g
|
|
Shipping Weight
|
700g
|

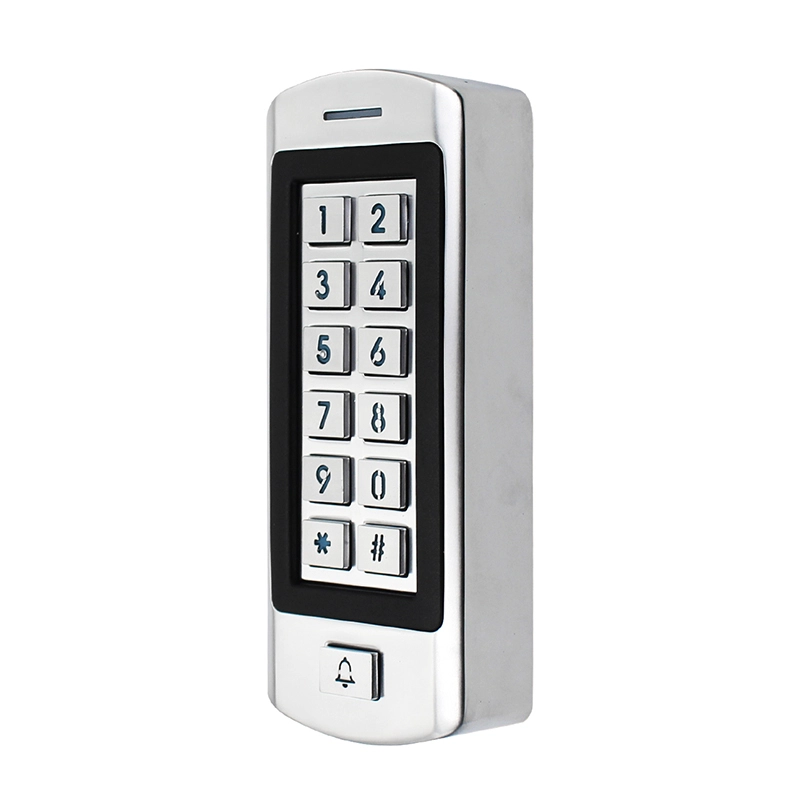

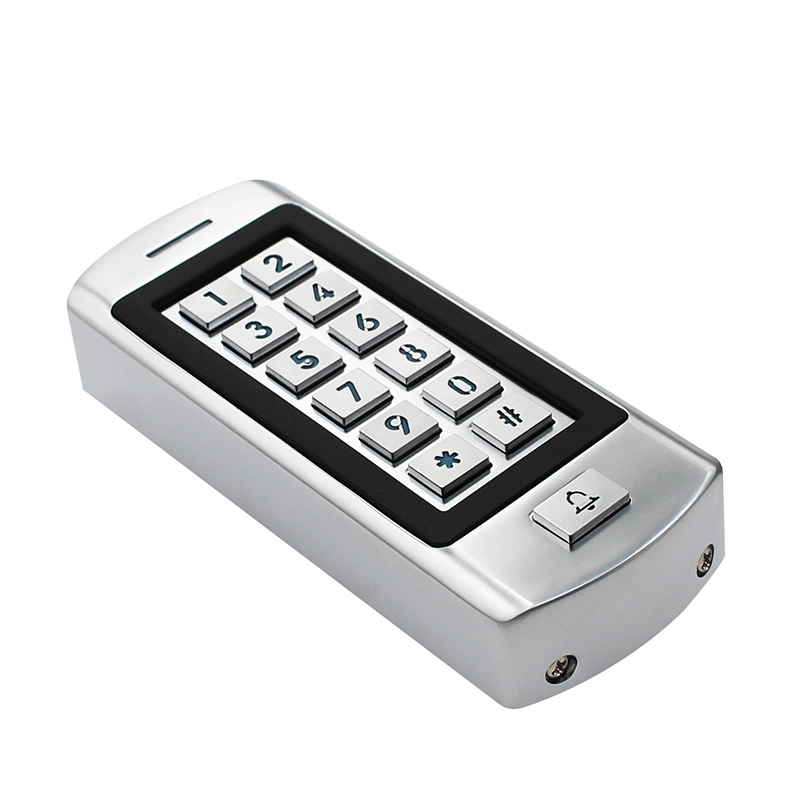

Outswinging Waterproof Door RFID Access Control System with Keypad ID Card for Card Access System
Model No.:ACM-B101-B
ACM-B101-B is a single entry standalone Access Control with integrated keypad and card reader.
It is an easy to install and operate device, with doorbell and support remote control for open the door.
Features:
> Metal case, backlit keypad
> Waterproof,conforms to IP66
> One relay, 1000 users (990 Normal Users + 10 Visitor Users)
> 3 access modes: Card, PIN, Card + PIN
> Card type: 125KHz EM card
> PIN length: 4~6 digits
> Anti-tamper alarm
> With Doorbell for visitors
> Remote Control for optional
|
User Capacity
|
1000 Cards/PINS (990 Normal Users + 10 Visitor Users)
|
|
Operating Voltage
|
9~18V DC
|
|
Idle Current
|
50mA
|
|
Active Current
|
80mA
|
|
Keypad
|
12 Key (2*6)
|
|
Proximity Card Reader
|
EM
|
|
Radio Technology
|
125 KHz Industry Standard Proximity Card
|
|
Read Range
|
2-6 cm
|
|
Wiring Connections
|
Relay Output, Exit Button
|
|
Relay
|
One (NO, NC, Common)
|
|
Adjustable Relay Output Time
|
0-99 Seconds (5 seconds default)
|
|
Lock Output Load
|
3 Amp Maximum
|
|
Environment
|
Outdoor
|
|
Operating Temperature
|
-40℃~ 60℃ (-40°F ~ 140°F)
|
|
Operating Humidity
|
10%RH-90%RH Non-Condensing
|
|
Physical
|
Zinc-Alloy Enclosure
|
|
Surface Finish
|
Powder Coat
|
|
Dimensions
|
136L x 56W x 25H (mm)
|
|
Unit Weight
|
490g
|
|
Shipping Weight
|
550g
|
1, Any inquires will be replied within 24 hours
2, Professional manufacturer and supplier, Welcome to visit our website and our factory
3, OEM/ODM Available
4, High quality, fashin desing, reasonable & competitive price, fast lead time
5, After-sale Service :
1), All products will have been strictly quality checked in house before packing
2), All products will be well packed before shipping
3), All our products have 2-3 year warranty if the damage is not caused by human
6, Faster delivery : Around 1~ 5 days for sample order, 7~30 days for bulk order
7, Payment : You can pay for the order via : T/T, Western Union, Paypal, Ali trade assurance
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, You also can choose your own shipping forwarder.
Q: 1. How can I place an order?
A: Please list your requirement to us via mail. Then we will send the offer to you at earliest time,after order confirmation, we will arrange production ASAP.
Q: 2.What about the payment and shipment?
A: Trade Assurance and T/T ,Paypal, Western Union.
Clients can choose by sea, air or express(DHL, FedEx, TNT UPS etc.)
Q: 3. How can i get a sample to check your quality?
A:We could provide free sample to you, and the freight cost payed by you.
Q:4. How long can I expect to get the samples?
A: It depends on the quantity. Normally 3-7 days for 5000pcs and 7-15 days for 100,000pcs
Q:5. Can your products be customized?
A: Almost all of your products are customized ,including the materia, size, thickness and printing. OEM orders are highly welcome.
Q:6.Are you a trading company or factory?
We are the one of the biggest manufacturer of RFID cards/NFC tags/RFID keybod /RFID wristband，rfid reader and access control products in China more than 20 years.
