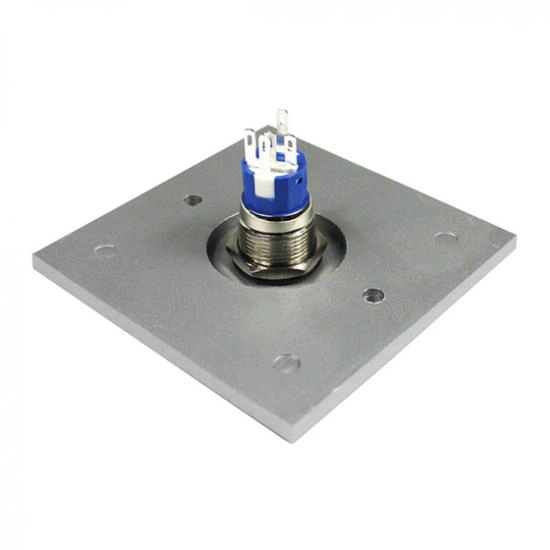

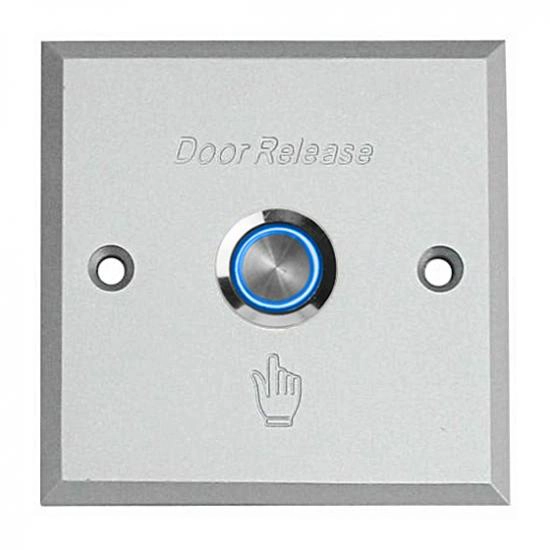

Aluminum Push Button Access Switch
Model No: ACM-4F (LED)
|
Dimensions |
86Lx86Wx33H |
|
Standard Structure |
Aluminum Panel, Steel Button |
|
Current Rating |
3A,36VDC Max |
|
Output Contact |
+12V GND NO NC COM |
|
Mechanical Life |
1000000 tested |
|
Suitable for Door |
Hollow Door |
|
Operating temp |
-10℃ ~ 55°C (14°F-131°F) |
|
Operating Humidity |
0-95% (non- condensing) |
|
Panel Material |
Aluminum panel, Sandblast Finished |
|
Weight |
0.25kg |
|
Standard Packing |
70pcs |
We can supply many kinds of door switches. Touch, No touch, glass break, key switch. Click on the photo above to find more details. Or do not hesitate to send us a request to request the price list.
No touch Door Realese Exit Button
K2B: 86 * 86mm
No touch Door Realese Exit Sensor
K9A: 115 * 40mm
Door release button, (stainless steel, NO / NC) K5B: 86 * 86mm
Door release button, (steel, aluminum, NO), K4B: 86 * 86mm
High quality Kirsite made of stainless steel. K14B: 86 * 86mm
PUSH door release button in stainless steel; K815B: 86 * 86mm
