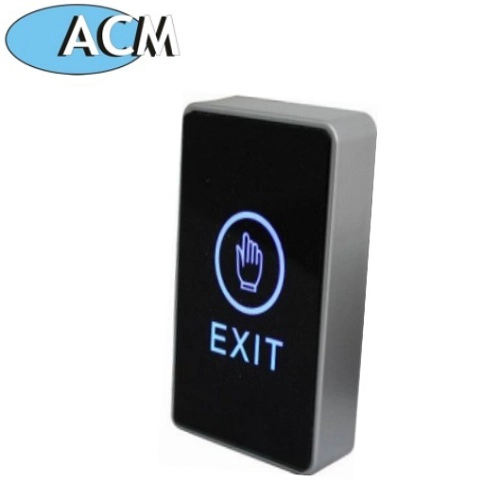

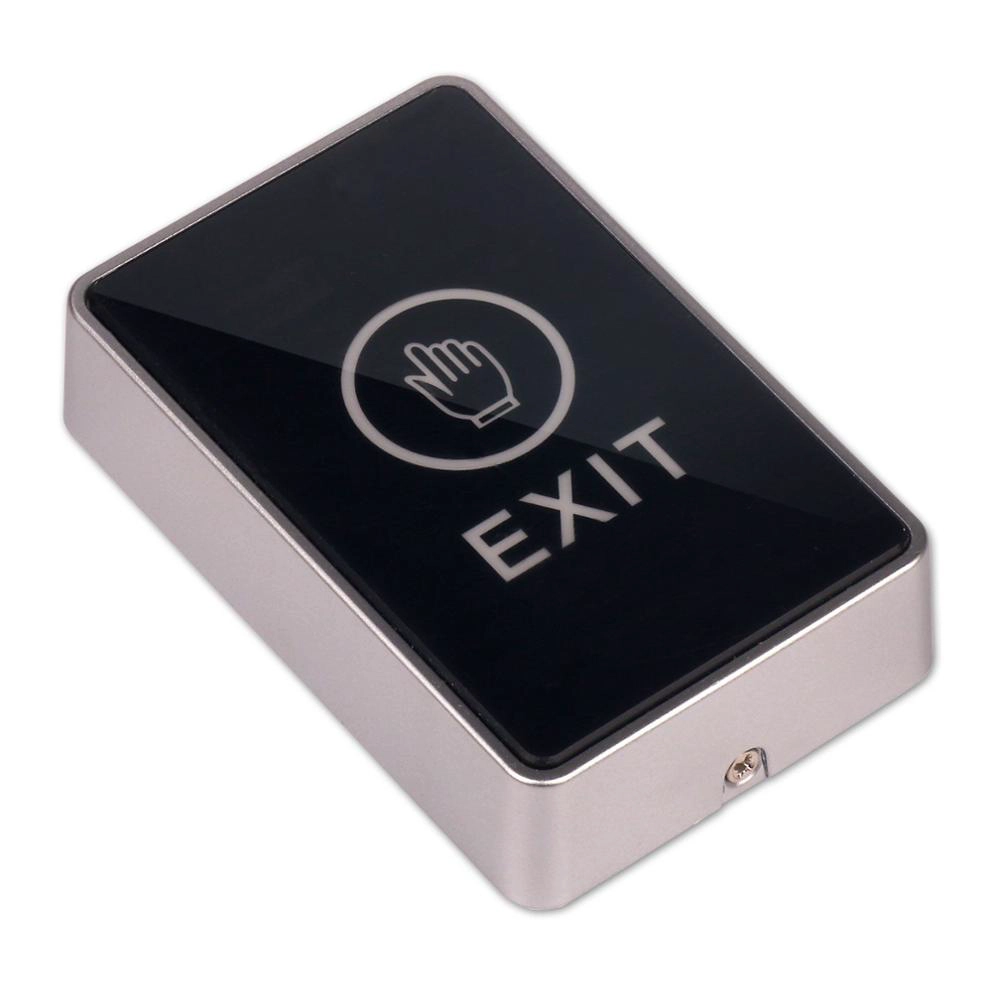

ACM-K9A Office Door Access Control Touch Exit Button with LED Light

  • Model Number:ACM-K9A
  • Product name:Office Door Access Control Touch Exit Button with LED Light
  • Size:115*40mm
  • Application:Gate/Door/Exit/Automation control
  • Output Contact:NO/NC/COM
  • Weight:0.15kg
Product Description

Office Door Access Control Touch Exit Button with LED Light

1. Aluminum Panel with Elegant Style
2. Tested to 500000 Cycles
3. Three Contact Outputs, Suitable for all kinds of Locks
4. The Best Choice for Access Control

access control exit button Technique Specification:

Product Parameter
Parameter Description
Dimensions
86*50*20mm
Input
DC12V
Contact Rating
12-28V,3A
Output Contact
NO/NC/COM
Mechanical Life
500000 tested
Suitable for Door
Hollow Door
Operating temp
-20℃~+55℃(14-131F)
Suitable Humidity
0-95% (relative humidity)
Detection range
0.1-10cm
LED Indicator
White LED indicator: Power OFF
Blue LED indicator: Power ON(standby)
Red LED indicator: Power ON(sensation)
Weight
0.15kg

access control exit button Advantage:

·· Detection range: 0.1 ~ 10 cm

· Application: Gate/Door/Exit/Automation control
·· High capacity of relay dry contact (3A/AC120V,DC30V)
· Normally open/Normally close/Common relay output
· Twin led indicators for sensor standby or approached :
(1) Sensor Standby: BLUE LED ON
(2) Visitors whom approached to the sensor in 10 cm : RED LED ON

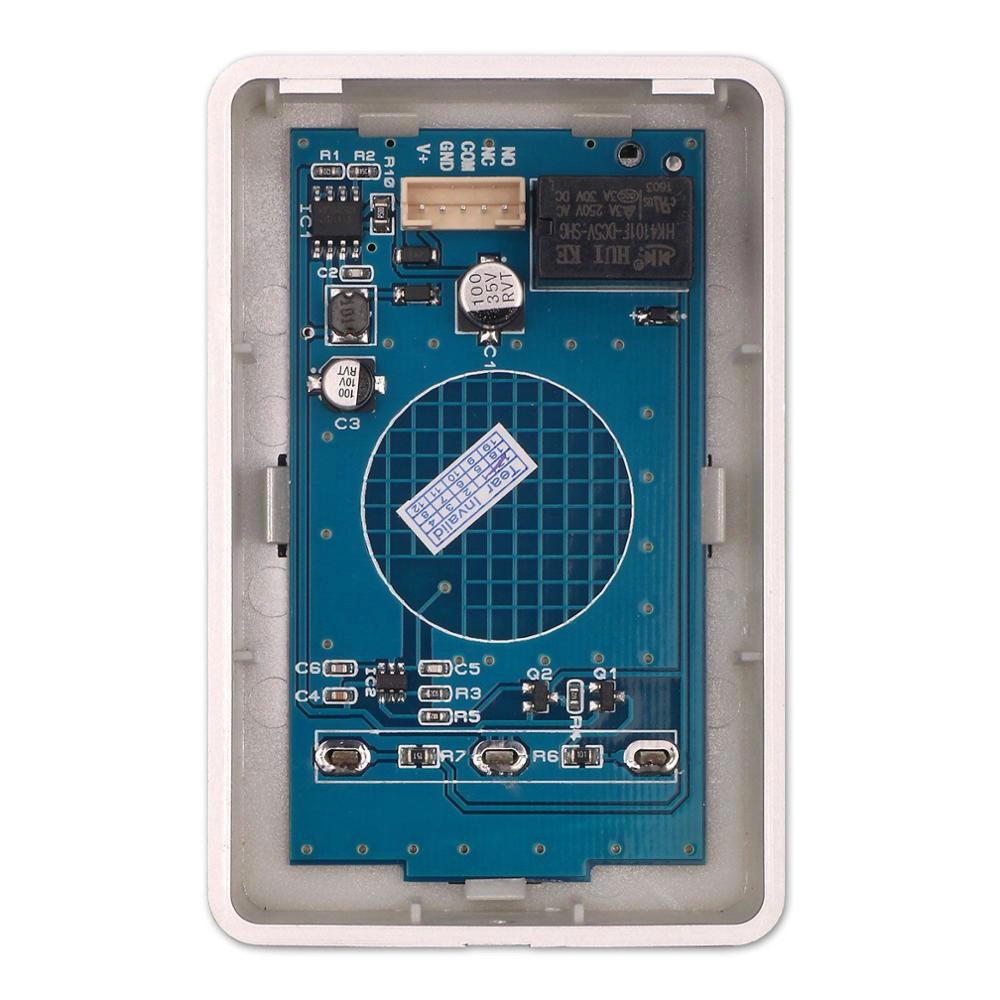

Detailed Images

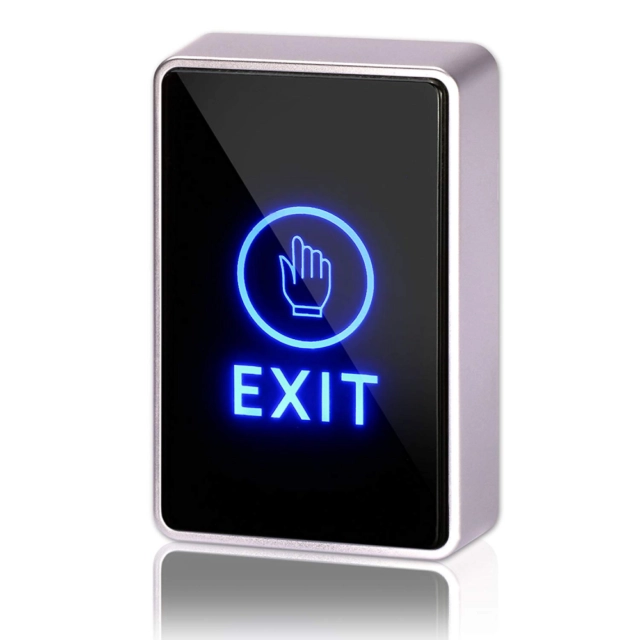

Blue light
Green light
Standby
operation
+12V
GDN
NO
COM
NC
Red
Black
Yellow
White
Orange

We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below, click "Send" now!
We are looking forward to forming successful business relationships with new clients around the world in the future.

Application
Packing & Delivery

Unit Type: piece

Package Weight: 0.3kg

Package Size: 10cm x 10cm x 8cm

Shipping Way


We are one of the leading exporter of RFID products in China since 2000 years . With rich international trade experience we know the international shipping very well , We know which express or air/sea line is cheap and safe to your country . We can supply various certificate for you to clean your custom to such as CO , FTA , Form F , Form E ...Ect . We wil provide our professional suggestion for your shipping . EXW , FOB , FCT , CIF , CFR ...trade term are ok for us . We can be your reliable partner for products and shipping .

Your May Need

We can supply many kinds of door switchs . Touch , No touch , glass break ,key switch. Click above photo to find more detail .Or feel free to send us enquiry to ask the price list .




No touch Door Realese Exit Button

K2B: 86*86mm



No touch Door Realese Exit Sensor
K9A: 115*40mm



Door Release Button , (Stainless Steel, NO/NC)K5B: 86*86mm




Door Release Button , (Steel Aluminium, NO), K4B: 86*86mm



stainless steel Hihg quality Kirsite.  K14B: 86*86mm



Stainless steel Door release PUSH button; K815B: 86*86mm
