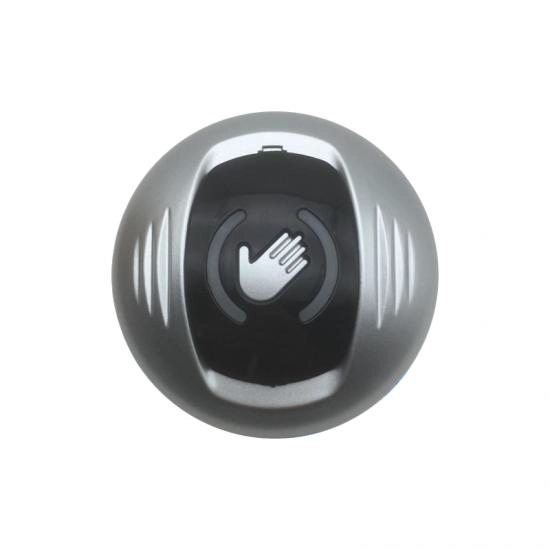

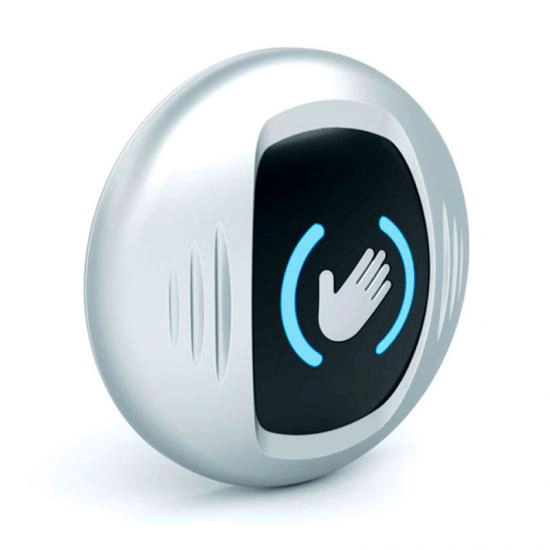

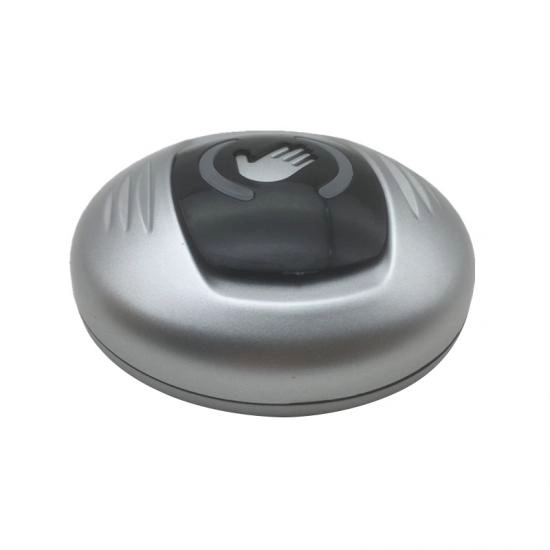

Hand Wave Sensor Button for Touchless Switch with Microwave Technology
Model No: ACM-K7A
What is Hand Wave Sensor Button?
Hand Wave Sensor Button It is activated by hands waving. After correctly connected this sensor with your power supply and access control system, when you wave your hand at the sensor, the door will turn on automatically.
The overall features:
> Adopt infrared modulation-demodulation, interference signal will not be caused.
> With the non-contact induction design, door can be opening an easy and clean way.
> Transmit distance is adjustable from 1 to 15cm, can be set according to actual occasion.
> Low-power design with longer service life.
> Adopt high-sensitivity infrared tubes, quick response for door opening.
> Installation with hidden screw hole, the appearance with the sense of science.

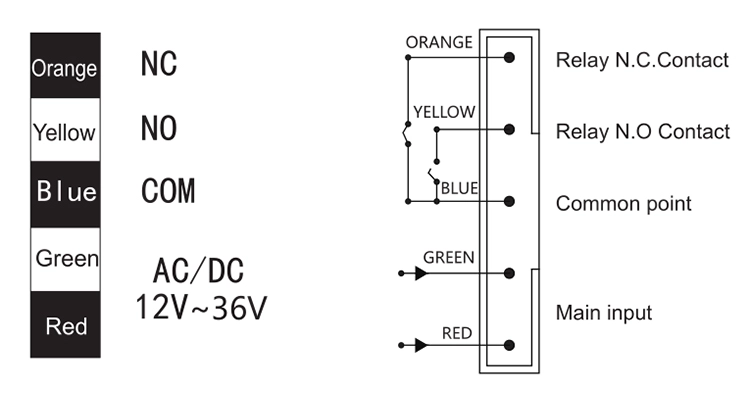

> With dry contact signal output, easy to link with various gated equipment.
> Instruction with light indicator.
> Power supply: 12-36V DC/AC.
|
Supply power
|
AC/DC 12V~36V
|
|
Static parameter
|
DC12V 22mA
|
|
Action current
|
DC12V 55mA
|
|
Transmit distance
|
1~15CM adjustable
|
|
Operation Frequency
|
38KHZ
|
|
Working environment humidity
|
-20℃~45℃
|
|
Dimension
|
113x63x20mm
|
|
Fixed way
|
Fixed with hidden screw
|
|
Total Weight
|
108G
|
