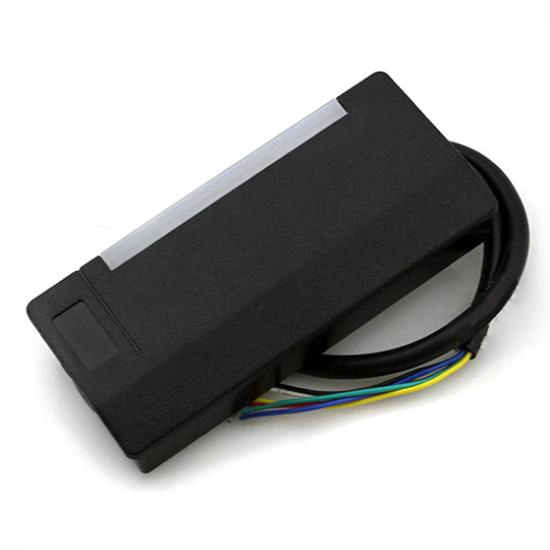

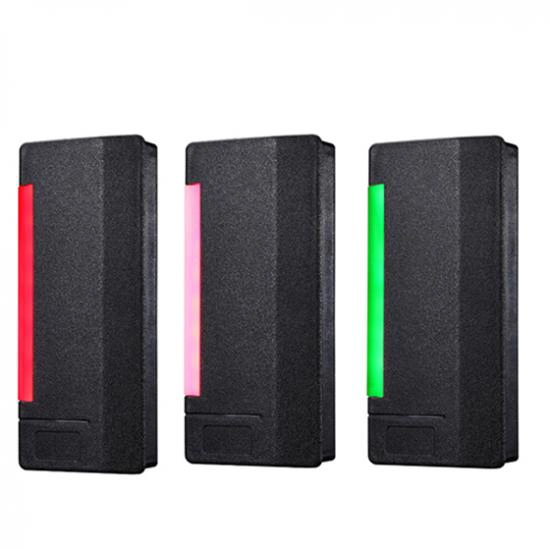

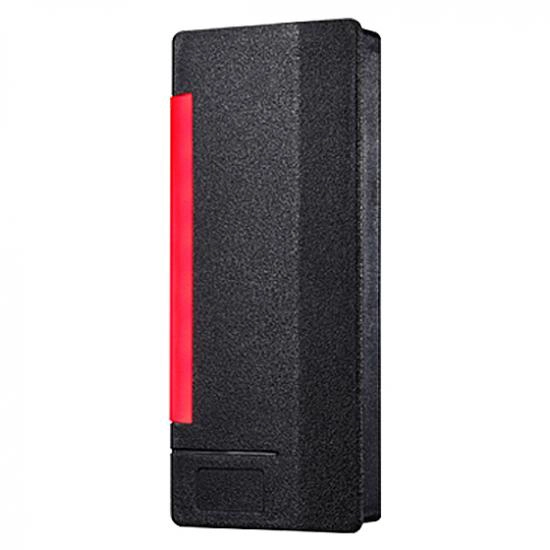

ACM02 RFID 13.56MHz Contactless Reader

Features:
> 125KHz Proximity /13.56MHz Mifare Card Reader
> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
> 26/34bit Wiegand (default)
> Easy to install on Metal Door Frame or Mullion
> External LED Control
> External Buzzer Control
> Indoor / Outdoor Operation
> Solid Epoxy Potted
> Waterproof IP65
> Reverse Polarity Protection

Features:

> 125KHz Proximity /13.56MHz Mifare Card Reader

> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)

> 26/34bit Wiegand (default)

> Easy to install on Metal Door Frame or Mullion

> External LED Control

> External Buzzer Control

> Indoor / Outdoor Operation

> Solid Epoxy Potted

> Waterproof IP65

> Reverse Polarity Protection

Model	ACM02EM and ACM02MF
Read Range	ACM02EM: Up to 10CM, ACM02MF: Up to 5CM
Reading Time (Card)	≤300ms
Power / Current	DC 6-14V / Max.70mA
Input Port	2ea (External LED Control, External Buzzer Control)
Output Format	26bit/34bit Wiegand (default)
LED Indicator	2 Colour LED Indicators(Red and Green)
Beeper	Yes
Operating Temperature	-20° to +65°C
Operating Humidity	10% to 90% relative humidity non-condensing
Colour	Black
Material	ABS+PC with texture
Dimension(W x H x T)mm	110X50X18mm
Weight	50g
Index of Protection	IP65

Packing & Delivery

Packaging and delivery Details:

Package: One piece in one box, 100 pieces in one carton

Port: Shenzhen or Hong Kong

Lead time: 3~7 days after the order confirmed
