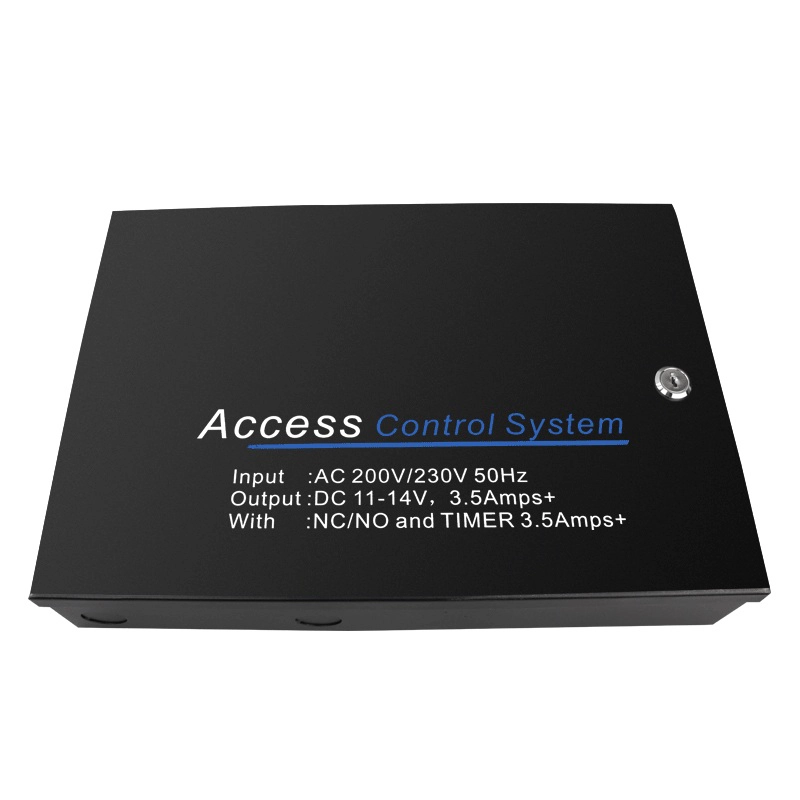

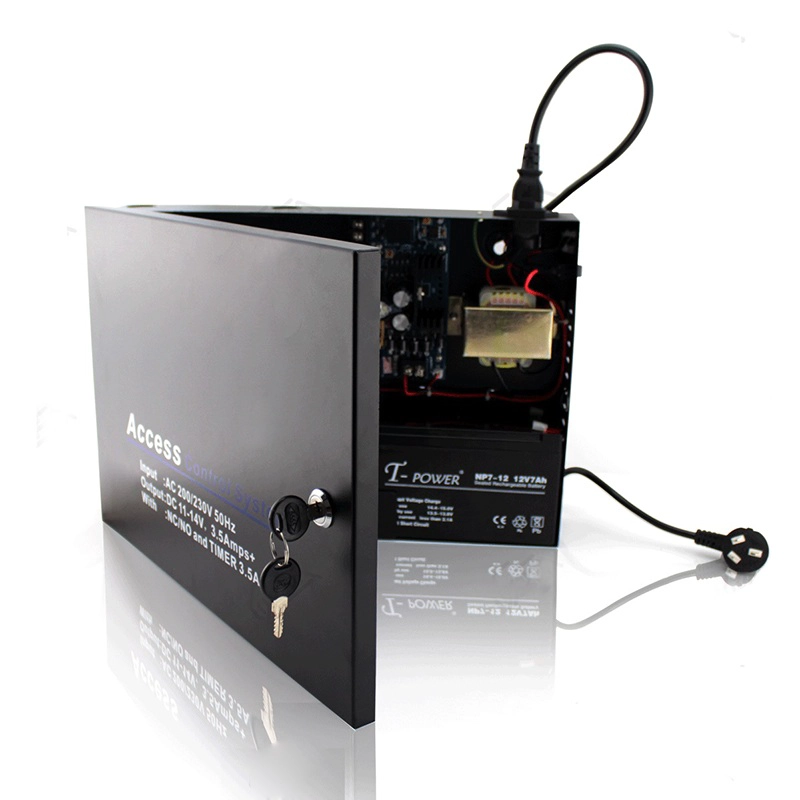

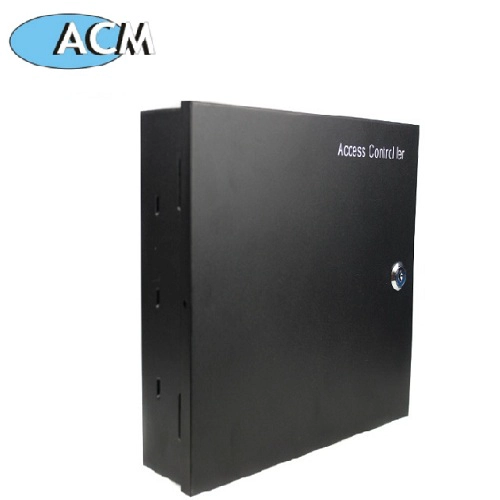

Access Control Power Supply 5A 12V Switching Power Supply

  • pecial Features:power supply
  • Place of Origin:Guangdong, China
  • Brand Name:ACM
  • Model Number:ACM-Y806-5A
  • Product name:Access Control Power Supply 5A 12V Switching Power Supply
  • Current:5A
  • Voltage:DC12V,AC220V
  • Power:30-50W
  • Color:Black
  • Frequency:50-60hz
  • Size:279x234x67MM
  • Logo:Custom
  • Function:Supply power for access control
  • Weight:2.5kg
Product Description

Access Control Power Supply 5A 12V Switching Power Supply


5A Current power supply

Built-in reverse surge protection and Short-circuit protection function.
This power supply is suitable for building intercom, various entrances access control, particularly suitable for all kinds of electric locks
Product Parameter
Parameter Description
Description
Control 2 door, get in by card and get out door by exit button
Communication
TPC/IP
Door Controlled
1-Door/2-Door/4-Door
Support Reader type
Weigand 26
Software Language
English
Max qty of the software supported
Limited
Max Distance from Reader to Controller
100m (suggestion distance 80m)
Max Distance between Controllers
TCP/IP: Depends on net coverage area
Read data
Keypad (card+passwor, supper password)
Open door method
Open door in remote distance
Open too long alarm
Yes
Multi card open
Yes
Timing open or close
Yes
Emergency open or close
Yes
Keypad password
Yes
Force open alarm
Yes

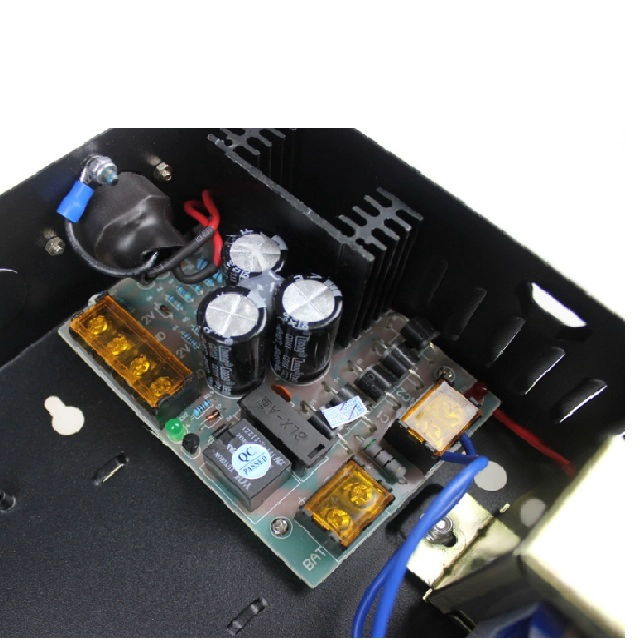

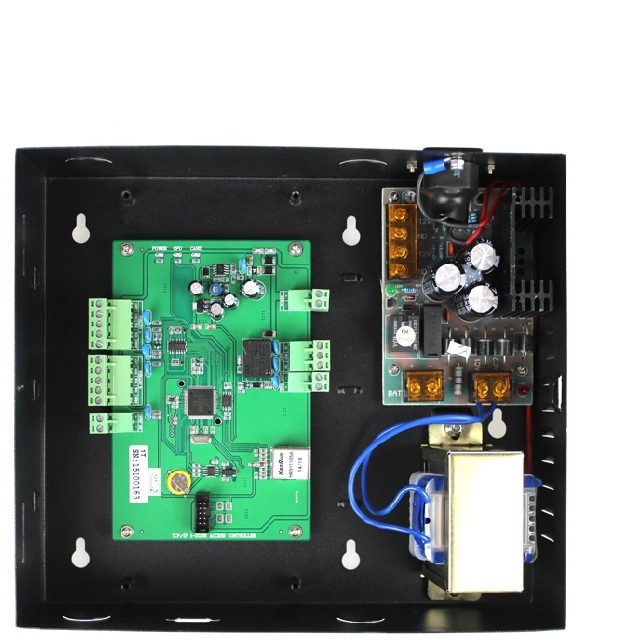

Detailed Images

1: NO terminal and COM terminal , normally open no output , the key trigger output DC12V, connected electronically controlled lock(0-15 seconds delay , a positive , three negative ) ;

2: NC terminal and COM terminal , normally closed output DC12V, after the power button is triggered,then the electric or magnetic latch,Power locks ( 0-15 seconds delay , 2 positive, 3 negative ) ;
3: DC12V output voltage regulation, 4 is positive , 5 negative ;
4: open button input terminal ( for negative power supply ) , which can be accessed switch output(relay output, low )control Electric lock access control system ;
5: open button input terminal ( on the positive power supply ) , which can be accessed switch output( relay output, high level ) control ,Electric lock access control system ;
6: 12V input voltage door, dedicated to the direct control of the output voltage electric lock access control
