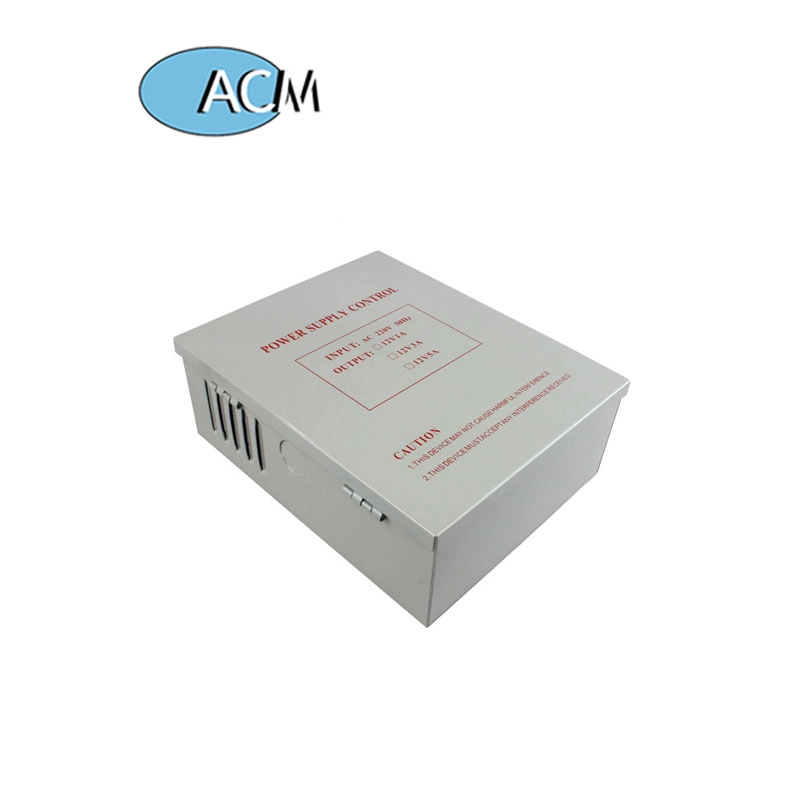

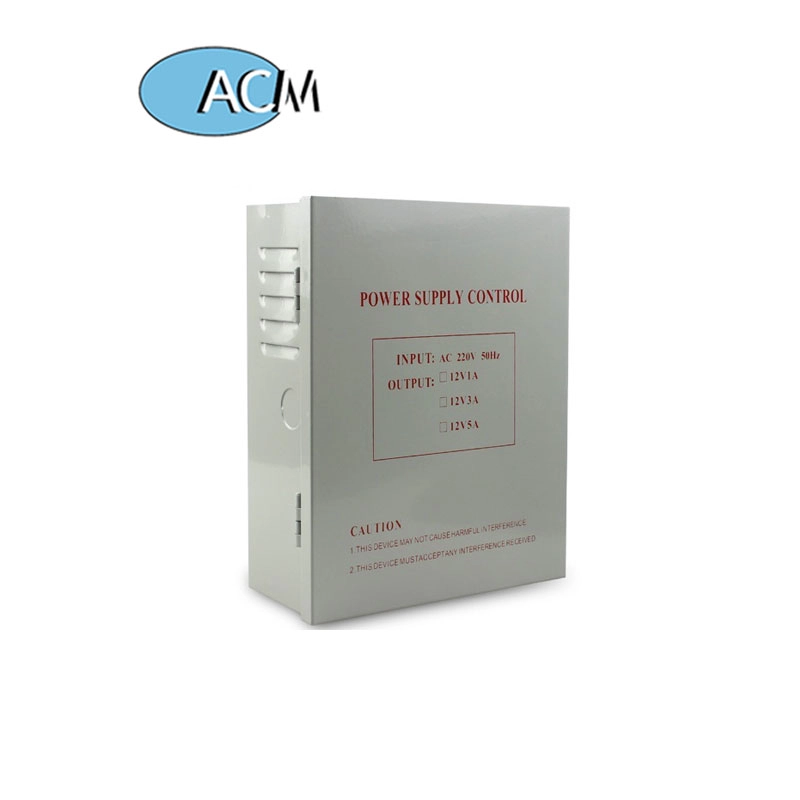

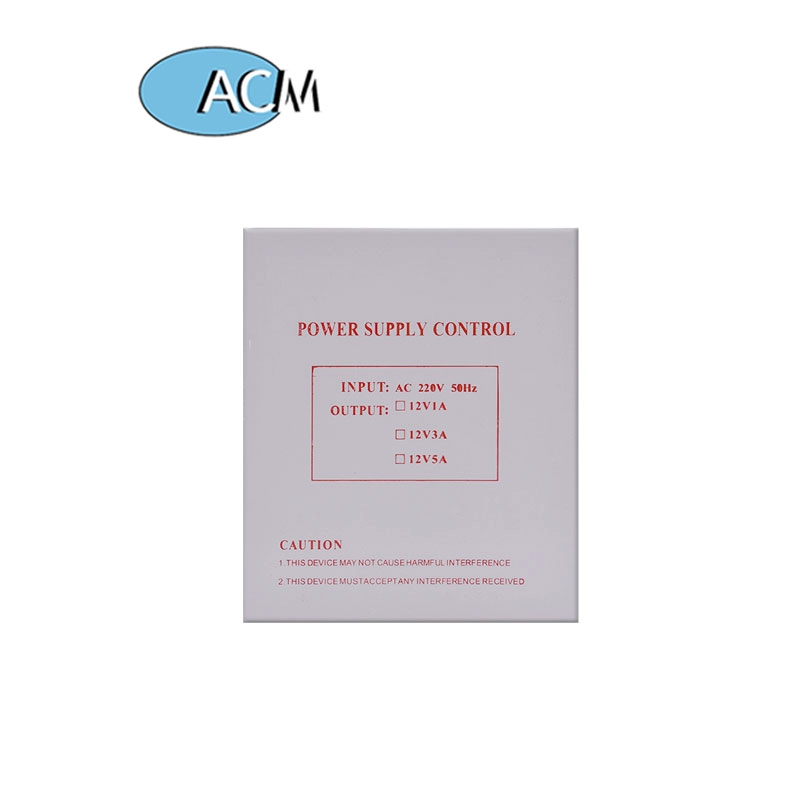

Access DC 12V 5A Door Access Control Battery Backup Switching Power Supply

  • Place of Origin:Guangdong, China
  • Brand Name:ACM
  • Model Number:ACM-806-5A
  • Output Power:1 - 50W
  • Output Type:DUAL
  • Output Voltage:12V
  • Output Frequency:50-60HZ
  • Output Current:3A
  • Product name:12V Output Switching power supply 12V 5A Power Supply
  • Current:5A
  • Voltage:DC12V,AC220V
  • Power:30-50W
  • Color:Black
  • Frequency:50-60hz
  • Size:279x234x67MM
  • Logo:Custom
  • Function:Supply power for access control
  • Weight:2.5kg
Product Description

Access DC 12V 5A Door Access Control Battery Backup Switching Power Supply

3A Current power supply

Built-in reverse surge protection and Short-circuit protection function.
This power supply is suitable for building intercom, various entrances access control, particularly suitable for all kinds of electric locks
Product Parameter
Parameter Description
ripple voltage
Up ≤ 50mV
Input voltage
AC 220V
Input Frequency
Output voltage
Output current (optional)
Output voltage trim range
Load stability
Time Delay
Output Contact
Access control, Electric Lock, Release Button
Hold time
at full load typ 20ms
Working temperature
Standard Designe
Steel material, Painted
Protect Safely
Short Circuit protection
Suitable For
Access control, Electric lock

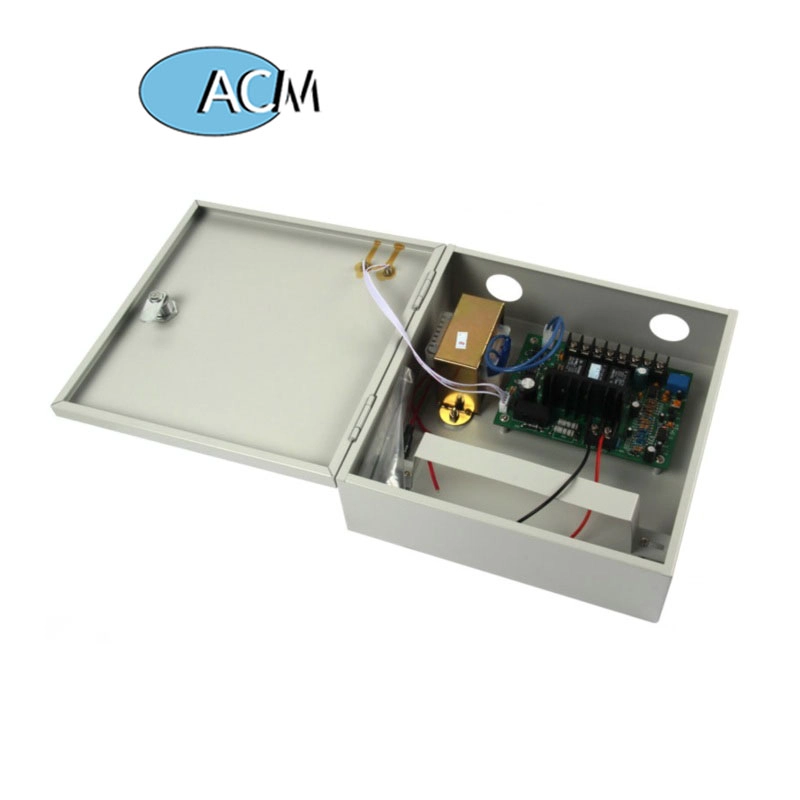

Detailed Images

1: NO terminal and COM terminal , normally open no output , the key trigger output DC12V, connected electronically controlled lock(0-15 seconds delay , a positive , three negative ) ;
2: NC terminal and COM terminal , normally closed output DC12V, after the power button is triggered,then the electric or magnetic latch,Power locks ( 0-15 seconds delay , 2 positive, 3 negative ) ;
3: DC12V output voltage regulation, 4 is positive , 5 negative ;
4: open button input terminal ( for negative power supply ) , which can be accessed switch output(relay output, low )control Electric lock access control system ;
5: open button input terminal ( on the positive power supply ) , which can be accessed switch output( relay output, high level ) control ,Electric lock access control system ;
6: 12V input voltage door, dedicated to the direct control of the output voltage electric lock access control
