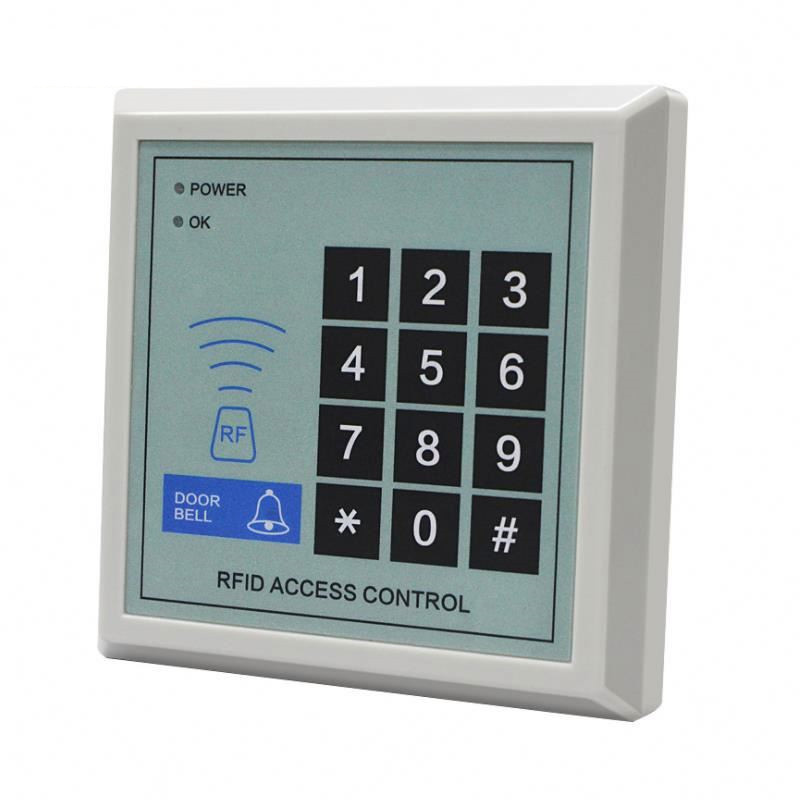

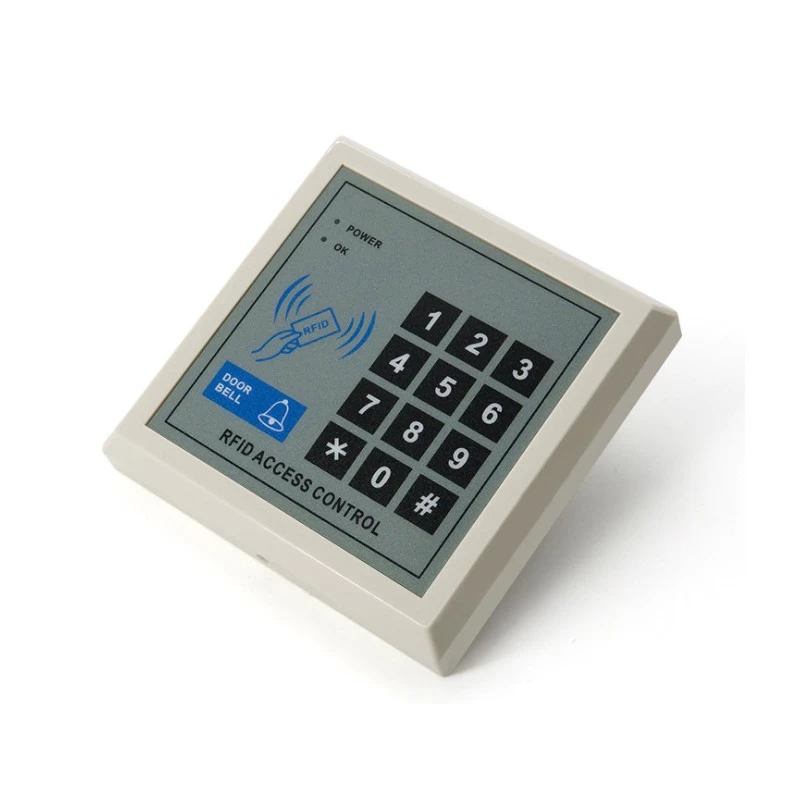

1. Read 125KHz EM / 13.56MHz Mifare (Factory default: EM 125KHz)

2. plastic keypad 3. Contains card reader mode. The transmission format could be adjusted by user. 4. Supports different access ways: Entry by Card + Code or Entry by multi cards 6. User capacity: 1000 users

Material: ABS Indoor & outdoor: indoor User capacity: 1000 users Card type frequency: EM 125KHZ, optional MF 13.56MHZ Read range: 2-5cm Door opening time: 0～99s Opening method: Card, Pin, card+Pin Password: 4 digit Pin code Wiegand: WG26 input and output port Dimension: 116*116*21mm Weight: 0.36kg/pcs Working voltage: DC12V±10% Ambient temperature: -40℃-60℃ Environment humidity: 10%-90%

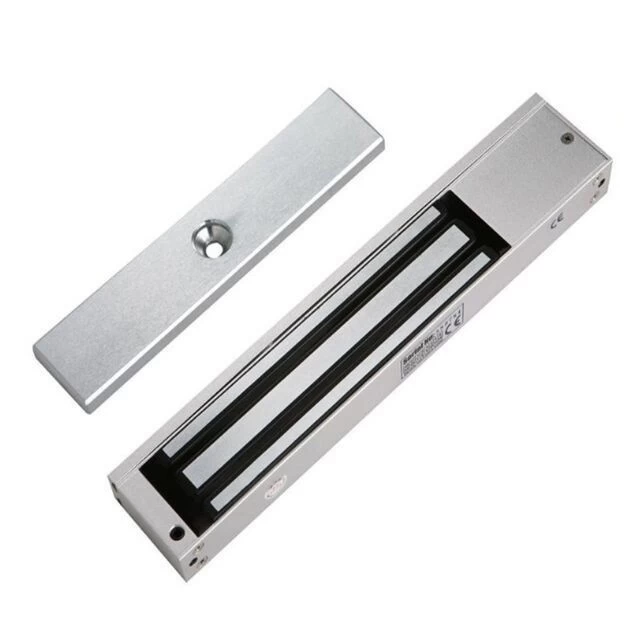

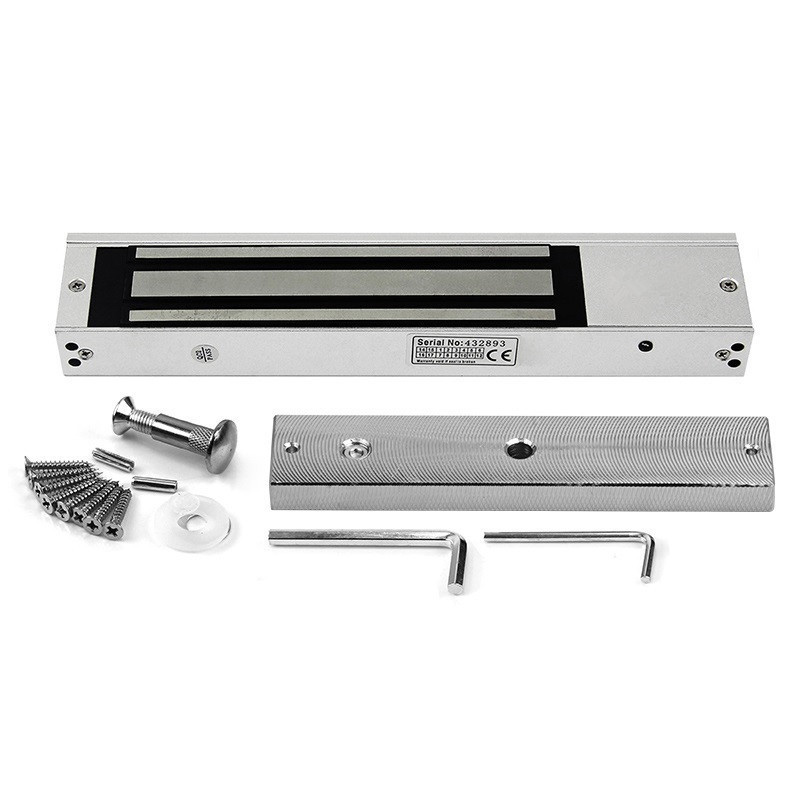

Material: Zinc Alloy Product size: 170Lx40Wx21H(mm) Power supply voltage: 12V, or 24V for optional Holding Force: 300lbs Suitable For: Wooden door , Glass door ,Metal door , Fireproof door Surface Temperature: ≤+20℃ Suitable Temperature: 0~+55°C Operating Humidity: 0~90%(non-condensing)

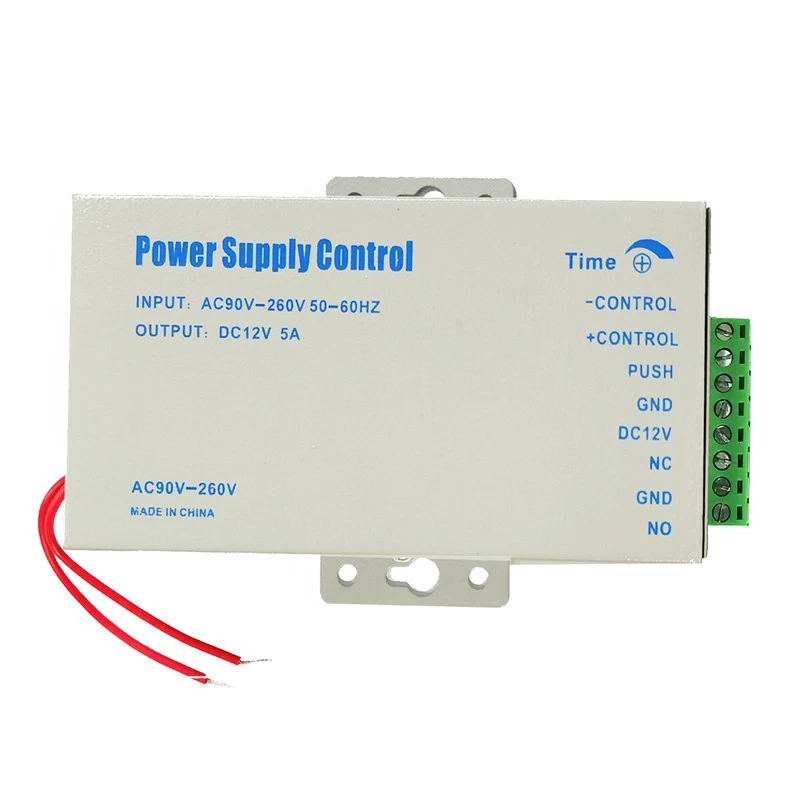

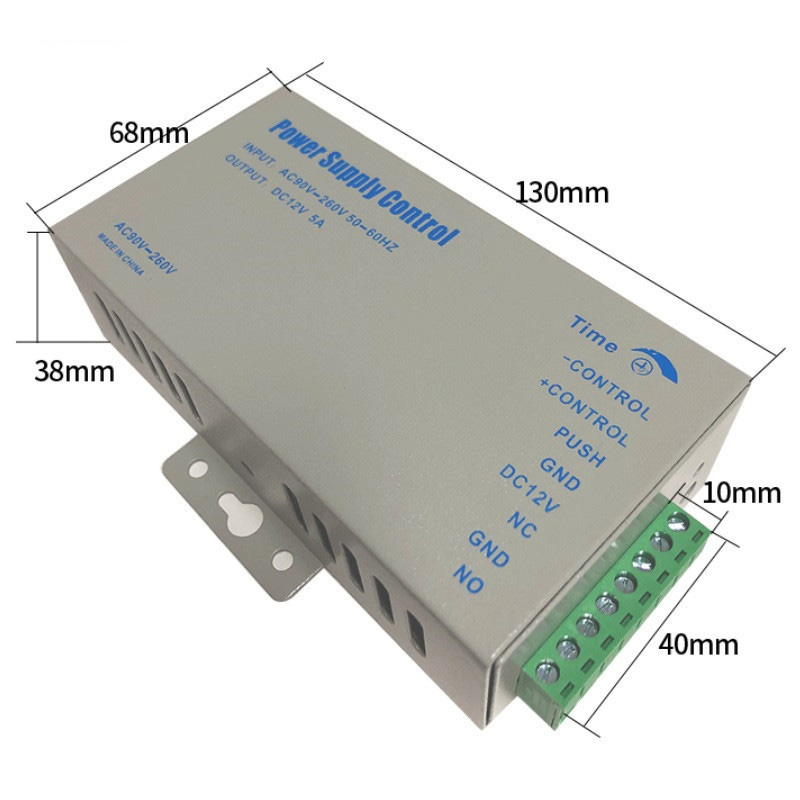

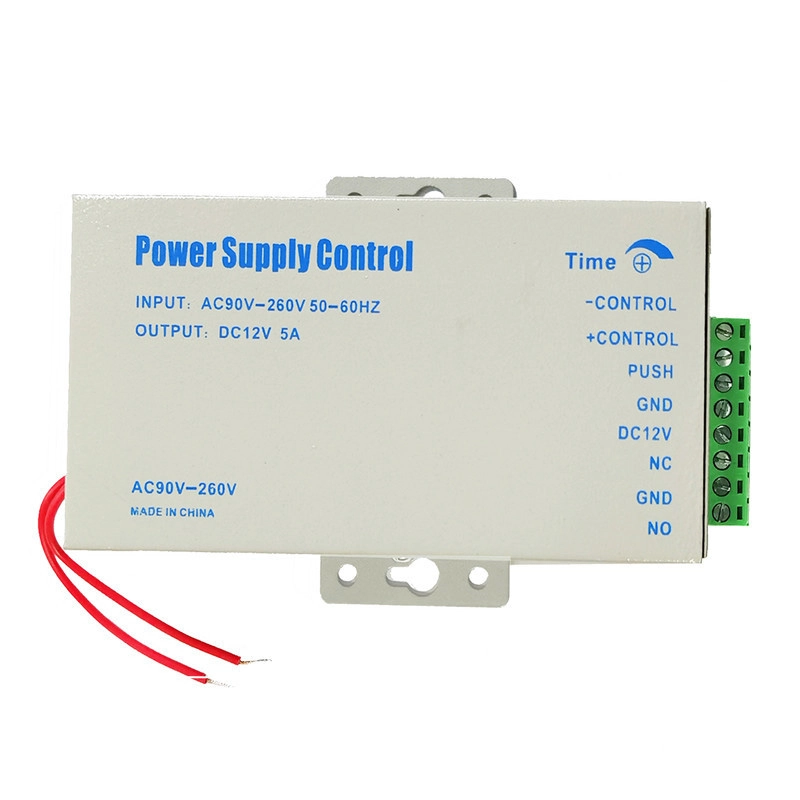

size: 130*68*38mm ripple voltage: Up ≤ 50mV Input voltage: AC 220V Input Frequency: 50Hz Output voltage: DC12V Output current: 5A

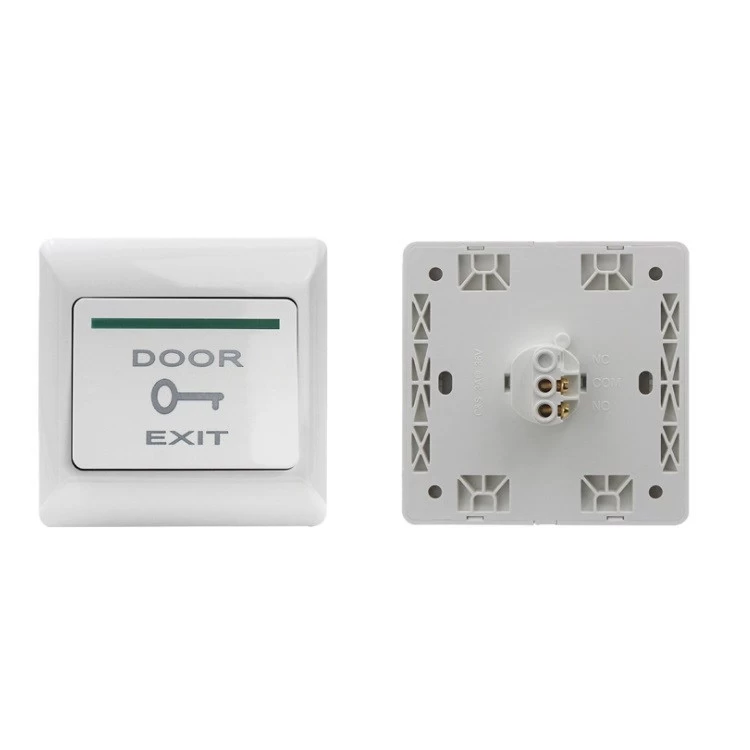

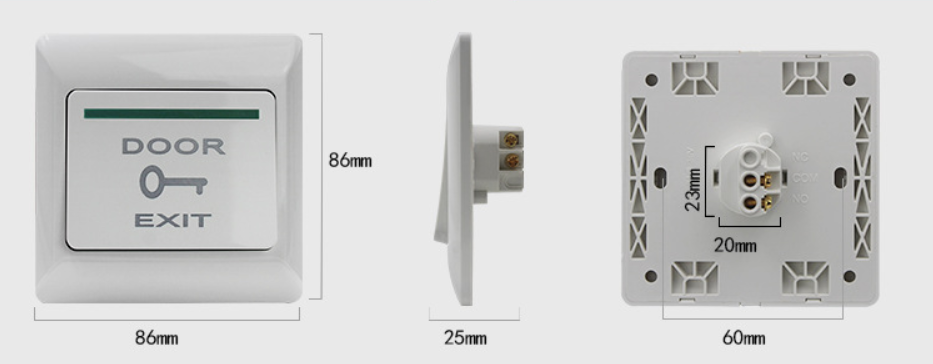

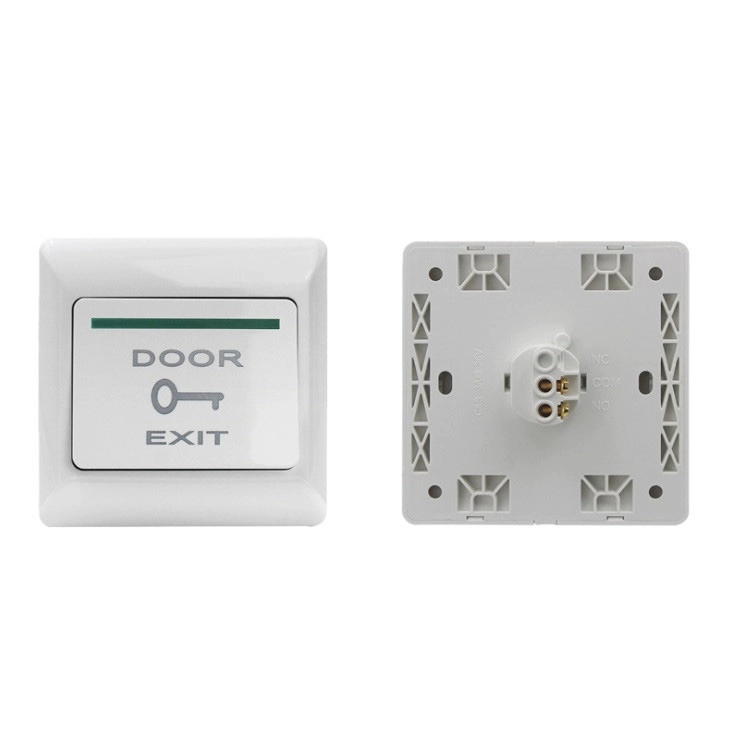

Product Name: Touch Screen LED Door Exit Button Switch Material: Fireproof PVC Material Faceplate Product size: 86Lx86Wx20H(mm) Power supply voltage: 12VDC Contact output: NO/NC/COM /LED Maximum current: 3A / 36DC Endurance test: 1000000 tested Installation: hollow door frame

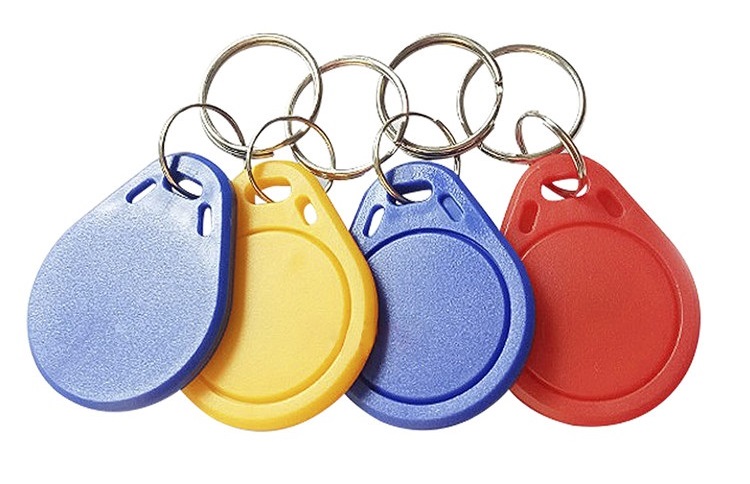

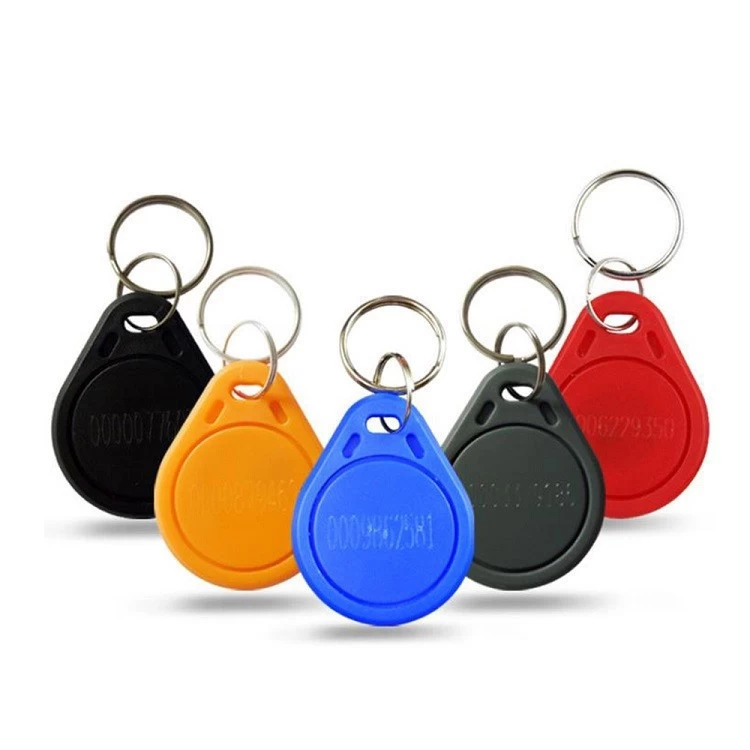

Color: Blue,Yellow,Red,Orange,Black,Grey,White or customized Function: Build RFID chip inside, read/write Memory: 64bits or depends on different chip Operating Frequency: 125khz,13.56MHz,or according to the chip Chip: TK4100 or others Resistance: IP67 Certificate:ISO,ROHS,FCC,CE Data Transmission Speed: 106 Kboud Read Distance: 1-30mm Read/Write time: 1-3(ms) Read Times: >100 000 Data Retention: >10 years Optional Technology: 1) Silk-screen Printing Logo/image/graphic... 2) Laser engraving serial numbers 3) Chip encoding
