Product Name: Standalone waterproof 125khz rfid card keypad metal access control
Unlock relay: 12VDC/2A
Electric lock output: Max 3A
Alarm output: Max 20A
Effective Cards: 2000
Password: 4 digit PIN code
Compatible Cards: 125KHz EM standard card
Card Reading Distance: 1.18~2.36in
Size: 4.64*2.2*0.78in
Package Includes: 1* Access Control+1 *Installation Kit+1* English User Manual
Product Description

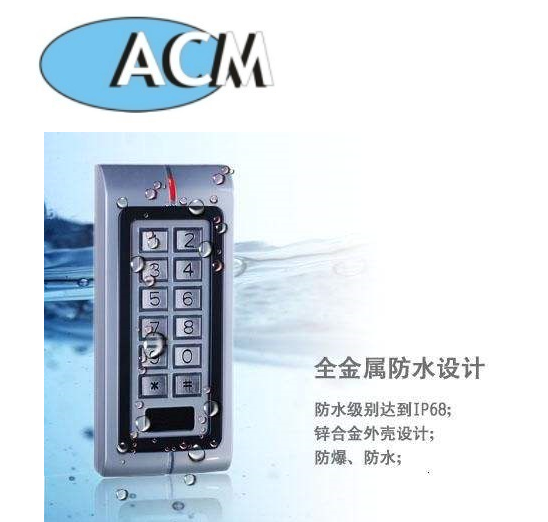

Standalone waterproof rfid metal single door keypad access control with alarm
Power Supply:
12VDC + 10%
Doorbell button:
1
Interface to an alarm
1
Add-in Reader Interface
TCP/IP
Size:
2 readers
Unlock relay:
1
Electric lock output:
Wiegand 26 /32/34 (Motorola, , EM, 13.56Mhz, TI,
Fingerprint, Handkey, IRIS…)
Alarm output:
1-600 Seconds Adjustable
Output short-circuit
protection time:
No Limitation
Effective Cards:
ACCESS
Ambient temperature:
100M for TCP/IP
Relative humidity:
-40 - 70
Password
12 VDC
Compatible Cards
10,000
Card Reading Distance
30,000
Electric locking interface
Flash ROM, no data loss
Open access
100m
Character of this access control reader
-1, Anti-theft alarm output for external alarm device
-2, With built-in-anti-theft equipment
-3, Users can reset private passwords
-4, Use keypad to delete lost cards for safety
-5, Strong Zinc Alloy Electroplated anti-vandal case
-6, IP68 Waterproof design for outdoor use
-7, Capacity: 2000 user's cards, 2000 codes
-8, Access ways: Cards, code, card with code
-9 Short-circuit protect: When relay or alarm output short circuit, it will shut up in 0.1ms
-10, Memory protects programmed information in case of power loss
-11, Adjustable Door Relay time 0~99 seconds
-12, can be programmed for use with a Wired doorbell
-13, Adjustable Door Output time, Alarm time,Door Open time
-14, WG output W26 for card and W34 for codes
-15, Strong standalone function device can be used as WG26 reader alone
-16, Lower power: Static current less than 30mA

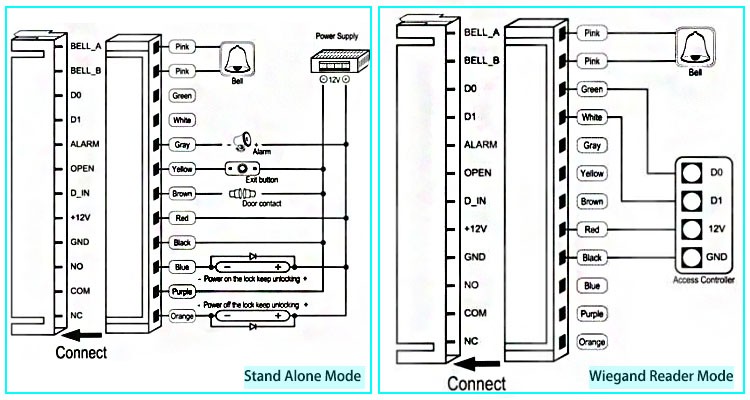

This reader can work work as a stand alone RFID access control reader ,also it can work as a normal wiegand 26 reader which can connect to the control board to control the door . Following is the wire connection of the 2 working mode .

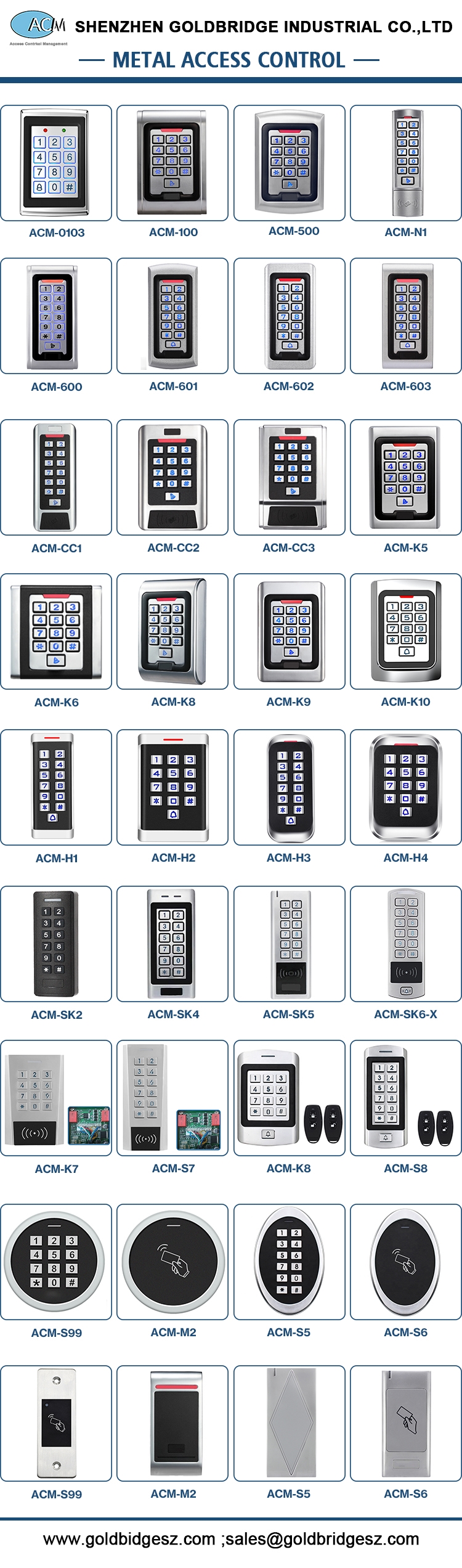

Related Products:

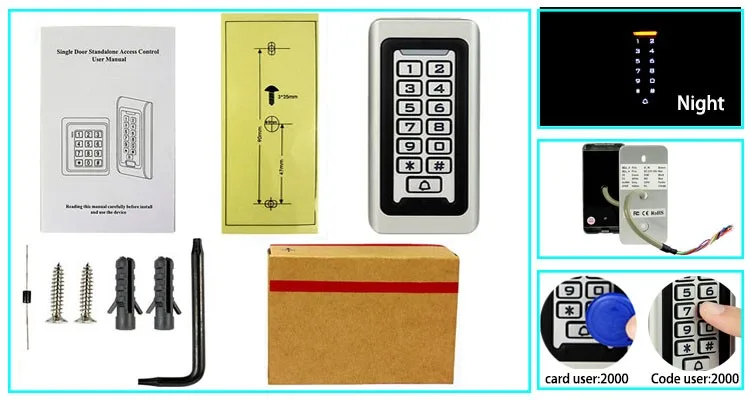

Detailed Image
Supports Wiegand 26 output, can be used as a card reader door access control
