Standalone waterproof rfid metal single door keypad rfid access control system with alarm

  • Special Features: Waterproof / Weatherproof
  • Customized support: Software reengineering, Customized logo, Online technical support, OEM, ODM
  • Place of Origin: Guangdong, China
  • Brand Name: ACM
  • Model Number: ACM-208
  • Type: standalone rfid access controller
  • Product Name: Standalone waterproof 125khz rfid card keypad metal access control
  • Unlock relay: 12VDC/2A
  • Electric lock output: Max 3A
  • Alarm output: Max 20A
  • Effective Cards: 2000
  • Password: 4 digit PIN code
  • Compatible Cards: 125KHz EM standard card
  • Card Reading Distance: 1.18~2.36in

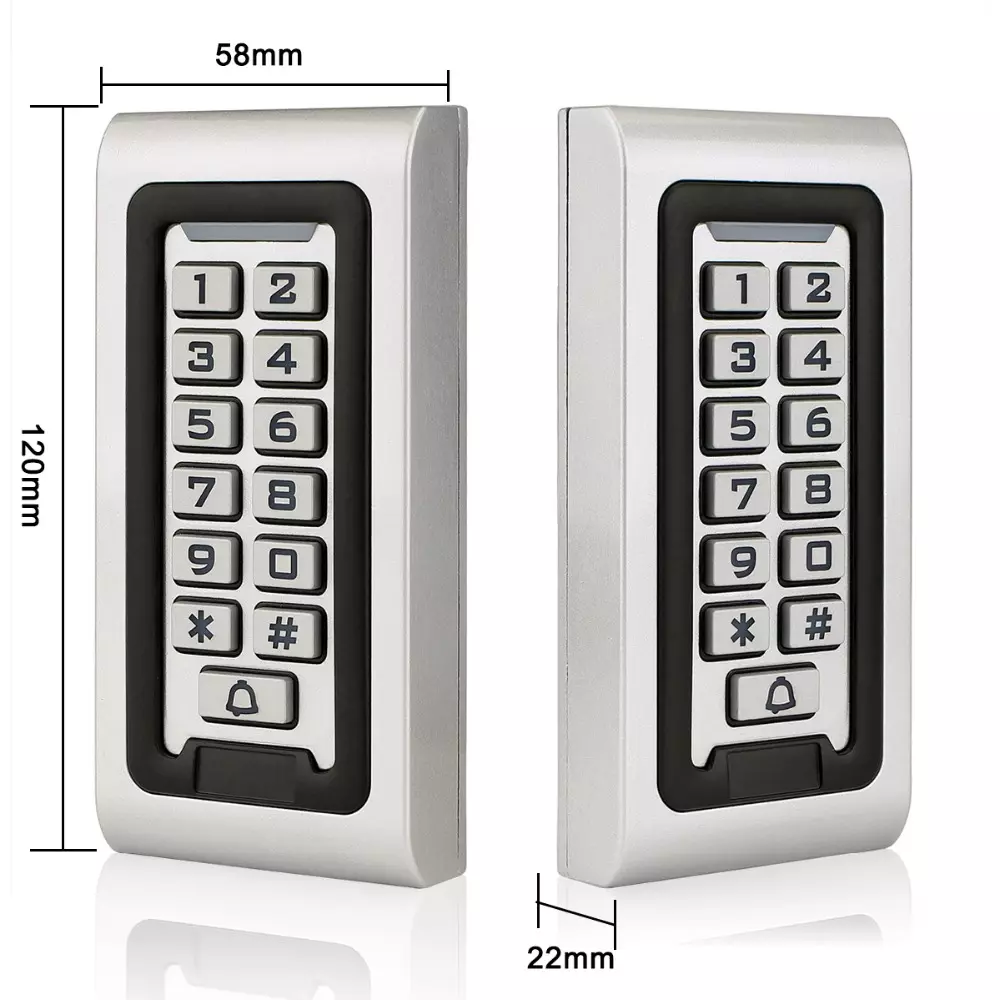

  • Size: 4.64*2.2*0.78in

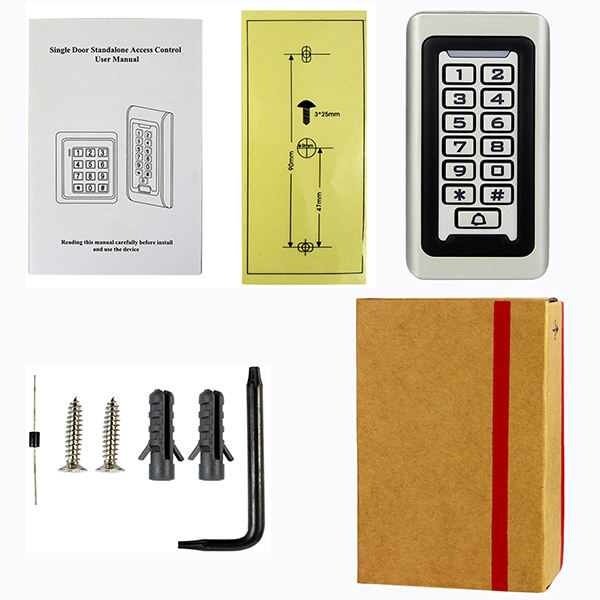

  • Package Includes: 1* Access Control+1 *Installation Kit+1* English User Manual
Product Description

Standalone waterproof rfid metal single door keypad access control with alarm



Standalone waterproof rfid metal single door keypad rfid access control system with alarm

Power Supply:

   12VDC + 10%

Doorbell button:

1

Interface to an alarm

1

Add-in Reader Interface

TCP/IP

Size:

2 readers

Unlock relay:

1

Electric lock output:

Wiegand 26 /32/34 (Motorola, , EM, 13.56Mhz, TI,

Fingerprint, Handkey, IRIS…)

Alarm output:

1-600 Seconds Adjustable

Output short-circuit

protection time:

No Limitation

Effective Cards:

ACCESS

Ambient temperature:

100M for TCP/IP

Relative humidity:

-40 - 70

Password

12 VDC

Compatible Cards

10,000

Card Reading Distance

30,000

Electric locking interface

Flash ROM, no data loss

Open access

100m



Character of this access control reader

-1, Anti-theft alarm output for external alarm device
-2, With built-in-anti-theft equipment
-3, Users can reset private passwords
-4, Use keypad to delete lost cards for safety
-5, Strong Zinc Alloy Electroplated anti-vandal case

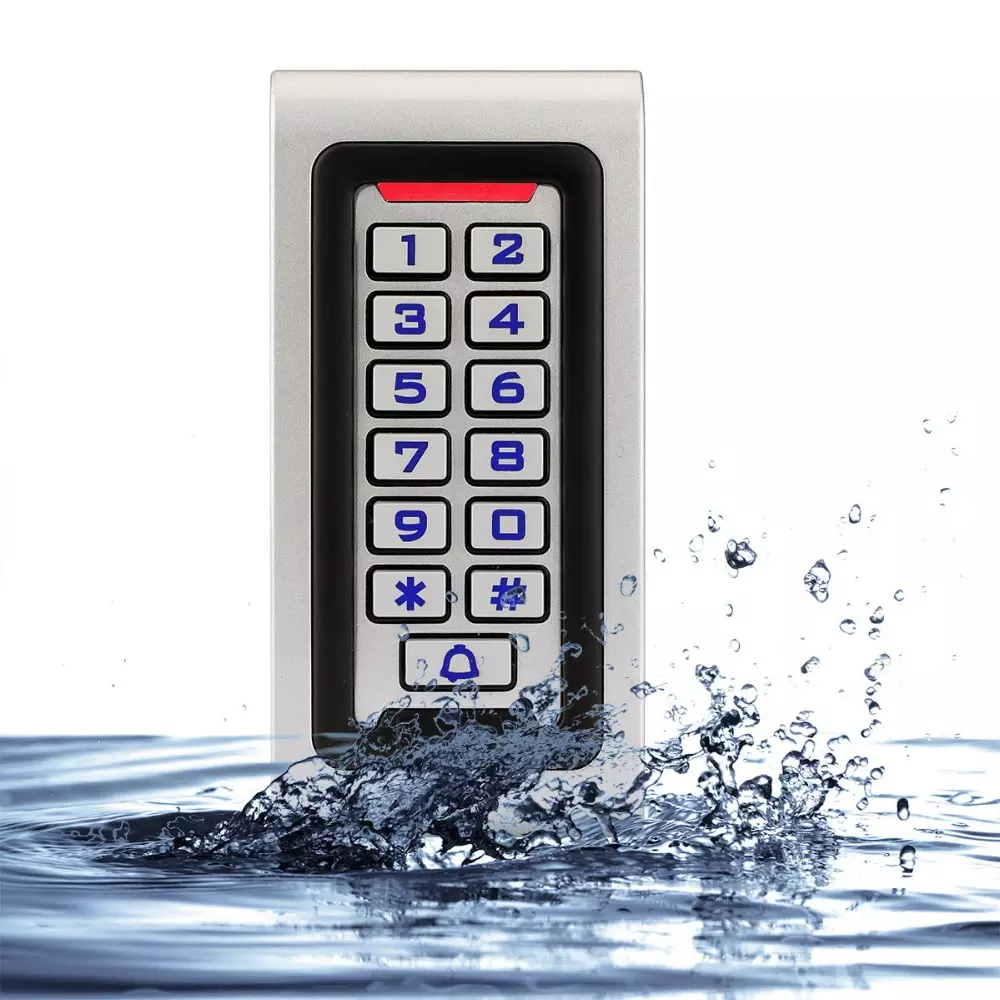

-6, IP68 Waterproof design for outdoor use
-7, Capacity: 2000 user's cards, 2000 codes

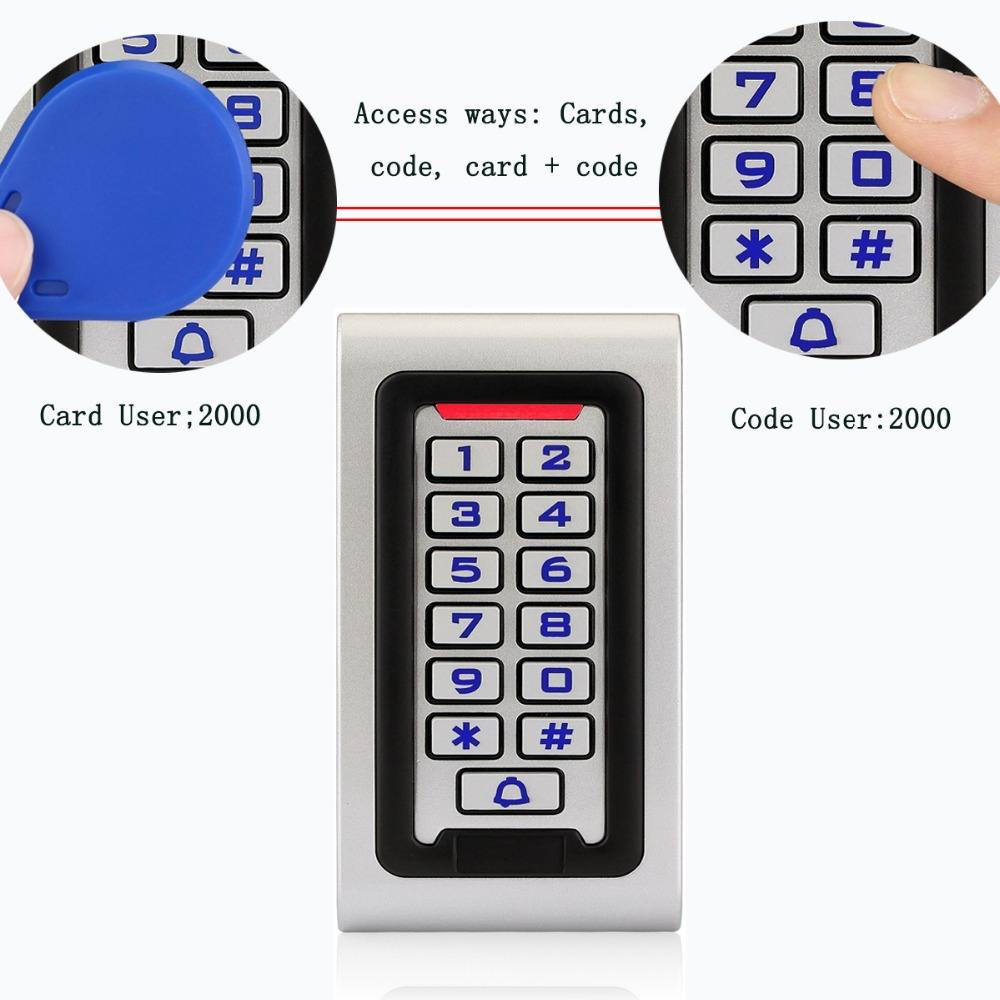

-8, Access ways: Cards, code, card with code
-9 Short-circuit protect: When relay or alarm output short circuit, it will shut up in 0.1ms
-10, Memory protects programmed information in case of power loss
-11, Adjustable Door Relay time 0~99 seconds
-12, can be programmed for use with a Wired doorbell
-13, Adjustable Door Output time, Alarm time,Door Open time
-14, WG output W26 for card and W34 for codes
-15, Strong standalone function device can be used as WG26 reader alone
-16, Lower power: Static current less than 30mA

Standalone waterproof rfid metal single door keypad rfid access control system with alarm

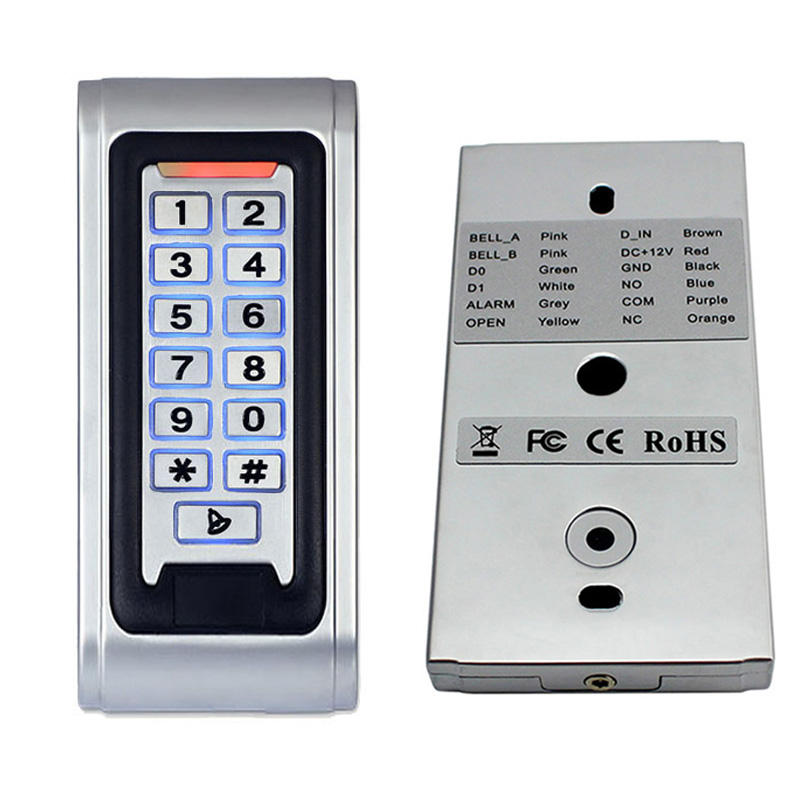

This reader can work work as a stand alone RFID access control reader ,also it can work as a normal wiegand 26 reader which can connect to the control board to control the door . Following is the wire connection of the 2 working mode .

 Standalone waterproof rfid metal single door keypad rfid access control system with alarm

Related Products:

Standalone waterproof rfid metal single door keypad rfid access control system with alarm

Detailed Image

Supports Wiegand 26 output, can be used as a card reader door access control



Our Service

1, Any inquires will be replied within 24 hours

2, Professional manufacturer and supplier, Welcome to visit our website and our factory
3, OEM/ODM Available
4, High quality, fashin desing, reasonable & competitive price, fast lead time
5, After-sale Service :
1), All products will have been strictly quality checked in house before packing
2), All products will be well packed before shipping
3), All our products have 2-3 year warranty if the damage is not caused by human
6, Faster delivery : Around 1~ 5 days for sample order, 7~30 days for bulk order
7, Payment : You can pay for the order via : T/T, Western Union, Paypal, Ali trade assurance
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, You also can choose your own shipping forwarder.
