China Wholesale Handheld Wired USB Barcode Scanning Reader USB Barcode Scanner Machine

  • Scan Element Type:CMOS
  • Colour Depth:32 Bit
  • Interface Type:usb
  • Max Paper Size:30CM
  • Optical Resolution:4mil
  • Scan Speed:200 Scans/sec
  • Brand Name:SYC
  • Place of Origin:Guangdong, China
  • Voltage requirement:5VDC±10%
  • Current consumption:120mA Max
  • Dimensions:97mm H x 67mm W x 165mm
  • Weight::220g
  • Bit Error Rate:1/500W
  • Enviromental:Friendly
  • EMI/RFI:FCC Part 15 Class B,EN 55024

China Wholesale Handheld Wired USB Barcode Scanning Reader USB Bar Code Scanner Machine



High performance handhelp barcode scanner using the custom chip of silicone labs. Humanization design is to upgrade the comfort of operation. This product is durable and had high performance that fully meet different scanning application environment. It widely used for supermarket retails, logistics express, medical industry and factory inventory.



Specification of Scanner:

Material

ABS+PVC+PC

Size

L*W*H: 157mm*71mm*90mm

Power Supply

DC 5V/300mA

Weight

120±5g (without cable)

Interface Supported

USB, RS-232

Sensor

Flat CMOS Sensor

Light Source

Red LED sights + white LED light

Processor

32-bit MCU

Decode Capability

1D: Codabar,Code11,Code39/Code93,UPC/EAN, Code128/EAN128,

InterLeaved2of5, Matrix2of5,MSI CODE, Standard2of5,ect.

2D: QR CODE,PDF 417,Data Matrix.

Resolution

Code39 5mil, QR 8.7mil, PCS45%

Depth of Field

5MIL   CODE39:       5--12   CM

15MIL  CODE39 :      4--25   CM

10MIL  CODE93 :      4--21   CM

15MIL  UPC/EAN:      4--25   CM

20MIL  QR :              4--25   CM

Decoding Speed

200 scans/sec

Trigger mode

Trigger buttons, Automatic successive scanning

Scanning Area

5*5 cm² - 30*30 cm²

Prompting Mode

Buzzer, Indicator light(LED)

Print Contrast

35%

Scan Angles

Roll 0-360°, Pitch±65°, Yaw±60°

Operating Temp

0 to 50 ºC / 32 to 122 ºF

Storage Temp

0 to 50 ºC / 32 to 122 ºF

Operating Humidity

5 - 95% (non-condensing)

Shock Resistance

1.5m free fall on concrete surface

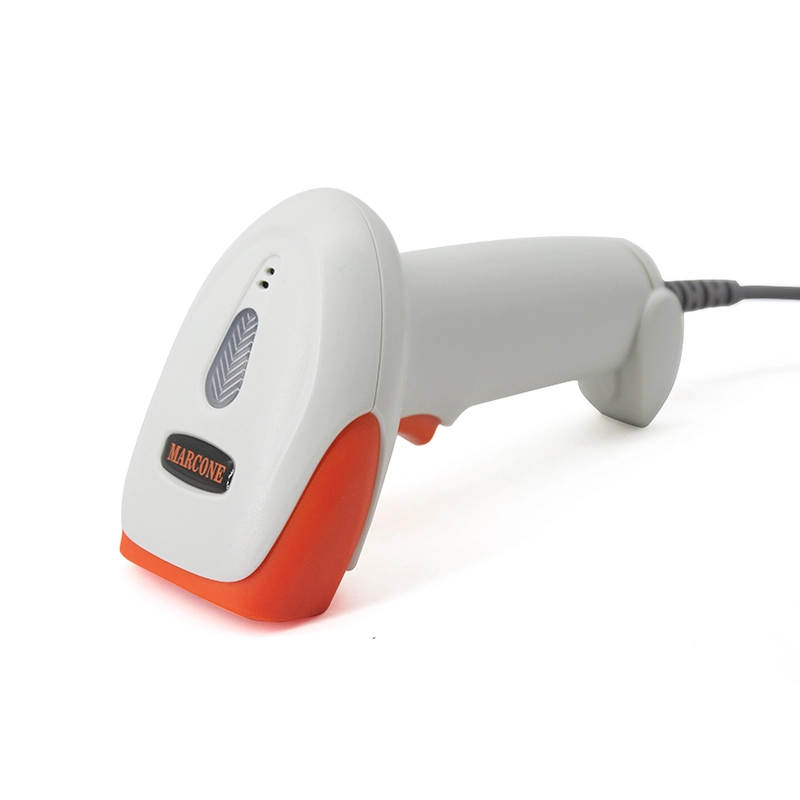

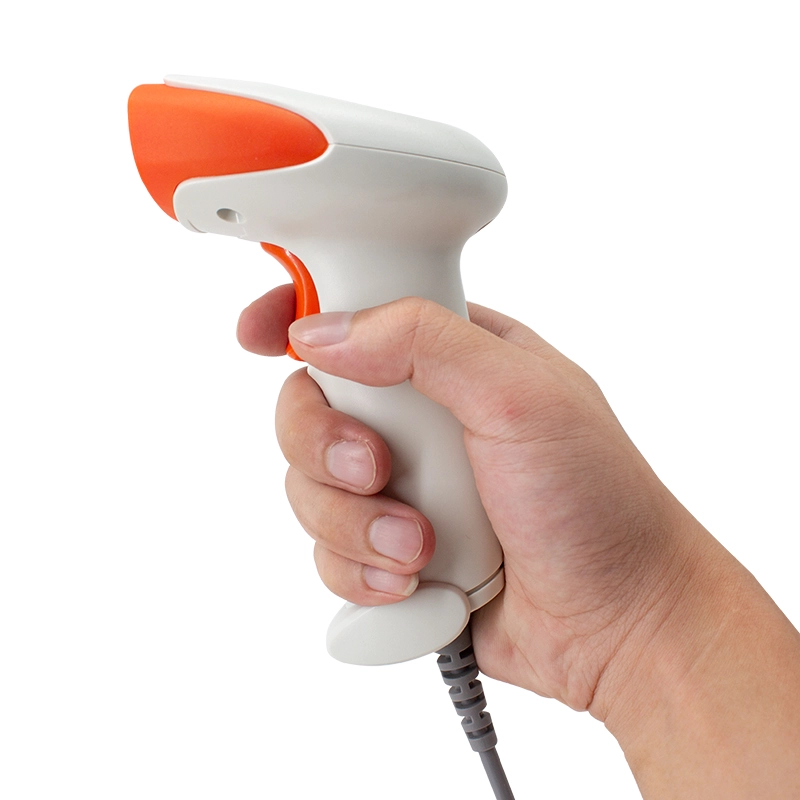

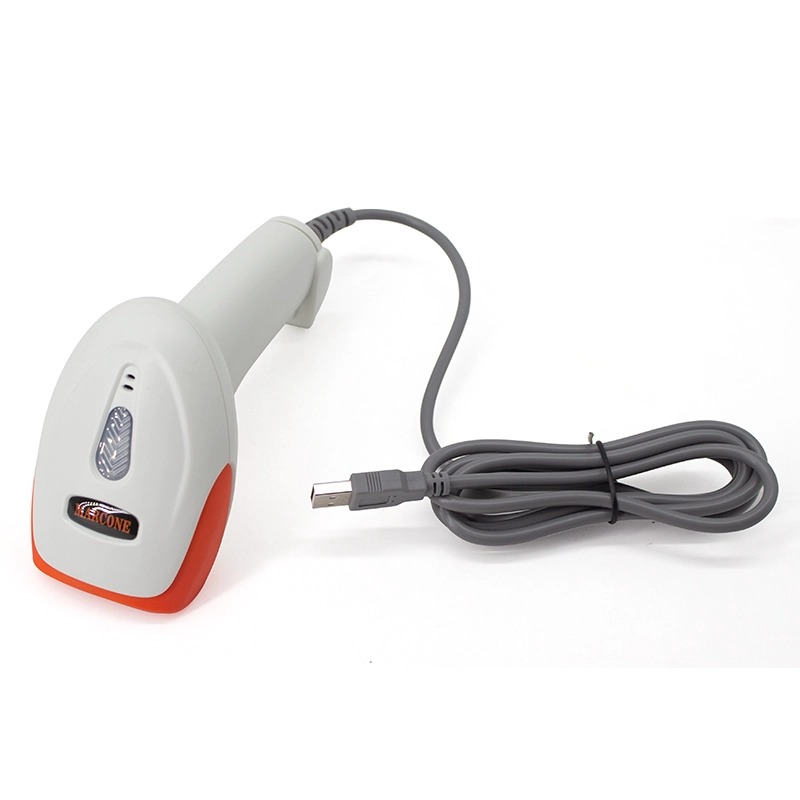

Pictures of Scanner:

China Wholesale Handheld Wired USB Barcode Scanning Reader USB Barcode Scanner MachineChina Wholesale Handheld Wired USB Barcode Scanning Reader USB Barcode Scanner MachineChina Wholesale Handheld Wired USB Barcode Scanning Reader USB Barcode Scanner MachineChina Wholesale Handheld Wired USB Barcode Scanning Reader USB Barcode Scanner Machine

China Wholesale Handheld Wired USB Barcode Scanning Reader USB Barcode Scanner Machine



China Wholesale Handheld Wired USB Barcode Scanning Reader USB Barcode Scanner Machine
