DC12V /24V Electromagnetic Lock Magnetic Lock 60Kg/100Lbs Holding Force For Showcase Cabinet Door Frameless GlassDC12V /24V Electromagnetic Lock Magnetic Lock 60Kg/100Lbs Holding Force For Showcase Cabinet Door Frameless GlassDC12V /24V Electromagnetic Lock Magnetic Lock 60Kg/100Lbs Holding Force For Showcase Cabinet Door Frameless Glass

DC12V /24V Electromagnetic Lock Magnetic Lock 60Kg/100Lbs Holding Force For Showcase Cabinet Door Frameless Glass

  • Item Parameter

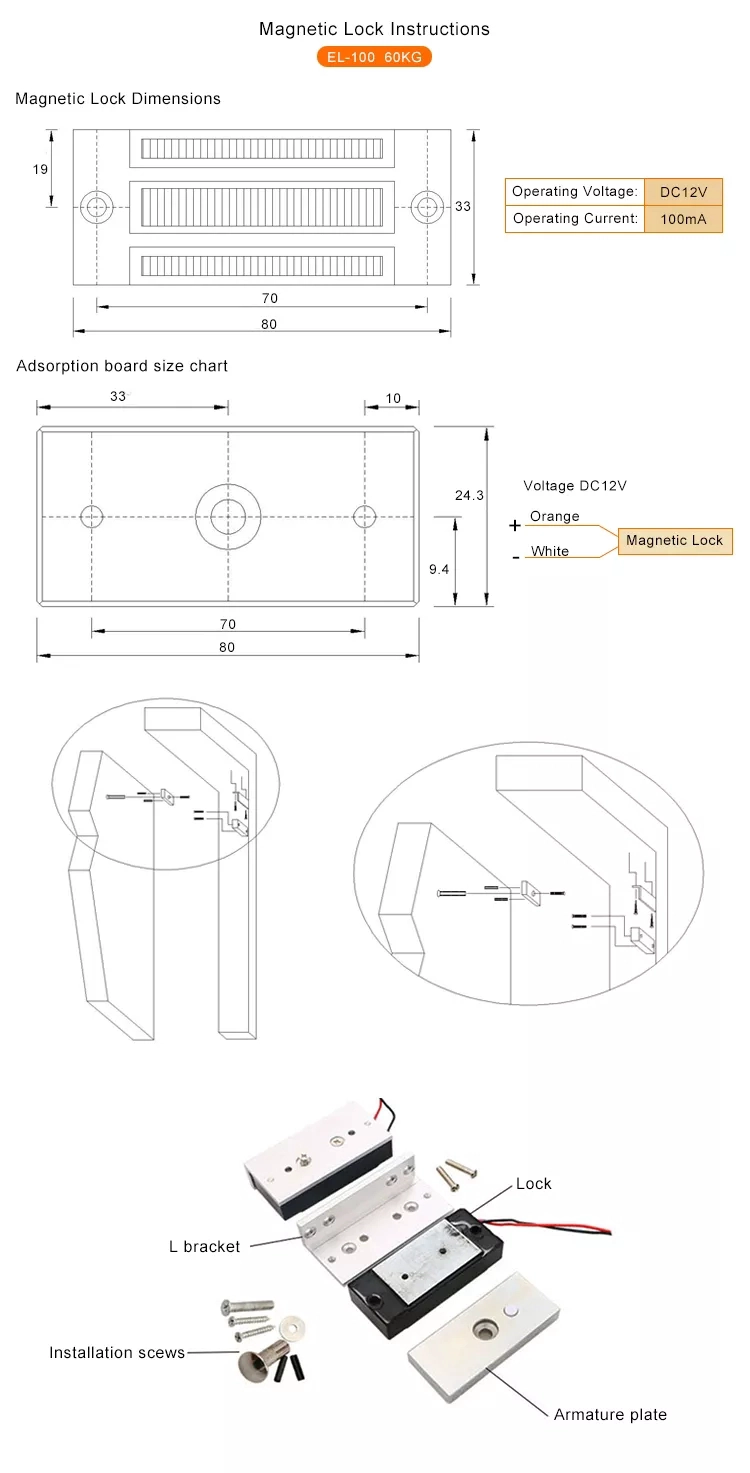

  • Lock size :79Lx40Wx23H(mm)
  • Armature plate:75Lx31Wx10H(mm)
  • Holding force:60kg(100Lbs)
  • Voltage:DC 12V
  • Current draw:2V/160mA
  • Suitable for File Cabinet, Display Cabinet
  • Operating temp:≤20°C
  • Surface temp:-10℃ ~ 55℃ (14°F~131°F)
  • Suitable humidity:0~90% (non-condensing)
  • Finishes for shell Anodized aluminum surface texture processing
  • Finishes for magnetic Zinc
  • Finishes for armature Zinc
  • Weight:0.6kg
  • Standard packing:60pcs

What is Electromagnetic Lock?

Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.

Electromagnetic locks are fail-safe by design.


Item Parameter

Lock size :79Lx40Wx23H(mm)

Armature plate:75Lx31Wx10H(mm)

Holding force:60kg(100Lbs)

Voltage:DC 12V

Current draw:2V/160mA

Suitable for File Cabinet, Display Cabinet

Operating temp:≤20°C

Surface temp:-10℃ ~ 55℃ (14°F~131°F)

Suitable humidity:0~90% (non-condensing)

Finishes for shell Anodized aluminum surface texture processing

Finishes for magnetic Zinc

Finishes for armature Zinc

Weight:0.6kg

Standard packing:60pcs

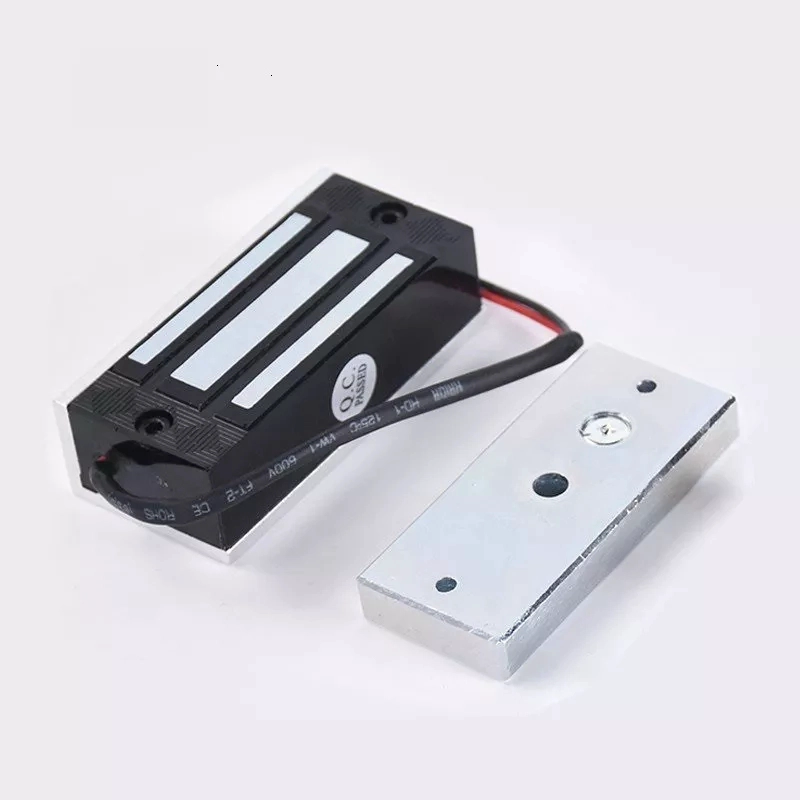

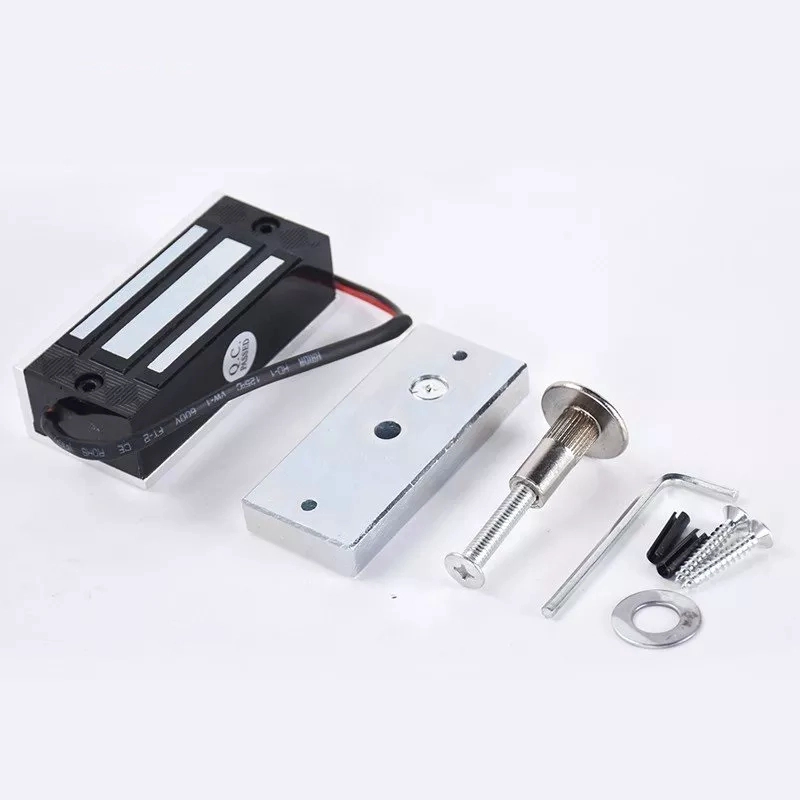

Mini single door electromagnetic lock 60Kg/100Lbs

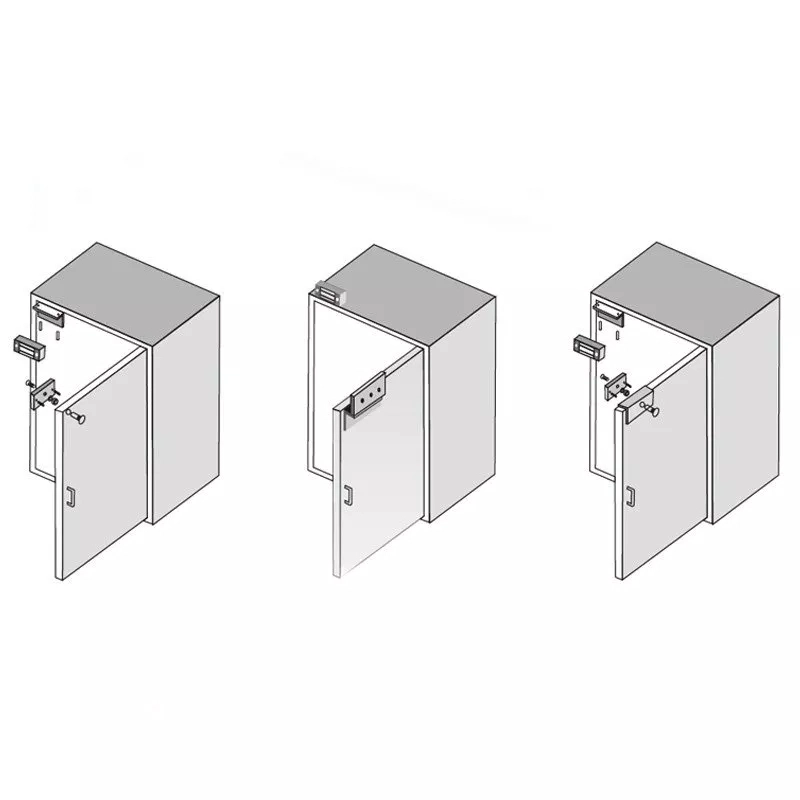

Mini single door electricmagnetic lock is for showcase,cabinet door,inward door,frameless glass door and narrow doorframe.Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable.
Features
Input Voltage: DC 12V~ DC24V
OperatingTemperature: -40~+50°C
Operating Humidity: 0-95%(non-condensing)
Holding Force: 60Kg/100Lbs
Dimension of Lock Body: 80x37x23mm
Dimension of Plate:75x33x12mm
MOV Provides reverse current protection
Anti-Residual magnetism designed
High strength material,anodized aluminum housing
Power ON lock, power off unlock
