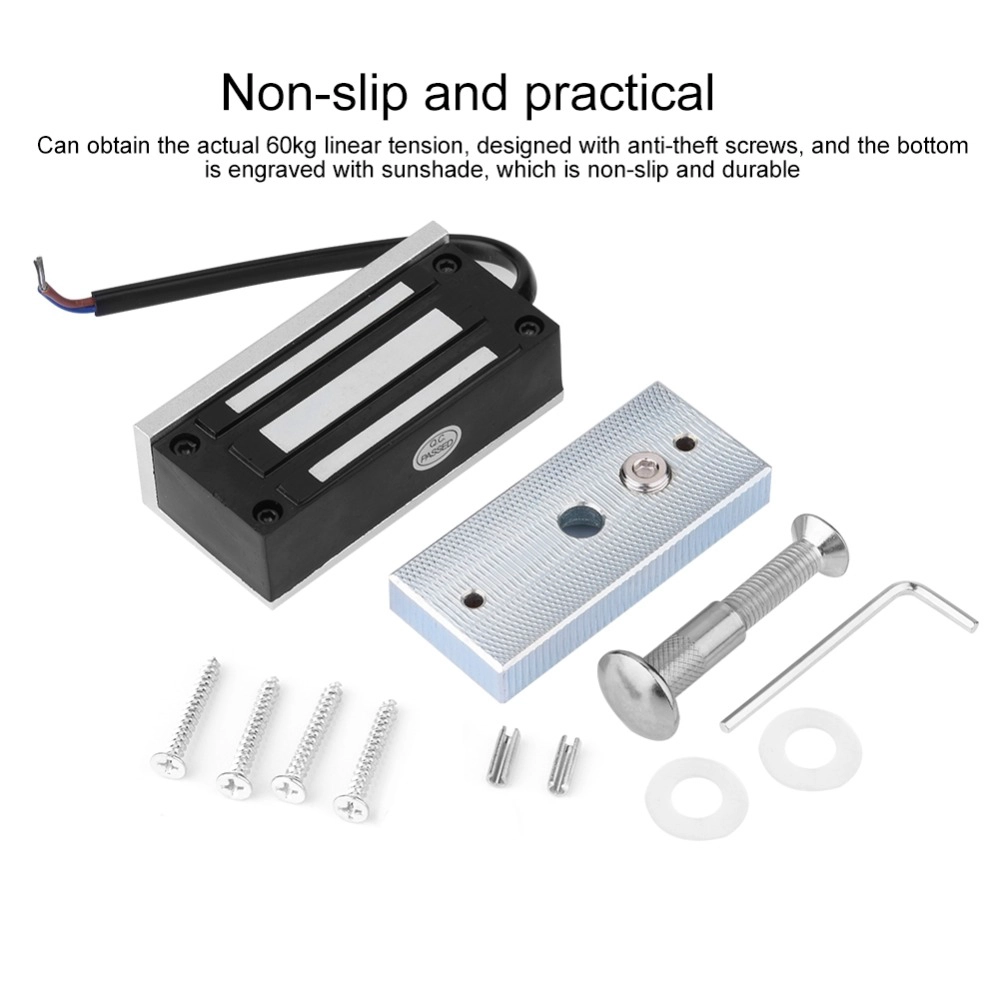

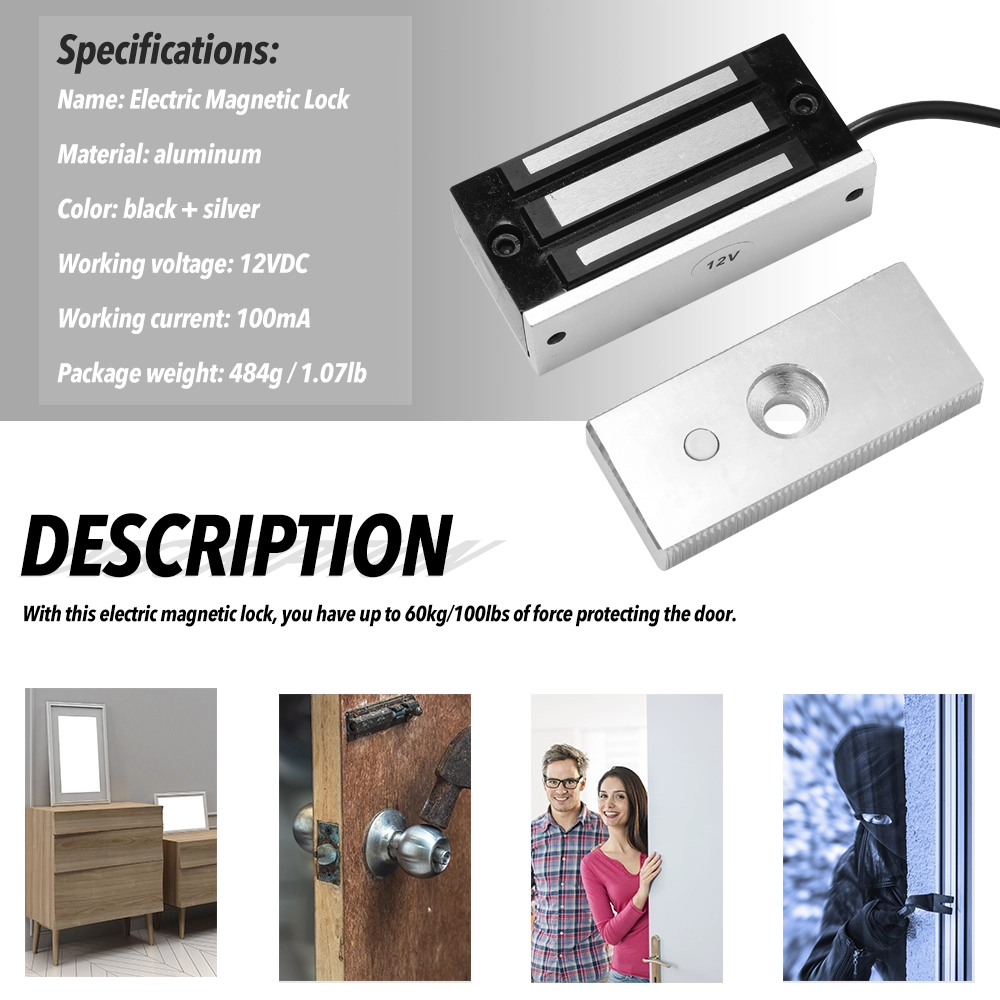

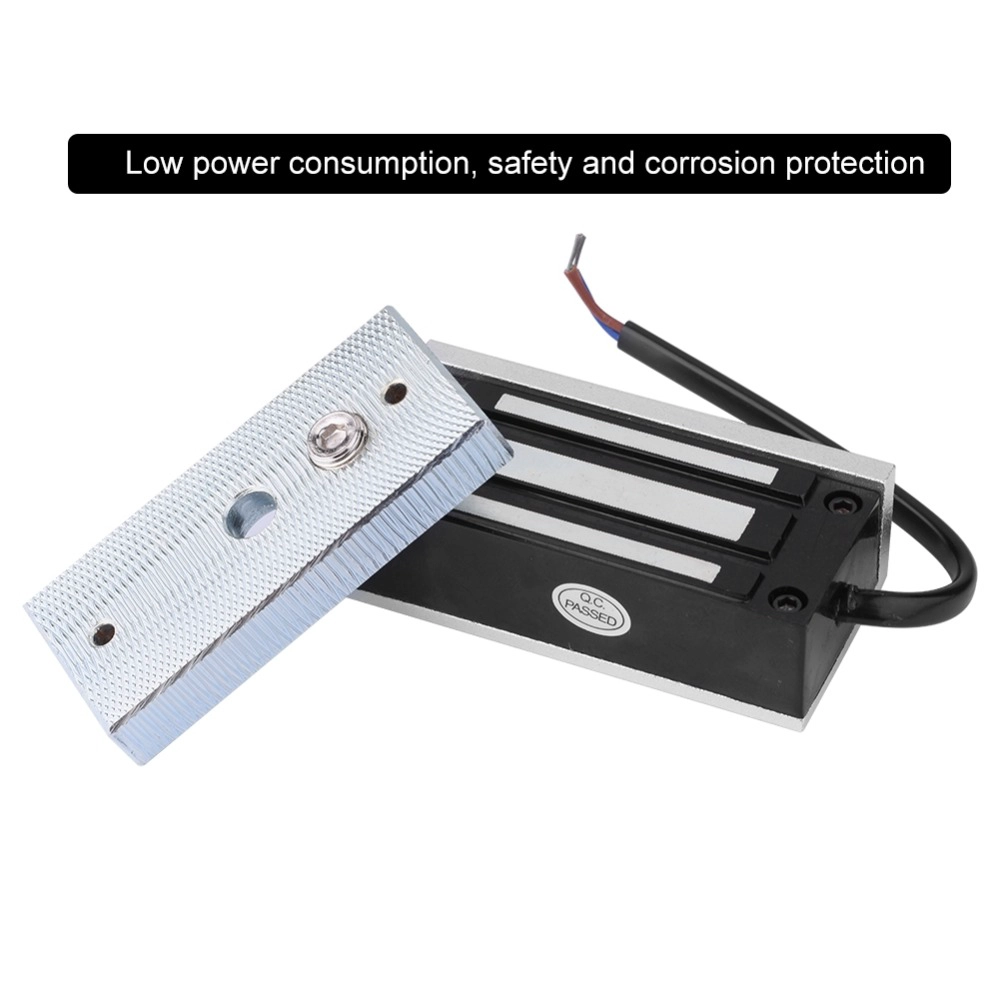

Surface Mounted 12V Magnetic Cabinet Lock 60kg 120lbs Holding Force Mini Electric Door Lock

  • Place of Origin: Guangdong, China
  • Brand Name: ACM
  • Certification: CE
  • Product Name: 12V DC Mini Solenoid Lock 60kg Magnetic Fail Safe Lock
  • Material: Copper
  • Holding Force: 60kg / 100lb
  • Voltage: DC 24V
  • Size: 80 * 38 * 25mm
  • Current: 12V / 120mA
  • Suitable: cabinet file, cabinet display
  • SURFACE TEMP: ≤ + 20 ℃
  • Operating Temp: -10 ~ + 55 ℃ (14-131F)
  • Weight: 0.6kg
Surface Mounted 12V Magnetic Cabinet Lock 60kg 120lbs Holding Force Mini Electric Door Lock
Type: 60KG Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 60KG/132lbs
Working Voltage: DC12V
Working Current: 110mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Work for single door

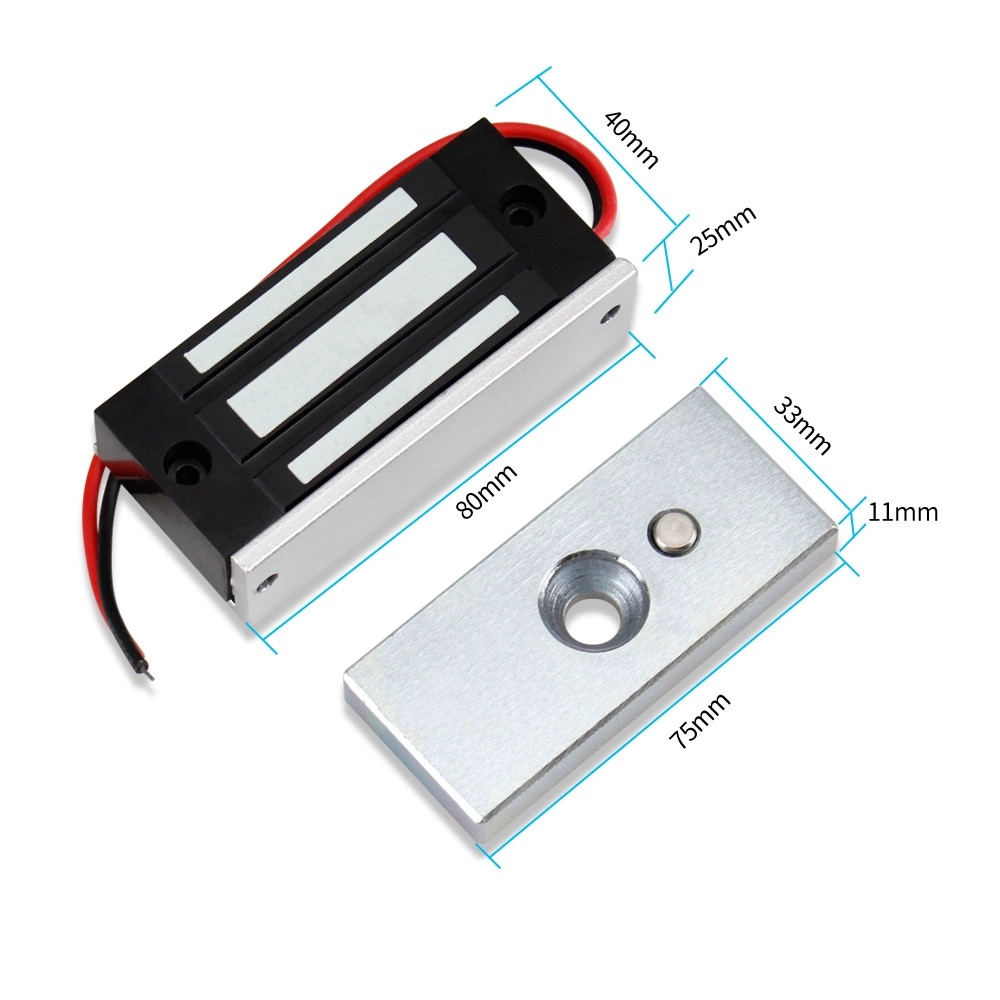

Dimension: 80*37*24mm/ 70*33*10mm
Product Parameter
Parameter Description
Lock Size :
80x38x25mm
Holding Force :
60kg (100Lbs)
Input Voltage :
12/24VDC Dual Voltage
Suitable for door:
Wooden door , Glass door ,Metal door , Fireproof door
Singal Output :
Lock singal Status NO/NC/COM/+/-
Feature:
Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage
LED:
Red shows unlocked, Green shows locked
Weight:
0.6kgs
Certification:
CE /MA
Product Advantage

1. 100% brand new and high quality
2. Secure mode: NC model (Locked when power on, unlocked when power off)
3. Aluminium alloy case, very strong and durable.
4. Can be opened by push button, remote controller, etc.
5. Using inner hexagon screw, equipped special spanner.

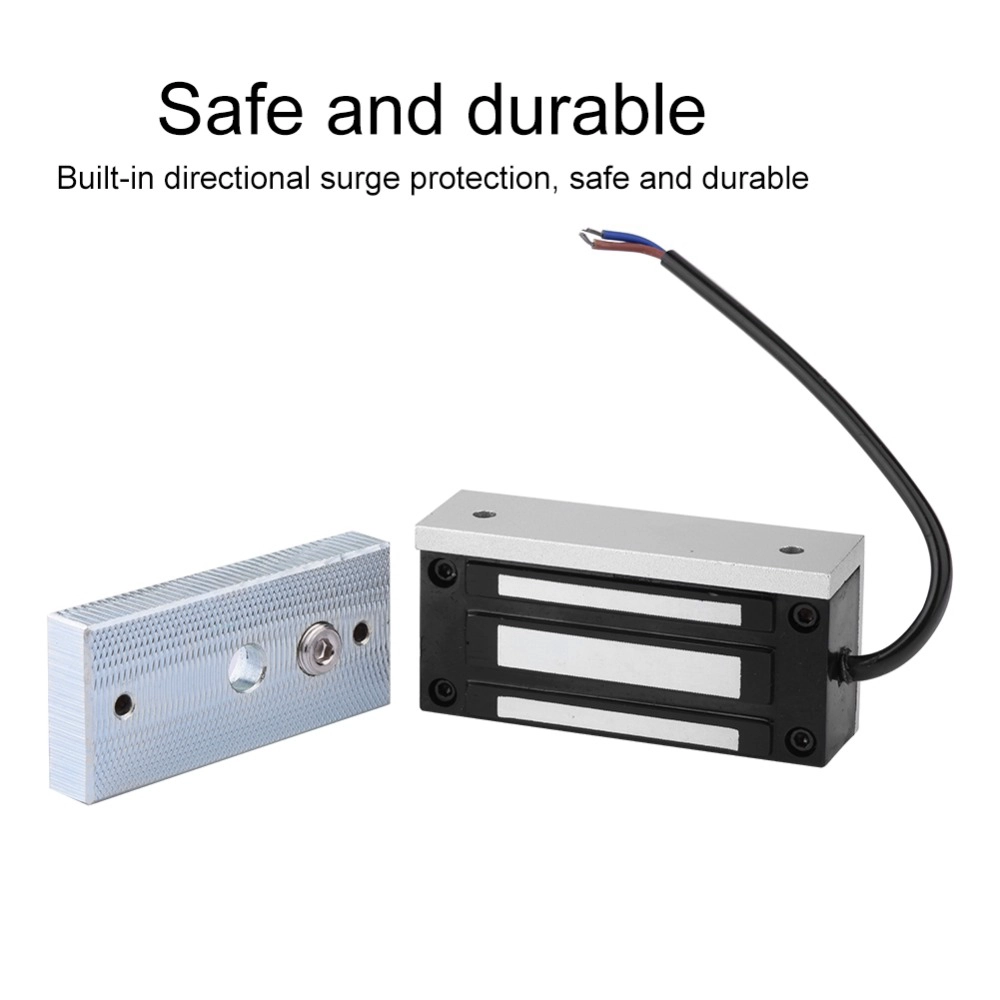

6. Holding force with 60KG(132Lbs). Built-in reverse current protection device(MOV)
7. Fine workmanship design, no mechanical wear and long service life.
8. Mini style, suitable for cabinet, drawer, small type door, and wooden, iron, glass door.

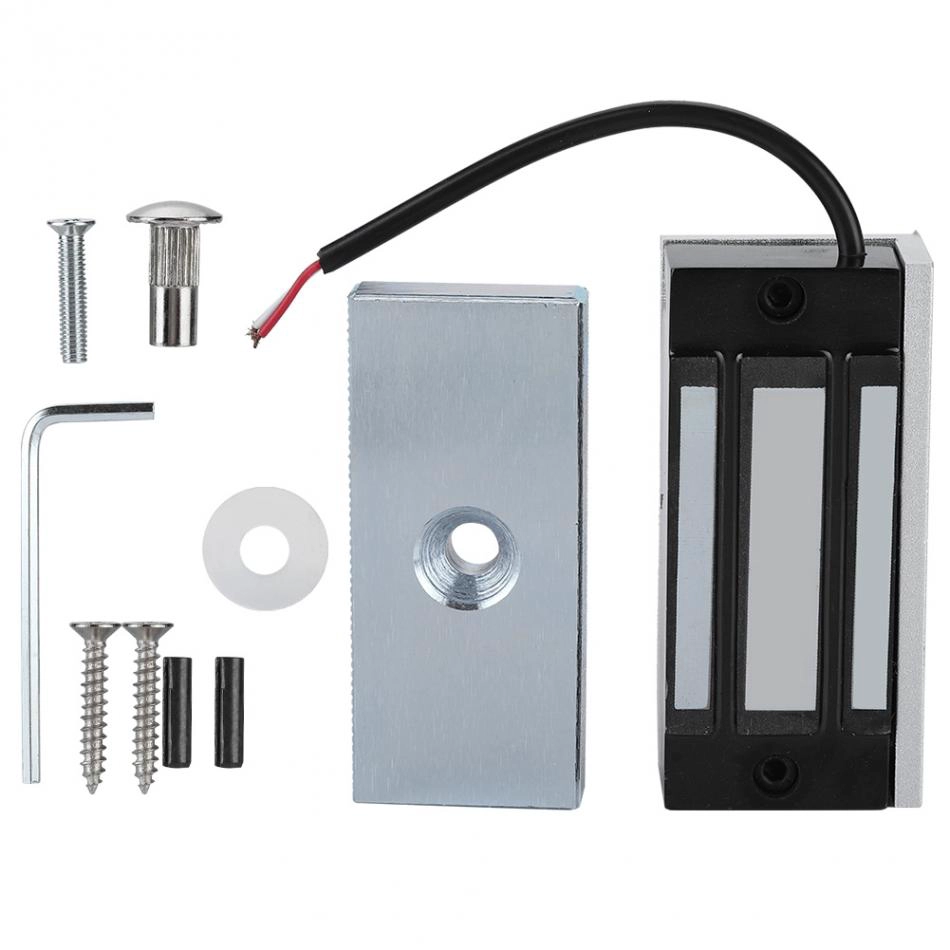

Package Including:
1* 60KG magnetic Lock
1* installation kit
1* user manual
Product Application
Instalation Diagram
